Rework 2 Kit
Easy to Solder SMT

Go to: More Kits

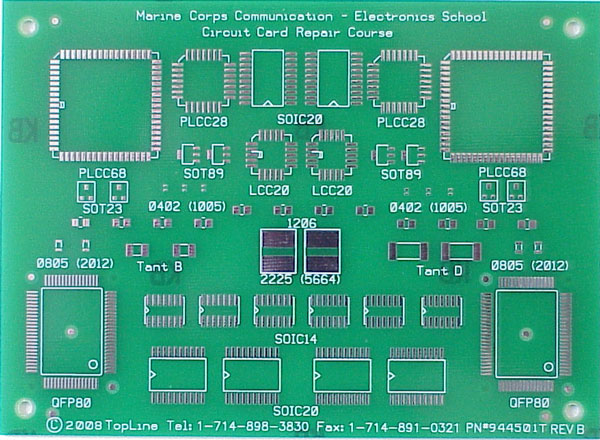

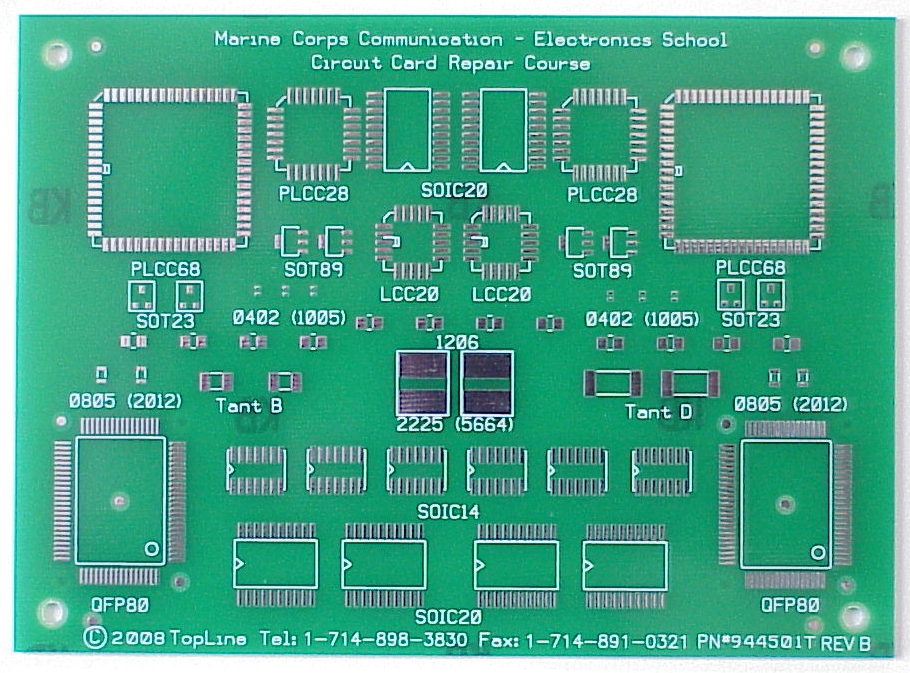

Enlarge: Enlarge Board
Board Size 4"x5.5" (10x14cm)

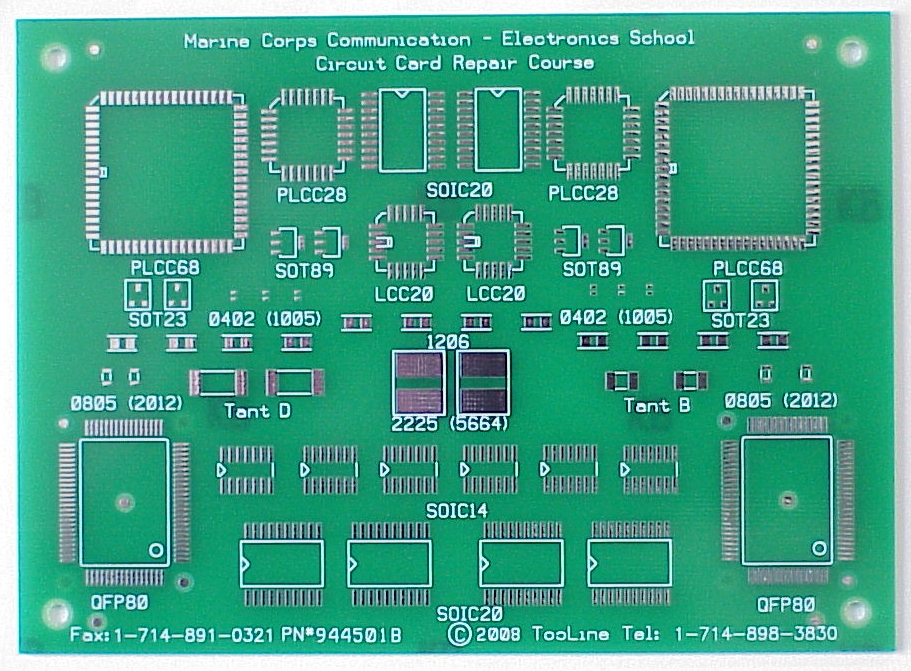

Same pattern repeated on bottom side.



TopLine SMT Introduction Beginners Kit. Includes Fine-pitch QFP, SOIC, SOT, PLCC, chip resistors, chip capacitors, tantalum cap, and more. Excellent way to introduce Surface Mount technology with easy to solder components.

Board Features:

  • Choice of Final finish:
        • HASL SnPb
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Plated Throughholes (PTH)
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)
    •
      BOM Kit Contents
    Rework 2 Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    944X00
    1 Kit
    Order #
    944X10
    10 Kits
    Order #
    944X25
    25 Kits
    Order #
    944X50
    50 Kits
    Order #
    944X99
    100 Kits
    Board HASL - SnPb
    X = 5
    4th Digit Order#    		 Tin-Lead 1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    QFP80
    Size 14x20mm
    Pitch 0.8mm (30mil)    		 2 2 20 50 100 200
    PLCC20
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC28
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    PLCC68
    Pitch 1.27mm (50mil)    		 2 2 20 50 100 200
    SO14
    Pitch 1.27mm (50mil)    		 6 6 60 150 300 600
    SOL20
    Pitch 1.27mm (50mil)    		 6 6 60 150 300 600
    SOT23
    Small Outline Transistor    		 4 4 40 100 200 400
    SOT89
    Small Outline Transistor    		 4 4 40 100 200 400
    TANTALUM B
    EIA 3528    		 2 2 20 50 100 200
    TANTALUM D
    EIA 7343    		 2 2 20 50 100 200
    0402 Chip
    Metric 1005    		 6 6 60 150 300 600
    0805 Chip
    Metric 2012    		 4 4 40 100 200 400
    1206 Chip
    Metric 3216    		 12 12 120 300 600 1200
    2225 Chip
    Metric 5664    		 2 2 20 50 100 200


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "944501b" Rework 2 Rev B
    Step 4. Download files


    Kit Order Number System
    944 5 # #
    Series Board Finish Quantity
    Rework 2

    Board Size:
    4"x5.5" (10x14cm)    		 5 = HASL
    2 = Tin (Sn)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 944501
    Tin (Sn) RoHS 944502
    ENIG Gold (Ni/Au) RoHS 944509
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.
