Universal BGA Practice Kit
1.27mm and 1.5mm Pitch

Go to: 937xxx BGA256/272 Kit

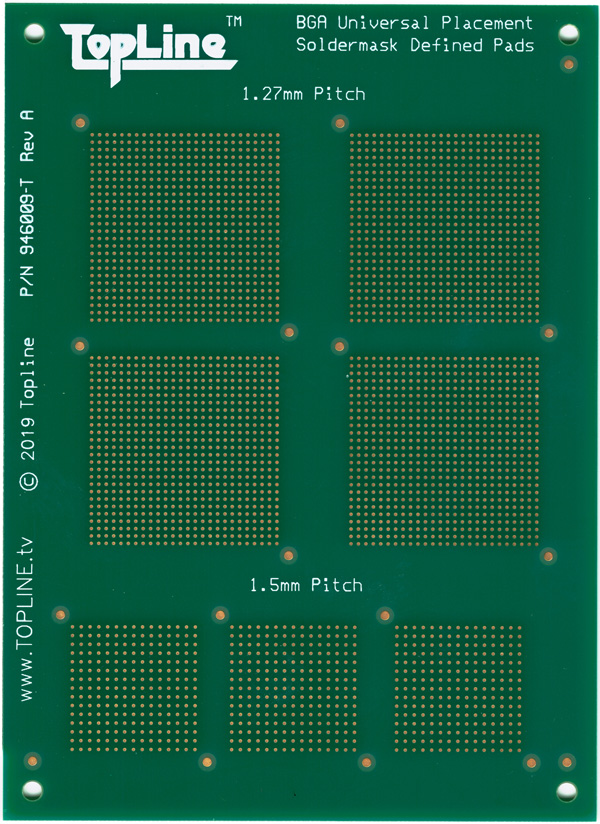

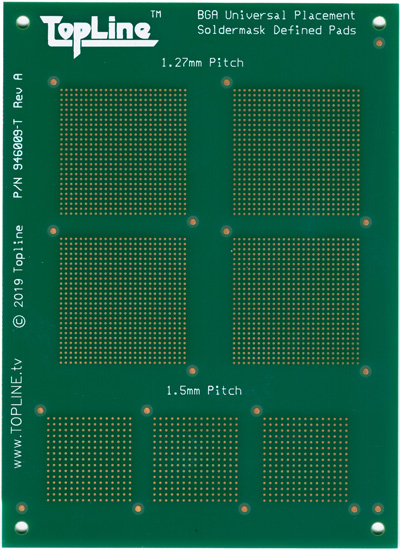

Enlarge: TOP SIDE
Board Size 4"x5.5" (10x14cm)
Non-Solder Mask Defined Pads repeated on bottom side.



TopLine Universal BGA practice Kit. Top side of board has Solder Mask Defined Pads (SMD). The bottom side of board has Non-Solder Mask Defined Pads (NSMD). 1.27mm and 1.5mm pitch BGA without Daisy Chain. Global and local IPC Fiducial marks. Put your skill to the test. Verify proper assembly of easy to solder BGA components.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm) SMEMA 3.1

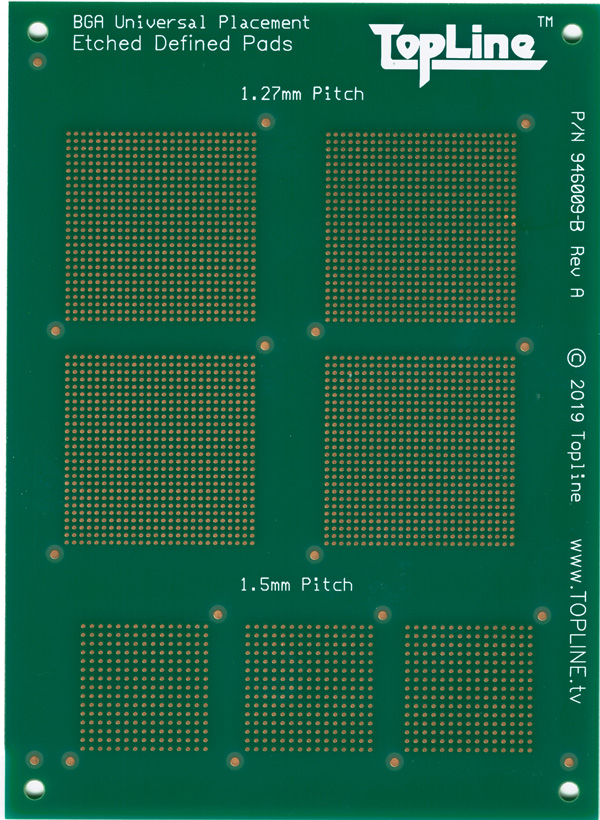

    Enlarge:  BOTTOM SIDE

    •
    Tin-Lead (Non-RoHS) BOM Kit Contents
    Rotational Placement Kit
    Kit Quantities Available
    SnPb Kit BOM Components
    Per
    Board
    Order #
    946000
    1 Kit
    Order #
    946003
    3 Kits
    Order #
    946005
    5 Kits
    Order #
    946010
    10 Kits
    Order #
    946025
    25 Kits
    Board HASL - SnPb Tin-Lead 1 3 5 10 25
    BGA 1.27mm Pitch
    Size ≤ 35mm x 35mm    		 4 4 12 20 40 100
    BGA 1.5mm Pitch
    Size 23mm x 23mm    		 3 3 9 15 30 75

    Lead Free (RoHS) BOM Kit Contents
    Rotational Placement Kit
    Kit Quantities Available
    Lead Free Kit BOM Components
    Per
    Board
    Order #
    946X0
    1 Kits
    Order #
    946X3
    3 Kits
    Order #
    946X5
    5 Kits
    Order #
    946X10
    10 Kit
    Order #
    946X25
    25 Kits
    Board - Tin (Sn)
    X = 2
    5th Digit Order#    		 RoHS Pb-Free 1 3 5 10 25
    Board Silver (Ag)
    X = 6
    5th Digit Order#    		 RoHS Pb-Free 1 3 5 10 25
    Board OSP (Cu)
    X = 8
    5th Digit Part#    		 RoHS Pb-Free 1 3 5 10 25
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    5th Digit Order#    		 RoHS Pb-Free 1 3 5 10 25
    BGA 1.27mm Pitch
    Size ≥ 27mm x 27mm    		 4 4 12 20 40 100
    BGA 1.5mm Pitch
    Size 23mm x 23mm    		 3 3 9 15 30 75


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "946001a" Universal BGA 1.27 / 1.5mm
    Step 4. Download files


    Tin Lead HASL
    Kit Order Number System
    946 00
    Series Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)    		 000 = 1 Kit
    003 = 3 Kits
    005 = 5 Kits
    010 = 10 Kits
    025 = 25 Kits
    050 = 50 Kits
    100 = 100 Kits

    Other quantites available.

    Lead Free
    Kit Order Number System
    946 X ##
    Series Board Finish Quantity
    Rotational

    Board Size:
    4"x5.5" (10x14cm)    		 2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    03 = 3 Kits
    05 = 5 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 946001
    Tin (Sn) RoHS 946002*
    Silver (Ag) RoHS 946006*
    OSP (Cu) RoHS 946008*
    ENIG Gold (Ni/Au) RoHS 946009
      *Check Availability


    Spare Parts
    Full range of RoHS Lead Free and Tin-Lead spare parts available.
    Ask for quote on Spare Parts Kit for second side of board.
    Contact TopLine for to discuss your requirements.


    Go to: BGA256/272 Kit
