4X SIR Coupons

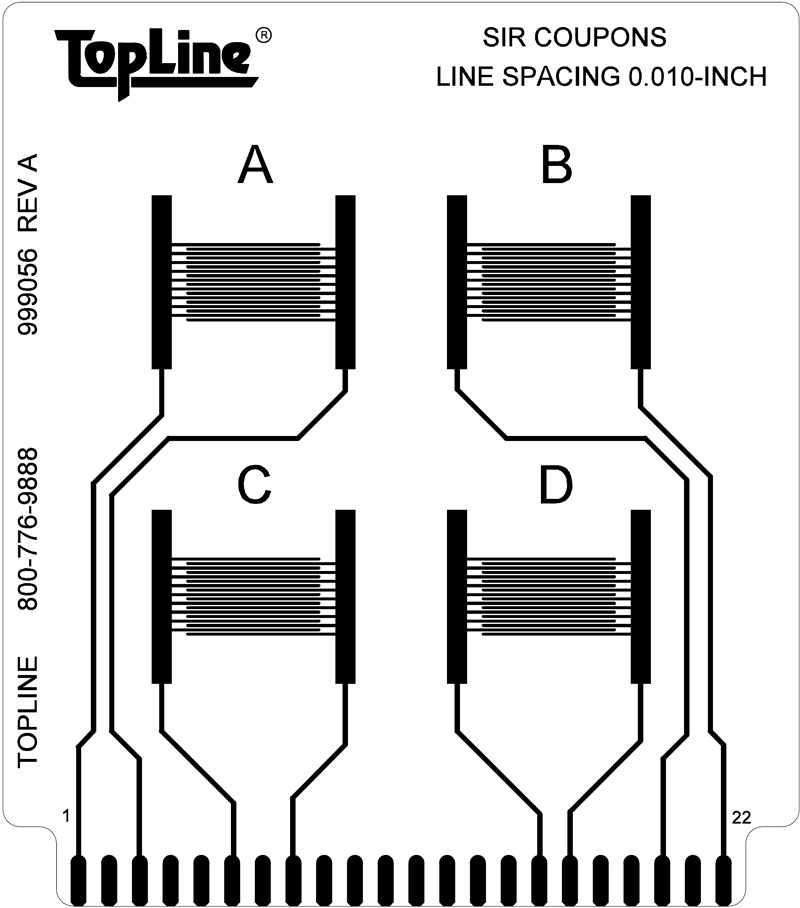

SIR TEST Board

Go to: B-25A SIR   •   B-36 SIR   •   B-52 Cleanliness & Residue   •   More Kits More Kits

Enlarge: Top
Board Size 4" x 4.5" (10 x 14cm)
Detail Coupon



Board Features:

  • Final Finish: HASL Sn60/Pb40
  • Copper Thickness 1/2-Oz.
  • Solder Mask - None
  • FR4 Tg=175°C
  • Size - 4"x4.5" (10x11.4cm)
  • Thickness 0.062" (1.6mm)
  • Single Layer Board
  • Fingers 0.156" Pitch (3.96mm)
  • Tooling Holes: None
  • Fiducials: None
    • Surface Insulation Resistance (S.I.R.) test board.
    4X SIR Coupons with 0.010-inch line spaces
    IPC test method IPC-TM-2.6.6.3
    Order
    Qty    		 Order Number
    1 each Order # 999056
    HASL Finish Board
    HASL Finish Gold Fingers


    Kit Order Number System
    999 0 256
    Board Plating (Final Finish) Series
    Size 4"x4.5"
    (10x11.4cm)    		 0 = HASL Finish) 56 = 4X SIR Coupons/td>


    Edge Connector (Not Included)
    Item Specification
    Order Nbr DWG 172422 - Solderable eyelets contacts for wires
    Chassis mounting. or PCB with routed slot.
    3D Solidworks Model Model 172532
    Positions 22X
    Pitch 0.156" (3.96mm)
    Board Thick 0.059~0.062" (1.50~1.57mm)
    Edges Double
    Connector
    Vertical Mouting    		 Plated Thru-Hole
    44X (Ø 1.0mm - .040" Holes)
    on PCB Card
