D2PAK 5L

JEDEC TO-263 Package

TopLine Dummy Component

For training, practice and evaluation

Click for Outline Drawing

Quick Specs:
Pin Count 5L
Pitch 1.27mm
Body 10.0 x 9.2mm
Power Outline Transistor/Diode

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Number Example:
D2PAK5-E13A = 5L
TO263


Part Numbering System
D2PAK	5	-	E13A	-	T	-	Option
JEDEC Series	Nbr Leads		Packaging		Plating		Daisy Chain
TO263AB Plastic Power Outline Transistor	Standard: 5 = 5L Full Leads		E13A = 13" Reel 500~800pcs E7A = 7" Reel 100pcs B = Bulk		T = Sn100 RoHS Pb-Free Blank = SnPb		Blank = Undefined DC1245 ISO = Isolated

Options: Add Daisy Chain Drawing Number: DC1245 (Standard)

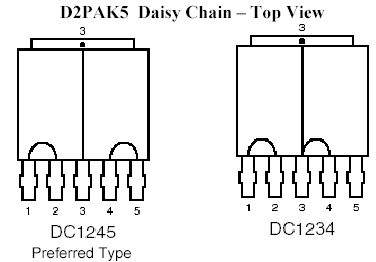

Top View of Internal Daisy Chain Option. Zero Ohm Jumper

Related Links: SOT SOD TO DO
