JEDEC - Transistors/Diodes |
SOT23/SOT323
SOT25/SOT353
SOT26/SOT363
SOT343
SOT89
SOT223
SOT523F/SOT723
|
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
SOT23 |
TO-236AB |
3000 |
8mm |
SOT23E7A |
Daisy Chain Jumper |
SOT25 |
SOT23-5 and SC74A |
3000 |
8mm |
SOT25E7A |
Daisy Chain Jumper |
SOT26 |
SOT23-6 and SC74 |
3000 |
8mm |
SOT26E7A |
Daisy Chain Jumper |
SOT28 |
SOT23-8 |
3000 |
8mm |
SOT28E7A |
Daisy Chain Jumper |
SOT89 |
SC62 and TO-243AA |
1000 |
12mm |
SOT89E7A |
Daisy Chain Jumper |
SOT143 |
TO-253AA |
3000 |
8mm |
SOT143E7A |
Daisy Chain Jumper |
SOT223 |
SC73 TO-261AA |
1000 2500 |
12mm |
SOT223E7A |
Daisy Chain Jumper |
SOT323 |
SC70 |
3000 |
8mm |
SOT323E7A |
Daisy Chain Jumper |
SOT343 |
SC82 |
3000 |
8mm |
SOT343E7A |
Daisy Chain Jumper |
SOT353 SOD353 |
SC70-5 and SC88A |
3000 |
8mm |
SOT353E7A |
Daisy Chain Jumper |
SOT363 |
SC70-6 and SC88 |
3000 |
8mm |
SOT363E7A |
Daisy Chain Jumper |

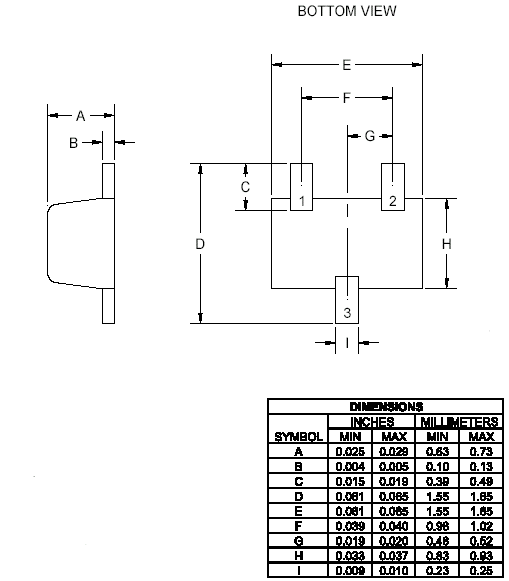

SOT523 |
Gull Wing |
3000 |
8mm |
SOT523E7A |
Daisy Chain Jumper |
SOT523F |
Flat Leads |
3000 |
8mm |
SOT523F-E7A |
Daisy Chain Jumper |
SOT663 |
- |
3000 |
8mm |
SOT663E7A |
- |

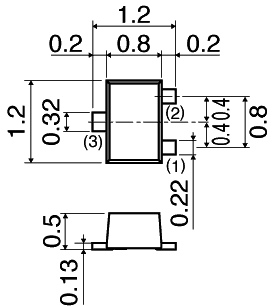

SOT723 |
VT3 |
8000 |
8mm |
SOT723E7A |
Daisy Chain Jumper |
SOT883 |
DFN3L, SC101 1.0x0.6mm |
8000 |
8mm |
SOT883E7A |
- |
SOT923 |
0.8x0.6mm |
8000 |
8mm |
SOT923E7A |
- |
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number. |
|
Japanese Size |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
SC59 |
TO-236AA or SOT-346 |
3000 |
8mm |
SC59E7A |
- |
SC61A |
4-Lead |
3000 |
8mm |
SC61A-E7A |
- |
SC61B |
Reverse Wide 4-Lead |
3000 |
8mm |
SC61B-E7A |
- |
SC62 |
SOT89 |
1000 |
12mm |
SC62E7A |
Daisy Chain Jumper |
SC63 |
DPAK |
2500 |
12mm |
SC63E13A |
Daisy Chain Jumper |
SC70 |
SOT323 |
3000 |
8mm |
SC70E7A |
Daisy Chain Jumper |
SC73 |
SOT223 |
2500 |
16mm |
SC73E13A |
Daisy Chain Jumper |
SC74 |
SOT26, SOT23-6, SOT457 |
3000 |
8mm |
SC74E7A |
Daisy Chain Jumper |
SC74A |
SOT25 or SOT23-5 |
3000 |
8mm |
SC74AE7A |
Daisy Chain Jumper |
SC75A |
SC90 or SOT416 |
3000 |
8mm |
SC75A-E7A |
- |
SC76 |
SOD323 |
3000 |
8mm |
SC76E7A |
- |
SC79 |
SOD523F |
3000 |
8mm |
SC79E7A |
- |
SC82 |
SOT343 - 4 Lead |
3000 |
8mm |
SC82E7A |
Daisy Chain Jumper |
SC83A |
D2PAK |
1000 |
24mm |
SC83AE13A |
Daisy Chain Jumper |
SC88 |
SOT363 |
3000 |
8mm |
SC88E7A |
Daisy Chain Jumper |
SC88A |
SOT353 |
3000 |
8mm |
SC88AE7A |
Daisy Chain Jumper |
SC89 |
SOT490 - SC75A with Flat Leads |
3000 |
8mm |
SC89E7A |
- |
SC90 |
Micro-SOT |
3000 |
8mm |
SC90E7A |
- |
SC101 |
SOT883, DFN3L 1.0x0.6mm |
8000 |
8mm |
SC101E7A |
- |
EMT5 |
Wide body SC90 5-Ld Flat Lead |
8000 |

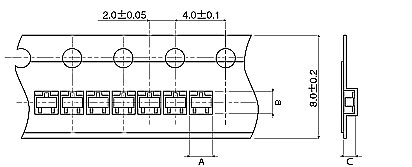

W=8mm 2mm pitch |
EMT5E7A |
- |
EMT6 |
Wide body SC90 6-Ld Flat Lead |
8000 |
W=8mm 2mm pitch |
EMT6E7A |
- |
VT3 |
SOT723 |
8000 |
W=8mm 2mm Pitch |
VT3E7A |
Daisy Chain Jumper |
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number. |
|
Power Device |
|
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |

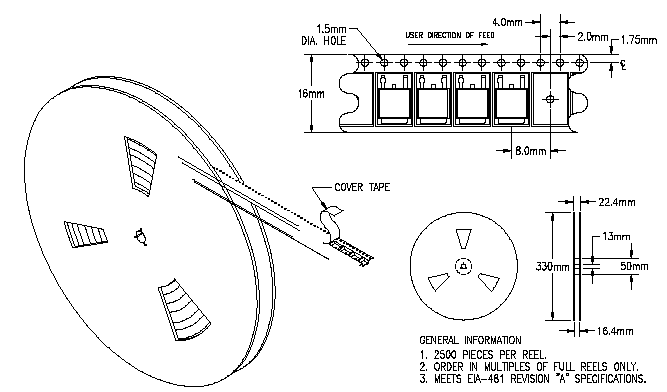

DPAK |
TO-252AA |
2500 |
16mm |
DPAK-E13A |
Daisy Chain Jumper |
D2PAK |
TO-263AB |
1000 |
24mm |
D2PAK-E13A |
Daisy Chain Jumper |
D2PAK |
TO-263XX |
1000 |
24mm |
D2PAK5-E13A |
Daisy Chain Jumper |
D2PAK |
TO-263XX |
1000 |
24mm |
D2PAK7-E13A |
- |

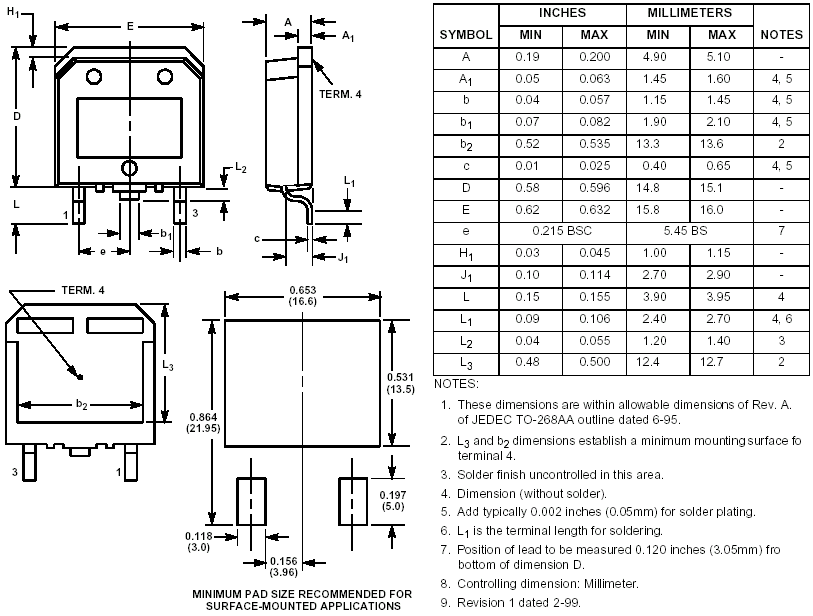

D3PAK |
TO-268AA |
500 |
24mm |
D3PAK-E13A |
- |
For Lead Free, add -TIN to part number. For Daisy Chain, add the -DC code to the end of part number. |
|
MELF Cylindrical Diode |
Glass Plastic |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
SM1-PLASTIC |
MELF 2.5 x 5.0mm |
5000 |
12mm |
SM1E13A-PLASTIC |
- |
LL41-Glass |
MELF DO-213AB, LL35, LL41 2.5 x 5.0mm |
5000 |
12mm |
SM1E13A-GLASS |
|

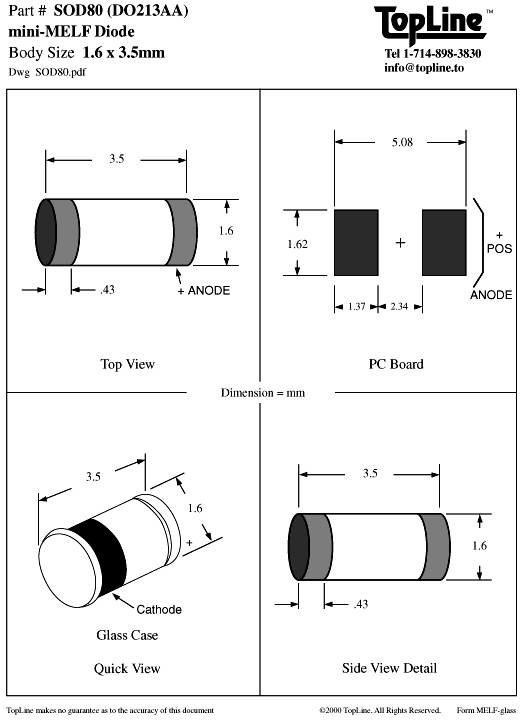

SOD80 |
mini-MELF DO-213AA, LL34 1.6 x 3.5mm |
2500 |
8mm |
SOD80E7A |
|
SOD87 |
mini-MELF 2.0 x 3.5mm |
2000 |
8mm |
SOD87E7A |
|
For Lead Free, add -TIN to part number. |
|
Flanged Melf Diode |
Square Flanged Ends |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
~ |
1.2mm x 1.9mm |
~ |
~ |
Micro-Melf |
- |
~ |
1.6mm x 3.5mm |
~ |
~ |

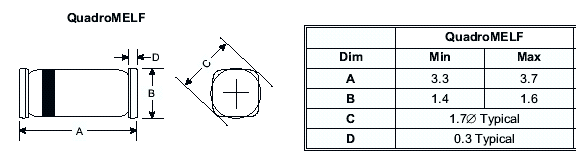

Quadro-Melf |
- |
~ |
2.5mm x 5.0mm |
~ |
~ |

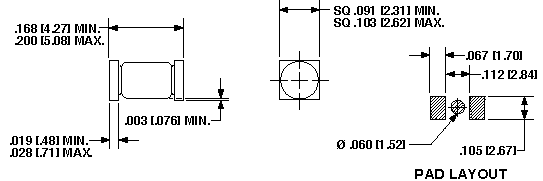

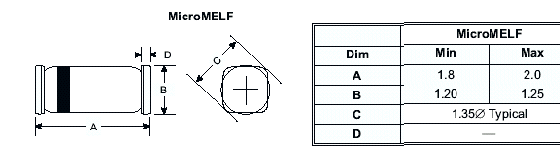

A-Melf |
- |
~ |
2.0mm x 4.7mm |
~ |
~ |

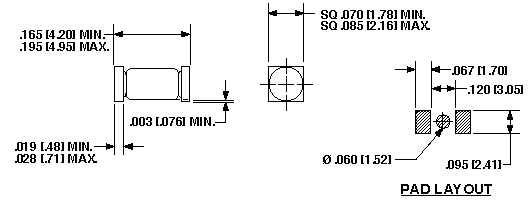

B-Melf |
- |
~ |
3.7mm x 5.4mm |
~ |
~ |

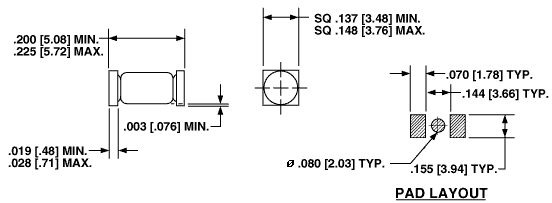

B-Melf-W |
- |
~ |
3.7mm x 5.4mm |
~ |
~ |

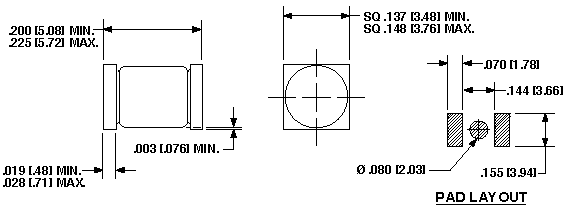

E-Melf |
- |
~ |
5.0mm x 6.0mm |
~ |
~ |

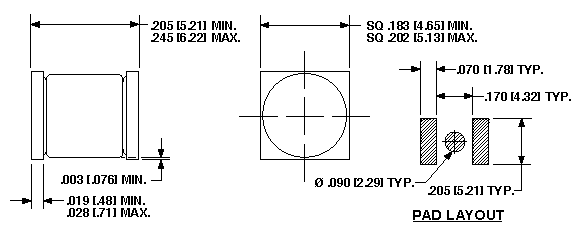

G-Melf |
- |
|
Rectangular Case- Gull Wing Leads - Diode |
Gull-Wing Leads Flat Leads |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
SOD123G |
2.7 x 1.5mm Gull Wing |
3000 |
8mm |
SOD123G-E7A |
|
SOD123F |
2.7 x 1.5mm Flat Leads |
3000 |
8mm |
SOD123F-E7A |
|
SOD123FW |
2.7 x 1.5mm Wide Flat Lead |
3000 |
8mm |
SOD123FW-E7A |
|
SOD323G |
SC76 1.7 x 1.25mm Gull Wing |
3000 |
8mm |
SOD323E7A |
|
SOD323F |
1.7 x 1.25mm Flat Lead |
3000 |
8mm |
SOD323F-E7A |
|
SOD323FW |
2.5 x 1.25mm Wide Flat Lead |
3000 |
8mm |
SOD323FW-E7A |
|

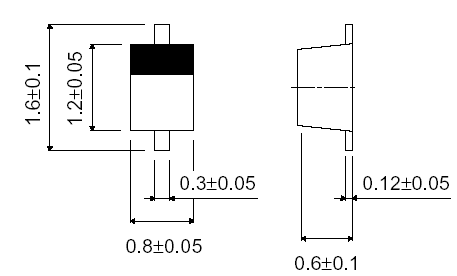

SOD523F |
1.6 x 0.8mm Flat Leads |
3000 |
8mm |
SOD523E7A |
|
SOD723F |
1.0 x 0.6mm Flat Leads |
8000 |
8mm |
SOD723E7A |
|
SOD923F |
0.8 x 0.6mm Flat Leads |
8000 |
8mm |
SOD923E7A |
|
SC79F |
SOD523 1.6 x 0.8mm Flat Leads |
3000 |
8mm |
SC79F-E7A |
|
SMA-G |
DO-215AC 4.3 x 2.6mm Gull Wing |
5000 |
12mm |
SMAG-E13A |
- |
SMB-G |

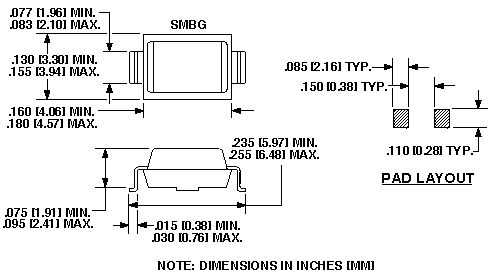

DO-215AA 4.3 x 3.6mm Gull Wing |
2500 |
12mm |
SMBG-E13A |
- |

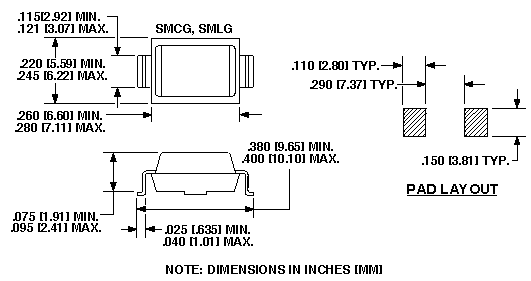

SMC-G |
DO-215AB 7.0 x 3.6mm Gull Wing |
2500 |
12mm |
SMCG-E13A |
- |
For Lead Free, add -TIN to part number. |
|
Rectangular Case- C-Bend Lead (Modified J-Lead) - Diode |
DO214AC SMAJ - FM1 DO214AA SMBJ / DO214AC SMCJ |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
FM1 |

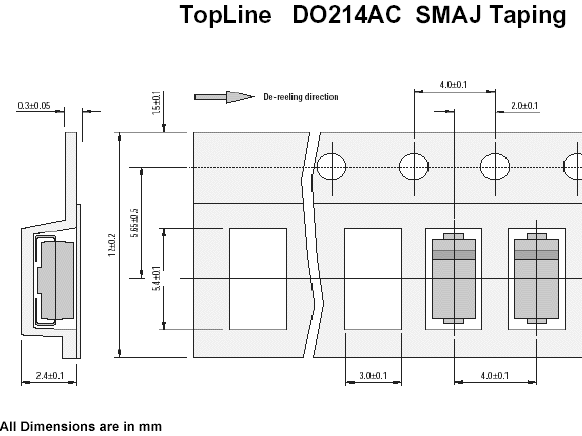

DO-214AC 4.3 x 2.6mm J-Lead |
1500 5000~7500 |
12mm |
FM1E7A FM1E13A |
- |
SMA-J |
DO-214AC 4.3 x 2.6mm J-Lead |
1500 5000~7500 |
12mm |
SMAJ-E7A SMAJ-E13A |
- |
SMB-J |

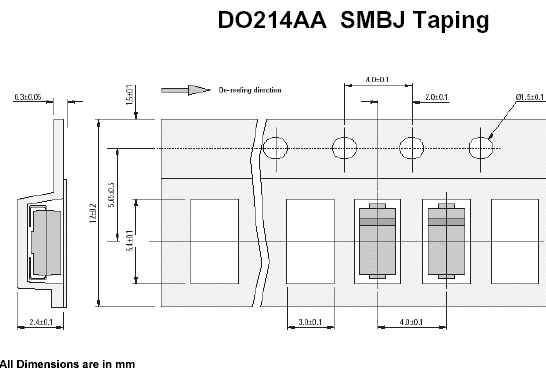

DO-214AA 4.3 x 3.6mm J-Lead |
700~750 2500~3500 |
12mm |
SMBJ-E7A SMBJ-E13A |
- |
SMC-J |

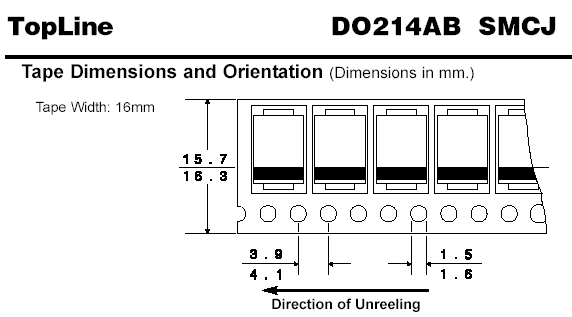

DO-214AB 7.0 x 6.0mm J-Lead |
700-750 3200~3500 |
16mm |
SMCJ-E7A SMCJ-E13A |
- |
For Lead Free, add -TIN to part number. |
|
Ceramic Case Power Discrete Semiconductor |
|
Size |
Cross Reference |
Qty |
Package |
Order Number Outline Drawing
| Daisy Chain |
TO-276AA |
Size 7.25mm x 10mm |
1 |
Bulk |
SMD.5 |
Ask |
TO-276AB |
Size 11.5mm x 16mm |
1 |
Bulk |
SMD1 |
Ask |
TO-276AC |
Size 13.4mm x 17.5mm |
1 |
Bulk |
SMD2 |
Ask |
Parts are Lead Free with Gold (Au) plating. Without Lid, add -N to end of part number |
|
Ceramic SOT and LCC |

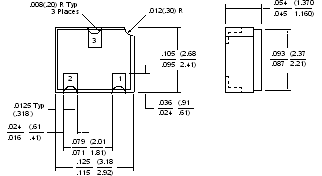

CERSOT23 (LCC3)
LCC6 |
Leads |
Size |
Qty |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
3-Lead |
2.5mm x 3.0mm |
1 |
8mm |
CERSOT23 LCC3 |
-DC |
4-Lead MO-041BA |
3.8mm x 5.6mm |
1 |
12mm |
LCC4 |
-DC |
6-Lead MO-041BB |
4.4mm x 6.2mm |
1 |
12mm |
LCC6 |
-DC |
Parts are Lead Free with Gold (Au) plating |
