FP24F50R.40x.60B
Flat Pack FP 24L
TopLine Dummy Component
For training, practice and evaluation


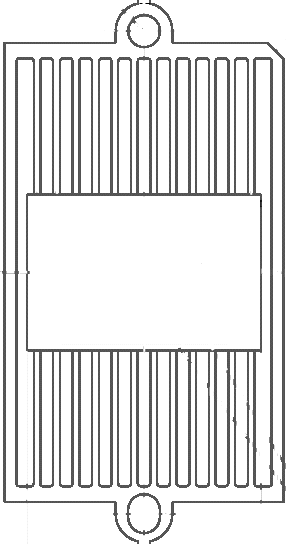

Click for Outline Drawing

Quick Specs:
Pin Count 24L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.40" x .60" (10.1x15.2mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP24F50R.40x.60B = Gold Leads. With Lid
FP24F50R.40x.60B-SC = Solder Dip. With Lid
FP24F50R.40x.60B-N = Gold Leads. Without Lid
FP24F50R.40x.60B-DE = Daisy Chain. Gold Leads
FP24F50R.40x.60B-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 24 F 50 R .40x.60 B - DE
Series Nbr Pins Lead
Shape
Pitch
Mils
Body
Shape
Body Size
Inch
Braze - Options
Flat Pack
Dual Sides
24 = 24 Leads Flat Leads
With Tie-bar
Bulk Packed
in tray
50 Mils
0.050-inch
1.27mm
Rectangular 0.40x.60"
10.1x15.2mm
Bottom   -N=Without lid
-DE=Daisy Chain
-ISO=Isolated Pins
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.



Daisy Chain Option -DE
