SOT89

JEDEC TO-243AA Package

TopLine Dummy Component

For training, practice and evaluation

Click for Outline Drawing

Quick Specs:
Pin Count 3L
Pitch 1.9mm
Body 2.50 x 4.5mm
Small Outline Transistor/Diode

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
SOT89
TO243AA


Part Numbering System
SOT89	E7A	T	-	Option
JEDEC Series	Packaging	Plating	-	Daisy Chain
TO243AA Plastic Small Outline Transistor Diode	E7A = 7" Reel 1000pcs E4A = 4" Reel 200pcs B = Bulk	T = Sn100 RoHS Pb-Free Blank = SnPb		Blank = None DC123 DC124 ISO = Isolated

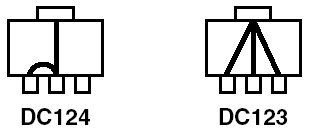

Options: Add Daisy Chain Drawing Number: DC124 or DC123 (Standard)

Top View of Internal Daisy Chain Option. Zero Ohm Jumper

Related Links: SOT SOD TO DO
