Chip Shooter Kit
0201 and 0402 Chips


Actual Size: 4" x 5.5" (100 x 140mm)

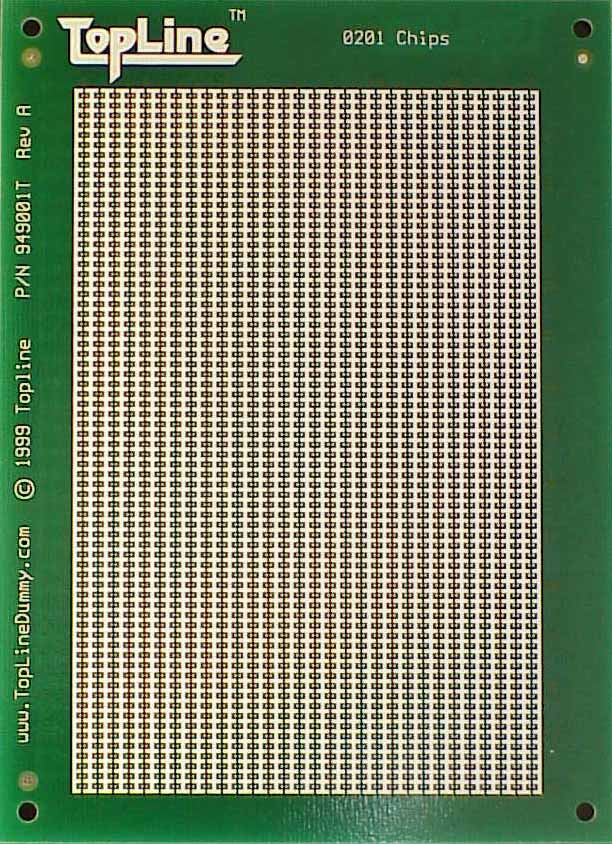

Click Magnified View 0201 Side.  Detail

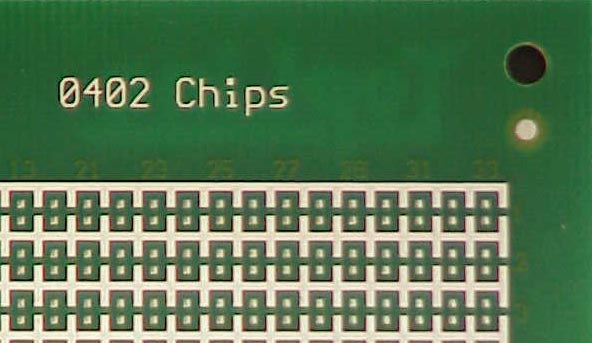

Click Magnified View 0402 side.  Detail

     TopLine has thousands of 0201 and 0402 resistors for your machine to place. Chips are supplied on tape with 2mm pitch tape.

Front side of board has 2000 pads for 0201 chips and bottom side of board has 1000 pads for 0402 chips per side.
This kit can be used for placement, soldering or epoxy dispenser testing.

Features:

  • Hot Air Soldering Leveling
  • LPI Solder Mask
  • FR4 Board .062"
  • Double Sided
  • Tooling Holes .125"
  • Fiducial Marks

    Full Kit catalog in PDF format.

    Click Pad dimensions.

    •   Manual
    Assembly    		 Machine Run
    Component
    Order #
    949000
    1 Kit
    Order #
    949003
    3 Kits
    Order #
    949010
    10 Kits
    Order #
    949025
    25 Kits
    Order #
    949050
    50 Kits
    Board 1 3 10 25 50
    0201 Chips 2,000 5,000 15,000 30,000 60,000
    0402 Chips 1,000 3,000 10,000 30,000 50,000

    Optional Accessories
    Parts Placement Data X, Y, Theta ASCII File Number 949004. Download Free
    Solder Paste Artwork, Gerber File, Order 949005. Download Free

    Spare Parts
    Components Quantity Order Number
    PC Board Only 1 949001
