28mm QFP
Assortment Kit

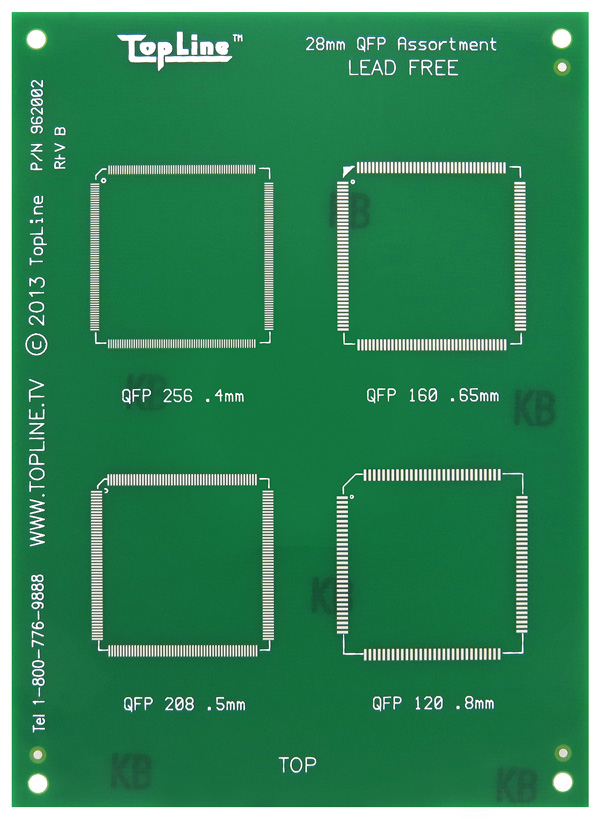

Enlarge: Bare Board
Board Size 4"x5.5" (10x14cm)

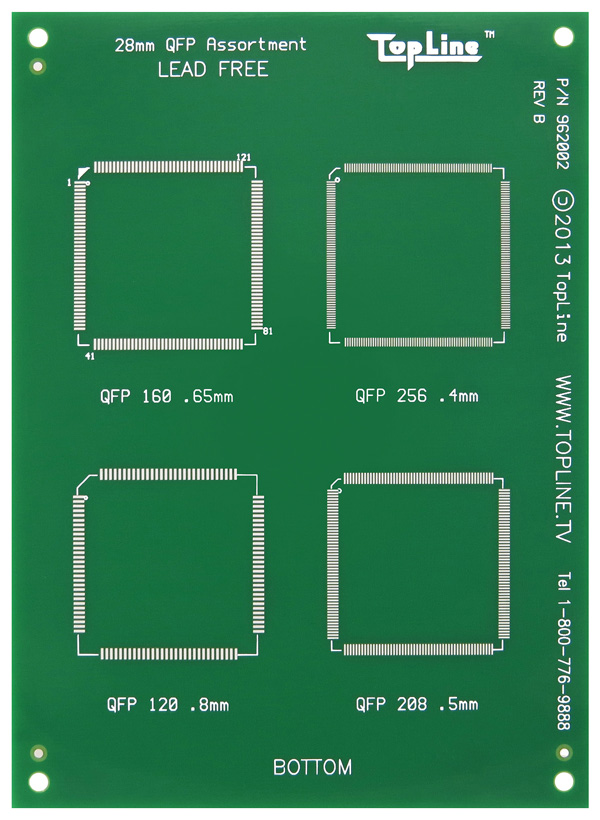

Click for bottom view



TopLine QFP 28mm ASSORTMENT Kit. Four mounting sites for 28mm QFP components for placement and solder practice. QFP120 Pitch 0.8mm, QFP160 Pitch 0.65mm , QFP208 Pitch 0.5mm and QFP256 Pitch 0.4mm. Double sided. Bottom side has same mounting sites as the top side.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 BN
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • Lead Free RoHS Version
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)
    •
      BOM Kit Contents
    28mm QFP Assortment Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    962X00
    1 Kit
    Order #
    962X12
    12 Kits
    Order #
    962X24
    24 Kits
    Order #
    962X48
    48 Kits
    Order #
    962X96
    96 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		 Tin-Lead 1 12 24 48 96
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 12 24 48 96
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - 24 48 96
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - 24 48 96
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 12 24 48 96
    QFP120 **
    Size 28x28mm
    Pitch 0.8mm
    Only SnPb Kits    		 1 1 12 24 48 96
    QFP160
    Size 28x28mm
    Pitch 0.65mm
    		 1 1 12 24 48 96
    QFP208
    Size 28x28mm
    Pitch 0.5mm
    		 1 1 12 24 48 96
    QFP256
    Size 28x28mm
    Pitch 0.4mm
    		 1 1 12 24 48 96
    ** QFP120 not included in Lead Free Kits


    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "962001b" QFP Assortment 28mm
    Step 4. Download files


    Kit Order Number System
    962 0 # #
    Series Board Finish Quantity
    Mixed Technology 2

    Board Size:
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    12 = 12 Kits
    24 = 24 Kits
    48 = 48 Kits
    96 = 96 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (Sn/Pb) Tin-Lead 962001
    Tin (Sn) RoHS 962002
    Silver (Ag) RoHS 962006*
    OSP (Cu) RoHS 962008*
    ENIG Gold (Ni/Au) RoHS 962009
      *Check Availability


    Spare Parts
    Full range of spare parts available
    RoHS Lead Free and Tin-Lead
    Contact TopLine to discuss your requirements
