01005 / 0201 Chip Kit
With Zero Ohm Continuity Test

Go to: 0201 / 0402 Kit   •   0402 / 0603 Kit   •   0805 / 1206 Kit   •   Jumbo 0402 to 1206 Kit

Chip Shooter Mounting Kit
Metric Chip 0.4 x 0.2mm and 0.6mm x 0.3mm

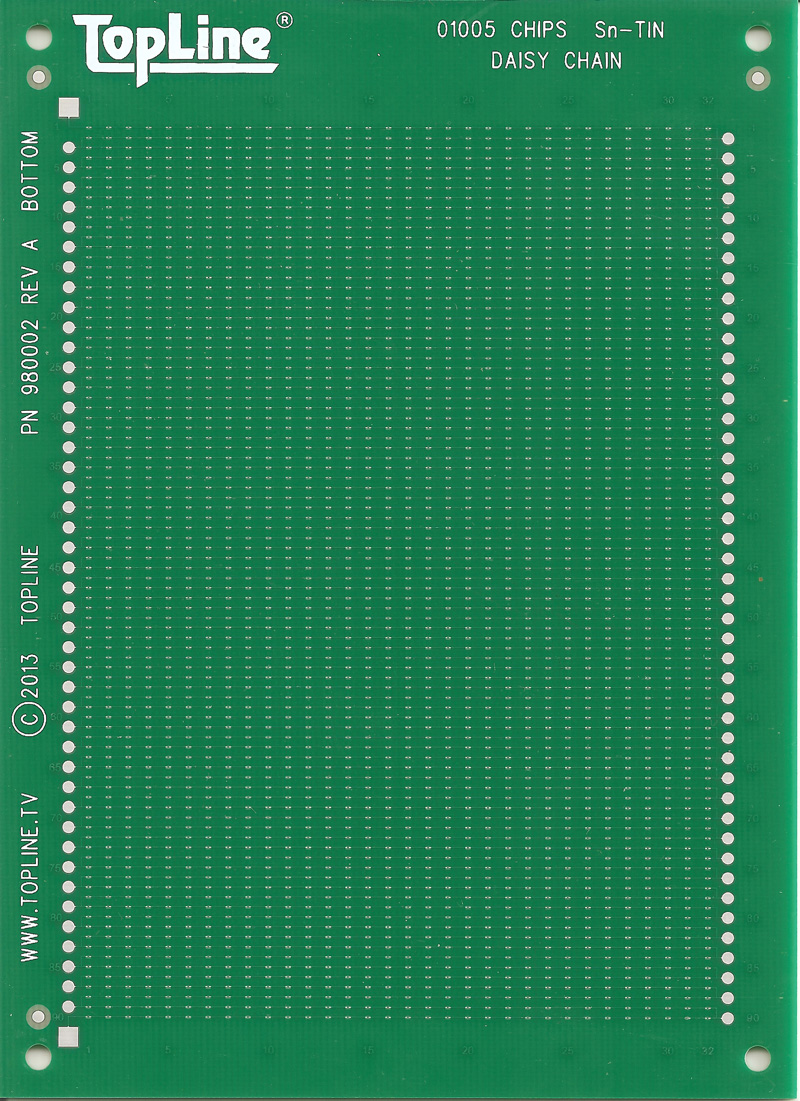

Enlarge: Bottom Side 01005 Chips

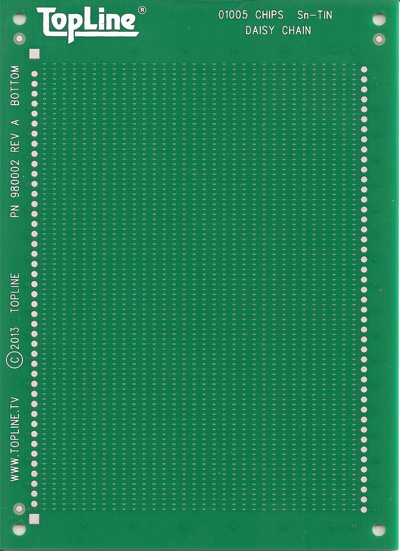

Bottom Side for 01005 Chip (0.4x0.2mm)
Board Size 4"x5.5" (10x14cm)
Click for 01005 Pad Details



Chip Shooter Kit includes tiny 01005 (0.4x0.2mm) and 0201 (0.6x0.3mm) zero ohm resistors for placement and continuity testing.Use a simple ohm meter to check continuity (Good), or open circuit (Fail) at test points for each row of components. Chips are supplied on reels with 2mm pitch tape. This kit can be used for placement, soldering or epoxy dispenser testing. Ask for special W4P1 narrow tape 4mm wide with pitch 1.0mm available.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

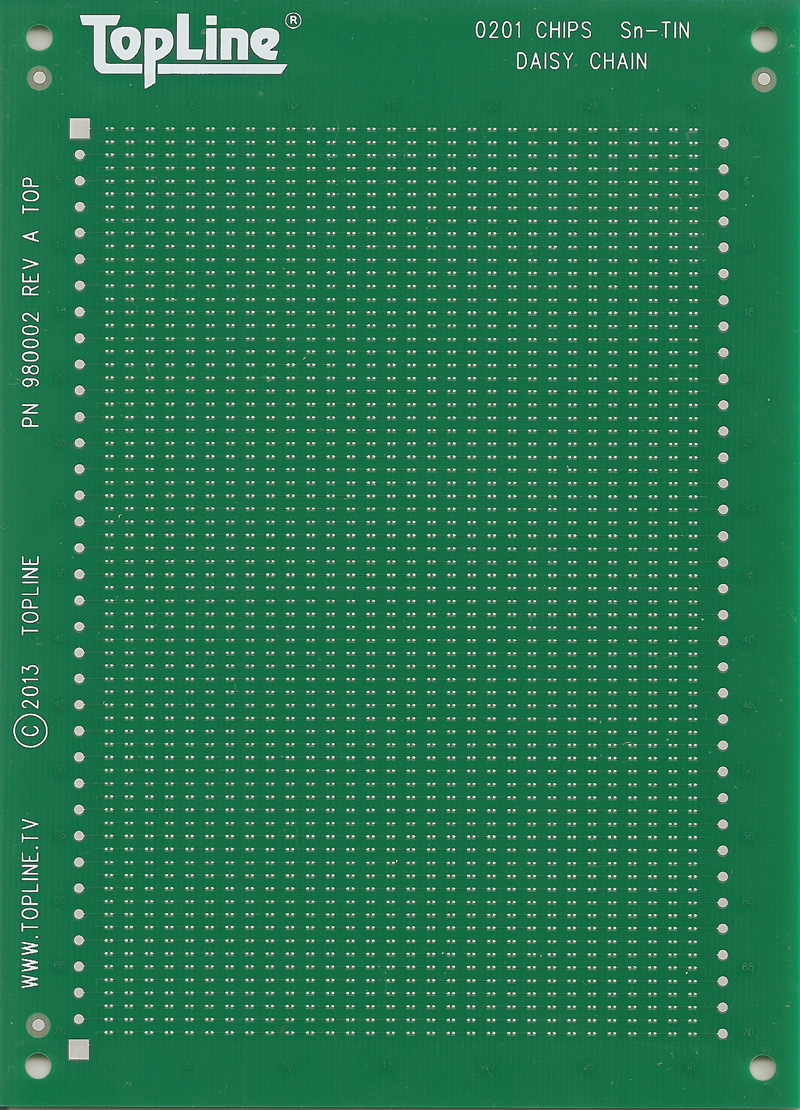

    Enlarge:  Top Side 0201 Chips (0.6x0.3mm)
    Click for 0201 Pad Details

    		•

      BOM Kit Contents
    01005/0201 Chip Shooter Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    980F00
    1 Kit
    Order #
    980F03
    3 Kits
    Order #
    980F04
    3 Kits
    Order #
    980F06
    6 Kits
    Order #
    980F07
    6 Kits
    Order #
    980F10
    10 Kits
    Order #
    980F11
    10 Kits
    Order #
    980F08
    12 Kits
    Order #
    980F25
    25 Kits
    Board - Tin (Sn)
    F = 2
    4th Digit Order#    		 RoHS
    Pb-Free    		 1 3 3 6 6 10 10 12 25
    Board Silver (Ag)
    F = 6
    4th Digit Order#    		 RoHS
    Pb-Free    		 - - - - - 10 10 12 25
    Board OSP (Cu)
    F = 8
    4th Digit Part#    		 RoHS
    Pb-Free    		 - - - - - 10 10 12 25
    Board - ENIG
    Gold (Ni/Au)
    F = 9
    4th Digit Order#    		 RoHS
    Pb-Free    		 1 3 3 6 6 10 10 12 25
    01005 Chip Resistor
    Zero Ohm
    Size: 0.4mm x 0.2mm
    W8P2 Tape    		 RoHS
    Pb-Free    		 3000 9000 - 18000 - 30000 - - 80000
    01005 Chip Capacitor
    Not Zero Ohm
    Size: 0.4mm x 0.2mm
    W8P2 Tape
    (W4P1 Tape Optional)    		 RoHS
    Pb-Free    		 - - 9000 - 18000 - 30000 40000 -
    0201 Chip Resistor
    Zero-Ohm
    Size: 0.6mm x 0.3mm
    W8P2 Tape    		 RoHS
    Pb-Free    		 2000 6000 6000 12000 12000 20000 20000 30000 50000
    NOTE: Capacitors are not zero ohm.

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "980001a" 01005/0201 Chip Kit
    Step 4. Download files

    Kit Order Number System
    980 2 # #
    Series Board Finish Quantity
    01005/0201 Chip
    4"x5.5" (10x14cm)    		 2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 01 Kits
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    Tin (Sn) RoHS 980002
    Silver (Ag) RoHS 980006
    OSP (Cu) RoHS 980008
    ENIG Gold (Ni/Au) RoHS 980009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 Drawing
    Tin (Sn) RoHS 01005 Chip
    (0.4x0.2mm) Resistor
    Tin (Sn) RoHS 0201 Chip
    (0.6x0.3mm) Resistor
