0805 / 1206 Chip Kit
Chip Placement Kit

Go to: 01005 / 0201 Kit   •   0201 / 0402 Kit   •   0402 / 0603 Kit   •   Jumbo 0402 to 1206 Kit

Chip Shooter Mounting Kit
Metric Chip 2.0 x 1.2mm and 3.2mm x 1.6mm

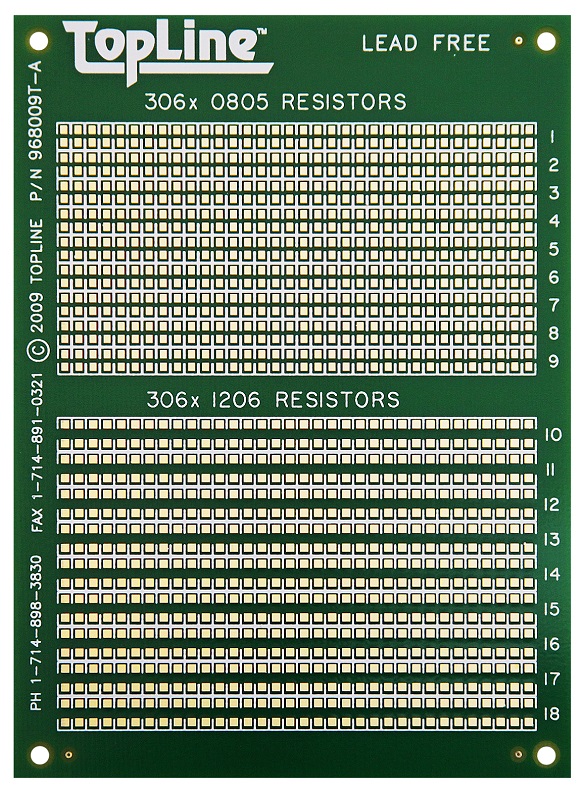

Enlarge Bare Board: 0805 and 1206 Chips
300 pads for 0805 (2.0x1.2mm)
300 pads for 1206 (3.2x1.6mm) chips
Board Size 4"x5.5" (10x14cm)

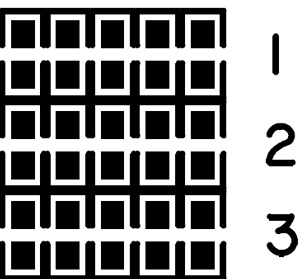

0805 Pad Details     •     1206 Pad Details



Chip Shooter Kit includes 300 pads for 0805 (2.0x1.2mm) and 300 pads for 1206 (3.2x1.6mm) resistors or capacitors. Put your machine to the test. TopLine's Speed Kit is a low cost way for you to measure the component per hour (CPH) rating of pick & place machines. Use to benchmark and compare the performance of different machines. This kit can be used for placement, soldering or epoxy dispenser testing. SMT carrier tape is 8mm wide with components centered in 4mm pitch pockets.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • Fiducials - 0.062" (1.57mm)

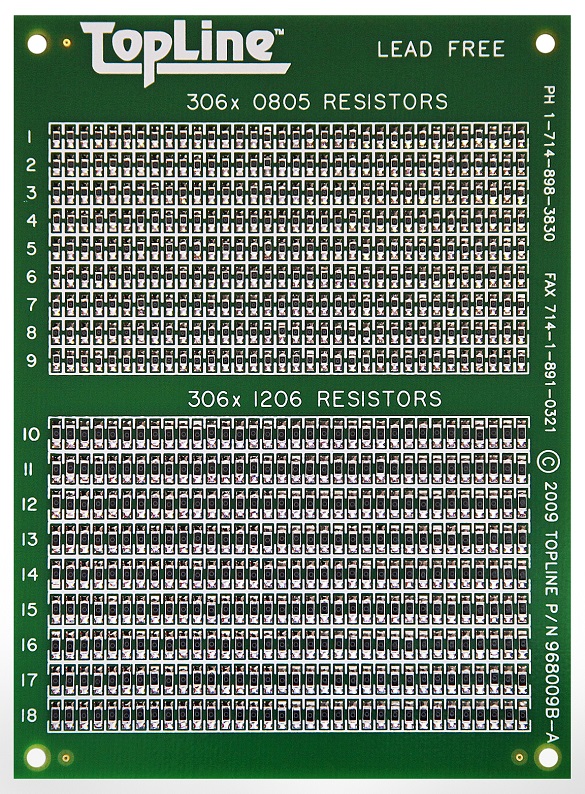

    Enlarge Shown After Assembly:
    Same patterns repeated both sides

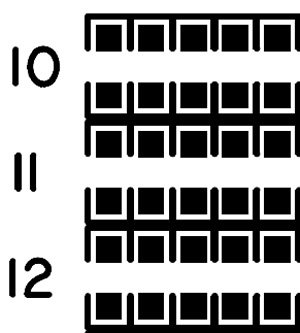

    0805 Pad Details     •     1206 Pad Details

    		•

      BOM Kit Contents
    0805 / 1206 Chip Shooter Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    968X00
    1 Kit
    Order #
    968X03
    3 Kits
    Order #
    968X06
    6 Kits
    Order #
    968X10
    10 Kits
    Order #
    968X25
    25 Kits
    Order #
    968X50
    50 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		   1 3 6 10 25 50
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - - 10 25 50
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - - 10 25 50
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    0805 Chip Resistor
    Size: 2.0mm x 1.2mm    		 300 300 1000 2000 3000 7500 15000
    1206 Chip Resistor
    Size: 3.2mm x 1.6mm    		 300 300 1000 2000 3000 7500 15000
    Ask for special kits with non-zero ohm capacitors.

    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "968001a" 0805 / 1206 chip
    Step 4. Download files

    Kit Order Number System
    968 2 # #
    Series Board Finish Quantity
    0805 / 1206 Chip
    Board 4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 01 Kits
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) No 968001
    Tin (Sn) RoHS 968002
    Silver (Ag) RoHS 968006
    OSP (Cu) RoHS 968008
    ENIG Gold (Ni/Au) RoHS 968009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 Drawing
    Tin (Sn) RoHS 0805 Chip
    (2.0x1.2mm) Resistor
    Tin (Sn) RoHS 1206 Chip
    (3.2x1.6mm) Resistor
