Universal CSP Kit
Pitch 0.5mm , 0.75mm and 0.8mm

Universal CSP Placment Kit
Pitch 0.5mm, 0.75mm and 0.8mm

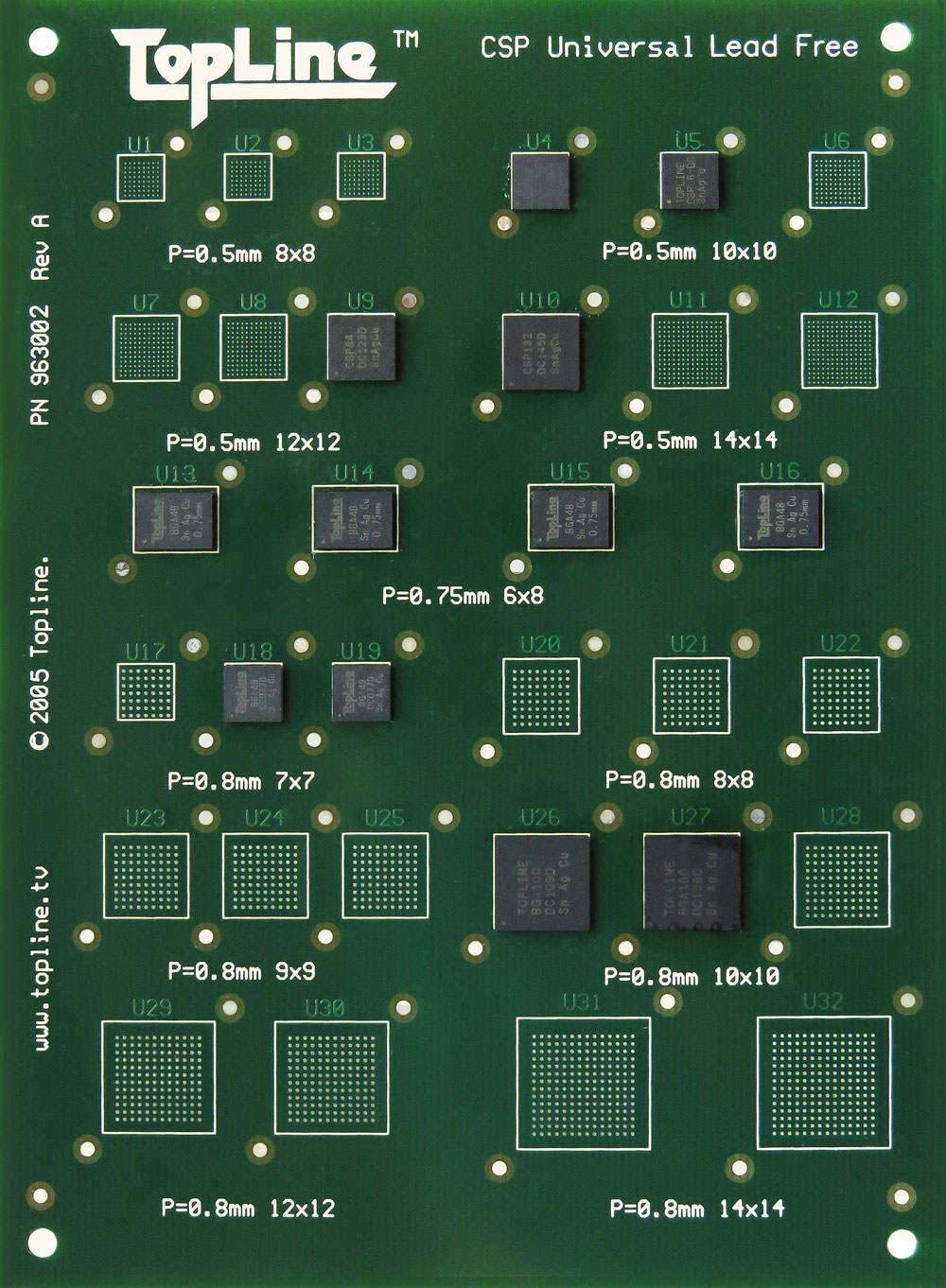

Enlarge: Top Assembled

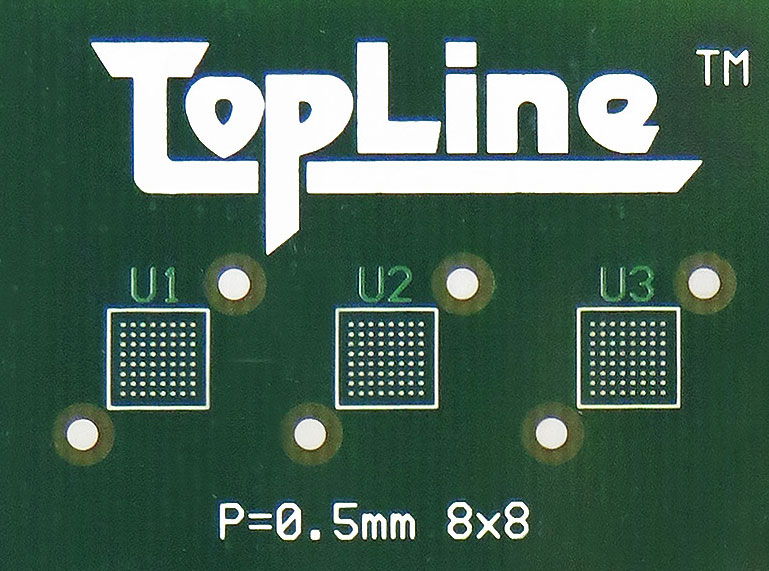

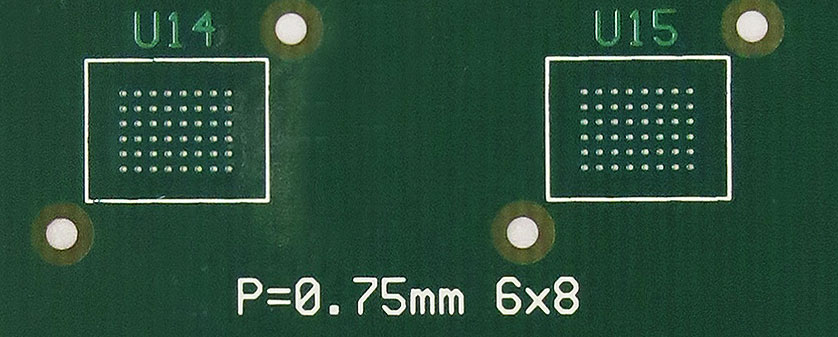

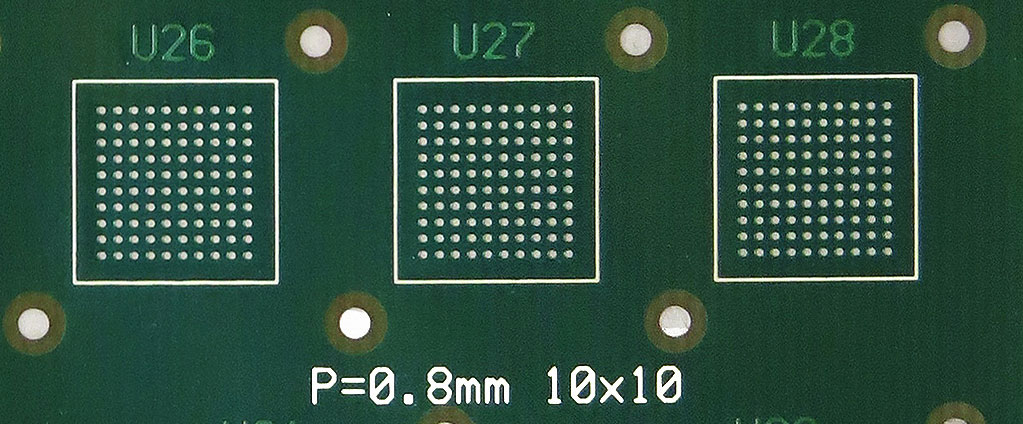

Each side has 0.5mm, 0.75mm and 0.8mm pads
Board Size 4"x5.5" (10x14cm)
0.5mm Pads     •     0.75mm Pads     •     0.8mm Pads

TopLine Universal CSP Kit Placement Kit. Includes BGA (CSP) with 0.5mm, 0.75mm and 0.8mm pitch . The bottom side has same patterns as the top side.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

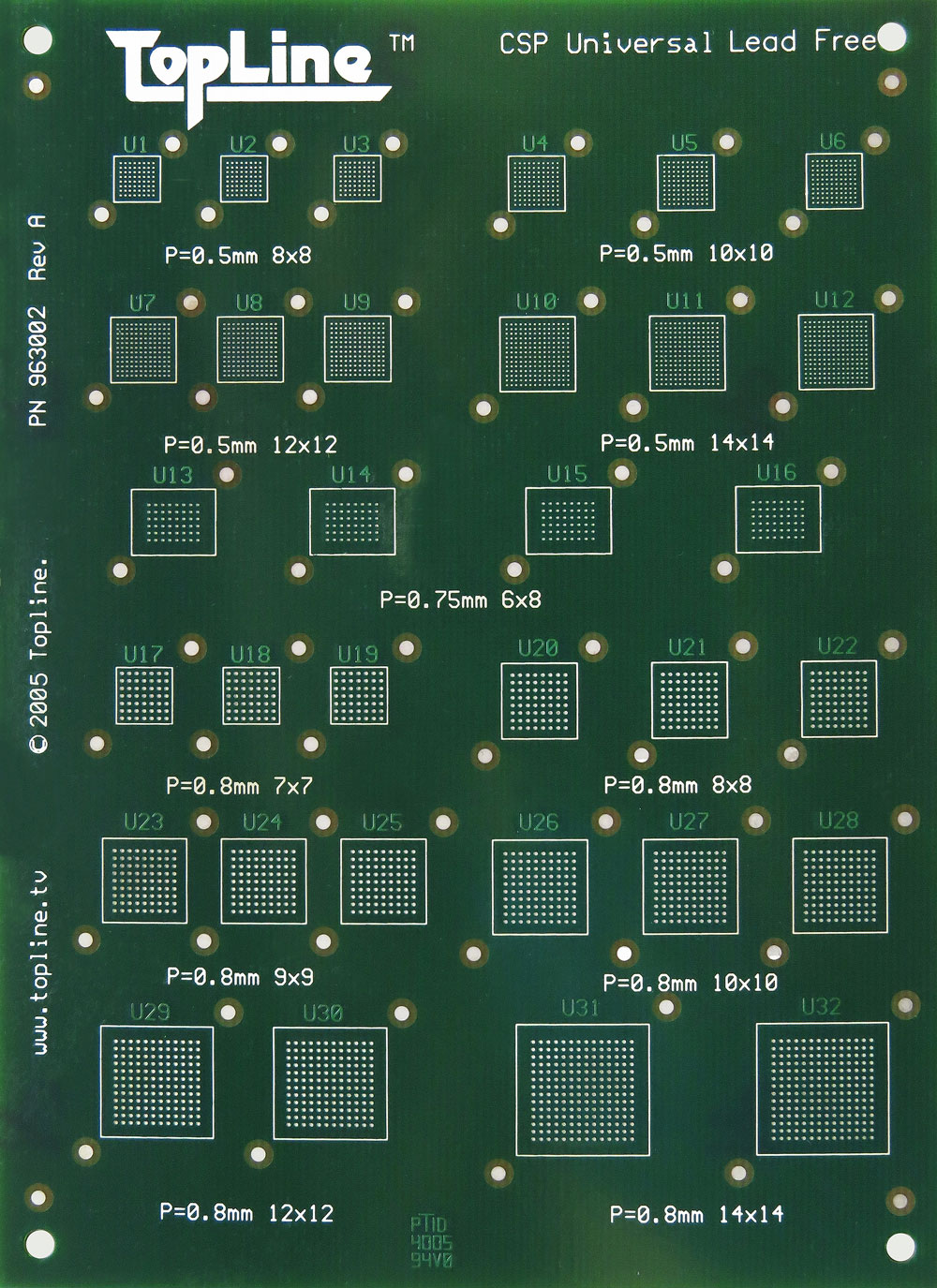

    Enlarge:  Bare Board (Top)
    0.5mm     •     0.75mm     •     0.8mm

    		•

      BOM Kit Contents
    Universal CSP Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    963X00
    1 Kit
    Order #
    963X06
    6 Kits
    Order #
    963X10
    10 Kits
    Order #
    963X25
    25 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		   1 6 10 25
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 6 10 25
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free - - - 25
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free - - - 25
    Board - ENIG
    Gold (Ni/Au)
    F = 9
    4th Digit Order#    		 RoHS Pb-Free 1 6 10 25
    CSP/BGA
    Pitch 0.5mm    		 1 4 24 40 100
    CSP/BGA
    Pitch 0.75mm    		 1 4 24 40 100
    CSP/BGA
    Pitch 0.8mm    		 1 4 24 40 100

    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "963001a" Universal BGA 0.5mm - 0.8mm
    Step 4. Download files

    Kit Order Number System
    963 2 # #
    Series Board Finish Quantity
    Universal CSP
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) No 963001
    Tin (Sn) RoHS 963002
    Silver (Ag) RoHS 963006
    OSP (Cu) RoHS 963008
    ENIG Gold (Ni/Au) RoHS 963009
