BQFP
Bumper Quad Flat Pack

64 Page Complete QFP Drawings Library PDF Format (1.5Mb)    •     JEDEC TRAYS

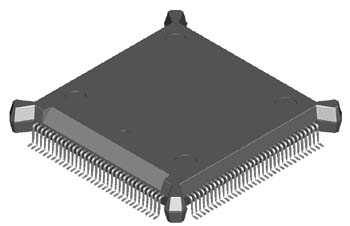

BQFP Bumpered Quad Flat Pack

Go to--> LQFP   TQFP   QFP
Trays   Practice Boards
QFP Lead Straightener Tool

Leads Body Size Lead Pitch Tray
Qty
Part Number
Click for Drawing
PDF
Drawing
100 .75" Sq 0.635mm
25.0 mil
55 BQFP100T25 PDF
132 .95" SQ 0.635mm
25.0mil
36 BQFP132T25 PDF
164 1.15" SQ 0.636mm
25.0mil
21 BQFP164T25 -

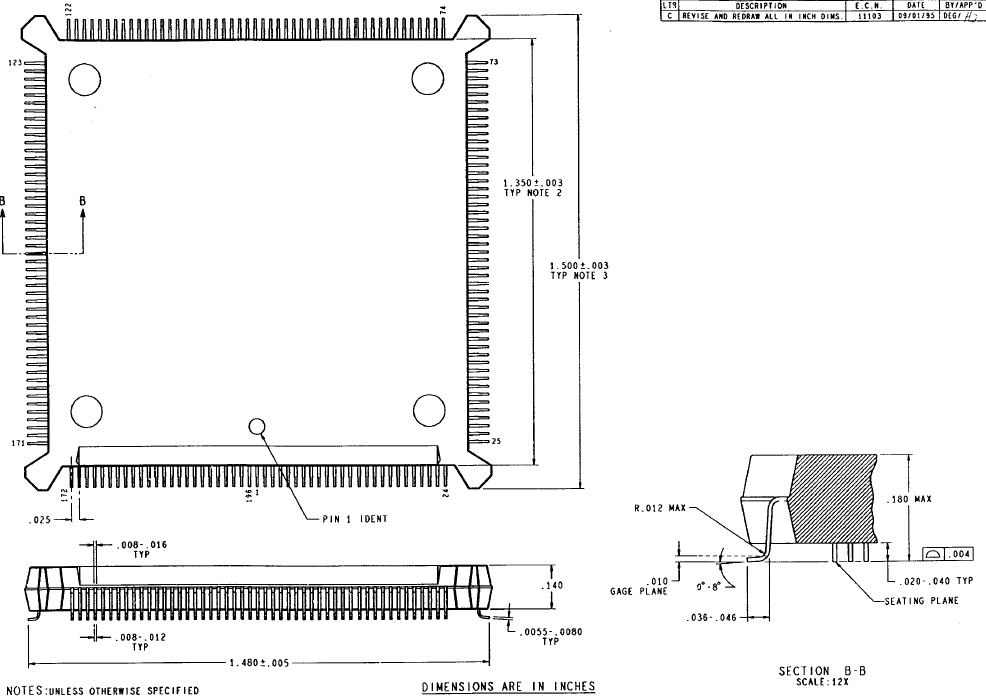

196 1.35" SQ 0.636mm
25.0mil
21 BQFP196T25
Obsolete
PDF
Daisy Chain and Lead Free are Not Available.
