C7-STENCIL
Frameless Stencils
for CCGA Column Attachment

Catalog   •   CCGA Packages  •   CCGA Library   •   Align   •   Stencil Printer   •   CCGA Columns   •   More tools   •   Pin-Pack


With Squeegee		 Solder Paste STENCIL

Features
  • Stencil Size: 4.25" SQ (108mm)
  • Aperture and Thickness: See table
  • Substrate size: 8~45mm

    • See Stencil Printer
    4.25" (108mm) STENICL
    Shown after mounting on frame    		 4.25" (108mm) STENICL
    Before Mounting on Frame
    4.25" (108mm) Frameless Stencil
    For Solder Paste
    Set
    DWG Number    		 Model Number Foil
    Thickness    		 Column
    Type    		 Aperture
    Ø Mils    		 LGA
    X/Y Size    		 Matrix
    Row x Col    		 Pitch Pad
    ØDia    		 Device Type
    611256 C7-STENCIL-143 150um
    6 mil    		 MCS172P20x Paste 28, 29, 30
    Alignment 34    		 14.5x14.5mm 12x12 1.0mm 0.80mm
    31.5mil    		 Cobham CG143
    611258 C7-STENCIL-143 200um
    8 mil    		 CG8020C20x Paste 28, 29, 30
    Alignment 34    		 14.5x14.5mm 12x12 1.0mm 0.80mm
    31.5mil    		 Cobham CG143
    621618 C7-STENCIL-255 200um
    8 mil    		 CG9010B14x Paste 30, 31, 32
    Alignment 35    		 21x21mm 16x16 1.27mm 0.86mm
    33.8mil    		 CG255
    611698 C7-STENCIL-256 200um
    8 mil    		 CG8020C14x Paste 26, 27, 28
    Alignment 32    		 17x17mm 16x16 1.0mm 0.75mm
    29.5mil    		 CG256
    611806 C7-STENCIL-323-B 150um
    6 mil    		 CG8020C15x Paste 23, 24, 25
    Alignment 28    		 20x20mm 18x18 1.0mm 0.68mm
    26.8mil    		 CG323
    611808 C7-STENCIL-323-B 200um
    8 mil    		 CG8020C15x Paste 23, 24, 25
    Alignment 28    		 20x20mm 18x18 1.0mm 0.68mm
    26.8mil    		 CG323
    621988 C7-STENCIL-360 200um
    8 mil    		 CG8020C20x Paste 30, 31, 32
    Alignment 35    		 25x25mm 19x19 1.27mm 0.86mm
    33.8mil    		 CG360
    622048 C7-STENCIL-376 200um
    8 mil    		 CG8020C20x Paste 28, 29, 30
    Alignment 34    		 28x28mm 20x20 1.27mm 0.89mm
    35mil    		 TI CG376
    612076 C7-STENCIL-399 150um
    6 mil    		 CG8020C15x Paste 19, 20, 21
    Alignment 25    		 21x21mm 20x20 1.0mm 0.60mm
    23.6mil    		 CG399
    613006 C7-STENCIL-458 150um
    6 mil    		 Organic - 31x31mm 30x30 1.0mm 0.35mm
    14mil    		 Marvel HSBGA458
    622268 C7-STENCIL-472 200um
    8 mil    		 CG8020C20x Paste 28, 29, 30
    Alignment 34    		 29x29mm 22x22 1.27mm 0.80mm
    31.5mil    		 Aeroflex CG472
    612256 C7-STENCIL-483 150um
    6 mil    		 MCS172P20x Paste 28, 29, 30
    Alignment 34    		 23x23mm 22x22 1.0mm 0.80mm
    31.5mil    		 Actel CG483
    612258 C7-STENCIL-483 200um
    8 mil    		 CG8020C20x Paste 27, 28, 29,
    Alignment 33.5    		 23x23mm 22x22 1.0mm 0.80mm
    31.5mil    		 Actel CG483
    622840 C7-STENCIL-576 150um
    6 mil    		 Ceramic - 37.5x37.5mm 28x28 1.27mm 0.86mm
    33.8mil    		 CG576
    622548 C7-STENCIL-624 200um
    8 mil    		 Ceramic Paste 30, 31, 32
    Alignment 35    		 32.5x32.5mm 25x25 1.27mm 0.86mm
    33.8mil    		 Actel CG624
    612588 C7-STENCIL-625 200um
    8 mil    		 CG8020C20x Paste 26, 27, 28
    Alignment 32    		 29x29mm 25x25 1.0mm 0.75mm
    30mil    		 Frontgrade
    NanoXplore CG625
    622756 C7-STENCIL-717 150um
    6 mil    		 CG8020C20x Paste 30, 31, 32
    Alignment 35    		 35x35mm 27x27 1.27mm 0.86mm
    33.8mil    		 CG717
    622758 C7-STENCIL-717 200um
    8 mil    		 CG8020C20x Paste 30, 31, 32
    Alignment 35    		 35x35mm 27x27 1.27mm 0.86mm
    33.8mil    		 CG717
    613088 C7-STENCIL-896 200um
    8 mil    		 CG8020C20x Paste 28, 29, 30
    Alignment 34    		 31x31mm 30x30 1.0mm 0.80mm
    31.5mil    		 CG898
    622548 C7-STENCIL-1088 200um
    8 mil    		 Ceramic Paste 28, 29, 30
    Alignment 35    		 42.5x42.5mm 33x33 1.27mm 0.86mm
    33.8mil    		 IBM CG1088
    613420 C7-STENCIL-1136 150~200um
    6~8 mil    		 Ceramic - 35x35mm 34x34 1.0mm 0.80mm
    31.5mil    		 Actel CG1136
    613450 C7-STENCIL-1140 150~200um
    6~8 mil    		 Ceramic - 35x35mm 34x34 1.0mm 0.80mm
    31.5mil    		 Xilinx CF1144
    Xilinx CN1144
    613488 C7-STENCIL-1144 200um
    8 mil    		 Ceramic - 35x35mm 34x34 1.0mm 0.80mm
    31.5mil    		 Xilinx CF1144
    Xilinx CN1144
    613420 C7-STENCIL-1148 150um
    6 mil    		 Organic - 35x35mm 34x34 1.0mm 0.50mm
    20mil    		 Xilinx FF1148
    613468 C7-STENCIL-1152 200um
    8 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 35x35mm 34x34 1.0mm 0.80mm
    31.5mil    		 Actel CG1152
    613440
    #083    		 C7-STENCIL-1152   Organic - 35x35mm 34x34 1.0mm 0.50mm
    19.7mil    		 Microsemi FC1152 Igoo2
    Xilinx FG1152 Virtex4
    613490 C7-STENCIL-1156 150um
    6 mil    		 Organic Paste 16, 17, 18
    Alignment 22    		 35x35mm 34x34 1.0mm 0.50mm
    19.7mil    		 Xilinx FF1156
    613508 C7-STENCIL-1221 200um
    8 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 37.5x37.5mm 35x35 1.0mm 0.80mm
    31.5mil    		 CG1221
    613676 C7-STENCIL-1272 150um
    6 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 37.5x37.5mm 36x36 1.0mm 0.80mm
    31.5mil    		 Actel CG1272
    613678 C7-STENCIL-1272 200um
    8 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 37.5x37.5mm 36x36 1.0mm 0.80mm
    31.5mil    		 Actel CG1272
    613618 C7-STENCIL-1291 200um
    8 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 37.5x37.5mm 36x36 1.0mm 0.80mm
    31.5mil    		 Honeywell CG1291
    613658 C7-STENCIL-1295 200um
    8 mil    		 Ceramic Paste 27, 28, 29
    Alignment 34    		 37.5x37.5mm 36x36 1.0mm 0.80mm
    31.5mil    		 Honeywell CG1295
    613966 C7-STENCIL-1509 150um
    6 mil    		 Ceramic Paste 28, 29, 30
    Alignment 34    		 40x40mm 39x39 1.0mm 0.80mm
    31.5mil    		 Microchip CG1509
    613968 C7-STENCIL-1509 200um
    8 mil    		 Ceramic Paste 26, 27, 28
    Alignment 32    		 40x40mm 39x39 1.0mm 0.80mm
    31.5mil    		 Microchip CG1509
    614166 C7-STENCIL-1657 150um
    6 mil    		 Ceramic Paste 28, 29, 30
    Alignment 34    		 42.5x42.5mm 41x41 1.0mm 0.80mm
    31.5mil    		 Microchip CG1657
    614168 C7-STENCIL-1657 200um
    8 mil    		 Ceramic Paste 28, 29, 30
    Alignment 34    		 42.5x42.5mm 41x41 1.0mm 0.80mm
    31.5mil    		 Microchip CG1657
    614161
    #082    		 C7-STENCIL-1657M
    Micro-Coil Spring    		 200um
    8 mil    		 Ceramic Paste 28, 29, 30
    Alignment 34    		 42.5x42.5mm 41x41 1.0mm 0.80mm
    31.5mil    		 Microchip CG1657
    614270 C7-STENCIL-1752 150~200um
    6~8 mil    		 Ceramic - 45x45mm 42x42 1.0mm 0.80mm
    31.5mil    		 Xilinx CN1752
    Xilinx CF1752
    699800 C7-STENCIL-2400-A 150um
    6 mil    		 PMN - 47.5x47.5mm 50x48 X0.036"
    Y0.039"    		 X0.022"
    Y0.031"    		 PMN2400-A
    699824 C7-STENCIL-2400-D 100um
    4 mil    		 PMN - Ø85mm 50x48 X0.036"
    Y0.039"    		 X0.022"
    Y0.031"    		 PMN2400-D PUCK
    Note: Consult with TopLine for recommended stencil.

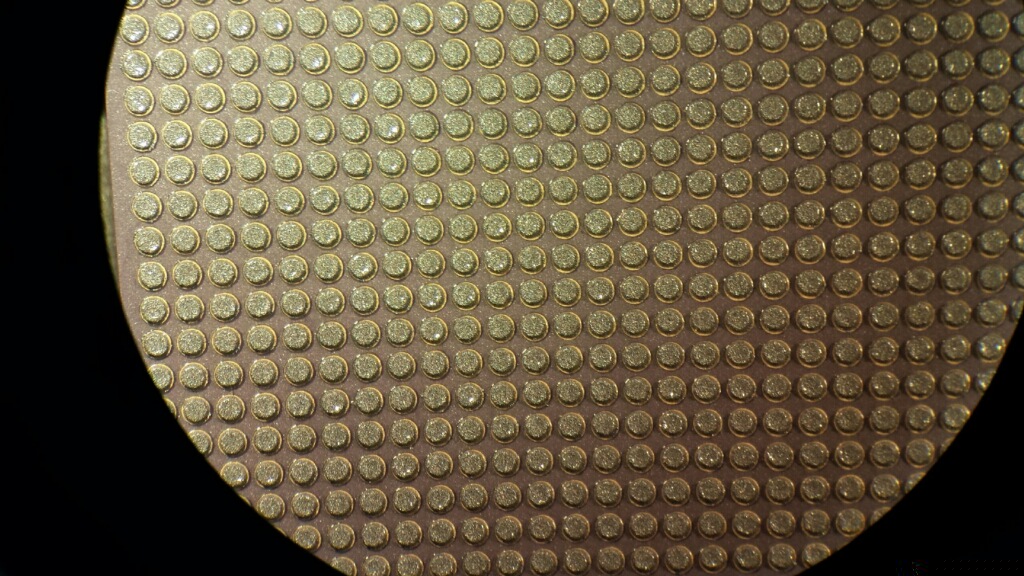

      Solder Paste Application:

    Stencil Details
  • Aperture: Ø 12~35mil (0.30~0.89mm)
  • Foil Thickess:
    4mils (100um)
    5mils (125um)
    6mils (150um)
    8mils (200um)


    • Ceramic LGA Substrate
  • Size: ALL
  • I/O: ALL
  • Pad Diameter: Ø 12~33mil (0.30~0.86mm)
    •
    Click photo for magnified view

    Model Numbering System
        C7     -     STENCIL     -     1152     -     Option
    Series   Description   Code   Variations
    Stencil Tool
    Series   •   Description
    C7 = 4.25" (108mm) Frameless







    		   Stencil Type
    STENCIL = Stainless Steel Stencil
    GERBER = Artwork to make Stencil
    		   Pin Count
    Code • Nbr. Pads
    255 = 255 pins
    360 = 360 pins
    376 = 376 pins
    399 = 399 pins
    472 = 472 pins
    483 = 483 pins
    624 = 624 pins
    717 = 717 pins
    896 = 896 pins
    1140 = 1140 pins
    1144 = 1144 pins
    1152 = 1152 pins
    1272 = 1272 pins
    1657 = 1657 pins
    1752 = 1752 pins
    2400 = 2400 pins
    		   Letter Code
    See Aperture Table

    Custom variations available.


    Drawing Number System

        6         1         123         8
    Series Pitch or Size Tool Number Version
    C7-Series
    Code • Item Description
    6 = 4.25" (108mm)
    Frameless STENCIL





    		 PITCH
    Code • Pitch
    1 = 1.0mm
    2 = 1.27mm
    8 = 0.8mm
    9 = Special
    		 MATRIX
    Code • I/O Pad
    125 = CCGA143
    161 = CCGA255
    169 = CCGA256
    198 = CCGA360
    204 = CCGA376
    207 = CCGA399
    226 = CCGA472
    225 = CCGA484
    254 = CCGA624
    259 = CCGA625
    275 = CCGA717
    308 = CCGA896
    342 = CCGA1136
    343 = CCGA1140
    348 = CCGA1144
    344 = FC/FG1152
    346 = CCGA1152
    367 = CCGA1272
    416 = CCGA1657
    427 = CCGA1752
    980 =  PMN2400
    		 Thickness Mil (um)

    0 = Custom Stencil Set
    4 = 4mil   •   (100um)
    5 = 5mil   •   (125um)
    6 = 6mil   •   (150um)
    7 = 7mil   •   (175um)
    8 = 8mil   •   (200um)



    Aperture Letter Codes
    Solder Paste Stencil
    Aperture (Mil) Aperture (mm) 4mil 5mil - - Pad Ø Dia
    Ø8mil Ø0.20mm P P - - Ø0.28mm
    11mil
    Ø9mil Ø0.23mm P P - -
    Ø10mil Ø0.25mm P P - -
    Ø13mil Ø0.33mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 4mil 5mil - - Pad Ø Dia
    Ø9mil Ø0.23mm P P - - Ø0.30mm
    12mil
    Ø10mil Ø0.25mm P P - -
    Ø11mil Ø0.28mm P P - -
    Ø14mil Ø0.36mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 4mil 5mil - - Pad Ø Dia
    Ø11mil Ø0.28mm P P - - Ø0.35mm
    13.7mil
    Ø12mil Ø0.30mm P P - -
    Ø13mil Ø0.33mm P P - -
    Ø16mil Ø0.41mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 4mil 5mil - - Pad Ø Dia
    Ø12mil Ø0.30mm P P - - Ø0.40mm
    15.7mil
    Ø13mil Ø0.33mm P P - -
    Ø14mil Ø0.36mm P P - -
    Ø18mil Ø0.46mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil - - Pad Ø Dia
    Ø14mil Ø0.36mm P P - - Ø0.45mm
    17.7mil
    Ø15mil Ø0.38mm P P - -
    Ø16mil Ø0.41mm P P - -
    Ø20mil Ø0.51mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil - - Pad Ø Dia
    Ø16mil Ø0.41mm P P - - Ø0.50mm
    19.7mil
    Ø17mil Ø0.43mm P P - -
    Ø18mil Ø0.46mm P P - -
    Ø22mil Ø0.56mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil 7mil 8mil Pad Ø Dia
    Ø19mil Ø0.48mm P P - - Ø0.60mm
    23.6mil
    Ø20mil Ø0.51mm P P - -
    Ø21mil Ø0.53mm P P - -
    Ø25mil Ø0.635mm A A - -
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil 7mil 8mil Pad Ø Dia
    Ø23mil Ø0.58mm - P - P Ø0.68mm
    26.8mil
    Ø24mil Ø0.61mm - P - P
    Ø25mil Ø0.635mm - P - P
    Ø28mil Ø0.71mm - A - A
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil 7mil 8mil Pad Ø Dia
    Ø26mil Ø0.66mm - P - P Ø0.75mm
    29.5mil
    Ø27mil Ø0.685mm - P - P
    Ø28mil Ø0.71mm - P - P
    Ø32mil Ø0.81mm - A - A
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil 7mil 8mil Pad Ø Dia
    Ø27mil Ø0.68mm - P - P Ø0.80mm
    31.5mil
    Ø28mil Ø0.71mm - P - P
    Ø29mil Ø0.74mm - P - P
    Ø34mil Ø0.86mm - A - A
    P=Paste Stencil   •   A=Alignment Stencil

    Aperture (Mil) Aperture (mm) 5mil 6mil 7mil 8mil Pad Ø Dia
    Ø30mil Ø0.76mm - P - P Ø0.86mm
    33.8mil
    Ø31mil Ø0.79mm - P - P
    Ø32mil Ø0.81mm - P - P
    Ø35mil Ø0.89mm - A - A
    P=Paste Stencil   •   A=Alignment Stencil


    ECCN: EAR99 Export Administration Regulations (EAR)
    HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
    ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.
