CERDIP Side Braze CERAMIC Dual Inline |
 | ||
|
|
||
|
Go to Plastic DIP |
|
|
| Number Pins |
Body Width |
External Lead Plating |
Open Cavity For Die Bonding With Tie Bar (Lid Optional) |
Sealed Lid Dummy Package Without Tie-Bar Without Daisy Chain |
Sealed Lid Test Package With Tie-Bar With Daisy Chain |
Daisy Chain Schematic |
300mil Wide CERAMIC CERDIP - Side Braze |
| 8 | 300 mil | Gold |
CERDIP8F3-N170x220 360 ° Model |
CERDIP8M3 | CERDIP8F3-DE | Daisy Chain | |
| 8 | 300 mil | SnPb | - | CERDIP8M3-SC | CERDIP8F3-DE-SC | Daisy Chain | |
| 14 | 300 mil | Gold |
CERDIP14F3-SB-N170x260 360 ° Model |
CERDIP14M3 | CERDIP14M3-DE | Daisy Chain | |
| 14 | 300 mil | SnPb | - | CERDIP14M3-SC | CERDIP14F3-DE-SC | Daisy Chain | |
| 16 | 300 mil | Gold |
CERDIP16F3-SB-N174x244 360 ° Model |
CERDIP16M3 | CERDIP16F3-DE | Daisy Chain | |
| 16 | 300 mil | Gold |
CERDIP16F3-SB-N170x320 360 ° Model |
CERDIP16M3 | CERDIP16F3-DE | Daisy Chain | |
| 16 | 300 mil | SnPb | - | CERDIP16M3-SC | CERDIP16F3-DE-SC | Daisy Chain | |
| 18 | 300 mil | Gold |
CERDIP18F3-SB-N175x320 - CERDIP18F3-SB-N200x390 360 ° Model- CERDIP18F3-SB-N232x537 360 ° Model
|
CERDIP18M3 | CERDIP18F3-DE | Daisy Chain | |
| 18 | 300 mil | SnPb | - | CERDIP18M3-SC | CERDIP18F3-DE-SC | Daisy Chain | |
| 20 | 300 mil | Gold |
CERDIP20F3-SB-N175x320 360 ° Model |
CERDIP20M3 | CERDIP20F3-DE | Daisy Chain | |
| 20 | 300 mil | SnPb | - | CERDIP20M3-SC | CERDIP20F3-DE-SC | Daisy Chain | |
| 24 | 300 mil | Gold |
CERDIP24F3-SB-N210 360 ° Model |
CERDIP24M3 | CERDIP24F3-DE | Daisy Chain | |
| 28 | 300 mil | Gold |
CERDIP28F3-SB-N195x535 360 ° Model |
CERDIP28M3 | CERDIP28F3-DE | Daisy Chain | |
| 28 | 300 mil | SnPb | - | CERDIP28M3-SC | CERDIP28F3-DE-SC | Daisy Chain | |
| 600mil Wide CERAMIC CERDIP - Side Braze | |||||||
| 24 | 600 mil | Gold |
CERDIP24F6-SB-N380 360 ° Model |
CERDIP24M6 | CERDIP24F6-DE | Daisy Chain | |
| 28 | 600 mil | Gold |

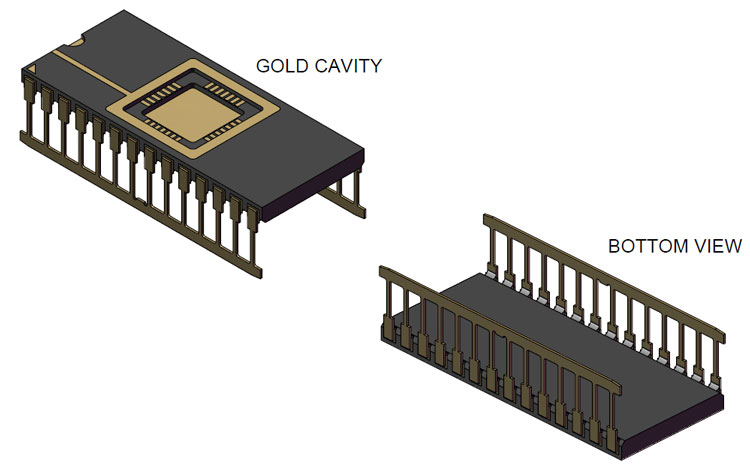

CERDIP28F6-SB-N310 360 ° Model |
CERDIP28M6 | CERDIP28F6-DE | Daisy Chain | |
| 28 | 600 mil | SnPb | - | CERDIP28M6-SC | CERDIP28F6-DE-SC | Daisy Chain | |
| 32 | 600 mil | Gold |
CERDIP32F6-SB-N380 360 ° Model
|
CERDIP32M6 | CERDIP32F6-DE | Daisy Chain | |
| 32 | 600 mil | SnPb | - | CERDIP32M6-SC | CERDIP32F6-DE-SC | Daisy Chain | |
| 40 | 600 mil | Gold |
CERDIP40F6-SB-N400 360 ° Model |
CERDIP40M6 | CERDIP40F6-DE | Daisy Chain | |
| 40 | 600 mil | SnPb | - | CERDIP40M6-SC | CERDIP40F6-DE-SC | Daisy Chain | |
| 48 | 600 mil | Gold | CERDIP48F6-SB-N | CERDIP48M6 | CERDIP48F6-DE | Daisy Chain | |
| 48 | 600 mil | SnPb | - | CERDIP48M6-SC | CERDIP48F6-DE-SC | Daisy Chain | |
| 900mil Wide CERAMIC CERDIP - Side Braze | |||||||
| 64 | 900 mil | Gold |
CERDIP64F9-SB-N400 360 ° Model |
CERDIP64M9 | CERDIP64F9-DE | Daisy Chain | |
| 64 | 900 mil | SnPb | - | CERDIP64M9-SC | CERDIP64F9-DE-SC | Daisy Chain | |
| Seal ring, die pad dimensions and bond diagram subject to change. Please request updated drawing. | ||||||
| | ||||||
| Combo Lids Available. Alloy 42 (Kovar) base material with Au/Sn eutectic solder seal preform. | ||||||
| | ||||||
| Photo Gallery | ||||||
| Number Pins |
Body Width |
Exposed Plating |
Open Cavity For Die Bonding With Tie-Bar (Lid Optional) |
Sealed Package Without Tie-Bar Without Daisy Chain |
Sealed Package With Tie-Bar With Daisy Chain |
|
| 8~ 64L |
300MIL 7.62mm 600MIL 15.2mm 900MIL 22.8mm |
Gold |  CERDIP##F#-SB-N Series |
 CERDIP##M# Series |
 CERDIP##F#-DE Series |
|
For Daisy Chain add -DE to end of Part Number.
For SnPb solder tinning, add -SC to Part Number
