DIP, DIP IC, DIP DIL, DIL, PDIL, PDIP, PDIP PACKAGE , SDIP TopLine Dual Inline Semiconductor Package with Daisy Chain.... THROUGH HOLE TECHNOLOGY, THT, THT PACKAGES , THROUGH DEVICES , DIP OPEN CAVITY PACKAGES . . . . DIP2, DIP2M3 , DIP4, DIP04, DIP6, DIP06, DIP8, DIP8M3, DIP08, DIP14, DIP14M3, DIP14-300, DIP16, DIP16M3, DIP16-300, DIP18, DIP18M3, DIP18-300, DIP20, DIP20M3, DIP20-300, DIP22, DIP22M3, DIP24, DIP24M3, DIP24-300, DIP28, DIP28M3, DIP28-300, DIP28M6, DIP32, DIP32M3, DIP32M6, DIP32-300, DIP36, DIP40, DIP40M6, DIP48, DIP48M6, DIP52, DIP56, DIP64, DIP64M9...... DIP14T , DIP40P DIP8M3-DE-D, DIP14M3-DE-D, DIP16M3-DE-D, DIP18M3-DE-D, DIP20M3-DE-D, DIP24M3-DE-D, DIP28M3-DE-D, DIP28M6-DE-D, DIP32M-DE-D, DIP32M6-DE-D, DIP40M6-DE-D, DIP48M6-DE-D, DIP64M9-DE-D ...... DIP8-DE, DIP14-DE, DIP16-DE, DIP18-DE, DIP20-DE, DIP24-DE, DIP28-DE, DIP32-DE, DIP40-DE, DIP48-DE, DIP64-DE ...... DIP8-DC, DIP14-DC, DIP16-DC, DIP18-DC, DIP20-DC, DIP24-DC, DIP28-DC, DIP32-DC, DIP40-DC, DIP48-DC, DIP64-DC ...... DIP8M3-TIN, DIP14M3-TIN, DIP16M3-TIN, DIP18M3-TIN, DIP20M3-TIN, DIP24M3-TIN, DIP28M3-TIN, DIP28M6-TIN, DIP32M3-TIN, DIP32M6-TIN, DIP40M6-TIN, DIP48M6-TIN, DIP64M9-TIN ...... DIP8M3-TIN-DE-D, DIP14M3-TIN-DE-D, DIP16M3-TIN-DE-D, DIP18M3-TIN-DE-D, DIP20M3-TIN-DE-D, DIP24M3-TIN-DE-D, DIP28M3-TIN-DE-D, DIP28M6-TIN-DE-D, DIP32M3-TIN-DE-D, DIP32M6-TIN-DE-D, DIP40M6-TIN-DE-D, DIP48M6-TIN-DE-D, DIP64M9-TIN-DE-D ...... DIP8M3-T-DE-D, DIP14M3-T-DE-D, DIP16M3-T-DE-D, DIP18M3-T-DE-D, DIP20M3-T-DE-D, DIP24M3-T-DE-D, DIP28M3-T-DE-D, DIP28M6-T-DE-D, DIP32M3-T-DE-D, DIP32M6-T-DE-D, DIP40M6-T-DE-D, DIP48M6-T-DE-D, DIP64M9-T-DE-D ...... DIP 2, DIP 4, DIP 04, DIP 6, DIP 06, DIP 8, DIP 08, DIP 14, DIP 16, DIP 18, DIP 20, DIP 22, DIP 24, DIP 28, DIP 32, DIP 36, DIP 40, DIP 48, DIP 52, DIP 56 DIP 64 ..... DIP-2, DIP-4, DIP-04, DIP6, DIP-06, DIP-8, DIP-08, DIP-14, DIP-16, DIP-18, DIP-20, DIP-22, DIP-24, DIP-28, DIP-32, DIP-36, DIP-40, DIP-48, DIP-52, DIP-56 DIP-64 ... DIP-8C , DIP8-C , DIL6, DIL06, DIL8, DIL08, DIL14, DIL16, DIL18, DIL20, DIL22, DIL24, DIL28, DIL32, DIL40, DIL48, DIL52, DIP56, DIL64 ...... DIL 6, DIL 06, DIL 8, DIL 08, DIL 14, DIL 16, DIL 18, DIL 20, DIL 22, DIL 24, DIL 28, DIL 32, DIL 40, DIL 48, DIL52, DIP56, DIL 64 ..... DIL-6, DIL-06, DIL-8, DIL-08, DIL-14, DIL-16, DIL-18, DIL-20, DIL-22, DIL-24, DIL-28, DIL-32, DIL-40, DIL-48, DIP-52, DIL-56, DIL-64 ... PDIP8, PDIP08, PDIP14, PDIP16, PDIP18, PDIP20, PDIP22, PDIP24, PDIP28, PDIP32, PDIP36, PDIP40, PDIP48, PDIP64 ...... PDIP 8, PDIP 08, PDIP 14, PDIP 16, PDIP 18, PDIP 20, PDIP 22, PDIP 24, PDIP 28, PDIP 32, PDIP 36, PDIP 40, PDIP 48, PDIP 64 ..... PDIP-8, PDIP-08, PDIP-14, PDIP-16, PDIP-18, PDIP-20, PDIP-22, PDIP-24, PDIP-28, PDIP-32, PDIP-36, PDIP-40, PDIP-48, PDIP-64 ... PDIP8-300 , PDIP14-300 , PDIP16-300 , PDIP18-300 , PDIP20-300 , PDIP24-300 , SDIP24, SDIP28, SDIP30, SOT232-1, SDIP32, SDIP36, SDIP42, SDIP52, SDIP56, SDIP64 ...... SDIP 24, SDIP 28, SDIP 30, SDIP 32, SDIP 36, SDIP 42, SDIP 52, SDIP 56, SDIP 64 ...... SDIP-24, SDIP-28, SDIP-30, SDIP-32, SDIP-36, SDIP-42, SDIP-52, SDIP-56, SDIP-64 ...... 2 PDIP , 4 PDIP, 6 PDIP , 8 PDIP , 14 PDIP , 16 PDIP , 18 PDIP , 20 PDIP , 22 PDIP , 24 PDIP , 28 PDIP , 32 PDIP , 36 PDIP , 40 PDIP, 48 PDIP , 52 PDIP , 56 PDIP , 64 PDIP ...... 2PDIP , 4PDIP, 6PDIP , 8PDIP , 14PDIP , 16PDIP , 18PDIP , 20PDIP , 22PDIP , 24PDIP , 28PDIP , 32PDIP , 36PDIP , 40PDIP, 48PDIP , 52PDIP , 56PDIP , 64PDIP ...... 2 DIP , 4 DIP, 6 DIP , 8 DIP , 14 DIP , 16 DIP , 18 DIP , 20 DIP , 22 DIP , 24 DIP , 28 DIP , 32 DIP , 36 DIP , 40 DIP, 48 DIP , 52 DIP , 56 DIP , 64 DIP ...... 2DIP , 4DIP, 6DIP , 8DIP , 14DIP , 16DIP , 18DIP , 20DIP , 22DIP , 24DIP , 28DIP , 32DIP , 36DIP , 40DIP, 48DIP , 52DIP , 56DIP , 64DIP , ...... 8 PIN DIPS , 14 PIN DIPS , 16 PIN DIPS , 20 PIN DIPS , 24 PIN DIPS , 28 PIN DIPS, 32 PIN DIPS , 40 PIN DIPS , 48 PIN DIPS , 64 PIN DIPS , 2L DIP , 4L DIP, 6L DIP , 8L DIP , 14L DIP , 16L DIP , 18L DIP , 20L DIP , 22L DIP , 24L DIP , 28L DIP , 32L DIP , 36L DIP , 40L DIP, 48L DIP , 52L DIP , 56L DIP , 64L DIP , ...... SOT27, SOT38, SOT97, SOT101, SOT102, SOT117, SOT129, SOT146, SOT222, SOT232, SOT234, SOT240, SOT247, SOT274, SOT400 - - - - - - SOT-27, SOT-38, SOT-97, SOT-101, SOT-102, SOT-117, SOT-129, SOT-146, SOT-222, SOT-232, SOT-234, SOT-240, SOT-247, SOT-274, SOT-400 - - - - - SOT 27, SOT 38, SOT 97, SOT 101, SOT 102, SOT 117, SOT 129, SOT 146, SOT 222, SOT 232, SOT 234, SOT 240, SOT 247, SOT 274, SOT 400 - - - DIP8M3 , DIP8M3-DE , DIP8M3-T-DE , DIP8M3-TIN , DIP8M3-TIN-ISO , DIP14M3 , DIP14M3-DE , DIP14M3F-DE , DIP14M3-F-ISO , DIP14M3-ISO , DIP14M3-ISO-UM , DIP14M3-T-DE , DIP14M3-TIN , DIP14M3-TIN-DE-D , DIP16M3 , DIP16M3-DE-D , DIP16M3F-DE , DIP16M3-ISO , DIP16M3-ISO-UM , DIP16M3-T-DE-D , DIP16M3-TIN , DIP16M3-TIN-DE , DIP16M3-TIN-ISO , DIP16M3-T-ISO , DIP18M3 , DIP18M3-ISO , DIP18M3-ISO-UM , DIP18M3-TIN , DIP18M3-TIN-DE , DIP20M3 , DIP20M3-DE , DIP20M3-TIN , DIP20M3-TIN-DE , DIP20M3-TIN-ISO , DIP22M3 , DIP22M4 , DIP24M3 , DIP24M3-DE-D , DIP24M3-ISO , DIP24M3-TIN , DIP24M3-TIN-DE-D , DIP24M6 , DIP24M6 , DIP24M6 , DIP24M6 , DIP24M6-ISO , DIP24M6-ISO-UM , DIP24M6-TIN , DIP24M6-TIN-DE-D , DIP28M3 , DIP28M3 , DIP28M3-DE , DIP28M3-T-DE-D , DIP28M4 , DIP28M6 , DIP28M6 , DIP28M6 , DIP28M6-TIN , DIP28M6-TIN-DE-D , DIP28M6-T-ISO , DIP2M , DIP32M3 , DIP32M6 , DIP32M6 , DIP32M6 , DIP32M6-TIN , DIP32M6-TIN-DE-D , DIP32M6-T-ISO , DIP40M6 , DIP40M6 , DIP40M6-DE , DIP40M6-DE-D , DIP40M6-T-DE-D , DIP40M6-TIN , DIP48M6 , DIP48M6 , DIP48M6 , DIP48M6 , DIP48M6-T-DE-D , DIP48M6-TIN , DIP64M9 , DIP64M9 - - - 103888 , 148712 , 153078 , 153831 , 154031 , 155040 , 155259 , 156600 , 156612 , 157173 , 158196 , 158565 , 159123 , 159462 , 159849 , 159927 , 160695 , 160746 , 160788 , 161307 , 161328 , 161955 , 162072 , 162096 , 162147 , 162507 , 162513 , 162519 , 162528 , 162531 , 162705 , 162975 , 163113 , 163116 , 163119 , 163122 , 163125 , 163128 , 163629 , 163632 , 163659 , 163662 , 163704 , 163707 , 163770 , 163815 , 165291 , 165580 , 165834 , 165837 , 165840 , 166180 , 166935 , 167097 , 167100 , 167358 , 167700 , 172344 , 172580 , 172585 , 173044 , 183147 , 183424 , 183490 , 187175 , 191980 , 193800 , 201610 , 201620 , 205665 , 206790 , 206795 , 208325 , 208375 , 208380 , 208395 , 222485 , 225215 , 240130 , 271470 , 298230 ,

Number Leads	Body Width	Tube Qty	Outline Drawing	Daisy Chain

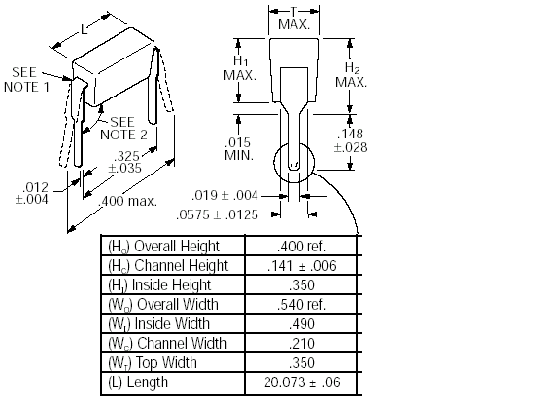

2	300 mil	200	DIP2M3	-
8	300 mil	50	DIP8M3	DIP8M3-DE
14	300 mil	25	DIP14M3	DIP14M3-DE
16	300 mil	25	DIP16M3	DIP16M3-DE
16	300 mil	30	DIP16M3-T-ISO	DIP16M3-DE

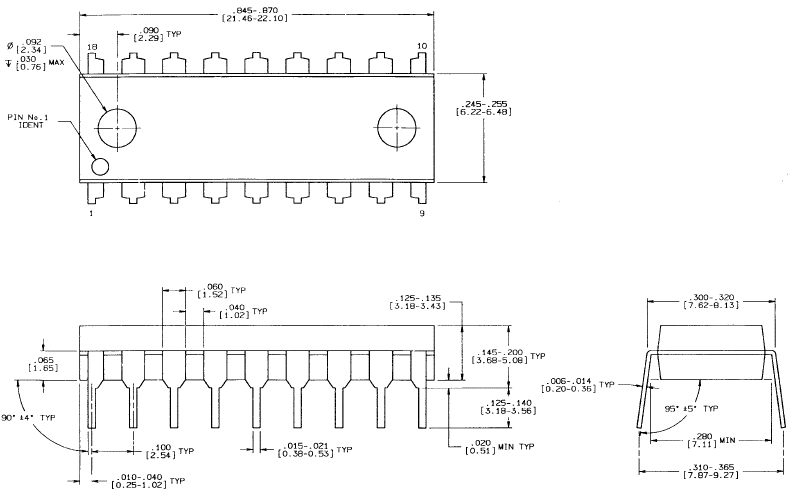

18	300 mil	21	DIP18M3	DIP18M3-DE

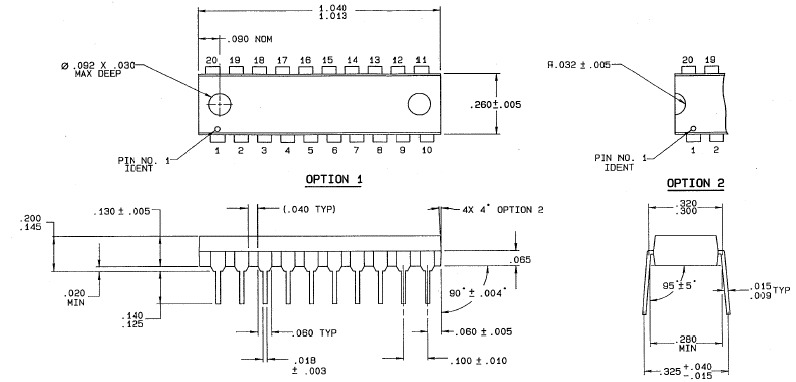

20	300 mil	18	DIP20M3	DIP20M3-DE

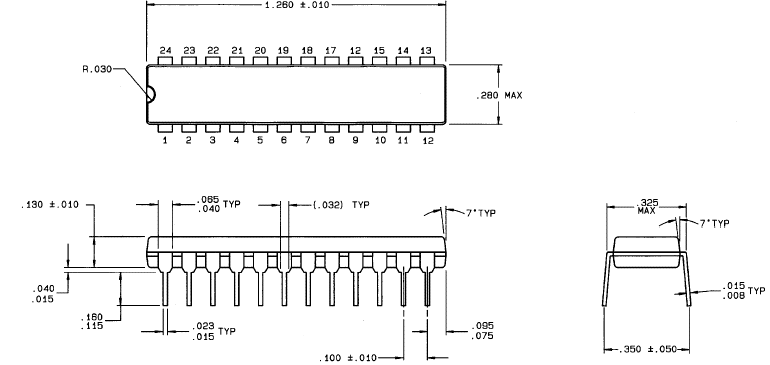

24	300 mil	15	DIP24M3	DIP24M3-DE

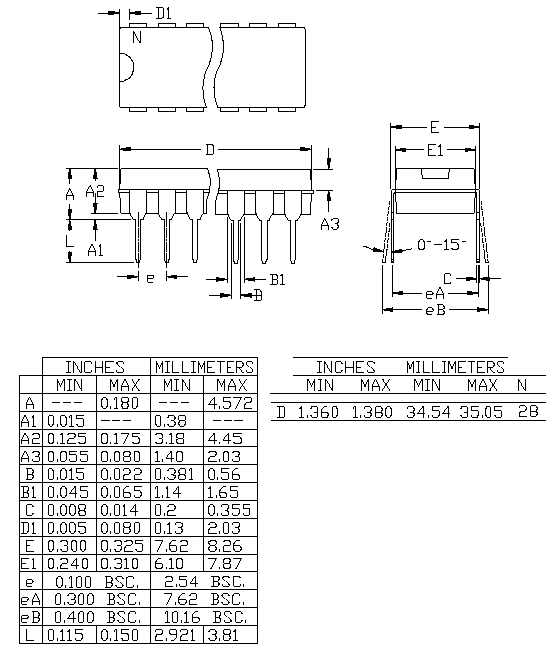

28	300 mil	28	DIP28M3	DIP28M3-DE

600mil Wide

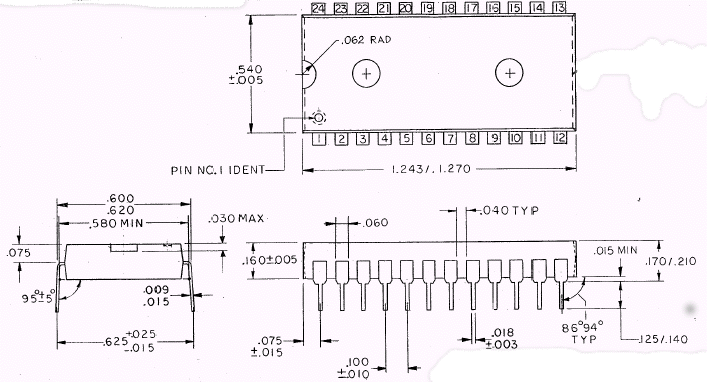

24	600 mil	15	DIP24M6	DIP24M6-DE

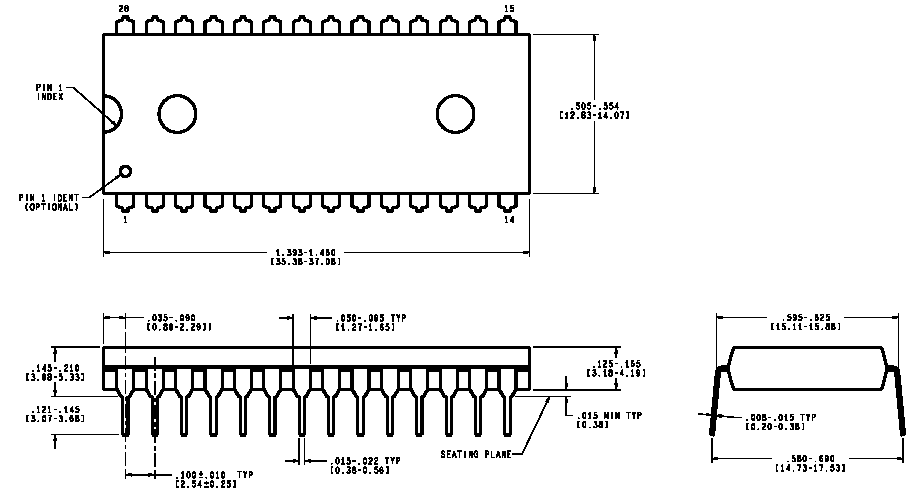

28	600 mil	13	DIP28M6	DIP28M6-DE

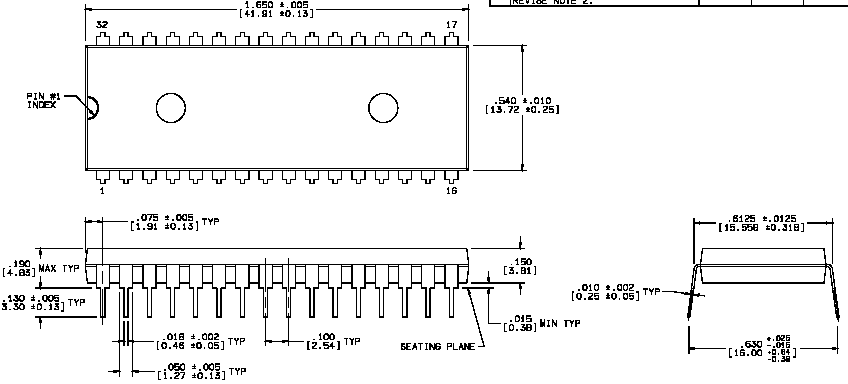

32	600 mil	11	DIP32M6	DIP32M6-DE

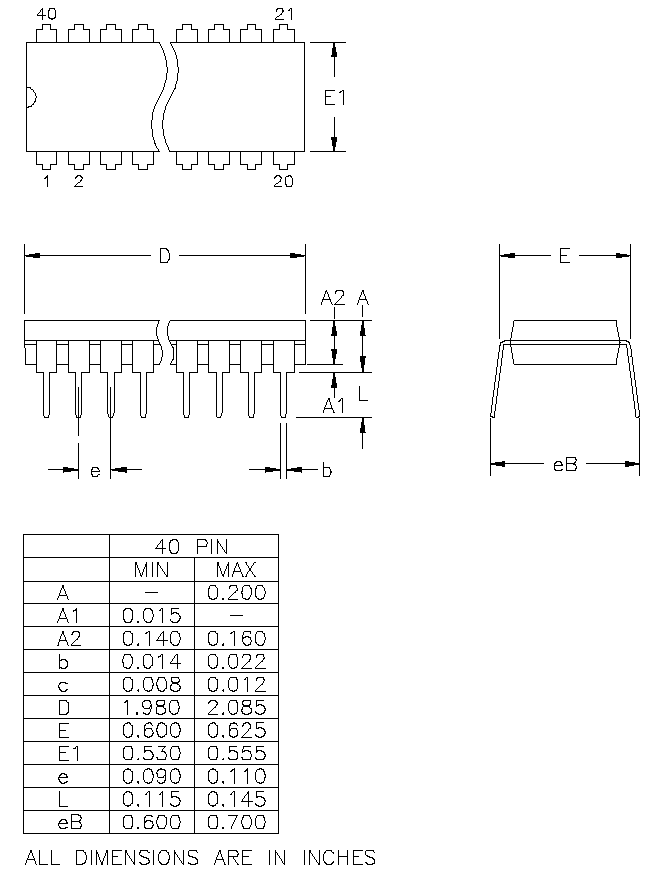

40	600 mil	10	DIP40M6	DIP40M6-DE

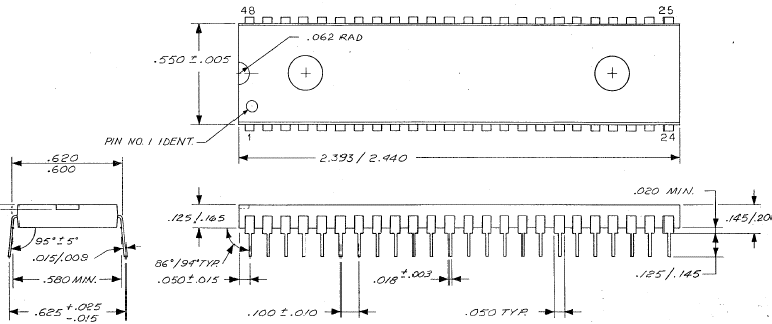

48	600 mil	7	DIP48M6	DIP48M6-DE

900mil Wide
64	900 mil	6	DIP64M9	DIP64M9-DE

SDIP 70 mil (1.78mm) Pitch
24	300 mil	25	SDIP24M3	SDIP24M3-DE
28	400 mil	22	SDIP28M3	SDIP28M3-DE

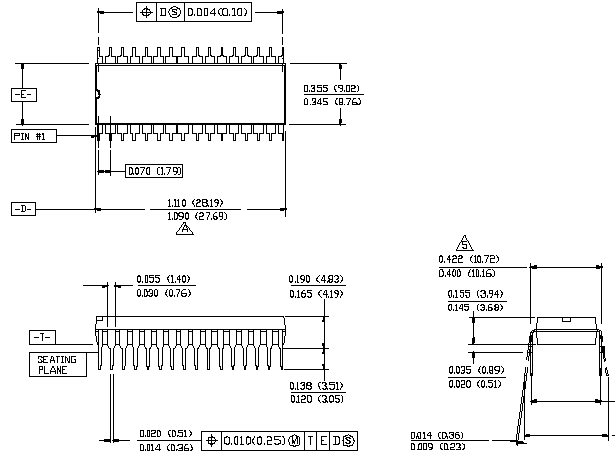

32	400 mil	18	SDIP32M4	SDIP32M4-DE
42	600 mil	14	SDIP42M6	SDIP42M6-DE
52	600 mil	11	SDIP52M6	SDIP52M6-DE
56	600 mil	9	SDIP56M6	SDIP56M6-DE
64	750 mil	9	SDIP64M7.5	SDIP64M7.5-DE

CERDIP (SB) Side Braze
CERAMIC Dual Inline
Shown after excising from tie-bar

Number Pins	Body Width	External Lead Plating	Open Cavity For Die Bonding With Tie Bar (Lid Optional)	Sealed Lid Dummy Package Without Tie-Bar Without Daisy Chain	Sealed Lid Test Package With Tie-Bar With Daisy Chain	Daisy Chain Schematic
CERAMIC CERDIP - Side Braze
8	300 mil	Gold	CERDIP8F3-SB-N	CERDIP8M3	CERDIP8F3-DE	Daisy Chain
8	300 mil	SnPb	-	CERDIP8M3-SC	CERDIP8F3-DE-SC	Daisy Chain
14	300 mil	Gold	CERDIP14F3-SB-N	CERDIP14M3	CERDIP14M3-DE	Daisy Chain
14	300 mil	SnPb	-	CERDIP14M3-SC	CERDIP14F3-DE-SC	Daisy Chain
16	300 mil	Gold	CERDIP16F3-SB-N	CERDIP16M3	CERDIP16F3-DE	Daisy Chain
16	300 mil	SnPb	-	CERDIP16M3-SC	CERDIP16F3-DE-SC	Daisy Chain
18	300 mil	Gold	CERDIP18F3-SB-N	CERDIP18M3	CERDIP18F3-DE	Daisy Chain
18	300 mil	SnPb	-	CERDIP18M3-SC	CERDIP18F3-DE-SC	Daisy Chain
20	300 mil	Gold	CERDIP20F3-SB-N	CERDIP20M3	CERDIP20F3-DE	Daisy Chain
20	300 mil	SnPb	-	CERDIP20M3-SC	CERDIP20F3-DE-SC	Daisy Chain
28	300 mil	Gold	CERDIP28F3-SB-N	CERDIP28M3	CERDIP28F3-DE	Daisy Chain
28	300 mil	SnPb	-	CERDIP28M3-SC	CERDIP28F3-DE-SC	Daisy Chain
28	600 mil	Gold	CERDIP28F6-SB-N	CERDIP28M6	CERDIP28F6-DE	Daisy Chain
28	600 mil	SnPb	-	CERDIP28M6-SC	CERDIP28F6-DE-SC	Daisy Chain
32	600 mil	Gold	CERDIP32F6-SB-N	CERDIP32M6	CERDIP32F6-DE	Daisy Chain
32	600 mil	SnPb	-	CERDIP32M6-SC	CERDIP32F6-DE-SC	Daisy Chain
40	600 mil	Gold	CERDIP40F6-SB-N	CERDIP40M6	CERDIP40F6-DE	Daisy Chain
40	600 mil	SnPb	-	CERDIP40M6-SC	CERDIP40F6-DE-SC	Daisy Chain
48	600 mil	Gold	CERDIP48F6-SB-N	CERDIP48M6	CERDIP48F6-DE	Daisy Chain
48	600 mil	SnPb	-	CERDIP48M6-SC	CERDIP48F6-DE-SC	Daisy Chain
64	900 mil	Gold	CERDIP64F9-SB-N	CERDIP64M9	CERDIP64F9-DE	Daisy Chain
64	900 mil	SnPb	-	CERDIP64M9-SC	CERDIP64F9-DE-SC	Daisy Chain

Seal ring, die pad dimensions and bond diagram subject to change. Please request updated drawing.

Photo Gallery
Number Pins	Body Width	Exposed Plating	Open Cavity For Die Bonding With Tie-Bar (Lid Optional)	Sealed Package Without Tie-Bar Without Daisy Chain	Sealed Package With Tie-Bar With Daisy Chain
8~ 64L	300MIL 7.62mm 600MIL 15.2mm 900MIL 22.8mm	Gold	CERDIP##F#-SB-N Series	CERDIP##M# Series	CERDIP##F#-DE Series

For Daisy Chain add -DE to end of Part Number.
For SnPb solder tinning, add -SC to Part Number
