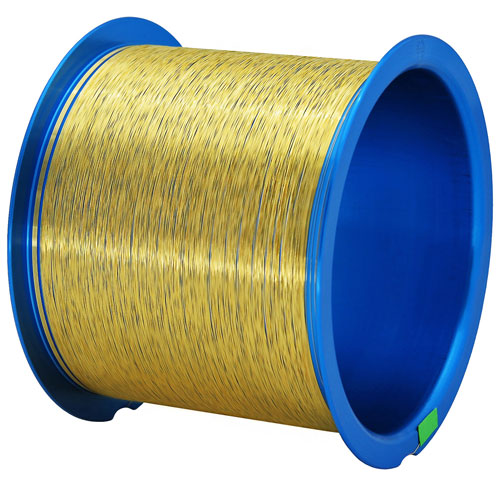

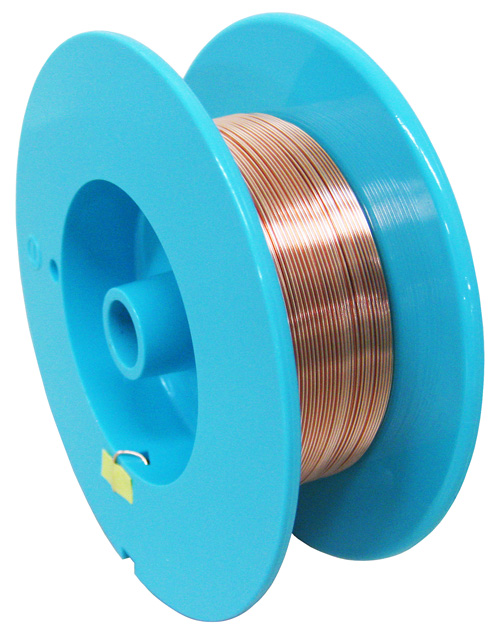

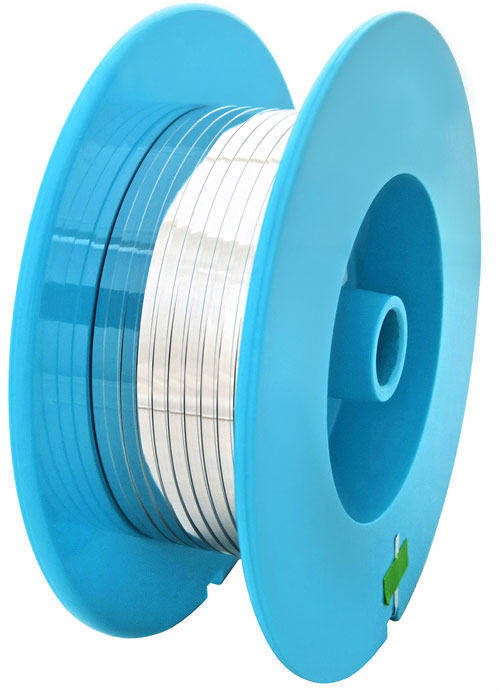

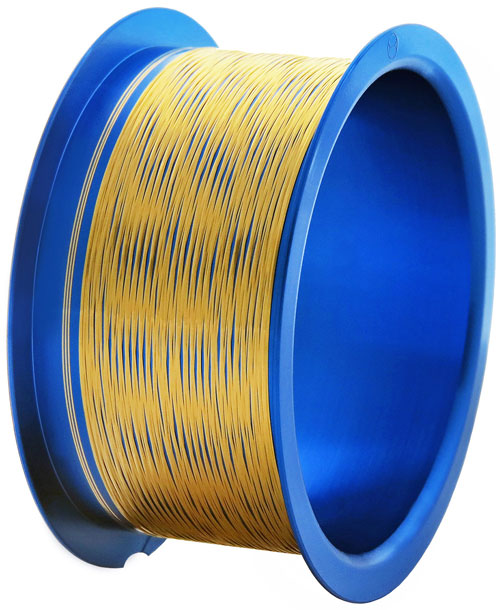

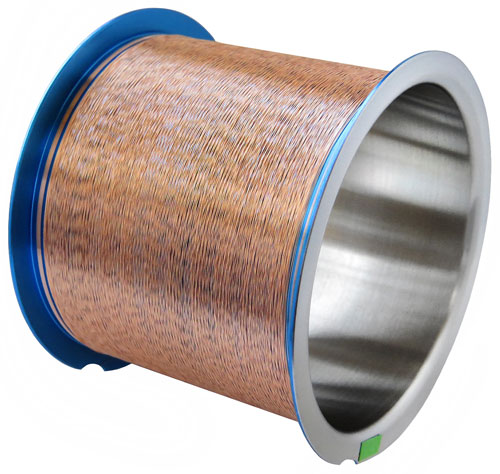

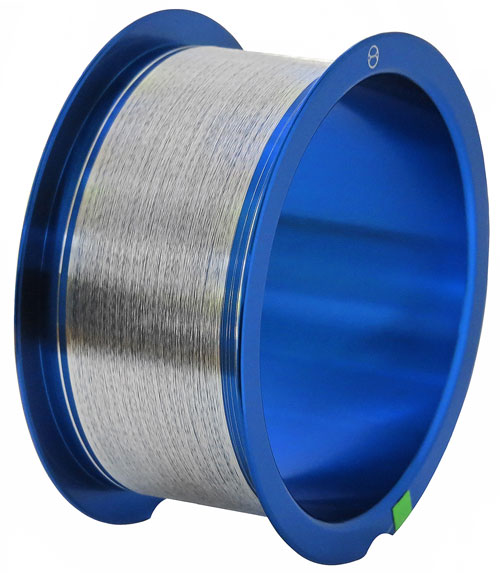

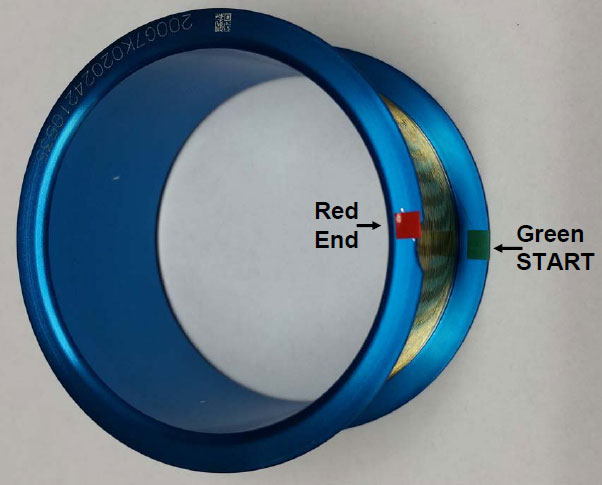

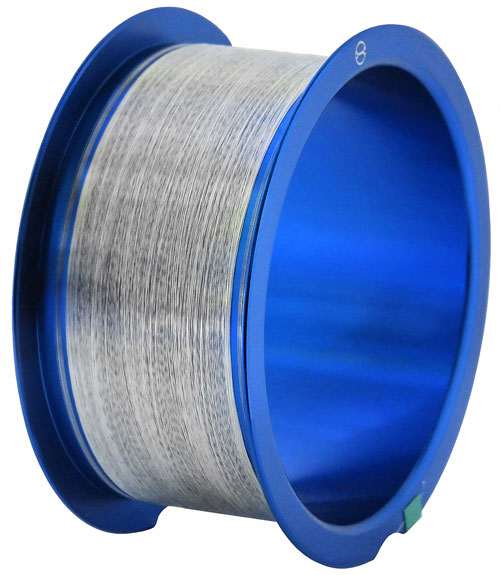

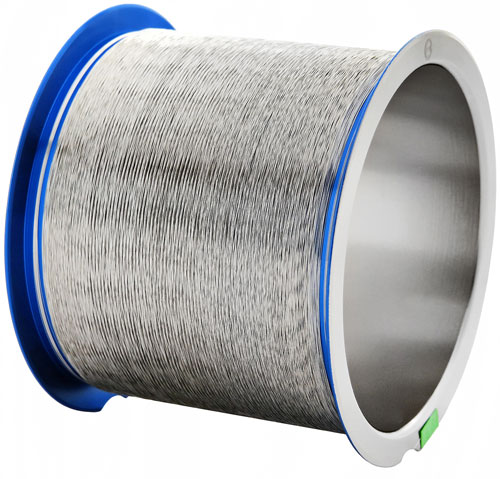

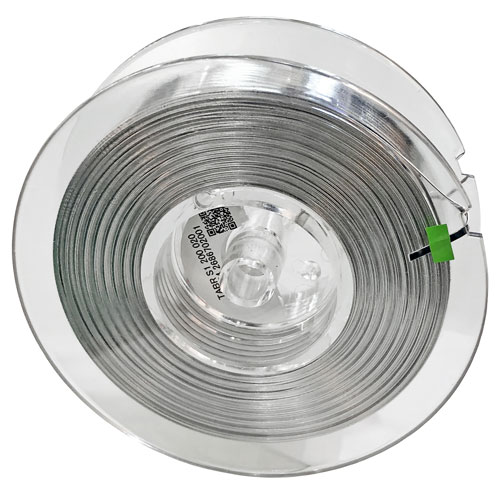

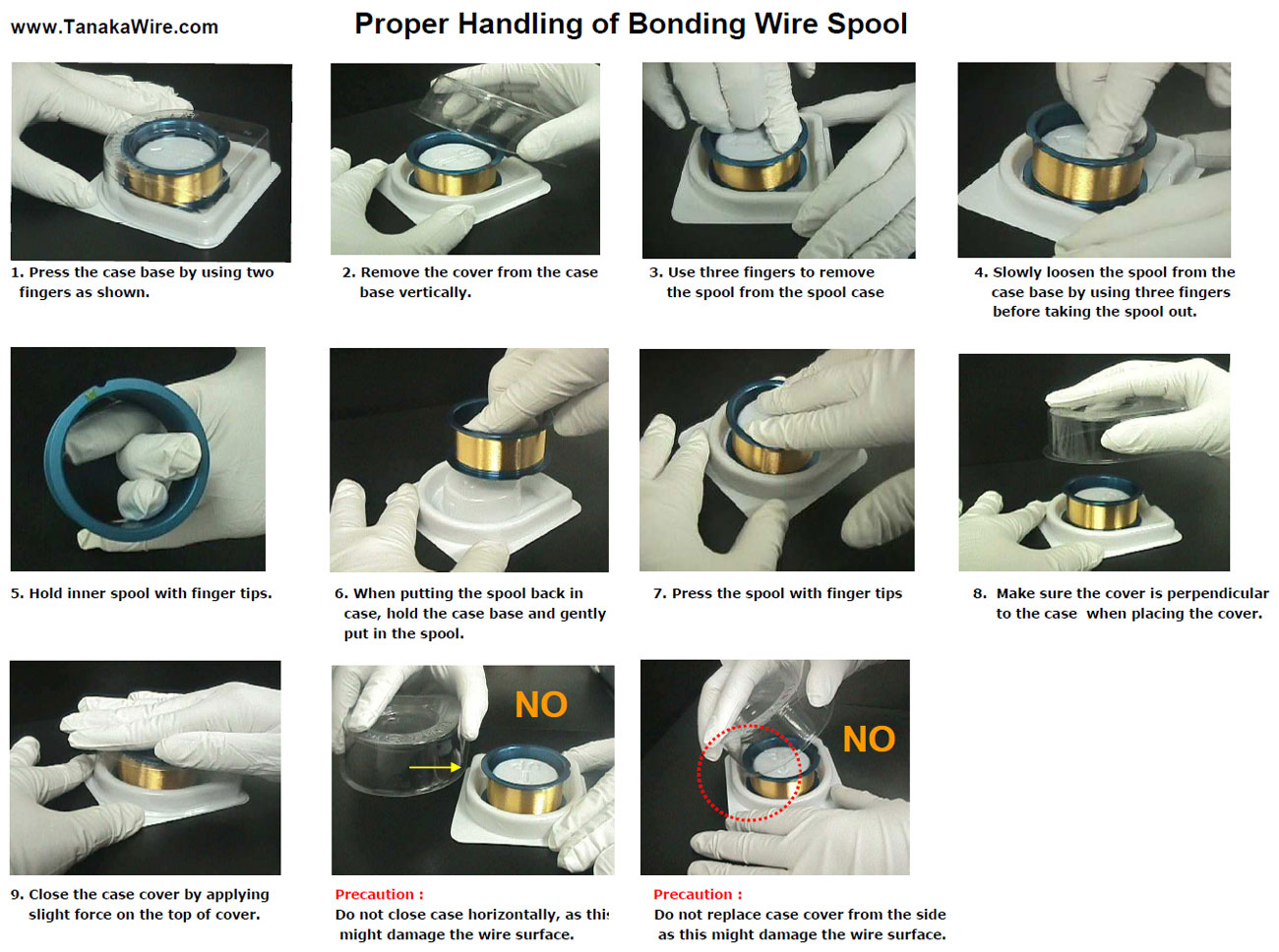

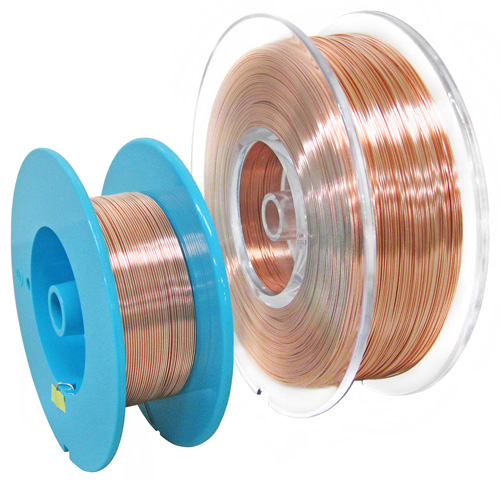

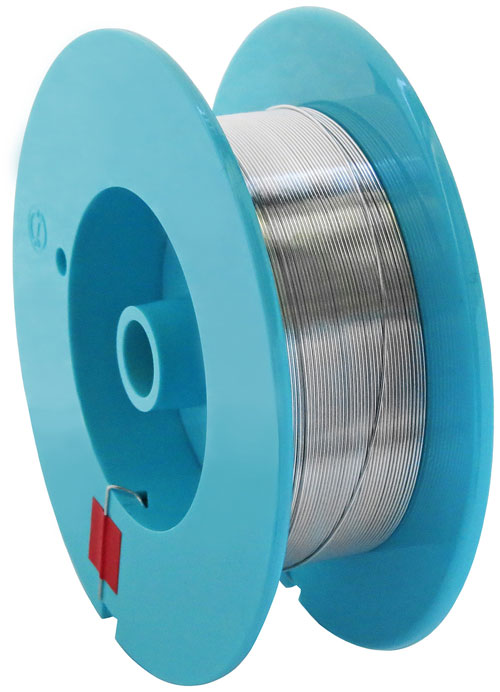

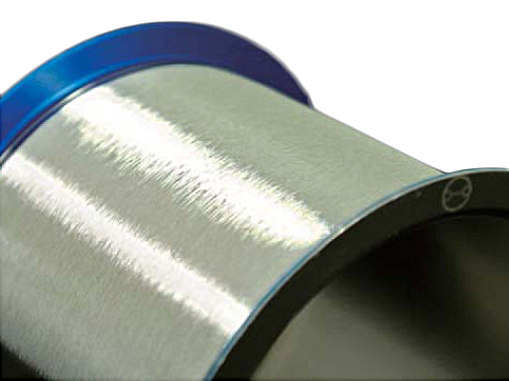

Available From TopLine:  Bonding Wire Catalog Made By: Bonding Wire Yes - One Spool     Au Gold Bonding Wire GSA • GLD-H • GLD GLF • GMH-2 • GPG-2 GPH • GBC • GBE GFD • GFC • GHA-2 M3   •  C  •  FA  •  Y A&D •  Weight Ag Silver Bonding Wire SEA  • SEB SEC • LC Silver Ribbon Cu Copper Pd Coated CLR-1AT PCC (Cu-Pd) Cu Copper Bare Wire CA-1   •   CFB-1 CP-1 Power Cu Al-1%Si Bonding Wire Al-1%Si TABN SOFT TABN-H HARD Heavy Al Aluminum TANW SOFT •  MID • HARD Aluminum Power Wire Al Aluminum Ribbon Wire TABR Alum Ribbon Au Gold Ribbon Wire AuR •  AuC Gold Ribbon Heavy Au Wedge Bonding Y-Type Power Gold References: HS • Applications ±Tol • RLC • AWG Handling • EL • BL Part#   •  Order Nbr Fusing Current • Weight Spool • Meter • Green Start Bonders • Capillary • X-Ref Library & Reference • ISO   About TANAKA: TANAKA Precious Metals is the premier manufacturer of bonding wire to the semiconductor industry. TANAKA offers a full range of Gold (Au), Silver(Ag), Aluminum (Al), bare Copper (Cu) and Palladium Coated Copper (PCC) covering all applications of wedge, ball and bump bonding. Also flat Gold, Silver and Al ribbon for RF modules and power applications and Pt Alloy wire. Check high performance wire for A&D aerospace applications. 1/2-inch spools rewound and warranted by TopLine for West•Bond® manual bonders     Green=Start • Red=End.     GSA Type - Gold (Au) Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) HAZ Length Length Meters Length Feet Part Number Order Nr GSA 4N Gold Au99.99% Ø 12.5µm (Ø 0.5 mil) 1.7~3.5 gf 17~34 mN 1.0~6.0% 120~180µm 100m 200m 328ft 656ft GSA-12.5A100 GSA-12.5A200 300121 300122 Ø 15µm (Ø 0.6 mil) 2.5~5.3 gf 25~52 mN 1.0~6.0% 130~200µm 100m 300m 500m 328ft 984ft 1640ft GSA-15A100 GSA-15A300 GSA-15A500 300151 300153 300155 Ø 18µm (Ø 0.7 mil) 3.6~7.6 gf 35~75 mN 1.0~6.0% 150~210µm 100m 300m 500m 328ft 984ft 1640ft GSA-18A100 GSA-18A300 GSA-18A500 300181 300183 300185 Ø 20µm (Ø 0.8 mil) 4.5~9.4 gf 44~92 mN 1.0~7.0% 150~220µm 100m 300m 500m 328ft 984ft 1640ft GSA-20A100 GSA-20A300 GSA-20A500 300201 300203 300205 Ø 23µm (Ø 0.9 mil) 5.9~12.5 gf 58~123 mN 1.0~7.0% 150~230µm 100m 300m 500m 328ft 984ft 1640ft GSA-23A100 GSA-23A300 GSA-23A500 300231 300233 300235 Ø 25µm (Ø 1.0 mil) 7.0~14.7 gf 69~144 mN 1.0~7.0% 160~240µm 100m 300m 500m 328ft 984ft 1640ft GSA-25A100 GSA-25A300 GSA-25A500 300251 300253 300255 Ø 30µm (Ø 1.2 mil) 10.0~21.2 gf 98~208 mN 1.5~8.5% 170~270µm 100m 300m 500m 328ft 984ft 1640ft GSA-30A100 GSA-30A300 GSA-30A500 300301 300303 300305 Ø 32µm (Ø 1.25 mil) 11.4~24.1 gf 112~236 mN 1.5~8.5% 170~280µm 100m 300m 500m 328ft 984ft 1640ft GSA-32A100 GSA-32A300 GSA-32A500 300321 300323 300325 Ø 33µm (Ø 1.30 mil) 12.1~25.5 gf 119~251 mN 1.5~8.5% 170~280µm 100m 300m 500m 328ft 984ft 1640ft GSA-33A100 GSA-33A300 GSA-33A500 300331 300333 300335 Ø 38µm (Ø 1.5 mil) 16.0~33.8 gf 157~331 mN 1.5~8.5% 170~300µm 100m 300m 500m 328ft 984ft 1640ft GSA-38A100 GSA-38A300 GSA-38A500 300381 300383 300385 Ø 50µm (Ø 2.0 mil) 27.9~58.8 gf 274~577 mN 1.5~8.5% 200~340µm 100m 300m 500m 328ft 984ft 1640ft GSA-50A100 GSA-50A300 GSA-50A500 300501 300503 300505 Ø 62.5µm (Ø 2.5 mil) 43.5~91.9 gf 427~900 mN 1.5~8.5% 220~380µm 100m 328ft GSA-62.5A100 300631 Ø 65µm (Ø 2.5 mil) 47.1~99.4 gf 465~975 mN 1.5~8.5% 230~400µm 100m 328ft GSA-65A100 300651 Ø 75µm (Ø 3.0 mil) 62.9~132.9 gf 620~1311 mN 1.5~8.5% N/A 100m 328ft GSA-75B100 300751 Note 1: Stable stitch bond on PPF (NiPdAu) QFN at 175°C , QFP and BGA Packages. Note 2: Good 2nd bond stitch remaining after pull test. Good squashed ball shape and excellent FAB softness. Note 3: HAZ - Heat Affected Zone. Loop should be formed beyond the HAZ length along wire axis from the ball.   •   Within the HAZ length, the wire tends to be more brittle than the unaffected zone. Note 4: Applications: Typically GSA is capable of higher loop heights for use in higher pin count devices. Note 5: Applications: For longer wire loop lengths, please specify GSB type (336xxx) for stronger 2nd bond adhesion strength and stability. Note 6: Standard Tolerance: Ø12.5~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm Note 7: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number.   •   Spool AL-4(W) 2" x 2" is standard code "B" in Part Number. Note 8: Conductive spool AL-2(WNI) 2" x 1" available. Change spool code in part number from "A" to "C" . Note 9: Wire diameter available: 12.0µm , 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm , 62.5µm , 65µm , 75µm Note 10: Green=Start • Red=End.        GLD-H Type - Gold (Au) High Performance Wedge Bonding Wire   •   See GLD Type Half-Inch Spools for Manual Wire Bonders Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GLD-H 4N Gold Au99.99% High Performance Wedge to Wedge Bonding Ø 12.5µm (Ø 0.5 mil) 2.4 gf Min 23 mN Min 3.5% Max 100m 200m 328ft 656ft GLD-H-12.5A100 GLD-H-12.5A200 309121 309122 Ø 15µm (Ø 0.6 mil) 3.5 gf Min 34 mN Min 3.5% Max 25m 50m 100m 300m 500m 328ft 984ft 1640ft GLD-H-15A100 GLD-H-15A300 GLD-H-15A500 309151 309153 309155 Ø 17µm (Ø 0.67 mil) 3.9 gf Min 38 mN mIN 3.5% Max 100m 300m 500m 328ft 984ft 1640ft GLD-H-17A100 GLD-H17A300 GLD-H-17A500 309171 309173 309175 Ø 18µm (Ø 0.7 mil) 4.0 gf Min 39 mN mIN 3.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-18H25 GLD-H18H50 GLD-H-18A100 GLD-H18A300 GLD-H-18A500 309189 309180 309181 309183 309185 Ø 20µm (Ø 0.8 mil) 6.0 gf Min 59 mN Min 3.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-20H25 GLD-H-20H50 GLD-H-20A100 GLD-H-20A300 GLD-H-20A500 309209 309200 309201 309203 309205 Ø 25µm (Ø 1.0 mil) 16 gf Min 156 mN Min 3.5% Max 10m 25m 50m 100m 300m 500m 33ft 75ft 150ft 328ft 984ft 1640ft GLD-H-25H10 GLD-H-25H25 GLD-H-25H50 GLD-H-25A100 GLD-H-25A300 GLD-H-25A500 309258 309259 309250 309251 309253 309255 Ø 30µm (Ø 1.20 mil) 20 gf Min 196 mN Min 3.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-30H25 GLD-H-30H50 GLD-H-30A100 GLD-H-30A300 GLD-H-30A500 309309 309300 309301 309303 309305 Ø 32µm (Ø 1.25 mil) 23 gf Min 225 mN Min 3.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-32H25 GLD-H-32H50 GLD-H-32A100 GLD-H-32A300 GLD-H-32A500 309329 309320 309321 309323 309325 Ø 35µm (Ø 1.4 mil) 27 gf Min 264 mN Min 4.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-35H25 GLD-H-35H50 GLD-H-35A100 GLD-H-35A300 GLD-H-35A500 309359 309350 309351 309353 309355 Ø 38µm (Ø 1.5 mil) 35 gf Min 343 mN Min 4.5% Max 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft GLD-H-38H25 GLD-H-38H50 GLD-H-38A100 GLD-H-38A300 GLD-H-38A500 309389 309380 309381 309383 309385 Ø 50µm (Ø 2.0 mil) 45 gf Min 441 mN min 4.5% Max 25m 50m 100m 300m 75ft 150ft 328ft 984ft GLD-H-50H25 GLD-H-50H50 GLD-H-50A100 GLD-H-50A300 309509 309500 309501 309503 Note 1: For wedge to wedge bonding. Better than HD5 Note 2: Ø18~30um diameter has maximum elongation 3.5%. Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. For 1/2" Spools, Change "A" in part number to "H" . Note 4: Wire diameter available: 12.0µm , 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 5: Green=Start • Red=End.        GLD Type - Gold (Au) Standard Wedge Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GLD 4N Gold Au99.99% Standard Wedge to Wedge Bonding Ø 12µm (Ø 0.5 mil) 2.2 gf Min 21 mN Min 2.0~7.0% 100m 200m 328ft 650ft GLD-12A100 GLD-12A200 349121 349122 Ø 15µm (Ø 0.6 mil) 1.7~3.7 gf 17~36 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GLD-15A100 GLD-15A300 GLD-15A500 349151 349153 349155 Ø 17µm (Ø 0.67 mil) 3.9~6.3 gf 38~62 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GLD-17A100 GLD-17A300 GLD-17A500 349171 349173 349175 Ø 18µm (Ø 0.7 mil) 4.9~7.4 gf 48~73 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GLD-18A100 GLD-18A300 GLD-18A500 349181 349183 349185 Ø 20µm (Ø 0.8 mil) 6.0~9.0 gf 59~88 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GLD-20A100 GLD-20A300 GLD-20A500 349201 349203 349205 Ø 25µm (Ø 1.0 mil) 10~14 gf 98~137 mN 2.0~7.0% 100m 300m 500m 500m 328ft 984ft 1640ft 1640ft GLD-25A100 GLD-25A300 GLD-25A500 GLD-25N500 349251 349253 349255 349257 Ø 30µm (Ø 1.20 mil) 14~20 gf 137~196 mN 2.0~9.0% 100m 300m 500m 328ft 984ft 1640ft GLD-30A100 GLD-30A300 GLD-30A500 349301 349303 349305 Ø 32µm (Ø 1.25 mil) 15~23 gf 147~225 mN 2.0~9.0% 100m 300m 500m 328ft 984ft 1640ft GLD-32A100 GLD-32A300 GLD-32A500 349321 349323 349325 Ø 35µm (Ø 1.4 mil) 19~27 gf 186~264 mN 2.0~9.0% 100m 300m 500m 328ft 984ft 1640ft GLD-35A100 GLD-35A300 GLD-35A500 349351 349353 349355 Ø 38µm (Ø 1.5 mil) 22~35 gf 215~343 mN 2.0~10.0% 100m 300m 500m 328ft 984ft 1640ft GLD-38A100 GLD-38A300 GLD-38A500 349381 349383 349385 Ø 50µm (Ø 2.0 mil) 32~45 gf 312~441 mN 2.0~10.0% 100m 300m 328ft 984ft GLD-50A100 GLD-50A300 349501 349503 Ø 75µm (Ø 3.0 mil) 85.2~129.0 gf 8401~1273 mN 3.0~10.0% 100m 328ft GLD-75B100 349751 Note 1: For wedge to wedge bonding. Better than HD5 Note 2: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number.   •   Spool AL-4(W) 2" x 2" is standard code "B" in Part Number. Note 3: Wire diameter available: 12.0µm , 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm , 62.5µm , 65µm , 75µm Note 4: Standard Tolerance: Ø12.5~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm Note 5: Green=Start • Red=End.        Y Type - Gold (Au) High Power Wedge Bonding Wire and BSOB (Ball Stitch on Ball) Security Bonding Type Alloy Ø Diameter ±3% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr Y 4N Gold Au99.99% High Power Wedge to Wedge Bonding and BSOB (Ball Stitch on Ball) Security Bonding Ø 18µm (Ø 0.7 mil) 2.5~5.0 gf 23~49 mN 2.0~5.0% 100m 300m 500m 328ft 984ft 1640ft Y-18A100 Y-18A300 Y-18A500 349181 331183 331185 Ø 20µm (Ø 0.8 mil) 3.5~6.6 gf 34~64 mN 2.0~5.0% 100m 300m 500m 328ft 984ft 1640ft Y-20A100 Y-20A300 Y-20A500 331201 331203 331205 Ø 25µm (Ø 1.0 mil) 6.5~11.4 gf 64~112 mN 2.0~6.0% 100m 300m 500m 328ft 984ft 1640ft Y-25A100 Y-25A300 Y-25A500 331251 331253 331255 Ø 30µm (Ø 1.20 mil) 10.0~17.1 gf 98~168 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft Y-30A100 Y-30A300 Y-30A500 331301 331303 331305 Ø 32µm (Ø 1.25 mil) 11.4~19.5 gf 112~191 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft Y-32A100 Y-32A300 Y-32A500 331321 331323 331325 Ø 35µm (Ø 1.4 mil) 14.0~23.6 gf 137~231 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft Y-35A100 Y-35A300 Y-35A500 331351 331353 331355 Ø 38µm (Ø 1.5 mil) 17.6~28.9 gf 172~283 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft Y-38A100 Y-38A300 Y-38A500 331381 331383 331385 Ø 50µm (Ø 2.0 mil) 31.4-51.1 gf 308~501 mN 2.0~10% 100m 300m 328ft 984ft Y-50A100 Y-50A300 331501 331503 Ø 62.5µm (Ø 2.5 mil) 49.3~80.2 gf 486~791 mN 2.0~12% 100m 328ft Y-62.5B100 331631 Ø 65µm (Ø 2.5 mil) 53.4~86.8 gf 527~856 mN 2.0~12% 100m 328ft Y-65B100 331651 Ø 75µm (Ø 3.0 mil) 70.7~114.9 gf 699~1134mN 2.0~12% 100m 328ft Y-75B100 331751 Ø 100µm (Ø 4.0 mil) 120 gf Min 1160 mN Min ≥3.0% 100m 328ft Y-100P100 331001 Ø 125µm (Ø 5.0 mil) 150 gf Min 1450 mN Min ≥3.0% 100m 328ft Y-125P100 331011 Ø 150µm (Ø 6.0 mil) 200 gf Min 1935 mN Min ≥3.0% 100m 328ft Y-150P100 331021 Ø 178µm (Ø 7.0 mil) 250 gf Min 2400 mN Min ≥4.0% 100m 328ft Y-175P100 331031 Ø 200µm (Ø 8.0 mil) 325 gf Min 3140 mN Min ≥4.0% 100m 328ft Y-200P100 331041 Ø 250µm (Ø 10.0 mil) 400gf Min 3800 mN Min ≥5.0% 100m 328ft Y-250P100 331051 Ø 507µm (Ø 20.0 mil) ___ Min ___ Min ≥5.0% 10m ~33ft Y-SR-507P10 331118 Note 1: For wedge to wedge bonding. Also good for BSOB (Ball Stitch over Ball) security bonding. Note 2: Wire diameter available: 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm ,62.5µm , 65µm , 75µm , 100µm , 127µm , 150µm , 175µm , 200µm , 250µm Note 3: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~100μm ±3μm   •   Ø125~150μm ±5μm   •   Ø175~200μm ±7μm  •   Ø250~507μm ±10μm Note 4: Y-Type ≤ Ø 75um made in Singapore. Ø100~254um made in Japan. Note 5: Y-Type Ø100~254um. Intended for engineering samples and evaluation only. Note 6: Green=Start • Red=End.        GLF Type - Gold (Au) Super Low Loop Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) HAZ Length Length Meters Length Feet Part Number Order Nr GLF 4N Gold Au99.99% Super Low Loop Ø 15µm (Ø 0.6 mil) 3.1~5.9 gf 30~58 mN 2.0~6.0% ≥ 30μm 100m 300m 500m 328ft 984ft 1640ft GLF-15A100 GLF-15A300 GLF-15A500 307151 307153 307155 Ø 18µm (Ø 0.7 mil) 4.5~8.5 gf 44~83 mN 2.0~6.0% ≥ 36μm 100m 300m 500m 328ft 984ft 1640ft GLF-18A100 GLF-18A300 GLF-18A500 307181 307183 307185 Ø 20µm (Ø 0.8 mil) 5.6~10.5 gf 55~103 mN 2.0~7.0% ≥ 40μm 100m 300m 500m 328ft 984ft 1640ft GLF-20A100 GLF-20A300 GLF-20A500 307201 307203 307205 Ø 25µm (Ø 1.0 mil) 8.7~16.4 gf 85~161 mN 2.0~7.0% ≥ 50μm 100m 300m 500m 328ft 984ft 1640ft GLF-25A100 GLF-25A300 GLF-25A500 307251 307253 307255 Ø 30µm (Ø 1.20 mil) 12.5~23.7 gf 123~232 mN 2.0~9.0% ≥ 60μm 100m 300m 500m 328ft 984ft 1640ft GLF-30A100 GLF-30A300 GLF-30A500 307301 307303 307305 Ø 38µm (Ø 1.50 mil) 20.1~38.0 gf 198~374 mN 2.0~9.0% 100~220μm 100m 300m 500m 328ft 984ft 1640ft GLF-38A100 GLF-38A300 GLF-38A500 307381 307383 307385 Note 1: For lower loop height than conventional low loop wires. Example: 70um average using Shinkawa UTC-200 ball bonder. Note 2: HAZ=85um and free air ball diameter of 50um. Less damage at the neck region during bonding. Suppression of snake wire. Note 3: Higher pull load than conventional low loop wires. Note 4: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 5: Conductive spool AL-2(WNI) 2" x 1" available. Change spool code in part number from "A" to "C" . Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 6: Green=Start • Red=End.        GMH-2 Type - Gold (Au) High Tensile Strength Bonding Wire for Fine-Pitch and Stack Die. Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GMH-2 4N Gold Au99.99% High Tensile Strength Beryllium (Be) Doping Stabilizing Agent Ø 15µm (Ø 0.6 mil) 3.7~6.5 gf 36~64 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-15A100 GMH2-15A300 GMH2-15A500 302151 302153 302155 Ø 18µm (Ø 0.7 mil) 5.4~9.4 gf 53~92 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-18A100 GMH2-18A300 GMH2-18A500 302181 302183 302185 Ø 20µm (Ø 0.8 mil) 6.7~11.6 gf 66~99 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-20A100 GMH2-20A300 GMH2-20A500 302201 302203 302205 Ø 25µm (Ø 1.0 mil) 10.4~18.1 gf 102~178 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-25A100 GMH2-25A300 GMH2-25A500 302251 302253 302255 Ø 30µm (Ø 1.20 mil) 15.0~26.1 gf 147~256 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-30A100 GMH2-30A300 GMH2-30A500 302301 302303 302305 Ø 32µm (Ø 1.25 mil) _17.0~29.7 gf 166~291 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-32A100 GMH2-32A300 GMH2-32A500 302321 302323 302325 Ø 33µm (Ø 1.30 mil) __~__ gf ___~___ mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-33A100 GMH2-33A300 GMH2-33A500 302331 302333 302335 Ø 35µm (Ø 1.40 mil) __~__ gf ___~___ mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-35A100 GMH2-35A300 GMH2-35A500 302351 302353 302355 Ø 38µm (Ø 1.50 mil) 24.0~41.9 gf 235~410 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-38A100 GMH2-38A300 GMH2-38A500 302381 302383 302385 Ø 50µm (Ø 2.0 mil) 41.6~72.5 gf 407~710mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GMH2-50A100 GMH2-50A300 GMH2-50A500 302501 302503 302505 Note 1: High tensile strength with Be (Beryllium) doping for multiple loop profiles used in BGA packages. Note 2: Excellent bump formation for stack die package. Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Conductive spool AL-2(WNI) 2" x 1" available. Change spool code in part number from "A" to "C" . Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 6: Green=Start • Red=End.        GPG-2 Type - Gold 2N High Reliability Au Alloy Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GPG-2 2N Gold Au99%-Pd1% High Reliability Ø 15µm (Ø 0.6 mil) 3.5~6.3 gf 34~62 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-15A100 GPG2-15A300 GPG2-15A500 304151 304153 304155 Ø 18µm (Ø 0.7 mil) 5.0~9.0 gf 49~88 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-18A100 GPG2-18A300 GPG2-18A500 304181 304183 304185 Ø 20µm (Ø 0.8 mil) 6.2~11.1 gf 61~109 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-20A100 GPG2-20A300 GPG2-20A500 304201 304203 304205 Ø 25µm (Ø 1.0 mil) 9.7~17.4 gf 95~171 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-25A100 GPG2-25A300 GPG2-25A500 304251 304253 304255 Ø 30µm (Ø 1.2 mil) 13.9~25.1 gf 136~246 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-30A100 GPG2-30A300 GPG2-30A500 304301 304303 304305 Ø 32µm (Ø 1.25 mil) 15.8~28.5 gf 155~279 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-32A100 GPG2-32A300 GPG2-32A500 304321 304323 304325 Ø 33µm (Ø 1.3 mil) 16.8~30.3 gf 164~297 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-33A100 GPG2-33A300 GPG2-33A500 304331 304333 304335 Ø 35µm (Ø 1.4 mil) 19.0~34.1 gf 186~334 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-35A100 GPG2-35A300 GPG2-35A500 304351 304353 304355 Ø 38µm (Ø 1.5 mil) 22.3~40.2 gf 219~394 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPG2-38A100 GPG2-38A300 GPG2-38A500 304381 304383 304385 Note 1: Gold Alloy 2N (Au99%-Pd1%). High bond reliability. Good match for mold compound with halogen. Note 2: Good squashed ball Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 5: Green=Start • Red=End.        GPH Type - Gold 2N High Reliability Au Alloy Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GPH 2N Gold Au99% X-Rich High Reliability Ø 15µm (Ø 0.6 mil) 3.3~6.1 gf 32~60 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPH-15A100 GPH-15A300 GPH-15A500 308151 308153 308155 Ø 18µm (Ø 0.7 mil) 4.8~8.8 gf 47~86 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPH-18A100 GPH-18A300 GPH-18A500 308181 308183 308185 Ø 20µm (Ø 0.8 mil) 5.9~10.8 gf 58~106 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GPH-20A100 GPH-20A300 GPH-20A500 308201 308203 308205 Ø 25µm (Ø 1.0 mil) 9.2~16.9 gf 90~166 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPH-25A100 GPH-25A300 GPH-25A500 308251 308253 308255 Ø 30µm (Ø 1.2 mil) 13.2~24.4 gf 129~239 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPH-30A100 GPH-30A300 GPH-30A500 308301 308303 308305 Ø 32µm (Ø 1.25 mil) 15.1~27.7 gf 148~272 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPH-32A100 GPH-32A300 GPH-32A500 308321 308323 308325 Ø 35µm (Ø 1.4 mil) 18.0~33.2 gf 177~326 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPH-35A100 GPH-35A300 GPH-35A500 308351 308353 308355 Ø 38µm (Ø 1.5 mil) 21.2~39.1 gf 208~384 mN 2.0~8.0% 100m 300m 500m 328ft 984ft 1640ft GPH-38A100 GPH-38A300 GPH-38A500 308381 308383 308385 Note 1: Gold Alloy 2N (Au99% X-Rich). High bond reliability and good character for halogen-free mold compound. Note 2: Good squashed ball Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 5: Green=Start • Red=End.        M3 Type - Gold 4N Au Alloy Bonding Wire   •   See M3 Type Half-Inch Spools for Manual Wire Bonders Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr M3 4N Gold Au99.99% Beryllium (Be) Doping Stabilizing Agent Ø 12.5µm (Ø 0.5 mil) 1.4 gf Min 14 mN Min 1.0~6.0% 100m 200m 328ft 656ft M3-12.5A100 M3-12.5A200 303121 303122 Ø 15µm (Ø 0.6 mil) 2 gf Min 19.6 mN 1.0~6.0% 100m 300m 500m 328ft 984ft 1640ft M3-15A100 M3-15A300 M3-15A500 303151 303153 303155 Ø 18µm (Ø 0.7 mil) 4.6~7.1 gf 45~70 mN 1.0~6.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-18H25 M3-18H50 M3-18A100 M3-18A300 M3-18A500 303189 303180 303181 303183 303185 Ø 20µm (Ø 0.8 mil) 5.7~8.8 gf 56~86 mN 2.0~6.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-20H25 M3-20H50 M3-20A100 M3-20A300 M3-20A500 303209 303200 303201 303203 303205 Ø 25µm (Ø 1.0 mil) 8.9~13.8 gf 87~135 mN 2.0~7.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-25H25 M3-25H50 M3-25A100 M3-25A300 M3-25A500 303259 303250 303251 303253 303255 Ø 30µm (Ø 1.20 mil) 12.9~19.8 gf 127~194 mN 2.0~9.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-30H25 M3-30H50 M3-30A100 M3-30A300 M3-30A500 303309 303300 303301 303303 303305 Ø 32µm (Ø 1.25 mil) 14.7~22.6 gf 144~222 mN 2.0~9.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-32H25 M3-32H50 M3-32A100 M3-32A300 M3-32A500 303329 303320 303321 303323 303325 Ø 33µm (Ø 1.3 mil) 15.6~24.0 gf 153~235 mN 2.0~9.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-33H25 M3-33H50 M3-33A100 M3-33A300 M3-33A500 303339 303330 303331 303333 303335 Ø 35µm (Ø 1.4 mil) 17.5~27.0 gf 172~265 mN 3.0~9.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-35H25 M3-35H50 M3-35A100 M3-35A300 M3-35A500 303359 303350 303351 303353 303355 Ø 38µm (Ø 1.5 mil) 20.7~31.8 gf 203~312 mN 4.0~12.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-38H25 M3-38H50 M3-38A100 M3-38A300 M3-38A500 303389 303380 303381 303383 303385 Ø 50µm (Ø 2.0 mil) 35.8~55.1 gf 351~541 mN 4.0~15.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft M3-50H25 M3-50H50 M3-50A100 M3-50A300 M3-50A500 303509 303500 303501 303503 303505 Note 1: Gold Alloy 4N (Au99.99%). M3 standard Type bonding wire. Note 2: Good squashed ball. Beryllium (Be) doping stabilizing agent. Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. For 1/2" Spools, Change "A" in part number to "H" . Note 4: Wire diameter available: 12.0µm , 12.5µm , 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm ,35µm , 38µm , and 50µm Note 5: Green=Start • Red=End.        GBC Type - 2N Gold (Au99-Pd1% Alloy) Bumping Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GBC 2N Gold Au99%-Pd1.0% Bumping Wire Ø 15µm (Ø 0.6 mil) ≥5.2 gf ≥51 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBC-15A100 GBC-15A300 GBC-15A500 305151 305153 305155 Ø 18µm (Ø 0.7 mil) ≥8.2 gf ≥80 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBC-18A100 GBC-18A300 GBC-18A500 305181 305183 305185 Ø 20µm (Ø 0.8 mil) ≥9.3 gf ≥91 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBC-20A100 GBC-20A300 GBC-20A500 305201 305203 305205 Ø 25µm (Ø 1.0 mil) ≥14.5 gf ≥142 mN 1.5~5.0% 100m 300m 300m 500m 328ft 984ft 984ft 1640ft GBC-25A100 GBC-25A300 GBC-25N300 GBC-25A500 305251 305253 305254 305255 Ø 30µm (Ø 1.2 mil) ≥20.9 gf ≥205 mN 1.5~5.0% 100m 300m 500m 328ft 984ft 1640ft GBC-30A100 GBC-30A300 GBC-30A500 305301 305303 305305 Ø 32µm (Ø 1.25 mil) ≥23.8 gf ≥233 mN 1.5~5.0% 100m 300m 500m 328ft 984ft 1640ft GBC-32A100 GBC-32A300 GBC-32A500 305321 305323 305325 Ø 35µm (Ø 1.4 mil) ≥28.4 gf ≥279 mN 1.5~6.0% 100m 300m 500m 328ft 984ft 1640ft GBC-35A100 GBC-35A300 GBC-35A500 305351 305353 305355 Ø 38µm (Ø 1.5 mil) ≥33.5 gf ≥329 mN 1.5~6.0% 100m 300m 500m 328ft 984ft 1640ft GBC-38A100 GBC-38A300 GBC-38A500 305381 305383 305385 Note 1: Use with bonder such as Shinkawa SBB-1 or equivalent. Minimal deviation of ball neck height after bumping with steady bump shape. Note 2: Low deterioration of shear strength during aging test at 200°C. Note 3: See explanation of difference between bumping wire and bonding wire. Note 4: Conductive spool AL-4(WNI) 2" x 2" available. Change spool code in part number from "A" to "N". Note 5: GBC bumping wire made in Japan. Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm Note 7: Green=Start • Red=End.        GBE Type - 4N Gold (Au) Bumping Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GBE 4N Gold Au99.99% Bumping Wire Ø 15µm (Ø 0.6 mil) ≥4.5 gf ≥44 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBE-15A100 GBE-15A300 GBE-15A500 301151 301153 301155 Ø 18µm (Ø 0.7 mil) ≥6.5 gf ≥64 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBE-18A100 GBE-18A300 GBE-18A500 301181 301183 301185 Ø 20µm (Ø 0.8 mil) ≥8.0 gf ≥78 mN 1.5~4.0% 100m 300m 500m 328ft 984ft 1640ft GBE-20A100 GBE-20A300 GBE-20A500 301201 301203 301205 Ø 25µm (Ø 1.0 mil) ≥14.0 gf ≥138 mN 1.0~5.0% 100m 300m 500m 328ft 984ft 1640ft GBE-25A100 GBE-25A300 GBE-25A500 301251 301253 301255 Ø 30µm (Ø 1.2 mil) ≥18.1 gf ≥178 mN 1.5~5.0% 100m 300m 500m 328ft 984ft 1640ft GBE-30A100 GBE-30A300 GBE-30A500 301301 301303 301305 Ø 32µm (Ø 1.25 mil) ≥20.6 gf ≥202 mN 1.5~5.0% 100m 300m 500m 328ft 984ft 1640ft GBE-32A100 GBE-32A300 GBE-32A500 301321 301323 301325 Ø 35µm (Ø 1.4 mil) ≥24.6 gf ≥241 mN 1.5~6.0% 100m 300m 500m 328ft 984ft 1640ft GBE-35A100 GBE-35A300 GBE-35A500 301351 301353 301355 Ø 38µm (Ø 1.5 mil) ≥29.0 gf ≥284 mN 1.5~6.0% 100m 300m 500m 328ft 984ft 1640ft GBE-38A100 GBE-38A300 GBE-38A500 301381 301383 301385 Ø 50µm (Ø 2.0 mil) ≥50.0 gf ≥525 mN 1.5~7.0% 100m 300m 500m 328ft 984ft 1640ft GBE-50A100 GBE-50A300 GBE-50A500 301501 301503 301505 Ø 62.5µm (Ø 2.5 mil) ≥-- gf ≥-- mN 1.0~7.0% 100m 328ft GBE-63B100 301631 Ø 75µm (Ø 3.0 mil) ≥-- gf ≥-- mN 1.0~7.0% 100m 328ft GBE-75B100 301751 Note 1: Use with bonder such as Shinkawa SBB-1 or equivalent. Minimal deviation of ball neck height after bumping with steady bump shape. Note 2: Low deterioration of shear strength during aging test at 200°C. Note 3: No bond pad damage after bonding with Type GBE. Note 4: See explanation of difference between bumping wire and bonding wire. Note 5: Conductive spool AL-2(WNI) 2" x 1" available. Change spool code in part number from "A" to "C" . Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm , 62.5µm , 75µm . Note 7: Green=Start • Red=End.        GFD Type - 4N Gold (Au) High Medium Strength for Fine Pitch when Low-Loop is Not Required Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GFD 4N Gold Au99.99% High Med Strength Fine-Pitch Wire Ø 15µm (Ø 0.6 mil) 3.3~6.1 gf 32~60 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GFD-15A100 GFD-15A300 GFD-15A500 306151 306153 306155 Ø 18µm (Ø 0.7 mil) 4.8~8.8 gf 47~86 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GFD-18A100 GFD-18A300 GFD-18A500 306181 306183 306185 Ø 20µm (Ø 0.8 mil) 5.9~10.8 gf 58~106 mN 1.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GFD-20A100 GFD-20A300 GFD-20A500 306201 306203 306205 Ø 25µm (Ø 1.0 mil) 9.2~16.9 gf 90~166 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GFD-25A100 GFD-25A300 GFD-25A500 306251 306253 306255 Ø 30µm (Ø 1.2 mil) 13.2~24.4 gf 129~239 mN 2.0~7.0% 100m 300m 500m 328ft 984ft 1640ft GFD-30A100 GFD-30A300 GFD-30A500 306301 306303 306305 Note 1: Small deformation of squashed ball by ultrasonic frequency bonder such as Shinkawa UTC-3000. Note 2: Wide actual bond area with suitable ultrasonic power. Applicable for narrow pad pitch bonding. Note 3: Use for pitch greater than 45um. Single ball bond such as QFP, BGA and CSP Packages. Note 4: High Medium strength wire for fine-pitch applications where low looping is not required. Note 5: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm . Note 7: Green=Start • Red=End.        C Type - 4N Gold (Au)   •   Be Doping Stablizing Agent Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr C 4N Gold Au99.99% Beryllium (Be) Doping Stabilizing Agent Ø 20µm (Ø 0.8 mil) 4.5~8.0 gf 44~78 mN 2.0~6.0% 100m 300m 328ft 984ft C-20A100 C-20A300 340201 340203 Ø 25µm (Ø 1.0 mil) 7.5~11.5 gf 74~113 mN 2.0~6.0% 100m 300m 328ft 984ft C-25A100 C-25A300 340251 340253 Ø 30µm (Ø 1.2 mil) 11.0~15.5 gf 108~152 mN 2.0~9.0% 100m 300m 328ft 984ft C-30A100 C-30A300 340301 340303 Ø 32µm (Ø 1.25 mil) 13.0~18.0 gf 127~177 mN 3.0~9.0% 100m 300m 328ft 984ft C-32A100 C-32A300 340321 340323 Ø 33µm (Ø 1.3 mil) 13.0~19.0 gf 127~185 mN 3.0~9.0% 100m 300m 328ft 984ft C-33A100 C-33A300 340331 340333 Ø 35µm (Ø 1.4 mil) 15.0~25.0 gf 147~245 mN 3.0~9.0% 100m 300m 328ft 984ft C-35A100 C-35A300 340351 340353 Ø 38µm (Ø 1.5 mil) 18.0~28.0 gf 177~275 mN 3.0~10.0% 100m 300m 328ft 984ft C-38A100 C-38A300 340381 340383 Note 1: Universal soft wire. Note 2: Large process window for second bond where long HAZ is suitable. Note 3: Popular for discrete devices such as LED and medical device applications. Replacement for AW77. Note 4: Beryllium (Be) doping stabilizing agent. Note 5: "Drawn/non-annealed" available on special order for non-wirebonding applications. Note 6: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 7: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm . Note 8: Green=Start • Red=End.        FA Type - 4N Gold (Au) Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr FA 4N Gold Au99.99% Soft Touch Wire Ø 20µm (Ø 0.8 mil) 5.0~8.7 gf 49~85 mN 2.0~6.0% 100m 300m 328ft 984ft FA-20A100 FA-20A300 330201 330203 Ø 25µm (Ø 1.0 mil) 7.7~13.5 gf 76~132 mN 2.0~7.0% 100m 300m 500m 500m 328ft 984ft 1640ft 1640ft FA-25A100 FA-25A300 FA-25C500 FA-25A500 330251 330253 330254 330255 Ø 30µm (Ø 1.2 mil) 11.1~19.5 gf 109~191 mN 2.0~9.0% 100m 300m 328ft 984ft FA-30A100 FA-30A300 330301 330303 Ø 32µm (Ø 1.25 mil) 12.7~22.2 gf 125~218 mN 3.0~9.0% 100m 300m 328ft 984ft FA-32A100 FA-32A300 330321 330323 Ø 35µm (Ø 1.4 mil) 15.2~26.5 gf 149~260 mN 3.0~9.0% 100m 300m 328ft 984ft FA-35A100 FA-35A300 330351 330353 Ø 38µm (Ø 1.5 mil) 17.9~31.3 gf 176~307 mN 4.0~12.0% 100m 300m 328ft 984ft FA-38A100 FA-38A300 330381 330383 Ø 50µm (Ø 2.0 mil) 30.9~54.2 gf 302~530 mN 4.0~14.0% 100m 300m 328ft 984ft FA-50A100 FA-50A300 330501 330503 Note 1: Soft wire on bond pad. Note 2: Good for rolling into flat ribbon. Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Conductive spool AL-2(WNI) 2" x 1" available. Change spool code in part number from "A" to "C" . Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm . Note 6: Green=Start • Red=End.        GHA-2 Type - 4N Gold (Au) High Loop Gold Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GHA-2 4N Gold Au99.99% High Loop Wire Beryllium (Be) Doping Stabilizing Agent Ø 20µm (Ø 0.8 mil) 4.0~8.0 gf 39~78 mN 2.0~6.0% 100m 300m 328ft 984ft GHA2-20A100 GHA2-20A300 338201 338203 Ø 25µm (Ø 1.0 mil) 9.0~13.0 gf 88~127 mN 2.0~7.0% 100m 300m 328ft 984ft GHA2-25A100 GHA2-25A300 338251 338253 Ø 25.3µm (Ø 1.0 mil) ≥ 6.0 gf Min ≥ 59 mN Min 3.5~7.0% 100m 300m 328ft 984ft GHA2-25A100(EL4-7) GHA2-25A300(EL4-7) 338252 338254 Note 1: Soft wire on bond pad. Note 2: Good for high loop strength. Note 3: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Beryllium (Be) doping stabilizing agent. Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm . Note 6: Green=Start • Red=End.        GFC Type - 4N Gold (Au) Fine (Narrow) Pitch Gold Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr GFC 4N Gold Au99.99% Fine-Pitch Wire Beryllium (Be) Doping Stabilizing Agent Ø 15µm (Ø 0.6 mil) 2.8~5.6 gf 27~54 mN 1.0~7.0% 100m 300m 328ft 984ft GFC-15A100 GFC-15A300 334151 334153 Ø 18µm (Ø 0.7 mil) 4.0~8.0 gf 39~77 mN 1.0~7.0% 100m 300m 328ft 984ft GFC-18A100 GFC-18A300 334181 334183 Ø 20µm (Ø 0.8 mil) 5.0~9.9 gf 49~96 mN 1.0~7.0% 100m 300m 300m 328ft 984ft 984ft GFC-20A100 GFC-20A300 GFC-20C300 334201 334203 334204 Ø 25µm (Ø 1.0 mil) 7.7~15.5 gf 75~150 mN 2.0~7.0% 100m 300m 300m 328ft 984ft 984ft GFC-25A100 GFC-25A300 GFC-25C300 334251 334253 334254 Note 1: Small deformation of squashed ball by ultrasonic frequency. Wide bond area with suitable ultrasonic power. Note 2: Applicable for Narrow-pitch ball bonding. Example: Pitch 35µm and pad opening 28µm using Ø15µm wire. Note 3: Double-flange "Anodized" aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 4: Double-flange "Conductive" aluminum spool AL-2(WNI) 2" x 1" is special code "C" in Part Number. Note 5: Beryllium (Be) doping stabilizing agent. Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 33µm , 35µm , 38µm , 50µm . Note 7: Green=Start • Red=End.         SEA, SEB, SEC Type - Silver (Ag) Alloy Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr SEA Ag Silver Alloy Ø 15µm (Ø 0.6 mil) 2.8~5.6 gf 27~55 mN 1.0~8.0% 100m 300m 500m 324ft 984ft 1640ft SEA-15A100 SEA-15A300 SEA-15A500 501151 501153 501155 Ø 18µm (Ø 0.7 mil) 4.1~8.0 gf 40~78 mN 1.0~8.0% 100m 300m 500m 324ft 984ft 1640ft SEA-18A100 SEA-18A300 SEA-18A500 501181 501183 501185 Ø 20µm (Ø 0.8 mil) 5.1~10.0 gf 50~98 mN 1.0~8.0% 100m 300m 500m 324ft 984ft 1640ft SEA-20A100 SEA-20A300 SEA-20A500 501201 501203 501205 Ø 25µm (Ø 1.0 mil) 7.8~15.4 gf 78~151 mN 1.0~8.0% 100m 300m 500m 324ft 984ft 1640ft SEA-25A100 SEA-25A300 SEA-25A500 501251 501253 501255 Ø 30µm (Ø 1.20 mil) 11.1~21.9 gf 109~215 mN 1.0~10.0% 100m 300m 500m 324ft 984ft 1640ft SEA-30A100 SEA-30A300 SEA-30A500 501301 501303 501305 Note 1: Good bondability with reduced material cost compared to gold. Note 2: High reflectivity in short wavelength range. Note 3: SEA is original Ag base alloy wire. Note 4: SEB offers low resistivity similar to 2N Au wire. Note 5: SEC has softer FAB hardness and low resistivity similar to 4N Au wire. Note 6: SEB Type, change 3rd digit in order number to "2"   •   SEC Type, change 3rd digit in order number to "3".   •   SED Type, change 3rd digit in order number to "4". Note 7: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 8: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm . Note 9:  Type AgC slit-cut Flat Silver Ribbon for special applications. Note 10: Green=Start • Red=End.         LC Type Silver (Ag) Clad Gold (Au) Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr LC Ag Clad Au Silver Clad Gold Ø 15µm (Ø 0.6 mil) 2.6~5.4 gf 25~53 mN ≥ 1.0% 100m 300m 500m 328ft 984ft 1640ft LC-15A100 LC-15A300 LC-15A500 509151 509153 509155 Ø 18µm (Ø 0.7 mil) 3.8~7.08 gf 37~76 mN ≥ 1.0% 100m 300m 500m 328ft 984ft 1640ft LC-18A100 LC-18A300 LC-18A500 509181 509183 509185 Ø 20µm (Ø 0.8 mil) 4.6~9.6 gf 45~94 mN ≥ 1.0% 100m 300m 500m 328ft 984ft 1640ft LC-20A100 LC-20A300 LC-20A500 509201 509203 509205 Ø 25µm (Ø 1.0 mil) 7.3~15.0 gf 71~147 mN ≥ 2.0% 100m 300m 500m 328ft 984ft 1640ft LC-25A100 LC-25A300 LC-25A500 509251 509253 509255 Ø 30µm (Ø 1.20 mil) 10.4~21.6 gf 101~211 mN ≥ 3.0% 100m 300m 500m 328ft 984ft 1640ft LC-30A100 LC-30A300 LC-30A500 509301 509303 509305 Ø 30µm (Ø 1.40 mil) 14.2~29.4 gf 139~288 mN ≥ 3.0% 100m 300m 500m 328ft 984ft 1640ft LC-35A100 LC-35A300 LC-35A500 509351 509353 509355 Ø 38µm (Ø 1.50 mil) 16.8~34.6 gf 164~339 mN ≥ 3.0% 100m 300m 500m 328ft 984ft 1640ft LC-38A100 LC-38A300 LC-38A500 509381 509383 509385 Note 1: LC Type Silver (Ag) clad Gold (Au) is cost effective bonding compared to 4N gold (Au). Note 2: Resistivity of Type LC is 4X higher than 4N-Au wire. Note 3: Breaking Load of Type LC is slightly lower than 4N-Au wire. Note 4: HAZ Length of Type LC is a little shorter than 4N-Au wire. Type LC wire can form a round ball in air same as 4N-Au Note 5: Ball Hardness of Type LC is 1.2 times higher than 4N-Au wire. Note 6: Oxidation and sulfidation level on Type LC FAB surface are nearly equal to 4N-Au wire. Note 7: Loop shape of Type LC is similar to 4N-Au wire. Note 8: HTS ("High Temperature Storage") of Type LC is bettern than 4N-Au wire. Note 9: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. Note 10: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 28µm , 30µm , 32µm , 35µm , 38µm . Note 11: Green=Start • Red=End.        CLR-1AT Type - Palladium (Pd) Coated Copper (4N Cu) with Gold (Au) Flash Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr CLR-1AT 4N Cu Pd Coated Au Flash Ø 15µm (Ø 0.6 mil) 2.0~5.0 gf 20~49 mN 3.0~13.0% 100m 300m 1000m 328ft 984ft 3000ft CLR1AT-15N100 CLR1AT-15N300 CLR1AT-15N500 700151 700153 700155 Ø 18µm (Ø 0.7 mil) 3.2~7.2 gf 31~71 mN 5.0~15.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-18N100 CLR1AT-18N300 CLR1AT-18N500 700181 700183 700185 Ø 20µm (Ø 0.8 mil) 4.0~8.9 gf 39~87 mN 5.0~15.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-20N100 CLR1AT-20N300 CLR1AT-20N500 700201 700203 700205 Ø 25µm (Ø 1.0 mil) 6.3~14.0 gf 62~137 mN 5.0~15.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-25N100 CLR1AT-25N300 CLR1AT-25N500 700251 700253 700255 Ø 30µm (Ø 1.2 mil) 9.1~20.2 gf 88~198 mN 7.0~20.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-30N100 CLR1AT-30N300 CLR1AT-30N500 700301 700303 700305 Ø 32µm (Ø 1.25 mil) 10.3~22.9 gf 101~225 mN 7.0~20.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-32N100 CLR1AT-32N300 CLR1AT-32N500 700321 700323 700325 Ø 38µm (Ø 1.5 mil) 14.4~32.2 gf 141~316 mN 7.0~20.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-38N100 CLR1AT-38N300 CLR1AT-38N500 700381 700383 700385 Ø 50µm (Ø 2.0 mil) 29.2~60.4 gf 286~592 mN 10.0~25.0% 100m 300m 500m 328ft 984ft 1640ft CLR1AT-50N100 CLR1AT-50N300 CLR1AT-50N500 700501 700503 700505 Note 1: Original chemistry Pd (Palladium) coating improves bonding. Pd coating is superior to bare copper wire. Provides a wider bonding process window. Excellent reliability. High Performance. Stable bonding Note 2: Standard Tolerance: Ø15~38μm ±1 μm   •   Ø40~50μm ±2μm Note 3: Extends HAST reliability. Prevents corrosion of the bonded wire span against halide attack from molding compound. Note 4: Requires grounded wire bonding equipment. Stable bonding with either N2 or Forming Gas 95/5 (N95%-H5%). Note 5: Conductive spool AL-4(WNI) 2" x 2" is standard code "N" in Part Number. Note 6: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 35µm , 38µm , 40µm , 50µm Note 8: Green=Start • Red=End.        CA-1 Type - Copper (2N Cu) Alloy Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr CA-1 2N Cu Alloy Ø 15µm (Ø 0.6 mil) 2.4~5.4 gf 23~53 mN 7.0~17.0% 100m 300m 500m 328ft 984ft 1640ft CA1-15N100 CA1-15N300 CA1-15N500 701151 701153 701155 Ø 18µm (Ø 0.7 mil) 3.4~7.6 gf 33~75 mN 7.0~17.0% 100m 300m 500m 328ft 984ft 1640ft CA1-18N100 CA1-18N300 CA1-18N500 701181 701183 701185 Ø 20µm (Ø 0.8 mil) 4.2~9.5 gf 41~93 mN 7.0~17.0% 100m 300m 500m 328ft 984ft 1640ft CA1-20N100 CA1-20N300 CA1-20N500 701201 701203 701205 Ø 25µm (Ø 1.0 mil) 6.5~14.5 gf 64~143 mN 8.0~20.0% 100m 300m 500m 328ft 984ft 1640ft CA1-25N100 CA1-25N300 CA1-25N500 701251 701253 701255 Ø 32µm (Ø 1.25 mil) 10.9~24.4 gf 107~239 mN 9.0~22.0% 100m 300m 500m 328ft 984ft 1640ft CA1-32N100 CA1-32N300 CA1-32N500 701321 701323 701325 Ø 38µm (Ø 1.5 mil) 15.2~33.9 gf 149~332 mN 9.0~22.0% 100m 300m 500m 328ft 984ft 1640ft CA1-38N100 CA1-38N300 CA1-38N500 701381 701383 701385 Ø 50µm (Ø 2.0 mil) 28.5~59.9 gf 279~587 mN 12.0~27.0% 100m 300m 500m 328ft 984ft 1640ft CA1-50N100 CA1-50N300 CA1-50N500 701501 701503 701505 Ø 60µm (Ø 2.4 mil) 41.0~86.2 gf 402~845 mN 12.0~27.0% 100m 300m 500m 328ft 984ft 1640ft CA1-60N100 CA1-60N300 CA1-60N500 701601 701603 701605 Ø 70µm (Ø 2.8 mil) 55.8~117.4 gf 547~1151 mN 12.0~27.0% 100m 300m 500m 328ft 984ft 1640ft CA1-70N100 CA1-70N300 CA1-70N500 701701 701703 701705 Note 1: Cu Alloy with high bond reliability and wide bonding window. Low Resistivity. Softer FAB. Note 2: Standard Tolerance: Ø15~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~70μm ±3μm Note 3: Requires grounded wire bonding equipment. Stable bonding with Forming Gas 95/5 (Nitrogen-95%-Hydrogen-5%). Note 4: Conductive spool AL-4(WNI) 2" x 2" is standard code "N" in Part Number. Note 5: Wire diameter available: 15µm , 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 38µm , 40µm , 50µm , 60µm , 70µm . Note 6: Green=Start • Red=End.        CFB-1 Type - 4N Copper (Cu) Bonding Wire Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr CFB-1 Cu 4N Ø 18µm (Ø 0.7 mil) 3.6~7.8 gf 35~76 mN 7.0~17.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-18N100 CFB1-18N300 CFB1-18N500 702181 702183 702185 Ø 20µm (Ø 0.8 mil) 4.4~9.6 gf 43~94 mN 7.0~17.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-20N100 CFB1-20N300 CFB1-20N500 702201 702203 702205 Ø 25µm (Ø 1.0 mil) 6.8~14.8 gf 67~145 mN 8.0~20.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-25N100 CFB1-25N300 CFB1-25N500 702251 702253 702255 Ø 32µm (Ø 1.25 mil) 11.3~24.8 gf 111~243 mN 12.0~24.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-32N100 CFB1-32N300 CFB1-32N500 702321 702323 702325 Ø 38µm (Ø 1.5 mil) 15.8~34.5 gf 155~338 mN 12.0~24.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-38N100 CFB1-38N300 CFB1-38N500 702381 702383 702385 Ø 50µm (Ø 2.0 mil) 26.5~57.9 gf 260~568 mN 14.0~26.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-50N100 CFB1-50N300 CFB1-50N500 702501 702503 702505 Ø 60µm (Ø 2.4 mil) 38.2~83.4 gf 375~818 mN 14.0~26.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-60N100 CFB1-60N300 CFB1-60N500 702601 702603 702605 Ø 70µm (Ø 2.8 mil) 52.0~113.5 gf 510~1131 mN 14.0~26.0% 100m 300m 500m 328ft 984ft 1640ft CFB1-70N100 CFB1-70N300 CFB1-70N500 702701 702703 702705 Note 1: Standard bare Cu wire and wide bonding window. Low Resistivity. Stable continuous bond-ability. Note 2: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~70μm ±3μm Note 3: Requires grounded wire bonding equipment. Stable bonding with Forming Gas 95/5 (Nitrogen-95%-Hydrogen-5%). Note 4: Conductive spool AL-4(WNI) 2" x 2" is standard code "N" in Part Number. Note 5: Wire diameter available: 18µm , 20µm , 23µm , 25µm , 30µm , 32µm , 38µm , 40µm , 50µm , 60µm , 70µm . Note 6: Green=Start • Red=End.      CP-1 Type - Copper (Cu) Heavy Power Bonding Wire Type Alloy Ø Diameter ±7% μm Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr CP-1 Power Copper 4N Ø 100µm (Ø 4 mil) 102~305 gf 1.0~3.0 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-100P100 CP1-100P300 CP1-100P500 707001 707003 707005 Ø 125µm (Ø 5 mil) 153~356 gf 1.5~3.5 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-125P100 CP1-125P300 CP1-125P500 707011 707013 707015 Ø 150µm (Ø 6 mil) 255~560gf 2.5~5.5 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-150P100 CP1-150P300 CP1-150P500 707021 707023 707025 Ø 200µm (Ø 8 mil) 510~917 gf 5.0~9.0 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-200P100 CP1-200P300 CP1-200P500 707041 707043 707045 Ø 250µm (Ø 10 mil) 816~1427 gf 8.0~14.0 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-250P100 CP1-250P300 CP1-250P500 707051 707053 707055 Ø 300µm (Ø 12 mil) 1326~2039 gf 13.0~20.0 N 5~35% 100m 300m 500m 328ft 1000ft 1600ft CP1-300P100 CP1-300P300 CP1-300P500 707061 707063 707065 Ø 380µm (Ø 15 mil) 2040~3059 gf 20.0~30.0 N 10~40% 100m 300m 500m 328ft 1000ft 1600ft CP1-380P100 CP1-380P300 CP1-380P500 707081 707083 707085 Ø 400µm (Ø 16 mil) 2346~3365 gf 23.0~33.0 N 10~40% 100m 300m 500m 328ft 1000ft 1600ft CP1-400P100 CP1-400P300 CP1-400R500 707091 707093 707095 Ø 500µm (Ø 20 mil) 4079~5302 gf 40.0~52.0 N 10~50% 100m 200m 300m 500m 328ft 650ft 1000ft 1600ft CP1-500P100 CP1-500P200 CP1-500R300 CP1-500R500 707111 707112 707113 707115 Note 1: Heavy Copper Bonding Wire. Excellent electrical conductivity (40% better than aluminum). Annealed. Heat treated. Stress relieved (SR Type). Note 2: High fusing current (30% better than aluminum). Note 3: CP-1 wire is made in Japan. Note 4: Standard Tolerance: Ø100~150μm ±5μm   •   Ø200~400μm ±7μm   •   Ø500μm ±10μm Note 4: Wire diameter available: 100µm , 125µm , 150µm , 200µm , 250µm , 300µm , 380µm , 400µm , 500µm Note 6: 100~200um Blue 3.5" Spool No.88B (Code "P")  •   250um~500um Blue 3.5" Spool No.88 (Code "P")   •   Clear 4.75" Spool No.120 (Code "R"). Note 7: Length Meters per Spool Note 8: Green=Start • Red=End.        TABN Type - Aluminum Al-1% Si Wedge to Wedge Bonding Wire   •   See TABN Type Half-Inch Spools for Manual Wire Bonders Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr TABN SOFT Standard Aluminum Al-1% Si With Nickel Doping Ø 18µm (Ø 0.7 mil) 6.7~7.5 gf 66~71 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-18H25 TABN-18H50 TABN-18A100 TABN-18A300 TABN-18A500 403189 403180 403181 403183 403185 Ø 20µm (Ø 0.8 mil) 8.0~10.0 gf 78~98 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-20H25 TABN-20H50 TABN-20A100 TABN-20A300 TABN-20A500 403209 403200 403201 403203 403205 Ø 25µm (Ø 1.0 mil) 13.0~15.0 gf 127~147 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-25H25 TABN-25H50 TABN-25A100 TABN-25A300 TABN-25A500 403259 403250 403251 403253 403255 Ø 30µm (Ø 1.20 mil) 17.0~19.0 gf 167~186 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-30H25 TABN-30H50 TABN-30A100 TABN-30A300 TABN-30A500 403309 403300 403301 403303 403305 Ø 32µm (Ø 1.25 mil) 19.0~21.0 gf 186~206 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-32H25 TABN-32H50 TABN-32A100 TABN-32A300 TABN-32A500 403329 403320 403321 403323 403325 Ø 33µm (Ø 1.3 mil) 19.0~21.0 gf 186~206 mN 0.5~4.5% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-33H25 TABN-33H50 TABN-33A100 TABN-33A300 TABN-33A500 403339 403330 403331 403333 403335 Ø 35µm (Ø 1.4 mil) 26.0~29.0 gf 255~284 mN 0.5~5.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-35H25 TABN-35H50 TABN-35A100 TABN-35A300 TABN-35A500 403359 403350 403351 403353 403355 Ø 38µm (Ø 1.5 mil) 31.0~34.0 gf 304~333 mN 0.5~5.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-38H25 TABN-38H50 TABN-38A100 TABN-38A300 TABN-38A500 403389 403380 403381 403383 403385 Ø 45µm (Ø 1.8 mil) 40.5~45.5 gf 390~440 mN 0.5~6.0% 100m 300m 500m 328ft 984ft 1640ft TABN-45A100 TABN-45A300 TABN-45A500 403451 403453 403455 Ø 50µm (Ø 2.0 mil) 47.0~53.0 gf 461~520 mN 0.5~6.0% 25m 50m 100m 300m 500m 75ft 150ft 328ft 984ft 1640ft TABN-50H25 TABN-50H50 TABN-50A100 TABN-50A300 TABN-50A500 403509 403500 403501 403503 403505 Ø 50µm (Ø 2.0 mil) 38.0~43.0 gf 372~420 mN 2.5~5.5% 100m 300m 328ft 1000ft TABN-50A100BL38~43 TABN-50A300BL38~43 403502 403504 Ø 75µm (Ø 3.0 mil) 115.0~135.0 gf 1090~1325 mN 0.5~6.0% 100m 300m 500m 328ft 984ft 1640ft TABN-75A100 TABN-75A300 TABN-75A500 403751 403753 403755 Ø 80µm (Ø 3.2 mil) 130.0~150.0 gf 1275~1471 mN 0.5~6.0% 100m 300m 500m 328ft 984ft 1640ft TABN-80A100 TABN-80A300 TABN-80A500 403801 403803 403805 Note 1: Uniform distribution of Si and stable mechanical property. Annealed. Heat treated. Stress relieved (SR type). Note 2: TABN has good corrosion resistance under PCT (Pressure Cooker Test) with high humidity and temperature. Note 3: TABN applications include Wedge to Wedge bonding. Note 4: TABN (with ~50ppm Nickel doping) has replaced old Type TABW (without nickel doping). Note 5: Old Type TABW (without nickel doping) is not recommended for pressure cooker test with high humidity at 260°C. Note 6: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm   •   Ø60~80μm ±3μm Note 7: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number. For 1/2" Spools, Change "A" in part number to "H" . Note 8: Wire diameter available: 18µm , 20µm , 25µm , 30µm , 32µm , 33µm , 35µm , 38µm , 40µm , 45µm , 50µm , 75µm , 80µm Note 9: Green=Start • Red=End.        TABN-H Type - Hard Aluminum Al-1% Si Wedge to Wedge Bonding Wire   •   See Standard TABN Type TABN Type Alloy Ø Diameter ±1% μm Breaking Load (gf) Breaking Load (mN) EL (%) Length Meters Length Feet Part Number Order Nr TABN-H HARD Aluminum Al-1% Si With Nickel Doping Ø 18µm (Ø 0.7 mil) 7.5~8.5 gf 74~83 mN 0.5~4.5% 100m 300m 500m 328ft 984ft 1640ft TABN-H-18A100 TABN-H-18A300 TABN-H-18A500 409181 409183 409185 Ø 20µm (Ø 0.8 mil) 9.0~11.0 gf 88~108 mN 0.5~4.5% 100m 300m 500m 328ft 984ft 1640ft TABN-H-20A100 TABN-H-20A300 TABN-H-20A500 409201 409203 409205 Ø 25µm (Ø 1.0 mil) 15.0~17.0 gf 147~167 mN 0.5~4.5% 100m 300m 500m 328ft 984ft 1640ft TABN-H-25A100 TABN-H-25A300 TABN-H-25A500 409251 409253 409255 Ø 30µm (Ø 1.20 mil) 21.0~23.0 gf 206~225 mN 0.5~4.5% 100m 300m 500m 328ft 984ft 1640ft TABN-H-30A100 TABN-H-30A300 TABN-H-30A500 409301 409303 409305 Ø 32µm (Ø 1.25 mil) 21.0~23.0 gf 206~225 mN 0.5~4.5% 100m 300m 500m 328ft 984ft 1640ft TABN-H-32A100 TABN-H-32A300 TABN-H-32A500 409321 409323 409325 Ø 35µm (Ø 1.4 mil) 29.0~32.0 gf 284~313 mN 0.5~5.0% 100m 300m 500m 328ft 984ft 1640ft TABN-H-35A100 TABN-H-35A300 TABN-H-35A500 409351 409353 409355 Ø 38µm (Ø 1.5 mil) 34.0~37.0 gf 333~363 mN 0.5~5.0% 100m 300m 500m 328ft 984ft 1640ft TABN-H-38A100 TABN-H-38A300 TABN-H-38A500 409381 409383 409385 Ø 40µm (Ø 1.6 mil) 38.0~42.0 gf 372~411 mN 0.5~5.0% 100m 300m 500m 328ft 984ft 1640ft TABN-H-40A100 TABN-H-40A300 TABN-H-40A500 409401 409403 409405 Ø 50µm (Ø 2.0 mil) 60.0~66.0 gf 588~649 mN 0.5~6.0% 100m 300m 500m 328ft 984ft 1640ft TABN-H-50A100 TABN-H-50A300 TABN-H-50A500 409501 409503 409505 Note 1: Uniform distribution of Si and stable mechanical property. TABN-N HARD. Heat treated. Stress relieved (SR type). Note 2: TABN-H has good corrosion resistance under PCT (Pressure Cooker Test) with high humidity and temperature. Note 3: TABN-H applications include Wedge to Wedge bonding. Note 4: TABN-H (with ~50ppm Nickel doping) has higher BL than standard TABN type. Note 5: Standard Tolerance: Ø18~38μm ±1 μm   •   Ø40~50μm ±2μm Note 6: Double-flange anodized aluminum spool AL-2(W) 2" x 1" is standard code "A" in Part Number Note 7: Wire diameter available: 18µm , 20µm , 25µm , 30µm , 32µm , 33µm , 35µm , 38µm , 40µm , 50µm Note 8: Green=Start • Red=End.     TANW TYPE - SOFT Aluminum (Al) Large Diameter Power Bonding Wire (4N 99.99%) Type Alloy Ø Diameter Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr TANW SOFT Aluminum S-1 Power Bonding Wire 4N 99.99% Ø 100µm (Ø 4 mil) 50~80 gf 0.49~0.78 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-100K100 TANW-100K300 TANW-100K500 405001 405003 405005 Ø 125µm (Ø 5 mil) 70~120 gf 0.69~1.18 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-125K100 TANW-125K300 TANW-125K500 405011 405013 405015 Ø 150µm (Ø 6 mil) 100~200 gf 0.98~1.96 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-150K100 TANW-150K300 TANW-150K500 405021 405023 405025 Ø 175µm (Ø 7 mil) 140~240 gf 1.37~2.35 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-175K100 TANW-175K300 TANW-175K500 405031 405033 405035 Aluminum S-2 Power Bonding Wire 4N 99.99% Ø 200µm (Ø 8 mil) 140~200 gf 1.37~1.96 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-200K100 TANW-200K300 TANW-200K500 405041 405043 405045 Ø 250µm (Ø 10 mil) 210~300 gf 2.06~2.94 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-250K100 TANW-250K300 TANW-250K500 405051 405053 405055 Ø 300µm (Ø 12 mil) 300~420 gf 2.94~4.12 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-300K100 TANW-300K300 TANW-300K500 405061 405063 405065 Ø 350µm (Ø 14 mil) 450~550 gf 4.41~5.39 N 10~30% 100m 300m 500m 328ft 984ft 1640ft TANW-350K100 TANW-350K300 TANW-350K500 405071 405073 405075 Ø 380µm (Ø 15 mil) 500~700 gf 4.90~6.86 N 10~30% 100m 200m 300m 328ft 656ft 984ft TANW-380K100 TANW-380K200 TANW-380K300 405081 405082 405083 Ø 400µm (Ø 16 mil) 550~750 gf 5.39~7.35 N 10~30% 100m 200m 300m 328ft 656ft 984ft TANW-400K100 TANW-400K200 TANW-400K300 405091 405092 405093 Ø 450µm (Ø 18 mil) 700~850 gf 6.86~8.34 N 10~30% 100m 200m 300m 328ft 656ft 984ft TANW-450K100 TANW-450K200 TANW-450K300 405101 405102 405103 Ø 500µm (Ø 20 mil) 800~1100 gf 7.85~10.79 N 10~30% 100m 200m 300m 328ft 656ft 984ft TANW-500K100 TANW-500K200 TANW-500K300 405111 405112 405113 Ø 600µm (Ø 24 mil) 1200~1700 gf 11.70~17.30 N 10~40% 100m 200m 328ft 656ft TANW-600K100 TANW-600K200 405121 405122 Note 1: Softest 4N large diameter aluminum (Al) bonding wire for excellent bondability in power devices. Note 2: Doped with 50ppm Nickel for excellent surface corrosion resistance. Note 3: Soft annealed to control grain structure to achieve best EL/BL for stable wire bonding process. Note 4: Clear spools with 11mm shaft: 88K and 120K Note 5: Length Meters per Spool Note 6: Wire diameter available: 100µm , 125µm , 150µm , 175µm , 200µm , 250µm , 300µm , 350µm , 380µm , 400µm , 450µm , 500µm , 600µm . Note 7: Wire Tolerance: 100µm ~ 175µm ±5% μm  •  200µm ~ 450µm ±7% μm  •  500µm ~ 600µm ±10% μm . Note 8: Green=Start • Red=End.     TANW TYPE - STRONG Aluminum (Al) Large Diameter Power Bonding Wire for Batteries & Power Tools (4N 99.99%) Type Alloy Ø Diameter Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr TANW STRONG Aluminum S-1 Power Bonding Wire 4N 99.99% Ø 200µm (Ø 8 mil) 200~300 gf 1.96~2.94 N 15~40% 100m 300m 500m 328ft 984ft 1640ft TANW-MID-200K100 TANW-MID-200K300 TANW-MID-200K500 406041 406043 405045 Ø 250µm (Ø 10 mil) 300~450 gf 2.94~4.41 N 15~40% 100m 300m 500m 328ft 984ft 1640ft TANW-MID-250K100 TANW-MID-250K300 TANW-MID-250K500 406051 406053 406055 Ø 300µm (Ø 12 mil) 400~600 gf 3.92~5.88 N 15~40% 100m 300m 500m 328ft 984ft 1640ft TANW-MID-300K100 TANW-MID-300K300 TANW-MID-300K500 406061 406063 406065 Ø 350µm (Ø 14 mil) 570~960 gf 5.58~9.40 N 15~40% 100m 300m 500m 328ft 984ft 1640ft TANW-MID-350K100 TANW-MID-350K300 TANW-MID-350K500 406071 406073 406075 Ø 380µm (Ø 15 mil) 750~1100 gf 6.75~10.78 N 15~40% 100m 200m 300m 328ft 656ft 984ft TANW-MID-380K100 TANW-MID-380K200 TANW-MID-380K300 406081 406082 406083 Ø 400µm (Ø 16 mil) 750~1250 gf 8.35~12.25 N 15~40% 100m 200m 300m 328ft 656ft 984ft TANW-MID-400K100 TANW-MID-400K200 TANW-MID-400K300 406091 406092 406093 Ø 450µm (Ø 18 mil) 950~1580 gf 9.31~15.48 N 15~40% 100m 200m 300m 328ft 656ft 984ft TANW-MID-450K100 TANW-MID-450K200 TANW-MID-450K300 406101 406102 406103 Ø 500µm (Ø 20 mil) 1170~1900 gf 11.5~18.6 N 15~40% 100m 200m 300m 328ft 656ft 984ft TANW-MID-500K100 TANW-MID-500K200 TANW-MID-500K300 406111 406112 406113 Note 1: Hard 4N large diameter aluminum (Al) bonding wire for excellent bondability in battery applications. Note 2: Doped with 50ppm Nickel for excellent surface corrosion resistance. Note 3: Special annealed to control grain structure to achieve best EL/BL for stable wire bonding process for Batteries. Note 4: Clear spools with 11mm shaft: 88K   •   120K Note 5: Length Meters per Spool Note 6: MID Wire diameter available: 300µm , 350µm , 380µm , 400µm , 450µm , 500µm Note 7: MID Wire Tolerance:200µm ~ 450µm ±7% μm  •  500µm ±10% μm Note 8: Power Tools: TAWN-MID is excellent for medium range BL and EL for power tool bonding applications. Note 9: Green=Start • Red=End.     TANW-HARD Type S1 Aluminum (Al) (4N 99.99%) Strong Power Bonding Wire for Batteries Type Alloy Ø Diameter Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr TANW HARD Aluminum S-1 Power Bonding Wire 4N 99.99% Ø 500µm (Ø 20 mil) 1800~2200 gf 18.3~22.4 N 5~30% 100m 200m 300m 328ft 656ft 984ft TANW-HARD-500K100 TANW-HARD-500K200 TANW-HARD-500K300 407111 407112 407113 Note 1: 4N large diameter aluminum (Al) strong bonding wire for excellent bondability in battery applications. Note 2: Doped with 50ppm Nickel for excellent surface corrosion resistance. Note 3: Special annealed to control grain structure to achieve best EL/BL for stable wire bonding process for Batteries. Note 4: Clear spools with 11mm shaft: 88K   •   120K Note 5: Length Meters per Spool Note 6: HARD Wire diameter available: 500µm Note 7: HARD Wire Tolerance: 500µm . Note 8: Green=Start • Red=End.        TABR Type - Aluminum (Al) Bonding Ribbon (4N 99.99%)   •   Other Sizes Type Alloy Width Thickness Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr TABR Al Ribbon 4N 99.99% 500µm ±50µm 100µm ±10µm 275~425 gf 2.70~4.17 N ≥10% 100m 200m 328ft 656ft TABR-500x100P100 TABR-500x100P200 412461 412462 750µm ±50µm 413~638 gf 4.05~6.26 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-750x100P100 TABR-750x100P200 TABR-750x100P300 412481 412482 412483 1000µm ±50µm 550~850 gf 5.39~8.34 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1000x100P100 TABR-1000x100P200 TABR-1000x100R300 412491 412492 412493 1500µm ±50µm 715~1225 gf 7.0~12.0 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1500x100P100 TABR-1500x100P200 TABR-1500x100R300 412421 412422 412423 2000µm ±100µm 900~1500 gf 8.8~14.7 N ≥10% 100m 200m 328ft 656ft TABR-2000x100P100 TABR-2000x100P200 412411 412412 1000µm ±50µm 150µm ±15µm 675~1125 gf 6.62~11.03 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1000x150P100 TABR-1000x150R200 TABR-1000x150R300 412641 412642 412643 1500µm ±75µm 1013~1688 gf 9.93~16.55 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1500x150P100 TABR-1500x150R200 TABR-1500x150R300 412651 412652 412653 2000µm ±100µm 1350~2250 gf 13.24~22.06 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-2000x150P100 TABR-2000x150R200 TABR-2000x150R300 412661 412662 412663 1000µm ±50µm 200µm ±20µm 900~1500 gf 8.83~14.71 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1000x200P100 TABR-1000x200R200 TABR-1000x200R300 412841 412842 412843 1250µm ±63µm 1206~2010 gf 11.83~19.71 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1250x200P100 TABR-1250x200R200 TABR-1250x200R300 412831 412832 412833 1500µm ±75µm 1350~2250 gf 13.24~22.06 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1500x200P100 TABR-1500x200R200 TABR-1500x200R300 412851 412852 412853 2000µm ±100µm 1800~3000 gf 17.65~29.42 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-2000x200R100 TABR-2000x200R200 TABR-2000x200R300 412861 412862 412863 1500µm ±75µm 250µm ±25µm 1688~2813 gf 16.55~27.59 N ≥10% 100m 200m 300m 328ft 656ft 984ft TABR-1500x250P100 TABR-1500x250R200 TABR-1500x250R300 412951 412952 412953 2000µm ±100µm 2250~3750 gf 22.06~36.77 N ≥10% 50m 100m 200m 164ft 328ft 656ft TABR-2000x250P50 TABR-2000x250R100 TABR-2000x250R200 412960 412961 412962 1500µm ±75µm 300µm ±30µm 2025~3375 gf 19.86~33.10 N ≥10% 50m 100m 200m 164ft 328ft 656ft TABR-1500x300P50 TABR-1500x300R100 TABR-1500x300R200 412980 412981 412982 2000µm ±100µm 2700~4500 gf 26.48~44.13 N ≥10% 50m 100m 200m 150ft 328ft 650ft TABR-2000x300P50 TABR-2000x300R100 TABR-2000x300R200 412990 412991 412992 2000µm ±100µm 400µm ±40µm 3600~6000 gf 36.7~61.2 N ≥10% 50m 100m 150m 150ft 328ft 500ft TABR-2000x400P50 TABR-2000x400R100 TABR-2000x400R150 412790 412791 412792 Note 1: TABR Type Al ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance. Note 2: Tanaka Al ribbon is made using a rolled process. Edges are smooth without sharp edges. Good surface smoothness. Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding. Note 4: Flat Al ribbon provides an excellent solution for power devices. Note 5: Spool code 4th character from end of part number: "P" = No.88 Spool. "R" = No.120 Spool. Note 6: Length Meters per Spool Note 7: TABR Type aluminum ribbon wire made in Japan. Note 8: Equivalent Round Wires Note 9: Green=Start • Red=End.        AuR Type - Gold (Au) Bonding Ribbon 4N   •   See AuR Type Half-Inch Spools for Manual Wire Bonders   •   Other Sizes Type Alloy Thickness ±10% Width ±10% Breaking Load (gf) Breaking Load (N) EL (%) Length Meters Length Feet Part Number Order Nr AuR Au Ribbon 12.7um (0.5 mil) 25um (1.0mil) 4.8~9.8 gf 48~96 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-25x12.7H10 AuR-25x12.7A50 326510 316510 38um (1.5mil) 7.2~15.0 gf 71~147 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-38x12.7H10 AuR-38x12.7A50 326380 316380 50um (2.0mil) 9.5~19.7 gf 93~193 mN 2.0~7.0% 10m 50m 33ft 164ft AuR-50x12.7H10 AuR-50x12.7A50 326500 316500 75um (3.0mil) 14.3~29.5 gf 141~289 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-75x12.7H10 AuR-75x12.7A50 326520 316520 100um (4.0mil) 19.1~39.4 gf 188~386 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-100x12.7H10 AuR-100x12.7A50 326530 316530 125um (5.0mil) 23.8~49.2 gf 234~482 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-125x12.7H10 AuR-125x12.7A50 326540 316540 150um (6.0mil) 28.6~59.1 gf 281~579 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-150x12.7H10 AuR-150x12.7A50 326550 316550 16um (0.63 mil) 32um (1.25mil) 7.7~15.9 gf 75~156mN ≥ 2.0% 10m 50m 32ft 164ft AuR-32x16H10 AuR-32x16A50 326320 316320 20um (0.8 mil) 80um (3.0mil) 24.0~49.6 gf 235~486mN ≥ 2.0% 10m 50m 32ft 164ft AuR-80x20H10 AuR-80x20A50 326090 316090 200um (8.0mil) 60.0~124.0 gf 588~1215mN ≥ 2.0% 10m 50m 32ft 164ft AuR-200x20H10 AuR-200x20A50 326570 316570 25um (1.0 mil) 50um (2.0mil) 18.8~38.8 gf 185~380 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-50x25H10 AuR-50x25A50 326100 316100 75um (3.0mil) 28.1~58.1 gf 275~569 mN 5.0~10% 10m 50m 33ft 164ft AuR-75x25H10 AuR-75x25A50 326110 316110 100um (4.0mil) 37.5~77.5 gf 368~760 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-100x25H10 AuR-100x25A50 326120 316120 125um (5.0mil) 46.9~96.9 gf 460~950 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-125x25H10 AuR-125x25A50 326130 316130 150um (6.0mil) 56.3~116.3 gf 553~1140 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-150x25H10 AuR-150x25A50 326140 316140 200um (8.0mil) 75.0~155.0 gf 736~1520 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-200x25H10 AuR-200x25A50 326150 316150 250um (10.0mil) 93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-250x25H10 AuR-250x25A50 326160 316160 50um (2.0 mil) 125um (5.0mil) 93.8~193.8 gf 920~1900 mN ≥ 2.0% 10m 50m 33ft 164ft AuR-125x50H10 AuR-125x50A50 326220 316220 Note 1: AuR Type Au Gold ribbon is fabricated using a dry process. No lubrication oils are introduced during fabrication. Excellent corrosion resistance. Note 2: Tanaka AuR ribbon is made using a rolled process with stress relief (SR). Edges are smooth without sharp edges. Good surface smoothness. Note 3: Tanaka's specially formulated winding process assures consistent de-spooling and smooth bonding. Not parallel winding. Note 4: Flat Au ribbon provides an excellent solution for RF devices. Note 5: Anodized Spool Double Flange 2" X 1" AL-2 code "A" in Part Number. Note 6: Conductive Spool Double Flange 2" x 1"AL-2(WNI) Change spool code in part number from "A" to "C" . Note 7: Half-inch (1/2") Spools TS1 , Change "A" in part number to "H" . Note 8: Special Type AuR3 Gold Ribbon with Be (Beryllium) doping. Note 9: Alternative Type AuC slit-cut Wide Gold Ribbon for special applications. Note 10: AuR gold ribbon wire made in Japan. Note 11: Green=Start • Red=End.         Spool Reference Dimensions   Spool Dimensions (mm)   Box Dimensions & Spool Quantity Spool Material Type A Flange Dia. B Shaft Dia. C Hub Dia. D Hub Thick E Winding Width F Overall Width Spool Style Part Nbr Code Winding Pattern White Inner Box QTY Spools L=7.25" W=12.5" H=4.0" Small Outer Box QTY Spools L=8.25" W=13.25" H=10" Medium Outer Box QTY Spools L=13.25" W=24" H=10" Large Outer Box QTY Spools L=13.25" W=24" H=14" Aluminum Spools AL-2(W) 2x1 Inch 58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(W) AL-2 A Round Wire Cross Winding -- Ribbon Parallel Winding 20x Spools 40x Spools 120x Spools 180x Spools AL-2(WNi) 2x1 Inch Conductive Hub 58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(WNi) Note 2 C Round Wire Cross Winding -- Ribbon Parallel Winding 20x Spools 40x Spools 120x Spools 180x Spools AL4(W) 2x2 Inch 58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(W) B Round Wire Cross Winding -- Ribbon Parallel Winding 12x Spools 24x Spools 72x Spools 108x Spools AL-4(WNi) 2x2 Inch Conductive Hub 58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(WNi) Note 2 N Round Wire Cross Winding -- Ribbon Parallel Winding 10x Spools 20x Spools 60x Spools 90x Spools AL-1/2 Half-Inch 17.4mm 12.7 13.5 0.40 18.3 19.1 AL-1/2 H Round Wire and Ribbon Parallel Winding 5x spools - - - Polycarbonate Spools No.88 3.5 Inch 88mm 10 50 3 25 31 No.88 Ø250~380um CP-1 Ø250~500um AgW Silver Wire TABR P Round Wire and Ribbon Parallel Winding 10x Spools 50x Spools - - No.88B 3.5 Inch 89mm 10 71 3 25 31 No.88B Ø 100~200um CP-1 Ø100~200um AgW Silver Wire P Round Wire and Ribbon Parallel Winding 10x Spools 50x Spools - - No.88C 3.5 Inch 88mm 11 50 3 25 31 No.88C Ø100~200um Type-Y P Round Wire and Ribbon Parallel Winding 10x Spools 50x Spools - - No.88K 3.5-inch 88mm 11 50 3 31 37 No.88K TANW K Round Wire 10x Spools 40x Spools Foam Horizontal Packed - - No.120 4.75 Inch 120mm 10 54 4 30 38 No.120 CP-1 TABR R Round Wire and Ribbon Parallel Winding 5x Spools 20x Spools - - No.120K 4.75 Inch 120mm 11 64 4 30 38 No.120K TANW T Round Wire 5x Spools 20x Spools Foam Horizontal Packed - - Other TKI Spools No.55 2.25 Inch 58mm 10 50 3.0 125 31 No.55 AuW-4N Power Gold Wire 99.99% 4N E Large Gold Wire - - - - X000002 4.7 Inch 120mm 8 100 2.5 18 23 X000002 Au-4N Power Gold Wire 99.99% 4N F Large Gold Wire - - - - X000010 10.0 Inch 270mm 53 182 6.5 90 103 X000010 AgC Slit Cut Silver Ribbon 99.99% 4N W Wide Silver Ribbon - - - - Pancake Spool 50mm 10 30 2.0~4.5 0.7~1.0 4.7~10 Pancake AuC Slit Cut Gold Ribbon Y Wide Gold Ribbon - - - - Note 1: Copper Cu and PCC Pd coated Cu requires grounded (Conductive) "N" Spool. Note 2: Standard anodized spools "A" and "B" are typically used for gold wire. Alternatively, conductive spools, type "C" and "N" may be used with gold wire. Conductive spools provide more robust loading of the bonder. The non-anodized surface on the inside of conductive spool hub interfaces directly with the bonder's grounding point. It is not necessary to ground the "Red" end of the wire to the bonder's ground point when using conductive spools. Note 3: Round Wire is wound forward/Cross Pattern Winding (Cross wound-cross hatch wind) Note 4: Ribbon Wire is wound forward/Parallel Winding Note 5: Start wire on spool with  Green tape.   •   End wire on spool with Red tape. Note 6: 2x white inner boxes fit into small outer box. 6x white inner boxes fit into medium outer box. 9x white inner boxes fit into large outer box.     ± Tolerance Table Alloy Ø Diameter Tolerance Spool Au Gold Type GBC , GBE , GFC, GFD GHA-2 , GLD, GLF , GMB GMG , GMH-2 , GPG-2 , GPH GSA , GSB , M3 , Y , C Ø 12µm ~ 38µm (Ø 0.5 ~ 1.5 mil) ±1 μm AL2(W) Code A AL-4 Code B Ø 40µm ~ 50µm (Ø 1.6 ~ 2.0 mil) ±2 μm Ø 60µm ~ 100µm (Ø 2.4 ~ 4.0 mil) ±3 μm Ø 125µm ~ 150µm (Ø 5.0 ~ 6.0 mil) ±5 μm Ag Silver Type SEA, SEB, SEC Ø 15µm ~ 38µm (Ø 0.6 ~ 1.5 mil) ±1 μm Ø 40µm ~ 50µm (Ø 1.6 ~ 2.0 mil) ±2 μm Al-1%Si Type TABN Ø 15µm ~ 38µm (Ø 0.6 ~ 1.5 mil) ±1 μm Ø 40µm ~ 50µm (Ø 1.6 ~ 2.0 mil) ±2 μm Ø 75µm ~ 80µm (Ø ~ 3.0 mil) ±3 μm Cu Copper Bare & Plated Type CLR1-AT  •  CA-1  •  CFB-1 Ø 15µm ~ 38µm (Ø 0.6 ~ 1.5 mil) ±1 μm AL-4(WNi) Grounded Code N Ø 40µm ~ 50µm (Ø 1.6 ~ 2.0 mil) ±2 μm Ø 60µm ~ 70µm (Ø 2.4 ~ 2.8 mil) ±3 μm Power Aluminum Type TANW Ø 100µm ~ 175µm (Ø 4.0 ~ 7.0 mil) ±5 μm 100~175μm  • No. 88B 200~600μm • No.88K Polycarbonate Code K Ø 200µm ~ 450µm (Ø 8.0 ~ 18 mil) ±7 μm Ø 500µm ~ 600µm (Ø 20 ~ 24 mil) ±10 μm Flat Ribbon Al Type TABR Width 0.8mm (32 mil) Thick 0.1mm (4 mil) W: ±0.050mm T: ±0.015mm No. 88  • No.88B Polycarbonate Code P Width 1.0mm (32 mil) Thick 0.1mm (4 mil) W: ±0.050mm T: ±0.020mm Width 1.5mm (60 mil) Thick 0.2mm (8 mil) W: ±0.075mm T: ±0.015mm No. 120 Polycarbonate Code R Width 2.0mm (80 mil) Thick 0.2mm (8 mil) W: ±0.10mm T: ±0.020mm     Important:   Correct Handling Wire Spool   Green=Start • Red=End.      Difference between Gold Bump Wire and Gold Bonding Wire. Note Feature Bump Wire Bonding Wire 1 Number of Bonds One Bond Only To Die Pad or Substrate Two Bonds From Die Pad to Package. 2 Purpose/Application Single Au (gold) wire is squashed. Wire is then reflowed (melted) to form a bump for a flip chip. Bonding from the die to the leadfame (or substrate) with a loop (wedge or stitch). 3 Repeatable Wire Break Bumping wire is intended to break close to neck area of first bond. Bonding wire has a longer HAZ (heat affected zone) to permit the wire to be kinked or looped and pan out for next bond (wedge or stitch) 4 Grain Structure Dopants added for grain structure during annealing process to allow repeatable wire break after the stud bump formation to make wire softer for wire cut/break mode. Grain structure in bonding wire enables formation of loop or kink. Additonal Reference: Wire Bondability to Bond Pads     Wedge Bonding vrs Ball Bonding Recommended Applications Use the correct wire for Wedge or Ball Bonding Additonal Reference: Wire Bondability to Bond Pads     EL - Elongation Summary Gold Wire Sorted by Type   PDF Type Purity Ø15μm 0.6 mil Ø18μm 0.7 mil Ø20μm 0.8 mil Ø23μm 0.9 mil Ø25μm 1.0 mil Ø28μm 1.1 mil Ø30μm 1.2 mil Ø32μm 1.25 mil Ø35μm 1.4 mil Ø38μm 1.5 mil Ø50μm 2.0 mil C 4N - - 2.0~6.0% 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% - FA 4N - - 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~12% - GBC 2N 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~6.0% 1.5~6.0% - GBE 4N 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~4.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~5.0% 1.5~6.0% 1.5~6.0% - GFC 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% - GFD 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% - GHA-2 4N - - 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~9.0% - GLD-H 4N 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 3.5% Max 4.5% Max 4.5% Max 4.5% Max GLD 4N 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% 3.0~10% GLF 4N 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 2.0~9.0% 2.0~9.0% 2.0~9.0% - GMB-2 4N - - 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~9.0% 3.0~9.0% 3.0~9.0% 3.0~10% - GMG 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% GMH 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% GMH-2 4N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% GPG 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~10% GPG-2 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% GPG-3 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% GPH 2N 1.0~7.0% 1.0~7.0% 1.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% 2.0~8.0% - GSA 4N 1.0~6.0% 1.0~6.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.5~8.5% 1.5~8.5% 1.5~8.5% 1.5~8.5% 1.5~8.5% GSB 4N 1.0~6.0% 1.0~6.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.0~7.0% 1.5~8.5% - - - - M3 4N 1.0~6.0% 1.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~9.0% 2.0~9.0% 3.0~9.0% 4.0~12% 4.0~15% Y 4N - - 2.0~5.0% 2.0~6.0% 2.0~6.0% 2.0~6.0% 2.0~7.0% 2.0~7.0% 2.0~8.0% 2.0~8.0% 2.0~10% Note 1: Actual elongation tends to be the middle of each range. Example: The EL of Ø25μm GSA is shown as 1.0~7.0% in above table. However average Ø25μm GSA EL tests around 4%   BL - Breaking Load (g) Summary Gold Wire Sorted by Type   PDF Type Purity Ø15μm 0.6 mil Ø18μm 0.7 mil Ø20μm 0.8 mil Ø23μm 0.9 mil Ø25μm 1.0 mil Ø28μm 1.1 mil Ø30μm 1.2 mil Ø32μm 1.25 mil Ø35μm 1.4 mil Ø38μm 1.5 mil Ø50μm 2.0 mil C 4N - - 4.5~8.0g 5.5~9.5g 7.5~11.5g 11.0~15.0g 11.0~15.5g 13.0~18.0g 15.0~25.0g 18.0~28.0g - FA 4N - - 5.0~8.7g 6.5~11.5g 7.7~13.5g 9.7~17.0g 11.1~19.5g 12.7~22.2g 15.2~26.5g 17.9~31.3g - GBC 2N ≥5.2g ≥8.2g ≥9.3g ≥10.0g ≥14.5g ≥17.0g ≥20.9g ≥23.8g ≥28.4g ≥33.5g - GBE 4N ≥4.5g ≥6.5g ≥8.0g ≥11.0g ≥12.6g ≥17.0g ≥18.1g ≥20.6g ≥24.6g ≥29.0g - GFC 4N 2.8~5.6g 4.0~8.0g 5.0~9.9g 6.5~13.1g 7.7~15.5g 9.7~19.4g 11.1~22.3g 12.7~25.3g 15.2~30.3g 17.9~35.7g - GFD 4N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g 15.1~27.7g 18.0~33.2g 21.2~39.1g - GHA-2 4N - - 4.0~8.0g 7.0~11.0g 9.0~13.0g 11.0~16.0g 13.0~18.0g 15.0~21.0g 19.0~25.0g 21.0~30.0g - GLD-H 4N ≥2.5g ≥4.0g ≥6.0g ≥10.0g ≥16.0g ≥18.0g ≥20.0g ≥23.0g ≥27.0g ≥35.0g ≥45.0g GLD 4N 1.7~3.7g 4.9~7.4g 6.0~9.0g 8.0~12.0g 10.0~14.0g 12.0~17.0g 14.0~20.0g 15.0~23.0g 19.0~27.0g 22.0~35.0g 32.0~45.0g GLF 4N 3.1~5.9g 4.5~8.5g 5.6~10.5g 7.4~13.9g 8.7~16.4g 10.9~20.6g 12.5~23.7g 14.3~26.9g 17.1~32.2g 20.1~38.0g - GMB-2 4N - - 5.0~9.0g 7.5~11.5g 9.0~14.0g 11.0~16.0g 13.0~19.0g 15.0~22.0g 20.0~26.0g 23.0~33.0g - GMG 4N 3.6~6.4g 5.1~9.1g 6.3~11.3g 8.4~14.9g 9.9~17.6g 12.4~22.1g 14.3~25.4g 16.2~28.9g 19.4~34.6g 22.9~40.8g 39.6~70.6g GMH 4N 3.7~5.7g 5.4~8.1g 6.7~10.1g 8.8~13.3g 10.4~15.7g 13.0~19.7g 15.0~22.6g 17.0~25.7g 20.4~30.8g 24.0~36.3g 41.6~62.9g GMH-2 4N 3.7~6.5g 5.4~9.4g 6.7~11.6g 8.8~15.3g 10.4~18.1g 13.0~22.7g 15.0~26.1g 17.0~29.7g - 24.0~41.9g 41.6~72.5g GPG 2N 3.7~5.7g 5.4~8.1g 6.7~10.1g 8.8~13.3g 10.4~15.7g 13.0~19.7g 15.0~22.6g 17.0~25.7g 18.1~27.4g 24.0~36.3g 41.6~62.9g GPG-2 2N 3.5~6.3g 5.0~9.0g 6.2~11.1g 8.9~16.0g 9.7~17.4g 12.1~21.8g 13.9~25.1g 15.0~23.0g 19.0~27.0g 22.3~40.2g 38.7~69.6g GPG-3 2N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g 15.1~27.7g - 21.2~39.1g 36.7~67.7g GPH 2N 3.3~6.1g 4.8~8.8g 5.9~10.8g 7.8~14.3g 9.2~16.9g 11.5~21.2g 13.2~24.4g 15.1~27.7g 18.0~33.2g 21.2~39.1g - GSA 4N 2.5~5.3g 3.6~7.6g 4.5~9.4g 5.9~12.5g 7.0~14.7g 8.7~18.5g 10.0~21.2g 11.4~24.0g - 16.1~34.0g 27.6~58.3g GSB 4N 2.9~5.7g 4.2~8.2g 5.2~10.1g 6.9~13.5g 8.1~15.9g 10.2~19.9g 11.6~22.7g 13.3~26.0g 15.9~31.1g 18.8~36.6g - M3 4N - 4.6~7.1g 5.7~8.8g 7.0~11.5g 8.09~13.8g 12.0~17.0g 12.9~19.8g 14.7~22.6g 17.5~27.0g 20.7~31.8g 35.8~55.1g Y 4N - - 3.5~6.6g 6.4~8.1g 6.5~11.4g 8.5~14.7g 10.0~17.1g 11.4~19.5g 14.0~23.6g 17.6~28.9g 31.4~51.1g Note 1: Actual elongation tends to be the middle of each range. Example: The EL of Ø25μm GSA is shown as 1.0~7.0% in above table. However average Ø25μm GSA EL tests around 4%   RLC Parametric Data Material Alloy Ø Mil Ø um R milli-ohm/mm 0 Hz (DC) R milli-ohm/mm 100 MHz Ls nH/mm 100~400 MHz Cs pF/mm 100~400 MHz Gold (4N Au) Gold (2N Au) PCC (4N Cu) 0.6mil 15um 163.62 191.44 115.70 237.01 277.31 177.42 1.184 0.073 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 0.7mil 18um 119.98 140.38 84.83 182.77 213.85 137.64 1.140 0.077 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 0.8mil 20um 91.74 107.24 64.76 148.55 173.65 111.01 1.114 0.081 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 0.9mil 23um 72.24 84.45 51.07 122.39 143.07 92.37 1.074 0.085 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 1.0mil 25um 58.40 68.27 41.25 103.47 120.95 79.02 1.043 0.092 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 1.1mil 28um 49.08 56.21 33.99 88.68 103.66 68.40 1.012 0.098 Gold (4N Au) Gold (2N Au) PCC (4N Cu) 1.2mil 30um 40.54 47.40 28.66 78.62 91.90 60.52 1.010 0.104 RLC Electrical Parametric Data PDF     Electrical Resistance Ω Ohms per 10mm Length   •   Resistance Calculator Symbol Material Ø15μm 0.6 mil Ø18μm 0.7 mil Ø20μm 0.8 mil Ø25μm 1.0 mil Ø30μm 1.2 mil Ø32μm 1.25 mil Ø33μm 1.3 mil Ø35μm 1.4 mil Ø38μm 1.5 mil Ø50μm 2.0 mil Resistivity μΩ•cm Au 4N Gold 1.30 0.49 0.73 0.47 0.33 0.29 0.27 0.24 0.20 0.12 2.3 Au 2N Gold 1.75 1.22 0.99 0.63 0.44 0.39 0.36 0.32 0.27 0.16 3.1 Cu CLR1-A 1.08 0.75 0.61 0.39 0.27 0.24 0.22 0.20 0.17 0.10 1.9 Cu CFB-1 1.08 0.75 0.61 0.39 0.27 0.24 0.22 0.20 0.17 0.10 1.9 Cu CA-1 1.24 0.86 0.70 0.45 0.31 0.27 0.26 0.23 0.19 0.11 2.2 Ag SEA 2.66 1.85 1.50 0.96 0.67 0.58 0.55 0.49 0.41 0.24 4.7 Ag SEB 1.87 1.30 1.05 0.67 0.47 0.41 0.39 0.34 0.29 0.17 3.3 Ag SEC 1.47 1.02 0.83 0.53 0.37 0.32 0.30 0.27 0.23 0.13 2.6 Al Al-1%Si TANW 1.75 1.22 0.99 0.56 0.44 0.39 0.36 0.32 0.27 0.16 3.1   Power Al Wire - Electrical Resistance Ω Ohms per 10mm Length Symbol Material Ø100μm 4mil Ø125μm 5mil Ø150μm 6mil Ø175μm 7mil Ø200μm 8mil Ø250μm 10mil Ø300μm 12mil Ø350μm 14mil Ø380μm 15mil Ø400μm 16mil Ø450μm 18mil Ø500μm 20mil Resistivity μΩ•cm Al TANW 0.0344 0.0220 0.0153 0.0112 0.0086 0.0055 0.0038 0.0028 0.0024 0.0021 0.0017 0.0014 2.7     Round Wire Gold Weight (Calculated using Density 19.32) Symbol Material Length Ø15μm 0.6 mil Ø18μm 0.7 mil Ø20μm 0.8 mil Ø25μm 1.0 mil Ø30μm 1.2 mil Ø32μm 1.25 mil Ø33μm 1.3 mil Ø35μm 1.4 mil Ø38μm 1.5 mil Ø50μm 2.0 mil Au 4N Gold 1m 3.431mg 4.916mg 6.070mg 9.484mg 13.656mg 15.538mg 16.524mg 18.588mg 21.911mg 37.935mg Au 4N Gold 100m 0.343g 0.492g 0.607g 0.948g 1.366g 1.554g 1.652g 1.859g 2.191g 3.793g Au 4N Gold 300m 1.029g 1.475g 1.821g 2.845g 4.097g 4.661g 4.957g 5.576g 6.573g 11.380g Au 4N Gold 500m 1.716g 2.458g 3.035g 4.742g 6.828g 7.769g 8.262g 9.294g 10.956g 18.967g Au 4N Gold 1000m 3.431g 4.916g 6.070g 9.484g 13.656g 15.538g 16.524g 18.588g 21.911g 37.935g Gold Weight Calculator. Cross Section=Circle, Material=Gold, Quantity=1. Enter "D" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.     Ribbon Gold Weight 0.5mil thick (Calculated using Density 19.32) Symbol Material Length 25μm 12.7μm 38μm 12.7μm 50μm 12.7μm 75μm 12.7μm 100μm 12.7μm 125μm 12.7μm 150μm 12.7μm 200μm 12.7μm Au 4N Gold 1m 6.0mg 9.2mg 12.1mg 18.1mg 24.2mg 30.2mg 36.2mg 48.3mg Au 4N Gold 10m 0.060g 0.092g 0.121g 0.181g 0.242g 0.302g 0.362g 0.483g Au 4N Gold 50m 0.300g 0.460g 0.605g 0.905g 1.210g 1.510g 1.810g 2.415g Gold Weight Calculator. Cross Section=Rectangle, Material=Gold, Quantity=1. Enter "T" and "W" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.     Ribbon Gold Weight 1.0mil thick (Calculated using Density 19.32) Symbol Material Length 50μm 25μm 75μm 25μm 100μm 25μm 125μm 25μm 150μm 25μm 200μm 25μm 250μm 25μm Au 4N Gold 1m 24.2mg 36.2mg 48.3mg 60.4mg 72.5mg 96.6mg 120.8mg Au 4N Gold 10m 0.242g 0.362g 0.483g 0.604g 0.725g 0.966g 1.208g Au 4N Gold 50m 1.210g 1.810g 2.415g 3.020g 3.625g 4.830g 6.040g Gold Weight Calculator. Cross Section=Rectangle, Material=Gold, Quantity=1. Enter "T" and "W" (mm or inch) and "L" (m or feet). Then push "Calculate" button to calculate net weight.     Physical Properties (General) Item Unit Gold Copper Aluminum Aluminum Silicon Silver Palladium Platinum Atomic Symbol   Au Cu Al Al-Si1% Ag Pd Pt Atomic Number   79 29 13 - 47 46 78 Atomic Weight   196.96655 63.546 26.981538 - 107.8682 106.42 195.078 Melting Point K 1336 1356 933 660 1234 1825 2042 Density (@20°C) g • cm-3 19.32 8.92 2.7 2.7 10.50 12.02 21.45 Resistivity (@20°C) μΩ • cm 2.300 1.694 2.7 3.1 1.630 10.80 10.58 Thermal Conductivity (@20°C) Wm-1 • K-1 315.5 397 238 238 425 75.2 73.4 Specific Heat (@20°C) JKg-1 • K-1 130 386 917 - 234 247 134.4 CTE (0~100°C) PPM/°C 14.1 17.0 23.5 25.0 19.1 11.0 9.0 Young's Modulus G•Pa 88.3 136 69 - 100.5 121 169.9 Shear Modulus G•Pa 29.6 - 26.0 - 31.3 - -     Physical Properties By Wire Type Item Unit Gold 4N-Au GFC Type Silver Alloy SEC Type Bare Copper 4N Cu CFB-1 Type Coated Copper 4N PCC CLR-1AT CHR Type Alumimum Al-Si1% TABN Type Test Method Hardness Free Air Ball Hardness of Wire Hv 30~50Hv 65~85Hv 45~65Hv 65~85Hv 55~75Hv 60~80Hv 60~80Hv 70~90Hv - Vickers Tester Density (@20°C) g / cm3 19.32 10.54 8.92 8.97 2.7 ASTM Thermal Conductivity (@20°C) W/m per K 315.5 281.5 385 385 238 Theoretical Value Linear CTE (@20°C) PPM/°K 14.1 19.0 17.0 17.0 25.0 Metals Data Book Elastic Modulus G•Pa 65~85 50~70 50~90 60~85 - Tensile Tester Resistivity (@20°C) μΩ • cm 2.3 2.6 1.9 19 3.1 Kelvin Method 4-terminal Melting Point °C 1063°C 980°C 1084°C 1084°C 660°C Theoretical Value     FUSING CURRENT By Wire Type Alloy Wire Type Type Wire Diameter Ø um 2.0mm 4.0mm 6.0mm 10mm 20mm Gold Au 4N GSA, M3, GLD, GFD, GLF GMH-2 , C, Y, FA Ø18 um 0.70 A 0.35 A 0.24 A 0.13A - Ø20 um 0.87 A 0.43 A 0.29 A 0.16 A - Ø25 um 1.36 A 0.68 A 0.45 A 0.25 A - Ø30 um 1.83 A 0.91 A 0.61 A 0.37 A - Ø38 um 3.00 A 1.50 A 1.00 A 0.60 A - Ø50 um 5.00 A 2.50 A 1.67 A 1.00 A - Ø75 um x.xx A x.xx A x.xx A x.xx A - 2N GBC, GPH, GPG-2 Ø18 um 0.62 A 0.31 A 0.21 A - - Ø20 um 0.77 A 0.38 A 0.26 A - - Ø25 um 1.20 A 0.60 A 0.40 A - - Copper Cu CLR1-AT, CFB-1 Ø18 um 0.81 A 0.41 A 0.27 A - - Ø20 um 1.00 A 0.50 A 0.24 A - - Ø25 um 1.57 A 0.78 A 0.52 A - - Ø30 um 2.7 A 1.3 A 0.9 A - - Ø32 um 3.0 A 1.5 A 1.0 A - - Ø35 um 3.6 A 1.8 A 1.2 A - - Ø50 um 7.4 A 3.7 A 2.5 A - - Alloy CA-1 Ø18 um 0.76 A 0.38 A 0.25 A - - Ø20 um 0.94 A 0.47 A 0.31 A - - Ø25 um 1.46 A 0.73 A 0.49 A - - Ø30 um 2.3 A 1.2 A 0.8 A - - Ø32 um 2.6 A 1.3 A 0.9 A - - Ø35 um 3.1 A 1.6 A 1.1 A - - Ø50 um 6.4 A 3.2 A 2.2 A - - Alloy CP-1 Ø100 um - - - 4 A - Ø300 um - - - 22 A - Ø350 um - - - 29 A - Ø380 um - - - 34 A - Ø400 um - - - 37 A - Ø450 um - - - 45 A - Ø500 um - - - 55 A - Silver Ag SEA Ag88% Ø20 um 0.48 A 0.24 A 0.16 A - - Ø25 um 0.75 A 0.37 A 0.25 A - - SEB Ag94% Ø20 um 0.67 A 0.34 A 0.22 A - - Ø25 um 1.05 A 0.53 A 0.35 A - - SEC Ag97% Ø20 um 0.84 A 0.42 A 0.28 A - - Ø25 um 1.32 A 0.66 A 0.44 A - - Aluminum Al-Si1% TABN Ø25 um 0.98 A 0.49 A 0.33 A - - Gold Au Ribbon 4N AuR 25 x 12.7 um 0.8 A - - 0.18 A - 38 x 12.7 um 1.2 A - - 0.27 A - 50 x 12.7 um 1.7 A - - 0.36 A - 75 x 12.7 um 2.5 A - - 0.54 A - 100 x 12.7 um 3.2 A - - 0.72 A - 125 x 12.7 um 4.0 A - - 0.90 A - 150 x 12.7 um 4.9 A - - 1.08 A - 4N AuR 75 x 25 um 4.8 A - - 1.08 A - 100 x 25 um 6.3 A - - 1.44 A - 125 x 25 um 7.9 A - - 1.80 A - 150 x 25 um 9.6 A - - 2.16 A - 200 x 25 um 12.9 A - - 2.88 A - 250 x 25 um 16.3 A - - 3.59 A - Aluminum Al Ribbon 4N TABR 750 x 100 um - - 24.0 A 16.4 A 10.6 A 1000 x 100 um - - 32.3 A 21.8 A 14.2 A 1500 x 100 um - - 48.5 A 32.7 A 21.2 A 1500 x 200 um - - 97.0 A 65.4 A 42.5 A 2000 x 200 um - - 129.4 A 87.3 A 56.7 A Aluminum Power Wire 4N TANW Ø100 um - - - - 2.9 A Ø200 um - - - - 7.0 A Ø300 um - - 22.8 A 16.0 A 12.9 A Ø400 um - - 40.6 A 25.8 A 19.7 A Ø500 um - - 63.5 A 40.4 A 28.9 A Alloy Wire Type Type Wire Diameter Ø um 2.0mm 4.0mm 6.0mm 10mm 20mm IMPORTANT: Fusing Current is theoretical data provided only for reference without guarantee of accuracy. Customers should perform their own empirical research with a specific Device Under Test (DUT). Actual results may change based on environmental factors such as molding compound, substrate material, type of bonding , HAST, etc.     OPERATING CURRENT (ENCAPSULATED IN MOLDED IC PACKAGE) By Wire Type Alloy Wire Type Type Wire Diameter Ø um 1.0mm 2.0mm 3.0mm Gold Au 4N Ø15 um 0.6mil 0.475 A 0.280 A 0.203 A Ø18 um 0.7mil 0.612 A 0.355 A 0.254 A Ø20 um 0.8mil 0.760 A 0.435 A 0.309 A Ø23 um 0.9mil 0.940 A 0.525 A 0.368 A Ø25 um 1.0mil 1.120 A 0.625 A 0.435 A Ø30 um 1.2mil 1.563 A 0.847 A 0.580 A Ø33 um 1.3mil 1.800 A 0.970 A 0.665 A Ø50 um 2.0mil 4.075 A 2.110 A 1.425 A Copper Cu PCC Ø15 um 0.6mil 0.460 A 0.355 A 0.255 A Ø18 um 0.7mil 0.787 A 0.450 A 0.322 A Ø20 um 0.8mil 1.000 A 0.550 A 0.394 A Ø23 um 0.9mil 1.225 A 0.677 A 0.470 A Ø25 um 1.0mil 1.475 A 0.810 A 0.560 A Ø30 um 1.2mil 2.065 A 1.100 A 0.760 A Ø33 um 1.3mil 2.410 A 1.275 A 0.870 A Ø50 um 2.0mil 5.450 A 2.800 A 1.890 A IMPORTANT: Operating Current data is provided only for reference without guarantee of accuracy. Estimated Data is for wire that is encapsulated in semiconductor-grade molding compound (EMC). Reference Article: Estimating Bond Wire Current-Carrying Capacity   HS Code - Harmonized System Tariff Item HS Code Wire Type 1 7108.13.7000 Gold (Round) All Types 2 7108.13.5500 Gold (Flat Ribbon) 3 7605.29.0000 Aluminum Al-1%Si (TABN) 4 7605.19.0000 Aluminum Large Diameter (TANW) 5 7605.19.0000 Aluminum Ribbon (TABR) 6 7104.19.5000 Copper 7 7108.29.1000 PCC Copper 8 7106.92.5000 Silver 9 7106.92.0000 Indium-Silver 10 7110.19.0000 Pt-Ir 11 7108.13.5000 Au80/Sn20 12 8112.99.9100 In100     Au Gold Wire Cross Reference Heraeus Series Tanaka Type Gold Purity Application Notes AR-49 AuR 4N Flat Ribbon AW-6 - 4N Soft Touch AW-7 - 4N Be Dopped AW-14 FA   •   M3 4N Smart Card AW-23 Y 4N Soft Touch AW-29 C 4N General Purpose AW-66 GMH 4N High Strength AW-99 GMH-2 4N High Strength FP-2 GPH 2N High Reliability HA3 GPG 2N High Reliability HA5 GLF   •   GFC 4N High Strength HA6 GLF   •   GFC 4N Fine Pitch HD2 Y 4N General Purpose HD3 GLD 4N Soft Touch HD5 GFC 4N Low Loop HD6 GFC 4N Wedge to Wedge RelMax GPG-3 2N High Reliability Cross-Reference is provided for information purposes only. Customers should perform their own qualification with samples. No warranty for accuracy or performance is implied or expressed.   Wire Part Number System     GSA       -       25         A         100             Type   Ø Diameter  µm Spool Type Length Meters Options Gold 4N (Au99.99%) GSA = (300xxx) Stable Stitch GBE = (301xxx) Bumping Wire GMH-2 = (302xxx) High Strength M3 = (303xxx) Standard Wire GFD = (306xxx) Fine Pitch GLF = (307xxx) Low Loop GLD-H = (309xxx) Wedge to Wedge Gold Flat Ribbon AuR = (316xxx/326xxx) 4N Au Ribbon AuR3 = (353xxx) Au Ribbon Be Doping AuC = (388xxx) Slit-Cut Wide Au Ribbon Gold 2N (Au99%) Alloy GPG-2 = (304xxx) High Reliability GPG = (335xxx) High Reliability GBC = (305xxx) Bumping Wire GPH = (308xxx) High Reliability Gold (Other) FA = (330xxx) Soft Touch Y = (331xxx) Soft Touch GMG = (332xxx) High Strength GMH = (333xxx) High Strength GFC = (334xxx) Fine Pitch GPG = (335xxx) 2N Au Alloy GSB = (336xxx) Stable Stitch GMB-2 = (337xxx) Smart Card GHA-2 = (338xxx) High Loop GL-2 = (339xxx) High Strength C = (340xxx) Legacy GPG-3 = (341xxx) Hi Rel AuW = (342xxx) Power 4N Au GLD = (349xxx) Wedge to Wedge Aluminum Al-Si1% TABN = (403xxx) Standard TABN-H = (409xxx) HARD TABW = (404xxx) Without Nickel Aluminum Power TANW = (405xxx) Al Power Semiconductors TANW-MID = (406xxx) Al Power Tools TANW-HARD = (407xxx) Al Power Batteries TAFF = Al Power (Under Development) TABR = (402xxx) Al Ribbon Silver Ag SEA = (501xxx) Silver Ag88% SEB = (502xxx) Silver Ag94% SEC = (503xxx) Silver Ag97% SED = (504xxx) LED Reflectivity AgW = (505xxx) Discontinued LC = (509xxx) Ag Clad Au Silver Ribbon AgC = (588xxx) Slit-Cut Palladium Pd Coated Copper CLR-1AT = (700xxx) 4N Cu/Pd/Au Bare Copper CA-1 = (701xxx) 2N Copper Alloy CFB-1 = (702xxx) 4N Standard Bare Cu CP-1 = (707xxx) 4N Cu High Power CPR-1 = (773xxx) Cu Ribbon (Discontinued) Additional Copper TPCW = 4N High Purity TCA1 = 4N Cu Fine Pitch TCB1 = 4N Cu Good Stitch Pt-Ir (Platinum-Iridium) Pt-Ir10 = 10% Iridium Pt-Ir20 = 20% Iridium Pt(4N) = Pt 99.99%   Code   Mil 12.0  0.47mil 12.5   0.5mil 15     0.6mil 17   0.67mil 18     0.7mil 20     0.8mil 23     0.9mil 25     1.0mil 28     1.1mil 30     1.2mil 32   1.25mil 33     1.3mil 35     1.4mil 38     1.5mil 43     1.7mil 50     2.0mil 60     2.4mil 62.5   2.5mil 65     2.5mil 70     2.7mil 75     3.0mil 80     3.2mil TANW Large Dia Wire µm     Mil 100µm   4mil 125µm   5mil 150µm   6mil 175µm   7mil 200µm   8mil 250µm   10mil 300µm   12mil 350µm   14mil 380µm   15mil 400µm   16mil 450µm   18mil 500µm   20mil 600µm   24mil Al Ribbon Wire 800x100 = 30 x 4.0mil 1000x100 = 40 x 4.0mil 1500x200 = 60 x 8.0mil 2000x200 = 80 x 8.0mil More Ribbon Sizes Au Ribbon Wire 38x12.7 = 1.5 x 0.5mil 50x12.7 = 2.0 x 0.5mil 75x12.7 = 3.0 x 0.5mil 100x12.7 = 4.0 x 0.5mil 125x12.7 = 5.0 x 0.5mil 150x12.7 = 6.0 x 0.5mil - - - - - - 50x25 = 2.0 x 1.0mil 75x25 = 3.0 x 1.0mil 100x25 = 4.0 x 1.0mil 125x25 = 5.0 x 1.0mil 150x25 = 6.0 x 1.0mil 200x25 = 8.0 x 1.0mil 250x25 = 10 x 1.0mil - - - - - - 125x50 = 5.0 x 2.0mil More Ribbon Sizes Aluminum Spool A = 2"x1" AL-2W Spool B = 2"x2" AL-4 Spool H = 1/2" x 3/4" 1/2-Inch Spool AL-1/2 Spool Aluminum Spool Conductive Nickel Core Grounded C = 2"x1" AL-2 WNI Spool N = 2"x2" AL-4 WNi Spool Cu Wire Polycarbonate Spool P = 3.5"x1.25" No.88 TABR=Al Ribbon CP-1 Copper K = 3.5"x1.25" No.88K TANW=Power Aluminum R = 4.7"x1.50" No.120 TABR=Al Ribbon CP-1=Copper T = 4.7"x1.50" No.120K TANW=Power Aluminum Meters   Feet 25       75ft 50       164ft 100     328ft 200      656ft 300    984ft 400    1312ft 500    1640ft 1000    3280ft 2500    8200ft 5000    16400ft Meters controlling dimension Go to: 1/2" Spools Blank = Standard Green=Start Red=End. A = Rev A B = Rev B etc     Wire Order Number       3         0         2         25         1     Alloy Shape Type Ø Diameter Length Code • Description 3 = Gold (Au) 4 = Aluminum (Al) 5 = Silver (Ag) 7 = Copper (Cu) Specialty Wire 2 = Platinum Code   Description 0 = Round Wire 3 = Round Wire 4 = Round Wire 1 = Flat Ribbon 2" Spool 2 = Flat Ribbon 1/2" Spool 5 = Flat Ribbon 2" Spool 6 = Flat Ribbon AgC 7 = Flat Ribbon (CPR-1) 8 = Flat Ribbon AuC Round Gold Wire (Au) 0 = GSA 1 = GBE 2 = GMH-2 3 = M3 4 = GPG-2 5 = GBC 6 = GFD 7 = GLF 8 = GPH 9 = GLD-H Round Gold Wire (Au) More 30 = FA 31 = Y 32 = GMG 33 = GMH 34 = GFC 35 = GPG 36 = GSB 37 = GMB-2 38 = GHA-2 39 = GL-2 40 = C 41 = GPG-3 42 = AuW 49 = GLD Flat Gold Wire (Au) 6 = AuR Rolled Gold 53 = AuR3 Be Doping 88 = AuC Slit-Cut Aluminum Wire (Al) 1 = TALF (Discontinued) 2 = TABR 3 = TABN 4 = TABW 5 = TANW-SOFT 6 = TANW-MID 7 = TANW-HARD 8 = TAFF Under Development 9 = TABN-HARD Silver Wire (Ag) 1 = SEA Ag88% 2 = SEB Ag94% 3 = SEC Ag97% 4 = SED LED Reflectivity 5 = AgW Ag Discontinued 6 = AgC Ribbon 9 = LC Ag Clad Au Copper Wire (Cu) 0 = CLR-1AT (4N Pd Coated Cu) 1 = CA-1 (2N Bare Cu Alloy) 2 = CFB-1 (4N Bare Cu) 3 = CPR-1 (Discontinued) 7 = CP-1 (4N Bare Power Cu) 30 = TCA1 (4N Bare Cu) 31 = TCB1 (4N Bare Cu) 32 = TPCW (4N Bare Cu) Platinum-Iridium (Pt-Ir) 201 = Pt-Ir10 202 = Pt-Ir20 204 = Pt(4N) µm     Mil 12     0.5mil 15     0.6mil 17   0.67mil 18     0.7mil 20     0.8mil 23     0.9mil 25     1.0mil 28     1.1mil 30     1.2mil 32   1.25mil 33     1.3mil 38     1.5mil 43     1.7mil 50     2.0mil 60     2.4mil 63     2.5mil 65     2.5mil 70     2.7mil 75     3.0mil 80     3.2mil TANW , CP-1 and Y Large Dia Wire Code     µm     Mil 00   100µm   4mil 01   125µm   5mil 02   150µm   6mil 03   175µm   7mil 04   200µm   8mil 05   250µm   10mil 06   300µm   12mil 07   350µm   14mil 08   380µm   15mil 09   400µm   16mil 10   450µm   18mil 11   500µm   20mil 12   600µm   24mil Al Ribbon Wire (mm) 46 = 0.5 x 0.1mm 48 = 0.8 x 0.1mm 49 = 1.0 x 0.1mm 64 = 1.0 x 0.15mm 65 = 1.5 x 0.15mm 66 = 2.0 x 0.15mm 83 = 1.25 x 0.2mm 84 = 1.0 x 0.2mm 85 = 1.5 x 0.2mm 86 = 2.0 x 0.2mm 95 = 1.5 x 0.25mm 96 = 2.0 x 0.25mm 98 = 1.5 x 0.30mm 99 = 2.0 x 0.30mm Au Ribbon Wire (um) 51 = 25 x 12.7um 38 = 38 x 12.7um 50 = 50 x 12.7um 52 = 75 x 12.7um 53 = 100 x 12.7um 54 = 125 x 12.7um 55 = 150 x 12.7um - - - - 10 = 50 x 25um 11 = 75 x 25um 12 = 100 x 25um 13 = 125 x 25um 14 = 150 x 25um 15 = 200 x 25um 16 = 250 x 25um 17 = 380 x 25um 18 = 500 x 25um 19 = 1000 x 25um - - - - 22 = 125 x 50um More Ribbon Sizes Ø 12~80um Wire Code Meters Feet 9 = 25m    (75ft) 0 = 50m  (164ft) 1 = 100m (328ft) 2 = 200m (660ft) 3 = 300m (1000ft) 4 = 400m (1300ft) 5 = 500m (1600ft) 6 = 1000m (3200ft) 7 = 2500m (8000ft) 8 = 5000m (16000ft) Ø 100~600um Wire Code Meters Feet 1 = 100m (328ft) 2 = 200m (660ft) 3 = 300m (1000ft) 4 = 400m (1300ft) 5 = 500m (1600ft) 6 = 600m (2000ft) 7 = 700m (2300ft) 8 = 800m (2600ft) 9 = 1000m (3300ft) Al/Cu Ribbon Code Meters Feet 0 = 50m  (164ft) 1 = 100m (328ft) 2 = 200m (660ft) 3 = 300m (1000ft) 4 = 400m (1300ft) 5 = 500m (1600ft) Au Ribbon Code Meters Feet 0 = 50m  (164ft) 1 = 16m (50ft) 2 = 20m (65ft) 3 = 30m (98ft) Meters Controlling Dimension Meters per Spool Go to: 1/2" Spools     Flat Ribbon Wire Size Chart AuR-Gold Ribbon   •   TABR-Aluminum Ribbon     6um Thick         12.7um Thick         25um Thick         50um Thick         75um Thick     0.25mil 0.00025-inch 0.5mil 0.0005-inch 1.0mil 0.001-inch 2.0mil 0.002-inch 3.0mil 0.003-inch Code • Width 00 = 25um (1.0mil) 01 = 38um (1.5mil) 02 = 50um (2.0mil) 03 = 75um (3.0mil) 04 = 100um (4.0mil) 05 = 125um (5.0mil) Code • Width 51 = 25um (2.0mil) 38 = 38um (1.5mil) 50 = 50um (2.0mil) 52 = 75um (3.0mil) 53 = 100um (4.0mil) 54 = 125um (5.0mil) 55 = 150um (6.0mil) 56 = 200um (8.0mil) 57 = 250um (10.0mil) 58 = 300um (12.0mil) Code • Width 10 = 50um (2.0mil) 11 = 75um (3.0mil) 12 = 100um (4.0mil) 13 = 125um (5.0mil) 14 = 150um (6.0mil) 15 = 200um (8.0mil) 16 = 250um (10.0mil) 17 = 380um (15.0mil) 18 = 500um (20.0mil) 19 = 1000um (40.0mil) 08 = 2500um (100.0mil) Code • Width 21 = 100um (4.0mil) 22 = 125um (5.0mil) 23 = 150um (6.0mil) 24 = 200um (8.0mil) 25 = 250um (10mil) 26 = 300um (12mil) 27 = 380um (15mil) 28 = 500um (20mil) 29 = 635um (30mil) 20 = 3000um (120mil) Code • Width 31 = 200 (8mil) 32 = 250 (10mil) 33 = 300 (12mil) 34 = 380 (15mil) 35 = 500 (20mil) 36 = 635 (25mil) 37 = 750 (30mil) 38 =4000 (160mil) 39 = 1000 (40mil)     100um Thick         400um Thick         150um Thick         200um Thick         250um Thick     4.0mil 0.004-inch 16.0mil 0.016-inch 6.0mil 0.006-inch 8.0mil 0.008-inch 10.0mil 0.010-inch Code • Width 43 = 250um (10mil) 44 = 300um (12mil) 45 = 380um (15mil) 46 = 500um (20mil) 47 = 635um (25mil) 48 = 750um (30mil) 49 = 1000um (40mil) 42 = 1500um (60mil) 41 = 2000um (80mil) 40 = 5000um (200mil) Code • Width 78 = 1500um (60mil) 79 = 2000um (80mil) Code • Width 61 = 500um (20mil) 62 = 635um (25mil) 63 = 750um (30mil) 64 = 1000um (40mil) 67 = 1250um (50mil) 65 = 1500um (60mil) 66 = 2000um (80mil) Code • Width 81 = 500um (20mil) 82 = 635um (25mil) 83 = 750um (30mil) 84 = 1000um (40mil) 87 = 1250um (50mil) 85 = 1500um (60mil) 86 = 2000um (80mil) Code • Width 95 = 1500um (60mil) 96 = 2000um (80mil) 300um Thick 98 = 1500um (60mil) 99 = 2000um (80mil)   Equivalent Number Round Al Power Wires in Flat Ribbon TABR Type Order Code Ribbon Size Width x Thick Ribbon Size Width x Thick Equivalent Number of Round Wires in Flat Ribbon Ø100μm 4.0 mil Ø125μm 5.0 mil Ø150μm 6.0 mil Ø180μm 7.0 mil Ø200μm 8.0 mil Ø250μm 10 mil Ø300μm 12 mil TABR-500x100 41246x 20mil 4mil 500μm 100μm 6.4 4.1 2.8 2.1 1.6 1.0 0.7 TABR-750x100 41248x 30mil 4mil 750μm 100μm 9.6 6.1 4.2 3.1 2.4 1.5 1.1 TABR-1000x100 41249x 40mil 4mil 1000μm 100μm 12.7 8.2 5.7 4.2 3.2 2.0 1.4 TABR-1000x150 41264x 40mil 6mil 1000μm 150μm 19.1 12.2 8.5 6.2 4.8 3.1 2.1 TABR-1000x200 41266x 40mil 8mil 1000μm 200μm 25.5 16.3 11.3 8.3 6.4 4.1 2.8 TABR-1500x100 41242x 60mil 4mil 1500μm 100μm 19.1 12.2 8.5 6.2 4.8 3.1 2.1 TABR-1500x150 41265x 60mil 6mil 1500μm 150μm 28.7 18.3 12.7 9.4 7.2 4.6 3.2 TABR-1500x200 41285x 60mil 8mil 1500μm 200μm 38.2 24.5 17.0 12.5 9.6 6.1 4.2 TABR-1500x250 41295x 60mil 10mil 1500μm 250μm 47.8 30.6 21.2 15.6 11.9 7.6 5.3 TABR-1500x300 41296x 60mil 12mil 1500μm 300μm 57.3 36.7 25.5 18.7 14.3 9.2 6.4 TABR-2000x200 41286x 80mil 8mil 2000μm 200μm 51.0 32.6 22.6 16.6 12.7 8.2 5.7 TABR-2000x250 41296x 80mil 10mil 2000μm 250μm 63.7 40.8 28.3 20.8 15.9 10.2 7.1 TABR-2000x300 41299x 80mil 12mil 2000μm 300μm 76.4 48.9 34.0 25.0 19.1 12.2 8.5 TABR-2000x400 41279x 80mil 16mil 2000μm 400μm 101.9 65.2 45.3 33.3 25.5 16.3 11.3 Note 1: Table shows a reduction in number of round wires by using a single flat ribbon wire. Note 2: Flat ribbon wire provides same or better electrical performance. Note 3: Flat ribbon wire is of particular benefit for power electronics and automotive applications, as well as PV solar photovoltaic and RF applications. Note 4: Formula: RibbonWidth * RibbonThick = 0.785 * Number Round Wires * DIA2       AWG Size Chart (Approximate Reference Only) AWG Gauge Mil Inch Micron μm Millimeter mm AWG 24 20 mil 0.020" 500um 0.50mm AWG 25 18 mil 0.018" 450um 0.45mm AWG 26 16 mil 0.016" 400um 0.40mm AWG 27 14 mil 0.014" 360um 0.36mm AWG 28 12.5 mil 0.0125" 320um 0.32mm AWG 30 10 mil 0.010" 250um 0.25mm AWG 32 8 mil 0.008" 200um 0.20mm AWG 34 6 mil 0.006" 150um 0.15mm AWG 36 5 mil 0.005" 125um 0.125mm AWG 38 4 mil 0.004" 100um 0.10mm AWG 40 3 mil 0.003" 80um 0.08mm AWG 41 2.8 mil 0.0028" 70um 0.07mm AWG 42 2.5 mil 0.0025" 60um 0.06mm AWG 44 2.0 mil 0.002" 50um 0.05mm AWG 46 1.6 mil 0.0016" 40um 0.04mm AWG 47 1.4 mil 0.0014" 35um 0.035mm AWG 48 1.25 mil 0.00125" 32um 0.032mm AWG 49 1.1 mil 0.0011" 28um 0.028mm AWG 50 1.0 mil 0.001" 25um 0.025mm AWG 51 0.88 mil 0.00088" 22um 0.022mm AWG 52 0.78 mil 0.00078" 20um 0.020mm AWG 53 0.70 mil 0.00070" 18um 0.018mm AWG 54 0.62 mil 0.00062" 16um 0.016mm AWG 55 0.55 mil 0.00055" 14um 0.014mm AWG 56 0.49 mil 0.00049" 12.5um 0.0125mm Note 1: Sizes listed in table are rounded (up or down) for simplicity and are not guaranteed for accuracy. Note 2: Refer to ASTM standard B258 for accurate dimensions. Note 3: AWG is the American Wire Gauge developed in 1857, predominantly for use in North America for electrically conducting wire. Note 3: Tanaka wire is made to the metric standard.                  Download Solidworks® e-Drawing viewer to enjoy 360° rotatable Types:  Download   TopLine Corporation 95 Highway 22 W Milledgeville, GA 31061, USA Toll Free USA/Canada (800) 776-9888 International: 1-478-451-5000 Email: sales@topline.tv ©2024 TopLine. All Rights Reserved. Home
