Welcome to TopLine's DIP Components page.  If you would like to download our dummy components catalog in PDF format, click here.


Lead Free DIP
Dual Inline


Number Leads Body Width Tube Qty Outline Drawing Daisy Chain

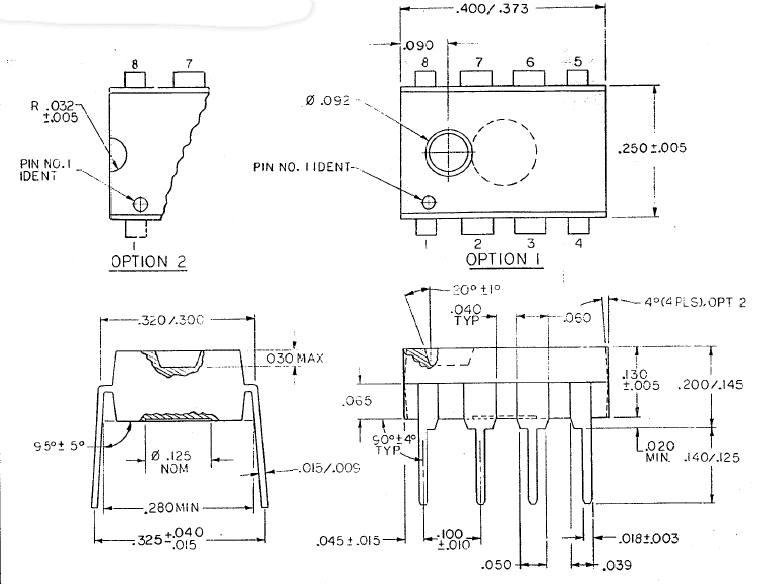

8 300 mil 50 DIP8M3-TIN DIP8M3-TIN-DE

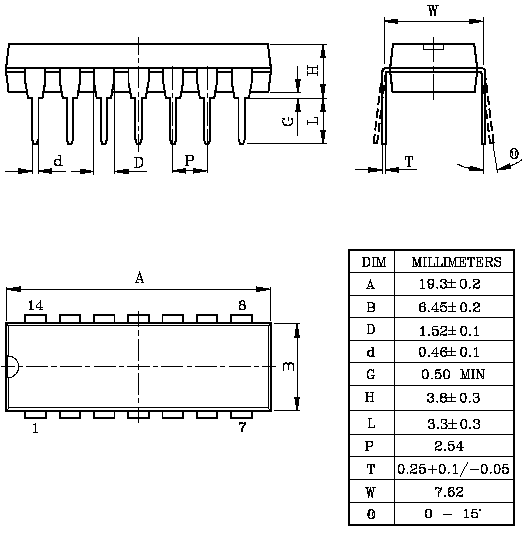

14 300 mil 25 DIP14M3-TIN DIP14M3-TIN-DE

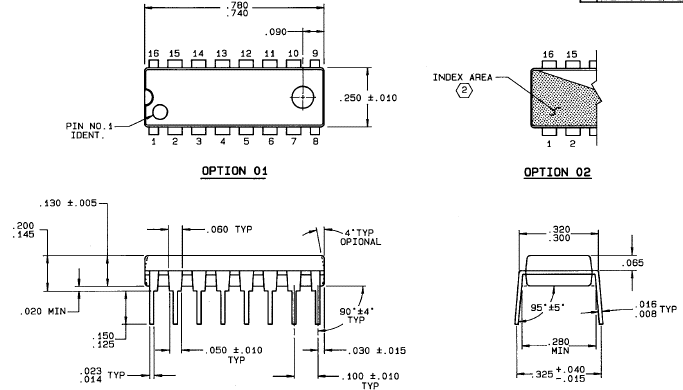

16 300 mil 25 DIP16M3-TIN DIP16M3-TIN-DE
18 300 mil 21 DIP18M3-TIN DIP18M3-TIN-DE
20 300 mil 18 DIP20M3-TIN DIP20M3-TIN-DE
24 300 mil 15 DIP24M3-TIN DIP24M3-TIN-DE
28 300 mil 28 DIP28M3-TIN DIP28M3-TIN-DE

24 600 mil 15 DIP24M6-TIN DIP24M6-TIN-DE
28 600 mil 13 DIP28M6-TIN DIP28M6-TIN-DE

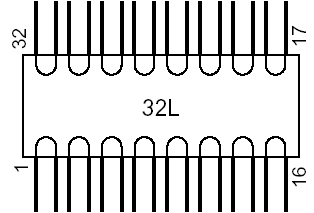

32 600 mil 11 DIP32M6-TIN DIP32M6-TIN-DE

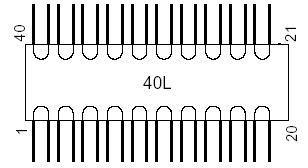

40 600 mil 10 DIP40M6-TIN DIP40M6-TIN-DE

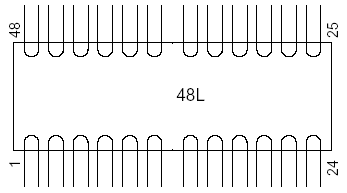

48 600 mil 7 DIP48M6-TIN DIP48M6-TIN-DE

For Daisy Chain add -DE to end of Part Number.
For Lead Free Add -TIN=Sn100, -F=Ni-Pd to Part Number
