Hybrid Package
HP Series

Hybrid Butterfly metal case Flat Pack for hermetically sealed assemblies. Variety of lead counts 8L to 80L. Pitch 50mils and 100mils. Glass to metal seal pins

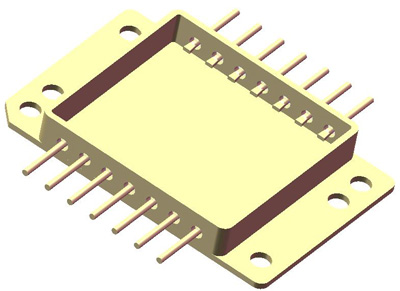

Example of 14L Butterfly Hybrid package


Number Leads Body Size (in.) Pitch Pin Style Order Number 360°
Solidworks
Rotatable Model

14 1.25" x 1.375" 0.160-inch Glass Seal HP14F1.25x1.327M-N 3D Model
  1.245" x 1.322" Kovar
Ni/Au Plated
Step Lid
Seam Seal
SL1.245x1.322G 3D Model

Optional Features:
Add suffix to end of part number
Open Cavity (Without Lid): -N


Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version
