Lead Free LQFP
1.4mm Thick
30 Page Complete LQFP
Drawings Library
PDF Format (700Kb)
LQFP (1.4mm Thick)
Go To-->
QFP
TQFP
Daisy Chain
Leads
Body Size
2.0mm Footprint Adder
Lead Pitch
Tray Qty
Part Number
Click for Drawing
PDF
Drawing
32
5 x 5mm
0.5mm (19.7mil)
360
LQFP32T19.7-TIN
PDF
32
7 x 7mm
0.8mm (31.5mil)
250
LQFP32T30-TIN
PDF
44
10 x 10mm
0.8mm (31.5mil)
160
LQFP44T30-TIN
PDF

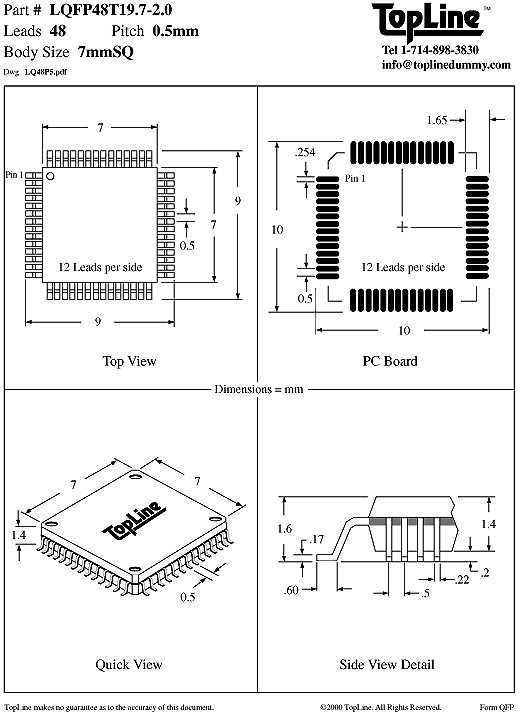

48
7 x 7mm
0.5mm (19.7mil)
250
LQFP48T19.7-TIN
PDF
52
10 x 10mm
0.65mm (25.6mil)
96
LQFP52T25-TIN
PDF
64
7 x 7mm
0.4mm (15.7mil)
250
LQFP64T15.7-TIN
PDF
64
10 x 10mm
0.5mm (19.7mil)
160
LQFP64T19.7-TIN
PDF
64
14 x 14mm
0.8mm (31.5mil)
90
LQFP64T30-TIN
PDF
80
10 x 10mm
0.4mm (15.7mil)
90
LQFP80T15.7-C
PDF
80
12 x 12mm
0.5mm (19.7mil)
119
LQFP80T19.7-TIN
PDF
80
14 x 14mm
0.65mm (25.6mil)
90
LQFP80T25-TIN
PDF
100
14 x 14mm
0.5mm (19.7mil)
90
LQFP100T19.7-TIN
PDF

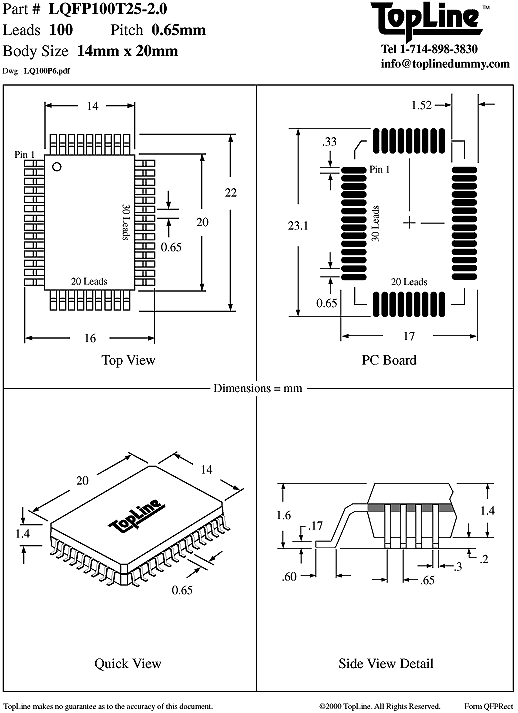

100
14 x 20mm
0.65mm (25.6mil)
72
LQFP100T25-TIN
PDF
120
14 x 14mm
0.4mm (15.7mil)
90
LQFP120T15.7-TIN
PDF
128
14 x 14mm
0.4mm (15.7mil)
90
LQFP128T15.7-TIN
PDF
128
14 x 20mm
0.5mm (19.7mil)
72
LQFP128T19.7-TIN
PDF
144
20 x 20mm
0.5mm (19.7mil)
60
LQFP144T19.7-TIN
PDF
160
24 x 24mm
0.5mm (19.7mil)
40
LQFP160T19.7-TIN
PDF

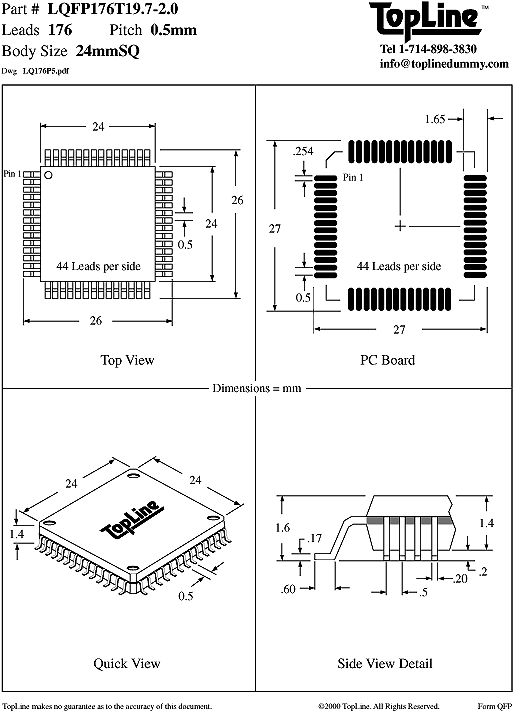

176
20 x 20mm
0.4mm (15.7mil)
60
LQFP176T15.7-TIN
PDF
176
24 x 24mm
0.5mm (19.7mil)
40
LQFP176T19.7-TIN
PDF
208
28 x 28mm
0.5mm (19.7mil)
36
LQFP208T19.7-TIN
PDF

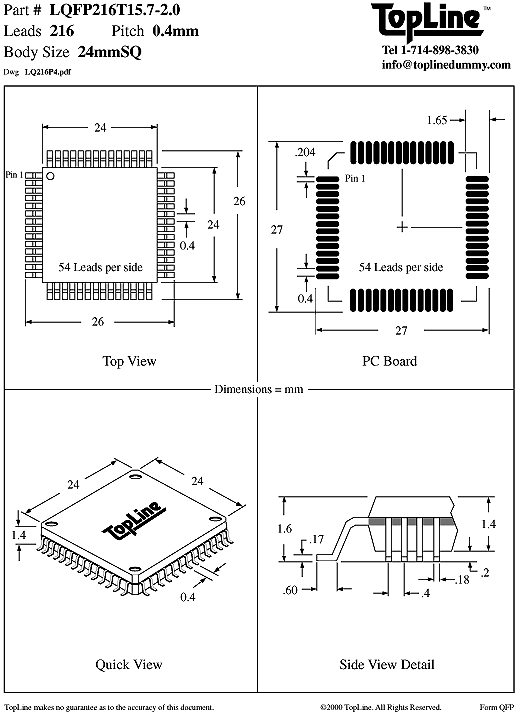

216
24 x 24mm
0.4mm (15.7mil)
40
LQFP216T15.7-TIN
PDF
256
28 x 28mm
0.4mm (15.7mil)
36
LQFP256T15.7-TIN
PDF
Lead Free Suffix: T=Sn100 Standard Matte Tin, Special Order: B=Sn97/Bi3.0
