TQFP Dummy 1.0mm thick Quad Flat Pack Lead Free (Pb-Free) RoHS with daisy chain for process evaluation. - - - SOT376 , SOT357 , SOT375 , SOT386 , SOT547 , SOT545 , SOT513 - - - TQFP32, TQFP44, TQFP48, TQFP52, TQFP64, TQFP80, TQFP100, TQFP120, TQFP128, TQFP144, TQFP160, TQFP176, TQFP208, TQFP216, TQFP256 eTQFP - - - - - TQFP 32, TQFP 44, TQFP 48, TQFP 52, TQFP 64, TQFP 80, TQFP 100, TQFP 120, TQFP 128, TQFP 144, TQFP 160, TQFP 176, TQFP 208, TQFP 216, TQFP 256 - - - - - TQFP-32, TQFP-44, TQFP-48, TQFP-52, TQFP-64, TQFP-80, TQFP-100, TQFP-120, TQFP-128, TQFP-144, TQFP-160, TQFP-176, TQFP-208, TQFP-216, TQFP-256 - - - - - 32TQFP , 44TQFP , 48TQFP , 52TQFP , 64TQFP , 80TQFP , 100TQFP, 120TQFP , 128TQFP , 144TQFP , 160TQFP , 176TQFP , 208TQFP , 216TQFP , 256TQFP - - - - - 32 TQFP , 44 TQFP , 48 TQFP , 52 TQFP , 64 TQFP , 80 TQFP , 100 TQFP, 120 TQFP , 128 TQFP , 144 TQFP , 160 TQFP , 176 TQFP , 208 TQFP , 216 TQFP , 256 TQFP - - - - - 32-TQFP , 44-TQFP , 48-TQFP , 52-TQFP , 64-TQFP , 80-TQFP , 100-TQFP, 120-TQFP , 128-TQFP , 144-TQFP , 160-TQFP , 176-TQFP , 208-TQFP , 216-TQFP , 256-TQFP - - - - - 32P TQFP , 44P TQFP , 48P TQFP , 52P TQFP , 64P TQFP , 80P TQFP , 100P TQFP, 120P TQFP , 12P TQFP , 144P TQFP , 160P TQFP , 176P TQFP , 208P TQFP , 216P TQFP , 256P TQFP TQFP100E13A-T-32 , TQFP100E19.7-T-32 , TQFP100E19.7T-32MM , TQFP100T19.7B , TQFP100T19.7B-DE-D , TQFP100T19.7-DE-D , TQFP100T19.7T , TQFP100T19.7T-DE-D , TQFP100T19.7T-ISO . . . . TQFP100T25-TIN , TQFP100T25T-DE-D , TQFP100E13A25-TIN . . . . TQFP120E13A15.7-TIN , TQFP120T15.7B-DE-D , TQFP120T15.7-TIN , TQFP120T15.7T-DE-D . . . TQFP128T15.7B-DE-D , TQFP128T15.7-TIN , TQFP128T15.7T-DE-D . . . TQFP128T19.7B-DE-D , TQFP128T19.7-TIN , TQFP128T19.7T-DE-D , TQFP128E13A19.7-TIN . . . TQFP144T19.7B-DE-D , TQFP144T19.7-TIN , TQFP144T19.7T-DE-D , TQFP144E19.7B-DE-D . . . TQFP160T19.7-TIN , TQFP160T19.7T-DE-D . . . . TQFP176T15.7B-DE-D , TQFP176T15.7-TIN , TQFP176T15.7T-DE-D , TQFP176T15.7-T-ISO . . . . TQFP176T19.7B-DE-D , TQFP176T19.7DE-D , TQFP176T19.7-TIN , TQFP176T19.7T-DE-D . . . TQFP208E13A19.7 , TQFP208T19.7-2.0 , TQFP208T19.7-DE-D , TQFP208T19.7-ISO , TQFP208T19.7-TIN , TQFP208T19.7T-DE-D , TQFP208T19.7-T-ISO . . . . TQFP216T15.7-TIN , TQFP216T15.7T-DE-D . . . .TQFP256E13A-T-DE-D , TQFP256E15.7T-DE-D , TQFP256T15.7-TIN , TQFP256T15.7T-DE-D , TQFP256T19.7T-DE-D . . . TQFP44T30-TIN , TQFP44T30T-DE-D . . . . TQFP48E13A19.7-TIN , TQFP48T19.7-TIN , TQFP48T19.7T-DE-D , TQFP48T19.7T-ISO . . . . TQFP52T25-TIN , TQFP52T25T-DE-D . . . . TQFP64T15.7-TIN , TQFP64T15.7T-DE-D . . . TQFP64T19.7B-DE-D , TQFP64T19.7-DE-D ,TQFP64T19.7-TIN , TQFP64T19.7T-DE-D . . . TQFP64T30-TIN , TQFP64T30T-DE-D . . . TQFP80T19.7-TIN , TQFP80T19.7T-DE-D . . . . TQFP80T25-TIN, TQFP80T25T-DE-D . . . . VQG44, VQF 44, VQG-44, VQ44, VQG64, VQF 64, VQG-64, VQ64, VQG100, VQF 100, VQG-100, VQ100 - -

Lead Free TQFP
1.0mm Thick

22 Page Complete TQFP Drawings Library PDF Format (500Kb)

TQFP (1.0mm Thick)

Go To--> QFP LQFP Daisy Chain

Leads	Body Size 2.0mm Footprint Adder	Lead Pitch	Tray Qty	Part Number Click for Drawing	PDF Drawing
32	5 x 5mm	0.5mm (19.7mil)	360	TQFP32T19.7-T	PDF
32	7 x 7mm	0.8mm (31.5mil)	250	TQFP32T30-T	PDF
44	10 x 10mm	0.8mm (31.5mil)	160	TQFP44T30-T	PDF
48	7 x 7mm	0.5mm (19.7mil)	250	TQFP48T19.7-T	PDF
52	10 x 10mm	0.65mm (25.6mil)	160	TQFP52T25-T	PDF
64	7 x 7mm	0.4mm (15.7mil)	250	TQFP64T15.7-T	PDF
64	10 x 10mm	0.5mm (19.7mil)	160	TQFP64T19.7-T	PDF

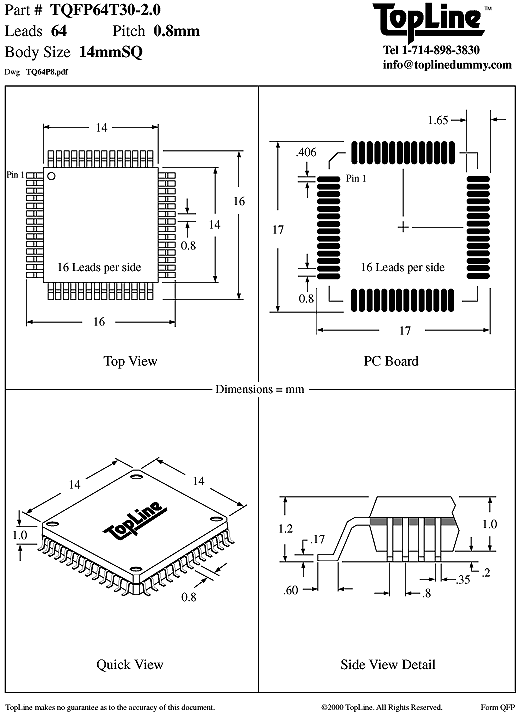

64	14 x 14mm	0.8mm (31.5mil)	90	TQFP64T30-T	PDF

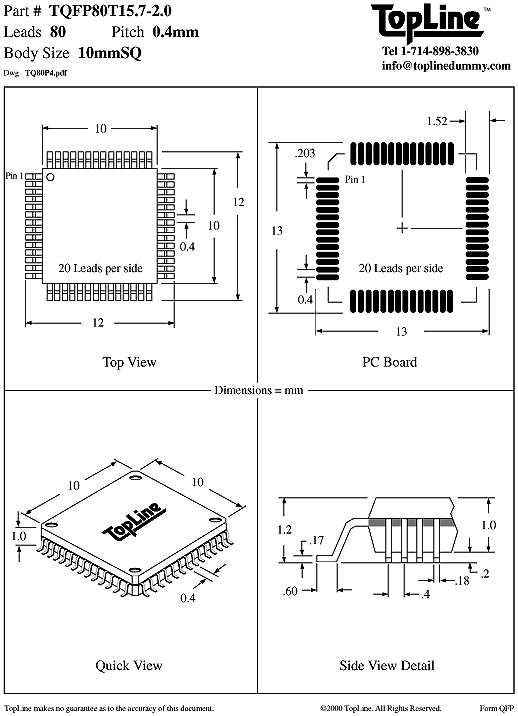

80	10 x 10mm	0.4mm (15.7mil)	160	TQFP80T15.7-T	PDF
80	12 x 12mm	0.5mm (19.7mil)	119	TQFP80T19.7-T	PDF
80	14 x 14mm	0.65mm (25.6mil)	90	TQFP80T25-T	PDF
100	14 x 14mm	0.5mm (19.7mil)	90	TQFP100T19.7-T	PDF

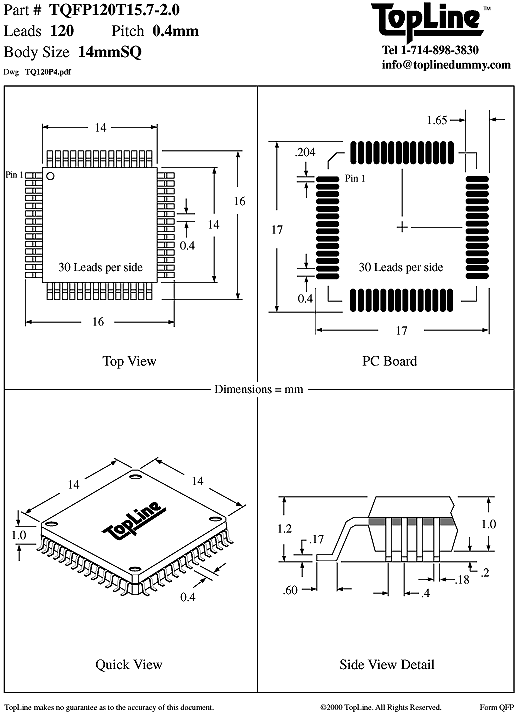

120	14 x 14mm	0.4mm (15.7mil)	90	TQFP120T15.7-T	PDF
128	14 x 14mm	0.4mm (15.7mil)	90	TQFP128T15.7-T	PDF
144	20 x 20mm	0.5mm (19.7mil)	60	TQFP144T19.7-T	PDF
Lead Free Suffix: T=Sn100 Matte Tin (Standard), B=Sn97/Bi3.0 (Special) Daisy Chain
