Lead Free QFP

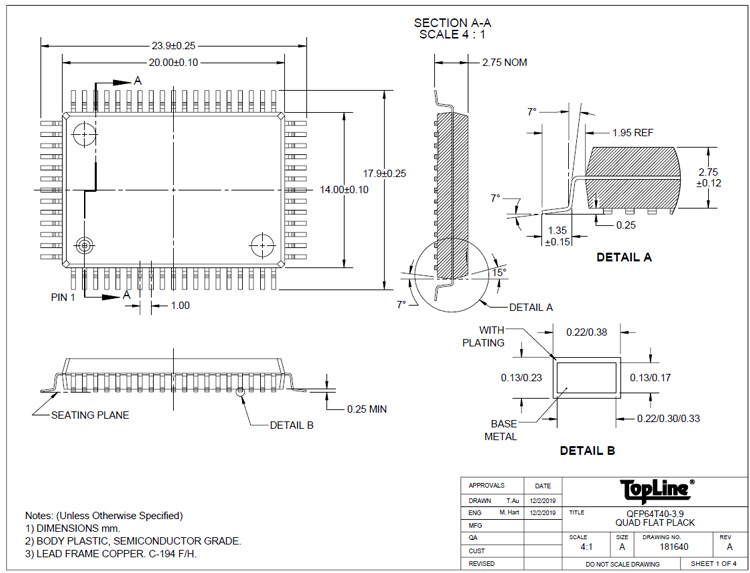

64 Page Complete QFP
Drawings Library
PDF Format (1.5Mb)
QFP Quad Flat Pack
Go to-->
LQFP
TQFP
Daisy Chain
Leads
Foot Print
Adder
Body Size
Lead Pitch
Tray
Qty
Part Number
Click for Drawing
PDF
Drawing
44
3.2mm
10 x 10mm
0.8mm (31.5mil)
96/160
QFP44T30-3.2-TIN
PDF
44
3.2mm
14 x 14mm
1.0mm (40mil)
84
QFP44T40-3.2-TIN
PDF
52
3.2mm
10 x 10mm
0.65mm (25.6mil)
96/160
QFP52T25-3.2-TIN
PDF
52
3.2mm
14 x 14mm
1.0mm (40mil)
84
QFP52T40-3.2-TIN
PDF
64
3.2mm
10 x 10mm
0.5mm (19.7mil)
96
QFP64T19.7-3.2-TIN
PDF
64
3.2mm
14mm x 2.0H
0.8mm (31.5mil)
84
QFP64T30-3.2-TIN
PDF
64
3.2mm
14 x 20mm
1.0mm (40mil)
60~66
QFP64T40-3.2-TIN
PDF
64
3.9mm
14 x 20mm
1.0mm (40mil)
66
QFP64T40-3.9-TIN
PDF
80
3.2mm
14mm x 2.0H
0.65mm (25.6mil)
84
QFP80T25-3.2-TIN
PDF
80
3.2mm
14 x 20mm
0.8mm (31.5mil)
66
QFP80T30-3.2-TIN
PDF
80
3.9mm
14 x 20mm
0.8mm (31.5mil)
66
QFP80T30-3.9-TIN
PDF
100
3.2mm
14 x 20mm
0.65mm (25.6mil)
66
QFP100T25-3.2-TIN
PDF
100
3.9mm
14 x 20mm
0.65mm (25.6mil)
66
QFP100T25-3.9-TIN
PDF
120
3.2mm
28 x 28mm
0.8mm (31.5mil)
24
QFP120T30-3.2-TIN
PDF
128
3.2mm
14 x 20mm
0.5mm (19.7mil)
66
QFP128T19.7-3.2-TIN
PDF
128
3.2mm
28 x 28mm
0.8mm (31.5mil)
24
QFP128T30-3.2-TIN
PDF
144
2.6mm
28 x 28mm
0.65mm (25.6mil)
24
QFP144T25-2.6-TIN
PDF
144
3.2mm
28 x 28mm
0.65mm (25.6mil)
24
QFP144T25-3.2-TIN
PDF
160
2.6mm
28 x 28mm
0.65mm (25.6mil)
24
QFP160T25-2.6-TIN
PDF
160
3.2mm
28 x 28mm
0.65mm (25.6mil)
24
QFP160T25-3.2-TIN
PDF
208
2.6mm
28 x 28mm
0.5mm (19.7mil)
24
QFP208T19.7-2.6-TIN
PDF
240
2.6mm
32 x 32mm
0.5mm (19.7mil)
24
QFP240T19.7-2.6-TIN
PDF
256
2.6mm
28 x 28mm
0.4mm (15.7mil)
24
QFP256T15.7-2.6-TIN
PDF
304
2.6mm
40 x 40mm
0.4mm (15.7mil)
12
QFP304T19.7-2.6-TIN
PDF
Daisy Chain
. Lead Free Suffix: TIN=Sn100, B=Sn97/Bi3.0, C=Sn98/Cu2.0
