Lead Free SOJ

Go to --> SOIC  SSOP  TSSOP  MSOP  QSOP  HSOP  More Products  Daisy Chain

16 page SOJ Drawings Library in PDF format.


SOIC - J Lead  50 mils (1.27mm) Pitch

Lead Body Width Order Number
Reel
Order Number
Tube
Outline Drawing Daisy Chain
20 300 mils
(7.5mm)
SOLJ20E13A-TIN SOLJ20M-TIN Drawing Daisy Chain
24 300 mils
(7.5mm)
SOLJ24E13A-TIN SOLJ24M-TIN Drawing Daisy Chain
28 300 mils
(7.5mm)
SOLJ28E13A-TIN SOLJ28M-TIN Drawing Daisy Chain
28 400 mils
(10mm)
SOXJ28E13A-TIN SOXJ28M-TIN Drawing Daisy Chain
32 300 mils
(7.5mm)
SOLJ32E13A-TIN SOLJ32M-TIN Drawing Daisy Chain
32 400 mils
(10mm)
SOXJ32E13A-TIN SOXJ32M-TIN Drawing Daisy Chain
Lead Free: -TIN = Sn100
For Daisy Chain, add -DE to end of Part Number.
For Isolated circuit without internal connections, add -ISO to end of Part Number.
Check for Availablity. Not all pin counts available.

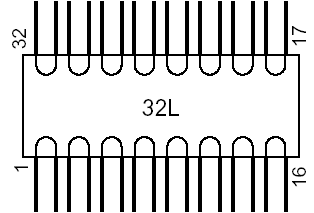

Quick View Daisy Chain
