SOIC - SOP
Small Outline Package

Go to --> SOJ  SSOP  TSSOP  MSOP  QSOP  HSOP  More Products  Daisy Chain

28 page SOIC Drawings Library in PDF format.

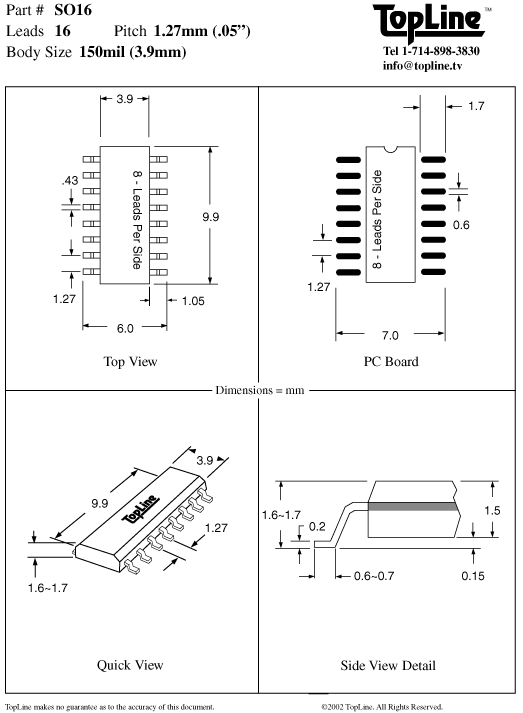

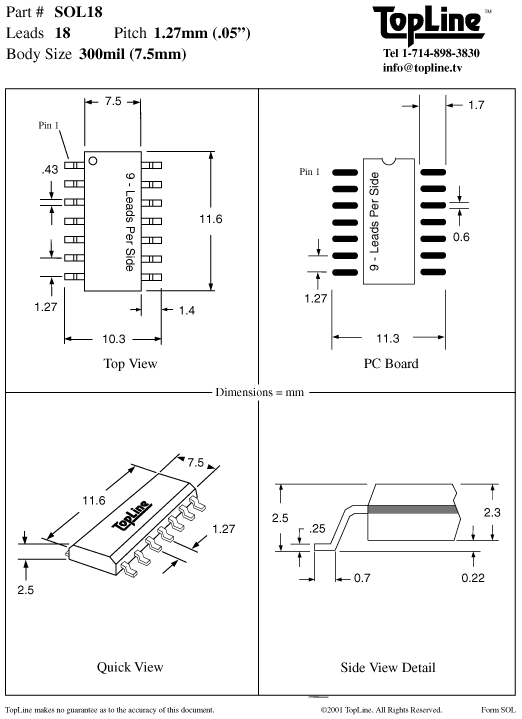

SOIC - Gull Wing  50 mils (1.27mm) Pitch

Lead Body Width Order Number
Reel		 Order Number
Tube		 Drawing Daisy Chain

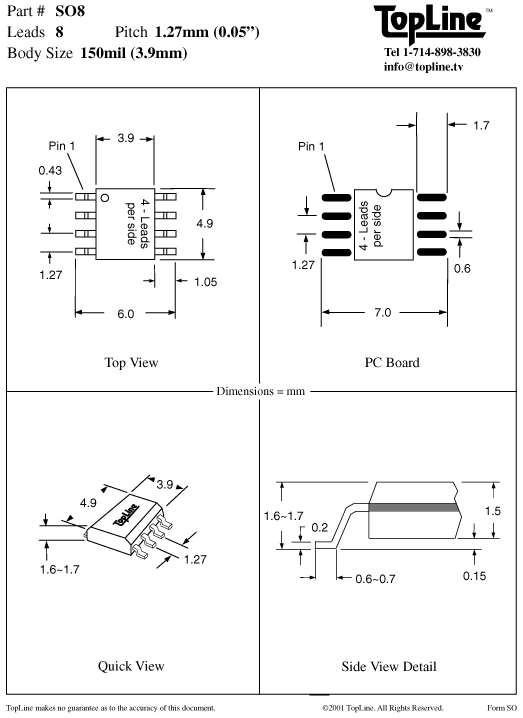

8 150 mils (3.9mm) SO8E13A-TIN SO8M-TIN Drawing SO8M-T-DE
8 208 mils (5.3mm) SOP8E13A-TIN SOP8M-TIN Drawing -

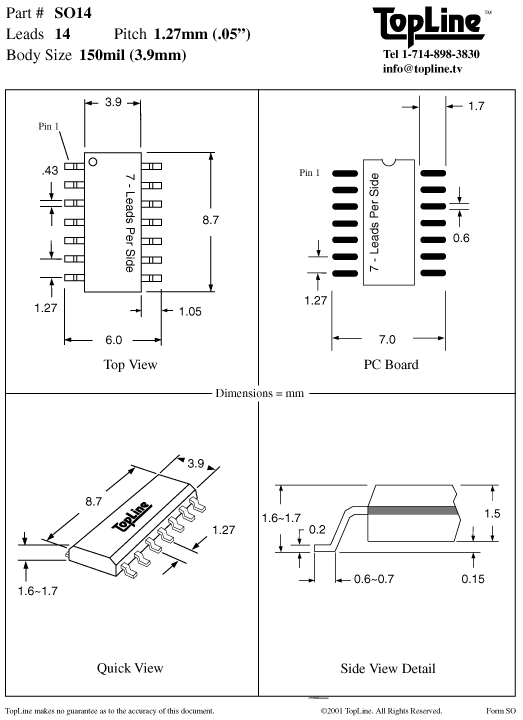

14 150 mils (3.9mm) SO14E13A-TIN SO14M-TIN Drawing SO14M-T-DE
16 150 mils (3.9mm) SO16E13A-TIN SO16M-TIN Drawing SO16M-T-DE
16 208 mils (5.3mm) SOP16E13A-TIN SOP16M-TIN Drawing SOP16M-T-DE

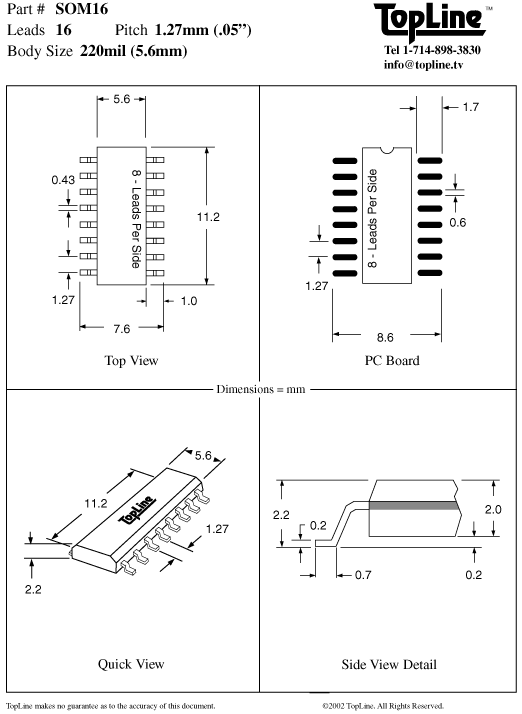

16 220 mils (5.6mm) SOM16E13A-TIN SOM16M-TIN Drawing SOM16M-T-DE

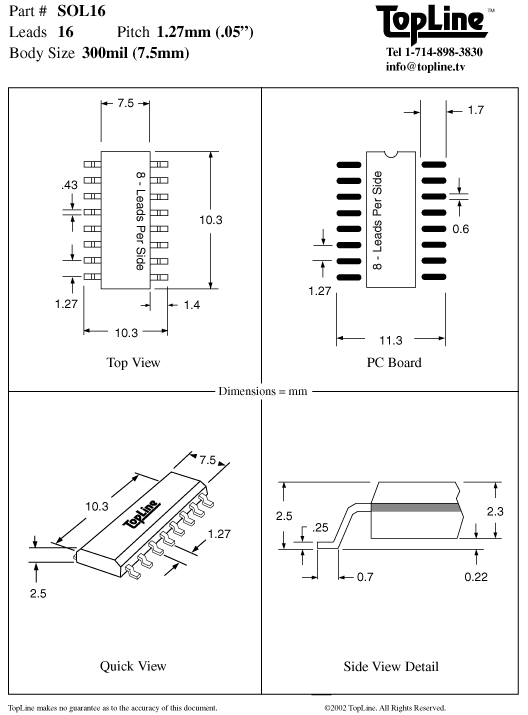

16 300 mils (7.5mm) SOL16E13A-TIN SOL16M-TIN Drawing SOL16M-T-DE
20 300 mils (7.5mm) SOL20E13A-TIN SOL20M-TIN Drawing SOL20M-T-DE
24 300 mils (7.5mm) SOL24E13A-TIN SOL24M-TIN Drawing SOL24M-T-DE
28 300 mils (7.5mm) SOL28E13A-TIN SOL28M-TIN Drawing SOL28M-T-DE

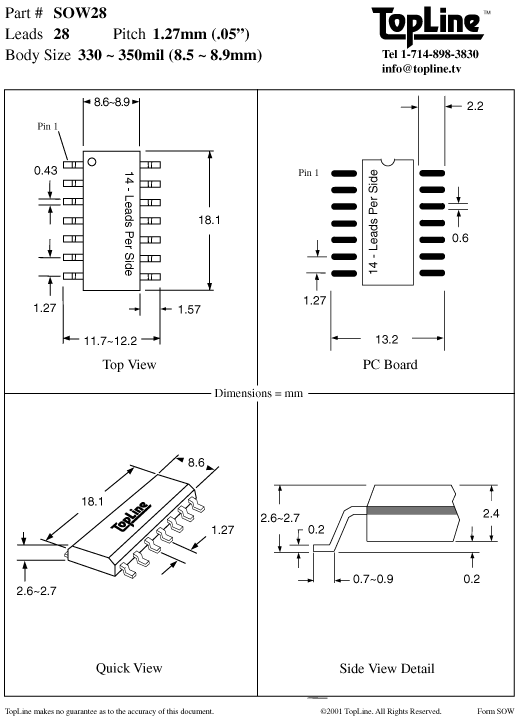

28 330~350 mils
(8.4~8.9mm)		 SOW28E13A-TIN SOW28M-TIN Drawing SOW28M-T-DE
32 300 mils (7.6mm) SOL32E13A-TIN SOL32M-TIN Drawing SOL32M-T-DE


For Lead Free, add -TIN or -T to part number.
For Daisy Chain, add -DE to end of Part Number.
For Dummy Die, add -D to end of part number
Example: SO16M-T-DE-D

For Isolated circuit without internal connections, add -ISO to end of Part Number.
Example: SO16M-T-ISO


Daisy Chain Pattern

All Daisy Chain (pdf)


Go To-->Lead Free SOIC
