JEDEC -Transistors |
SOT23/SOT323
SOT25/SOT353
SOT26/SOT363
SOT343
SOT89
SOT223
SOT523
|
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain Zero Ohm Jumper Option |
SOT23 |
TO-236AB |
3000 |
8mm |
SOT23E7A-TIN |
Daisy Chain Jumper |
SOT25 |
SOT23-5 and SC74A |
3000 |
8mm |
SOT25E7A-TIN |
Daisy Chain |
SOT26 |
SOT23-6 and SC74 |
3000 |
8mm |
SOT26E7A-TIN |
Daisy Chain |
SOT89 |
SC62 and TO-243AA |
1000 |
12mm |
SOT89E7A-TIN |
Daisy Chain |
SOT143 |
TO-253AA |
3000 |
8mm |
SOT143E7A-TIN |
Daisy Chain |
SOT223 |
SC73 and TO-261AA |
2500 |
16mm |
SOT223E13A-TIN |
Daisy Chain |
SOT323 |
SC70 |
3000 |
8mm |
SOT323E7A-TIN |
Daisy Chain |
SOT343 |
SC82 |
3000 |
8mm |
SOT343E7A-TIN |
Daisy Chain |
SOT353 |
SC70-5 and SC88A |
3000 |
8mm |
SOT353E7A-TIN |
Daisy Chain |
SOT363 |
SC70-6 and SC88 |
3000 |
8mm |
SOT363E7A-TIN |
Daisy Chain |
SOT523 |
- |
3000 |
8mm |
SOT523E7A-TIN |
- |
For Daisy Chain, add the -DC code to the end of part number. |
|
Japanese Size |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain Zero Ohm Jumper Option |
SC70 |
SOT323 |
3000 |
8mm |
SC70E7A-TIN |
Daisy Chain |
SC90 |
Micro-SOT |
3000 |
8mm |
SC90E7A-TIN |
- |
VT3 |
Ultra Minature |
8000 |
8mm Wide
2mm Pitch |
VT3E7A-TIN |
- |
For Daisy Chain, add the -DC code to the end of part number. |
|
Power Device |
|
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain Zero Ohm Jumper Option |
DPAK |
TO-252AA |
2500 |
16mm |
DPAK-E13A-TIN |
Daisy Chain |
D2PAK |
TO-263AB |
1000 |
24mm |
D2PAK-E13A-TIN |
Daisy Chain |
D2PAK 5-LD |
TO-263XX |
1000 |
24mm |
D2PAK5-E13A-TIN |
Daisy Chain |
For Daisy Chain, add the -DC code to the end of part number. |
|
MELF Cylindrical Diode |
Glass Plastic |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain Zero Ohm Jumper Option |
SM1-PLASTIC |
MELF 2.5 x 5.0mm |
5000 |
12mm |
SM1E13A-PLASTIC-TIN |
- |
LL41-Glass |
MELF DO-213AB, LL35, LL41 2.5 x 5.0mm |
5000 |
12mm |
SM1E13A-GLASS-TIN |
|
SOD80 |
mini-MELF DO-213AA, LL34 1.6 x 3.5mm |
2500 |
8mm |
SOD80E7A-TIN |
|
For Daisy Chain, add -DC to end of part number. |
|
|
Rectangular Case- Gull Wing Leads - Diode |
Gull-Wing Leads Flat Leads |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
SOD123 |
2.7 x 1.5mm Gull Wing |
3000 |
8mm |
SOD123E7A-TIN |
- |
SOD123F |
2.7 x 1.5mm Flat Leads |
3000 |
8mm |
SOD123F-E7A-TIN |
|
SOD323 |
SC76 1.7 x 1.25mm Gull Wing |
3000 |
8mm |
SOD323E7A-TIN |
- |
SOD323F |
1.7 x 1.25mm Flat Wing |
3000 |
8mm |
SOD323F-E7A-TIN |
|
SOD523F |
SOD523 1.6 x 0.8mm Flat Leads |
3000 |
8mm |
SOD523E7A-TIN |
- |

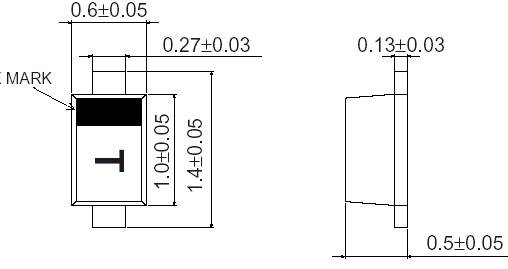

SOD723F |
SOD723 1.0 x 0.6mm Flat Leads |
3000 |
8mm |
SOD723E7A-TIN |
- |
SC79F |
SOD523 1.6 x 0.8mm Flat Leads |
3000 |
8mm |
SC79F-E7A-TIN |
- |
For Daisy Chain, add -DC to end of part number. |
|
Rectangular Case- C-Bend Lead (Modified J-Lead) - Diode |
DO214AC SMAJ - FM1 DO214AA SMBJ / DO214AC SMCJ |
Size |
Cross Reference |
Qty on Reel |
Tape Width |
Order Number Outline Drawing
| Daisy Chain |
FM1 |
DO-214AC 4.3 x 2.6mm J-Lead |
1500 5000~7500 |
12mm |
FM1E7A-TIN FM1E13A-TIN |
- |
SMA-J |
DO-214AC 4.3 x 2.6mm J-Lead |
1500 5000~7500 |
12mm |
SMAJ-E7A-TIN SMAJ-E13A-TIN |
- |
SMB-J |
DO-214AA 4.3 x 3.6mm J-Lead |
700~750 2500~3500 |
12mm |
SMBJ-E7A-TIN SMBJ-E13A-TIN |
- |
SMC-J |
DO-214AB 7.0 x 6.0mm J-Lead |
700-750 3200~3500 |
16mm |
SMCJ-E7A-TIN SMCJ-E13A-TIN |
- |
For Daisy Chain, add -DC to part number. |
|
