Solder Terminals
IPC Compliant

For Hand Soldering Training & Proficiency


NASA Solder Kit   More Products   Home

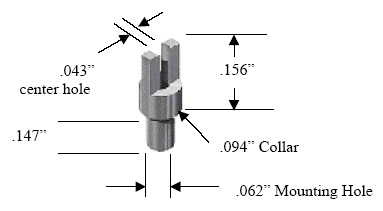

Bifurcated
103xxx Series

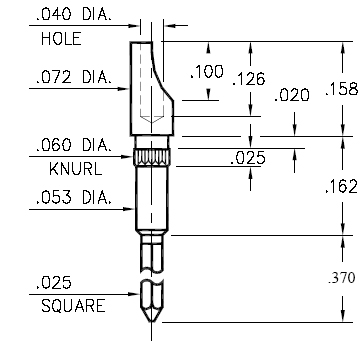

Gold Cup
104xxx Series

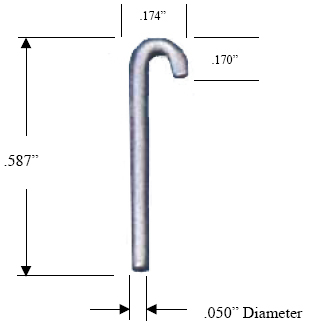

Hook
105xxx Series

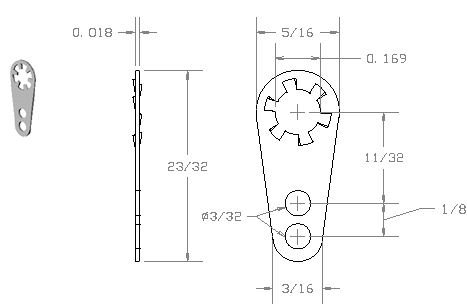

Pierced
106xxx Series
Turret
107xxx Series
Holder
109xxx Series


Full Range of Terminals
For Training, Practice and Solder Certification


Terminal Ordering Information
Description Order Nbr.
Qty=5
Order Nbr.
Qty=25
Order Nbr.
Qty=100
Order Nbr.
Qty=500
Order Nbr.
Qty=1000

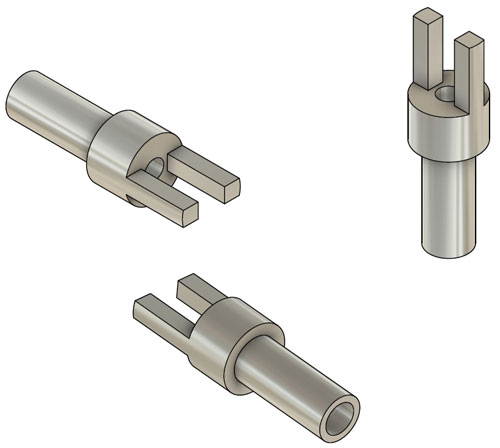

Bifurcated
Terminal
103005
.147"L

113005
.084"L
103025
.147"L

113025
.084"L
103100
.147"L

113100
.084"L
103500
.147"L

113500
.084"L
103999
.147"L

113999
.084"L

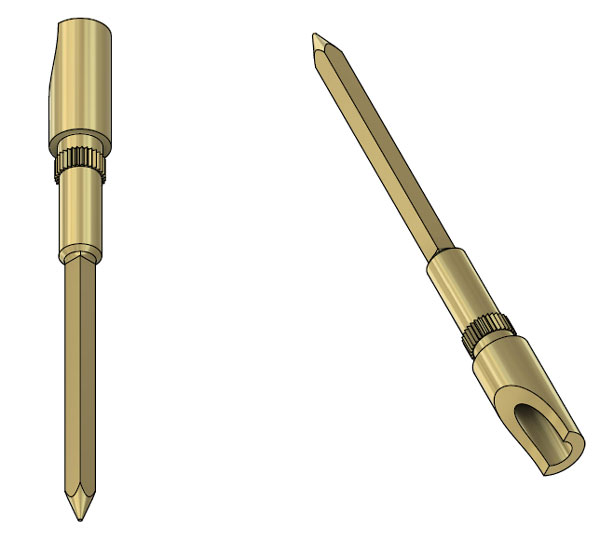

Gold Cup
Terminal
104005 104025 104100 104500 104999

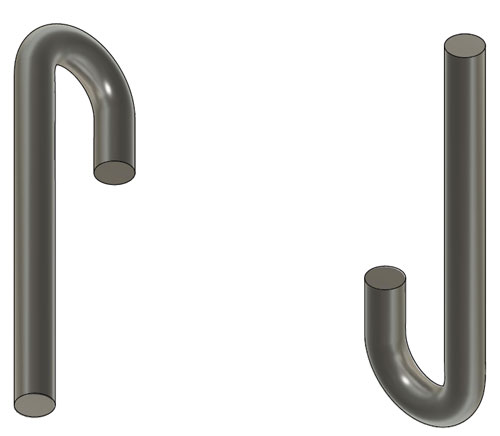

Hook
Terminal
105005 105025 105100 105500 105999
Pierced
Terminal
106005 106025 106100 106500 106999

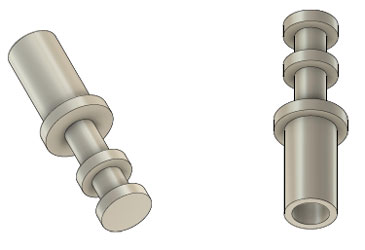

Turret
Terminal
107005
.172"L

117005
.109"L
107025
.172"L

117025
.109"L
107100
.172"L

117100
.109"L
107500
.172"L

117500
.109"L
107999
.172"L

117999
.109"L
Notes: Click links above for product outline drawings.


Terminal Holder Ordering Information
Description Size Order Nbr.
Qty=1

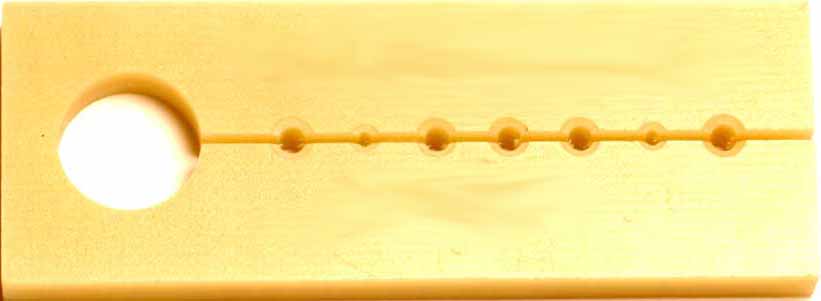

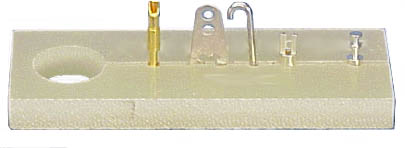

Standard Terminal Holder
Requires a bench vice.
Economy Version
L =3.0"
W=1.0"
Th=0.25"
109000

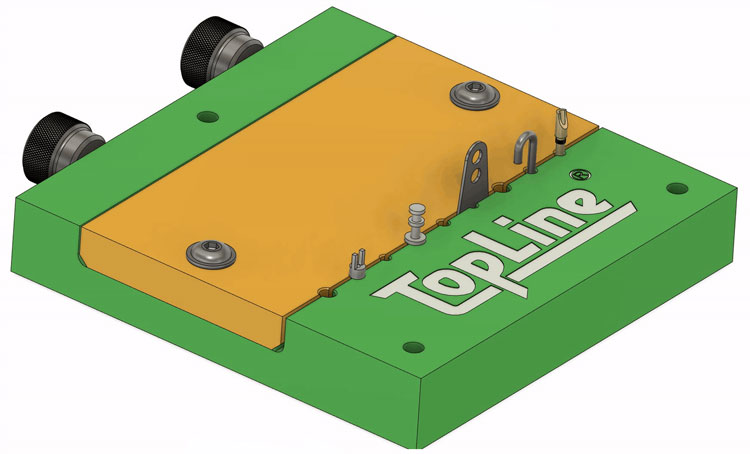

Ultimate Terminal Holder
Sits on benchtop.
Does not require a bench vice.
Premium Version
L =3.0"
W=3.0"
Th=0.50"
109001

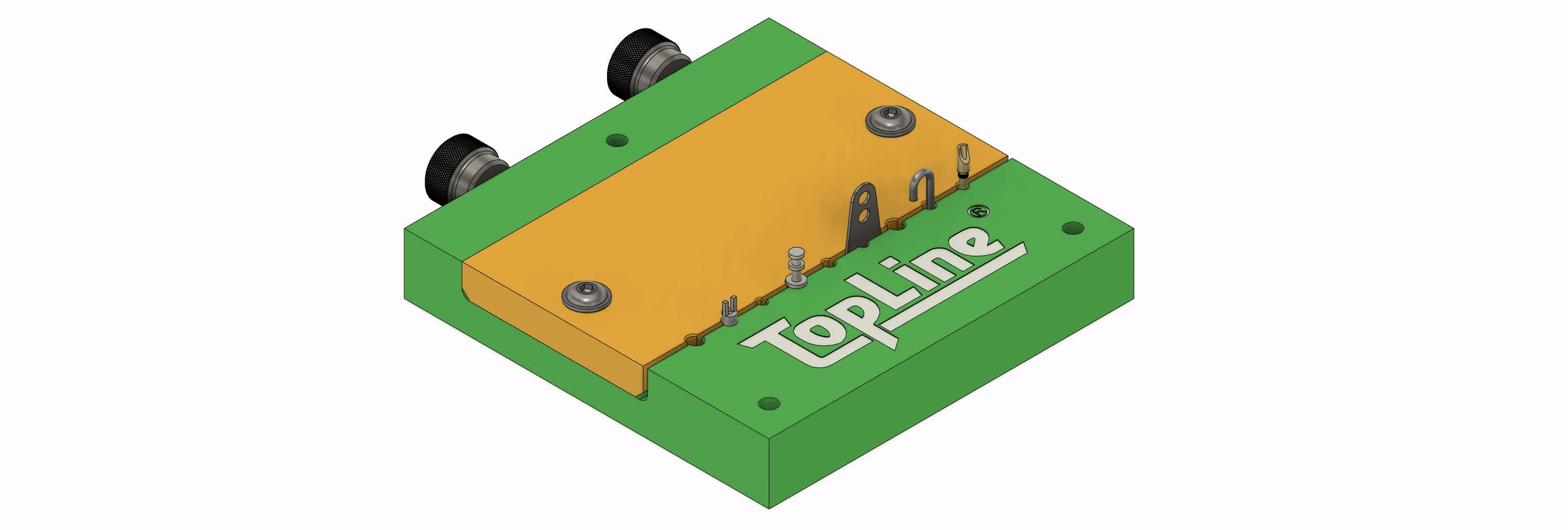

Animation
Notes: Click links for more details


Wire Ordering Information
Description Order Nbr.
Qty=5FT
Order Nbr.
Qty=100FT
Order Nbr.
Qty=1000FT
Order Nbr.
Qty=5000FT
Images
20AWG Wire
Black
108020 108120 108520 108920
22AWG Wire
Red
108022 108122 108522 108922
24AWG Wire
Yellow
108024 108124 108524 108924
26AWG Wire
Blue
108026 108126 108526 108926
