	979000 Series Kit

NASA Solder Practice Kit
Throughhole - Tin/Lead

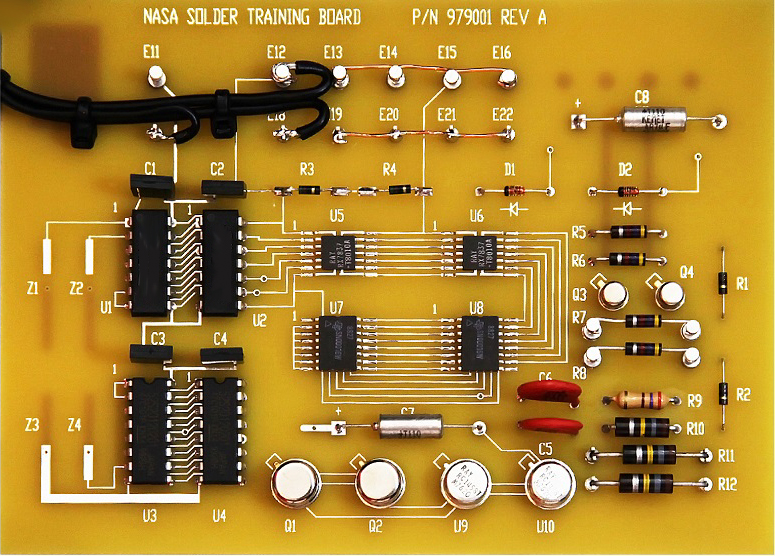

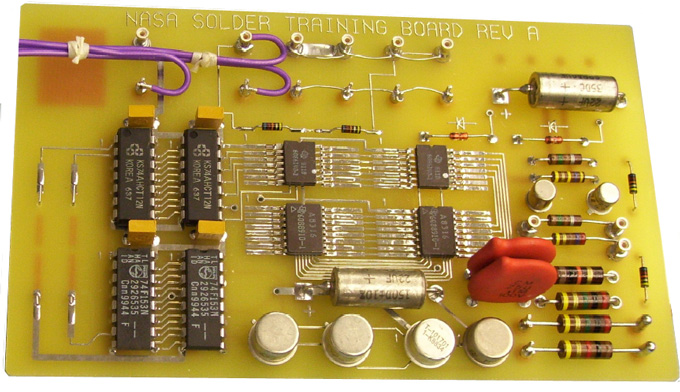

Photo shown after assembly • Actual kit is unassembled

Enlarge Photo

3D-Rotatable Model

PDF Version More Kits

The NASA Solder Practice Kit is a throughhole and Mixed Technology kit for legacy soldering proficiency. Wide range of throughhole components are provided in kit including axial, radial, DIP, flat packs and solder terminals.

Features:

FR4 PWB .062" Thick

Plated Throughholes

Without Soldermask

HASL Sn63/Pb37 plating

		Hand Assembly • Kit Quantity BOM
Component	PWB Board Ref	Order Nbr. 979000 1 Kit	Order Nbr. 979010 10 Kits	Order Nbr. 979025 25 Kits	Order Nbr. 979050 50 Kits	Order Nbr. 979100 100 Kits
PWB Board 4" x 5.5"		1	10	25	50	100
DIP 14L Dual Inline	U1, U2	2	20	50	100	200
DIP 16L Dual Inline	U3, U4	2	20	50	100	200
FP 14L Flat Pack	U5, U6	2	20	50	100	200
FP 16L Flat Pack	U7, U8	2	20	50	100	200
TO-99 8L IC	U9, U10	2	20	50	100	200
TO-5 3L Transistor	Q1, Q2	2	20	50	100	200
TO-18 3L Transistor	Q3, Q4	2	20	50	100	200
DO-35 Glass Diode	D1-D2	2	20	50	100	200
CK05 / CK06 Molded Cap	C1-C4	4	40	100	200	400
KK4 Disc Capacitor	C5, C6	2	20	50	100	200
Tantalum B-Case	C7, C8	2	20	50	100	200
RC05 / RCR05 1/8W Resistor	R1~R4	4	40	100	200	400
RC07 / RCR07 1/4W Resistor	R5~R8	4	40	100	200	400
RC20 / RCR20 1/2W Resistor	R9~R12	4	40	100	200	400
Bifurcated Terminals 113xxx	E11~E16 and for R11~12	10	100	250	500	1000
Turret Terminals 117xxx	E17~E22 and for R7~R8	10	100	250	500	1000

Spare Parts
Components	Quantity	Order Number
PWB Board Only	1	979001




Download Solidworks® e-Drawings software to view rotatable: PC Version • Mac Version
