ECONO III Mixed Technology
Hand Soldering Certification Kit

Go to: Recertification Kit   •   Econo II Mixed Tech Kit   •   Mixed Technology 2 Kit

Econo III Mixed Technology Kit
Hand or Machine Assembly

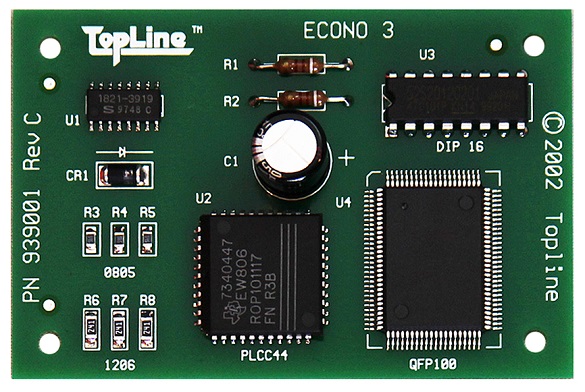

Enlarge: Top Side After Assembly
Board Size 2.0"x3.0" (5x7.5cm)



Kit includes the PC Board and assortment of SMT and through hole components. Includes QFP, PLCC, PDIP, axial lead and radial lead components, diodes and chip resistors.

Board Features:

  • Choice of Final finish:
        • HASL SnPb
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 2.0"x3.0" (5x7.5cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer - Double Sided
  • Solderable Land Pads Ø0.065" (Ø1.65mm)
  • Plated Holes Ø0.036" (Ø0.92mm)
  • Plated Holes Per Board: 22x
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • Global IPC SMEMA Fiducials

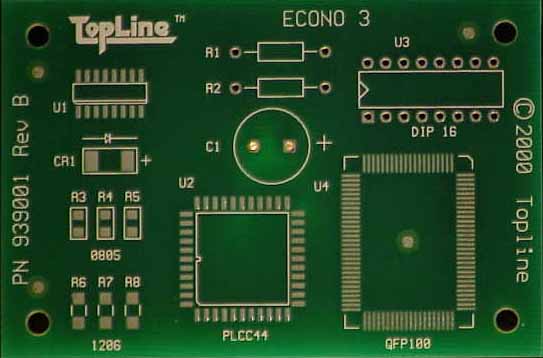

    Enlarge:  Top Side Before Assembly

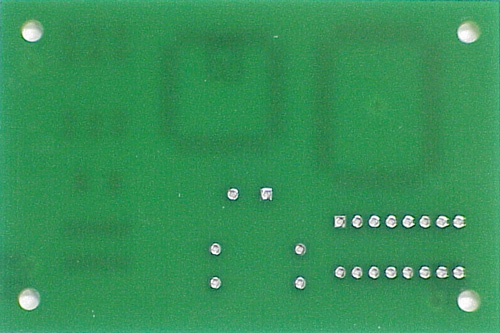

    Click for Bottom View

    		•

      BOM Kit Contents
    Econo Kit III
    Kit Quantities Available
    Hand or Machine Assembly
    Kit BOM Reference
    Designator    		 Order #
    939X00
    1 Kit    		 Order #
    939X10
    10 Kits    		 Order #
    939X25
    25 Kits    		 Order #
    939X50
    50 Kits    		 Order #
    939X99
    100 Kits
    Board HASL - SnPb
    X = 0
    4th Digit Order#    		   1 10 25 50 100
    Board - Tin (Sn)
    X = 2
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board Silver (Ag)
    X = 6
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    Board OSP (Cu)
    X = 8
    4th Digit Part#    		 RoHS Pb-Free 1 10 25 50 100
    Board - ENIG
    Gold (Ni/Au)
    X = 9
    4th Digit Order#    		 RoHS Pb-Free 1 10 25 50 100
    SO16 U1 1 10 25 50 100
    PLCC44 U2 1 10 25 50 100
    DIP16 U3 1 10 25 50 100
    QFP100 U4 1 10 25 50 100
    1/4W Res R1~R2 2 40 50 100 200
    0805 Res Chip R3~R5 3 30 75 150 300
    1206 Res Chip R6~R8 3 30 75 150 300
    Radial Al Cap C1 1 10 25 50 100
    MELF Diode CR1 1 10 25 50 100
    Total Components - 14 140 350 700 1400

    Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "939001a" Econo III
    Step 4. Download files

    Kit Order Number System
    939 0 # #
    Series Board Finish Quantity
    939=Econo III
    2.0"x3.0" (5x7.5cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 01 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99/100 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) Non RoHS 939000
    Tin (Sn) RoHS 939002
    Silver (Ag) RoHS *939006
    OSP (Cu) RoHS *939008
    ENIG Gold (Ni/Au) RoHS 939009
    * Check for Availability


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 SnPb
    Tin/Lead
    Tin
    Sn    		 RoHS Ask for available
    components
    Tin/Lead
    SnPb    		 Non-RoHS Ask for available
    components
