0402 / 0603 Chip Kit
With Zero Ohm Continuity Test

Go to: 01005 / 0201 Kit   •   0201 / 0402 Kit   •   0805 / 1206 Kit   •   Jumbo 0402 to 1206 Kit

Chip Shooter Mounting Kit
Metric Chip 1.0 x 0.5mm and 1.6mm x 0.8mm

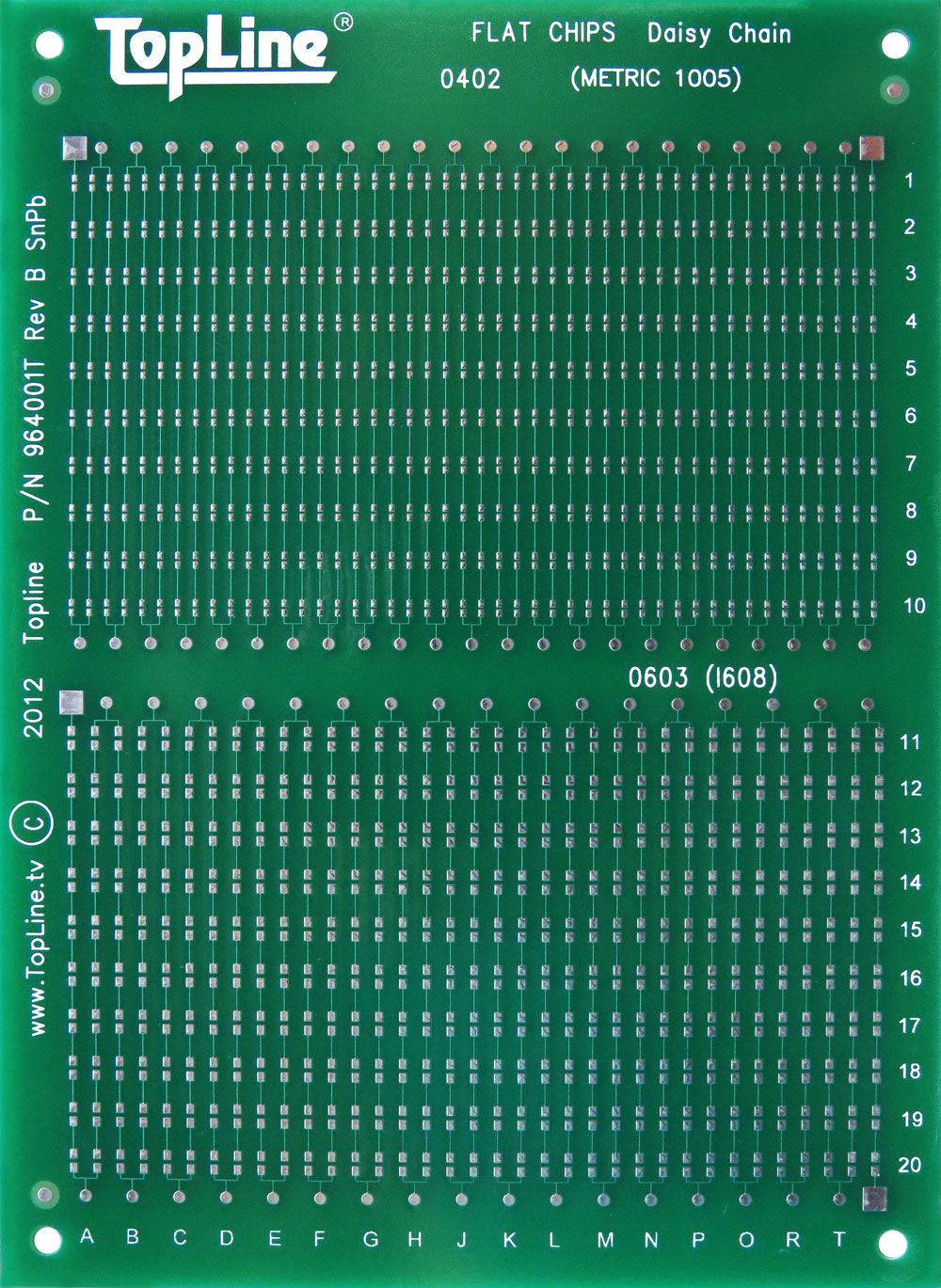

Enlarge: Top 0402 and 0603 Chips
Each side has 0402 (0.6x0.3mm) and 0603 (1.6x0.8mm) chip
Board Size 4"x5.5" (10x14cm)

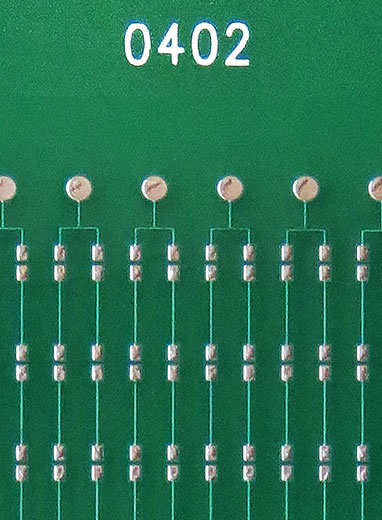

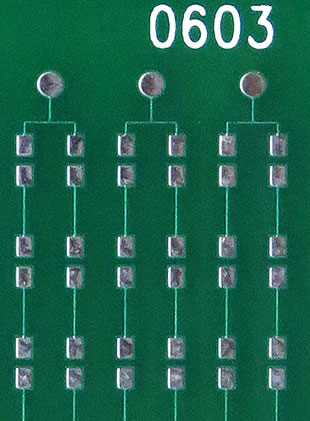

0402 Pad Details     •     0603 Pad Details



Chip Shooter Kit includes 460 pads for 0402 (1.0x0.5mm) and 360 pads for 0603 (1.60x0.8mm) zero ohm resistors for placement and continuity testing. Use a simple ohm meter to check continuity (Good), or open circuit (Fail) at test points for each row of components. 0402 Chips are supplied on reels with 2mm pitch tape. 0603 Chips are supplied on reels with 4mm pitch tape. This kit can be used for placement, soldering or epoxy dispenser testing.

Board Features:

  • Choice of Final finish:
        • Immersion Tin (Sn)
        • ENIG (Ni/Au)Gold
        • OSP Copper
        • Immersion Silver
        • HASL SnPb
  • LPI Solder Mask - PSR4000 AUS5
  • FR4 Tg=170°C
  • Size - 4"x5.5" (10x14cm)
  • Thickness 0.062" (1.6mm)
  • 2-Layer Board
  • RoHS Compliant
  • Tooling Holes .125" (3.17mm)
  • IPC Fiducials - 0.062" (1.57mm)

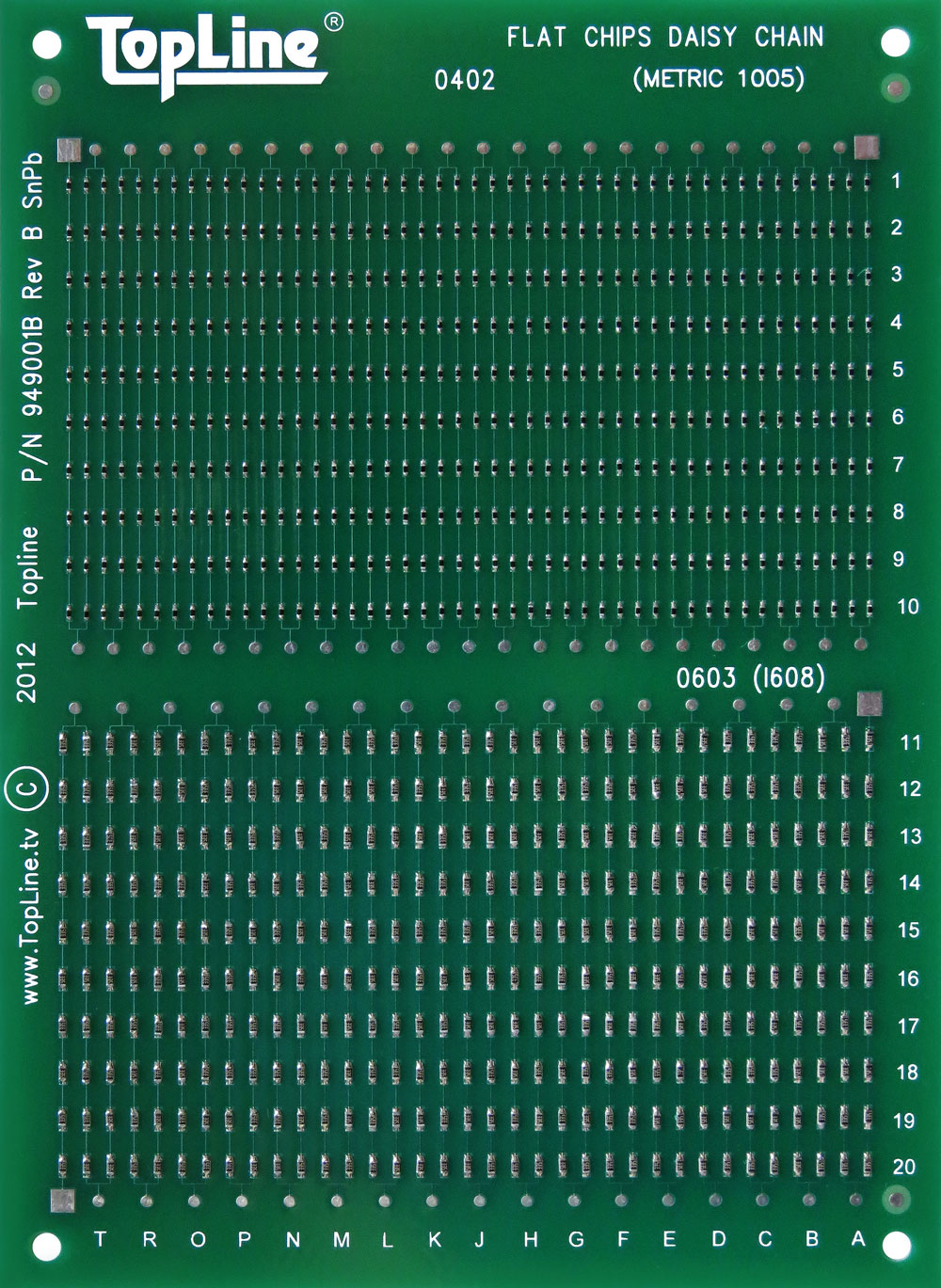

    Enlarge:  Bottom Side Assembled

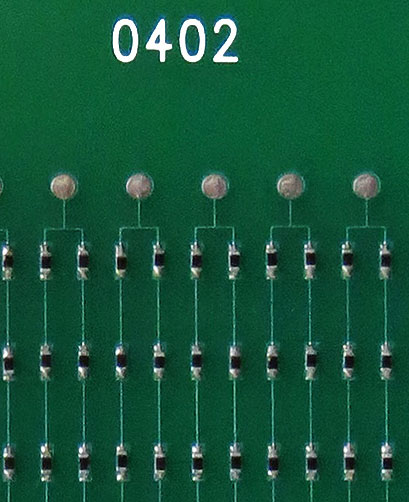

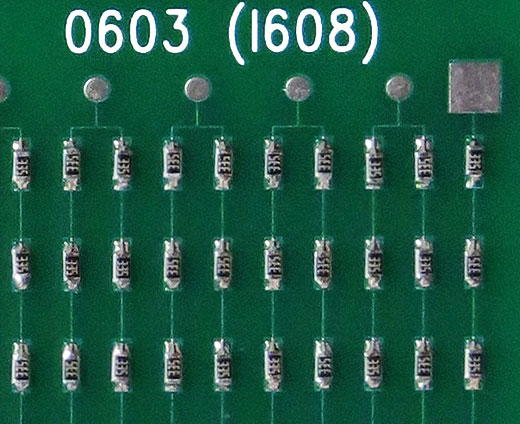

    0402 Pad Details     •     0603 Pad Details

    		•

      BOM Kit Contents
    0402 / 0603 Chip Shooter Kit
    Kit Quantities Available
    Kit BOM Components
    Per
    Board
    Order #
    964F00
    1 Kit
    Order #
    964F03
    3 Kits
    Order #
    964F06
    6 Kits
    Order #
    964F10
    10 Kits
    Order #
    964F25
    25 Kits
    Order #
    964F50
    50 Kits
    Board HASL - SnPb
    F = 0
    4th Digit Order#    		   1 3 6 10 25 50
    Board - Tin (Sn)
    F = 2
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    Board Silver (Ag)
    F = 6
    4th Digit Order#    		 RoHS Pb-Free - - - 10 25 50
    Board OSP (Cu)
    F = 8
    4th Digit Part#    		 RoHS Pb-Free - - - 10 25 50
    Board - ENIG
    Gold (Ni/Au)
    F = 9
    4th Digit Order#    		 RoHS Pb-Free 1 3 6 10 25 50
    0402 Chip Resistor
    Size: 1.0mm x 0.5mm    		 460 1000 3000 6000 10000 20000 40000
    0603 Chip Resistor
    Size: 1.6mm x 0.8mm    		 360 1000 3000 6000 10000 15000 30000
    Ask for special kits with non-zero ohm capacitors.

    Free Download Solder Paste Gerber & Parts Placement Data
    Step 1. Click Here for TopLine's Document Center. Sign up and Log in.
    Step 2. Click link "Gerber Files"
    Step 3. Click link "964001b" 0402 / 0603 with Daisy Chain
    Step 4. Download files

    Kit Order Number System
    964 2 # #
    Series Board Finish Quantity
    0402/0603 Chip
    4"x5.5" (10x14cm)    		 0 = HASL
    2 = Tin (Sn)
    6 = Silver (Ag)
    8 = OSP (Cu)
    9 = ENIG Gold (NiAu)    		 00 = 1 Kit
    03 = 3 Kits
    06 = 6 Kits
    10 = 10 Kits
    25 = 25 Kits
    50 = 50 Kits
    99 = 100 Kits

    Other quantites available.

    Spare Boards
    Board Finish Lead-Free
    Pb-Free    		 Order Number
    HASL (SnPb) No 964001
    Tin (Sn) RoHS 964002
    Silver (Ag) RoHS 964006
    OSP (Cu) RoHS 964008
    ENIG Gold (Ni/Au) RoHS 964009


    Spare Parts
    Plating Lead-Free
    Pb-Free    		 Drawing
    Tin (Sn) RoHS 0402 Chip
    (1.0x0.5mm) Resistor
    Tin (Sn) RoHS 0603 Chip
    (1.6x0.8mm) Resistor
