Flat Pack
FP Series

FP Flat Pack TopLine Dummy Components for solder training and practice to trim and form the leads. Daisy Chain options available. Lead count 8L to 56L. Pitch 25mils and 50mils. Perfect for IPC training.

Flat Pack Daisy Chain

Number Leads	Body Size (in.)	Braze	Packaging	Order Number	Daisy Chain	360° Solidworks Rotatable Model
Pitch = 50mil (1.27mm)
8	0.25" x 0.25"	Bottom	Tie-Bar	FP8F50SQ.25B	Daisy Chain	Rotatable Model

10	0.25" x 0.25"	Bottom	Tie-Bar	FP10F50SQ.25B	Daisy Chain
10	0.25" x 0.25"	Bottom	Carrier	FP10C50SQ.25B	Daisy Chain	Rotatable Model
10	0.25" x 0.25"	Side	Carrier	FP10C50SQ.25S	Daisy Chain	Rotatable Model

14	0.26" x 0.34"	Side	Carrier	FP14C50R.26x.34S-S IPC Training Favorite.	Daisy Chain	Rotatable Model
14	0.26" x 0.34"	Side	Carrier	M83401/03	Daisy Chain	Rotatable Model
14	0.26" x 0.34"	Bottom	Tie-Bar	FP14F50R.26x.34B	Daisy Chain
14	0.26" SQ	Gull-Wing	Carrier	FP14G50SQ.26S-S	Daisy Chain

16	0.25" x 0.38"	Side	Carrier	FP16C50R.25x.38S-S IPC Training	Daisy Chain	Rotatable Model
16	0.25" x 0.38"	Bottom	Tie-Bar	FP16F50R.25x.38B	Daisy Chain
16	0.25" x 0.38"	Gull-Wing	Carrier	FP16G50R.25x.38S-S	Daisy Chain
16	0.29" x 0.41"	Gull-Wing	Tie-Bar	CSOP16G-N170x283 Open Package	-	Rotatable Model

18	0.31" x 0.44"	Bottom	Tie-Bar	FP18F50R.31x.44B	Daisy Chain	Rotatable Model

20	0.29" x 0.50"	Gull-Wing	Tie-Bar	CSOP20G-N161x283 Open Package	-	Rotatable Model
20	0.27" x 0.50"	Side	Carrier	FP20C50R.27X.50S-SC	Daisy Chain	Rotatable Model
20	0.30" x 0.50"	Bottom	Tie-Bar	FP20F50R.30x.50B	Daisy Chain
20	0.40" x 0.40"	Bottom	Carrier	FP20C50SQ.40B	Daisy Chain
20	0.62" x 0.62"	Side	Carrier	FP20C50SQ.62 Mil-PRF-55310/21E	Daisy Chain	Rotatable Model

24	0.29" x 0.60"	Gull-Wing	Tie-Bar	CSOP24G-N170x283 Open Package	-	Rotatable Model
24	0.30" x 0.50"	Side	Carrier	FP24C50R.30x.50S-SC	Daisy Chain	Rotatable Model
24	0.40" x 0.60"	Side	Carrier	FP24C50R.40x.60S-SC	Daisy Chain	Rotatable Model
24	0.40" x 0.60"	Bottom	Tie-Bar	FP24F50R.40x.60B	Daisy Chain
24	0.60" x 0.82"	Bottom	Tie-Bar	FP24F50R.60x.82B-A	BUS	Rotatable Model
24	0.60" x 0.81"	Top	Tie-Bar	FP24F50R.60x.81T-A	BUS	Rotatable Model

28	0.29" x 0.70"	Gull-Wing	Tie-Bar	CSOP28G-N170x283 Open Package	-	Rotatable Model

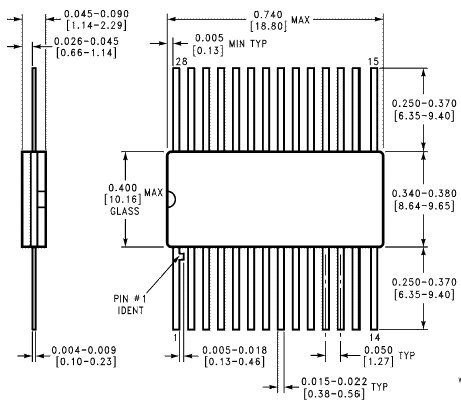

28	0.40" x 0.72"	Side	Carrier	FP28C50R.40x.72S	Daisy Chain
28	0.40" x 0.72"	Side	Tie-Bar	FP28F50R.40x.72S-SC	Daisy Chain	Rotatable Model
28	0.40" x 0.72"	Bottom	Tie-Bar	FP28F50R.40x.72B	Daisy Chain
28	0.50" x 0.72"	Bottom	Tie-Bar	FP28F50R.50x.72B	Daisy Chain	Rotatable Model
28	0.64" x 0.72"	Side	Carrier	FP28C50R.64x.72S	Daisy Chain

32	0.40" x 0.82"	Bottom	Tie-Bar	FP32F50R.40x.82B	Daisy Chain
32	0.50" x 0.82"	Bottom	Tie-Bar	FP32F50R.50x.82B	Daisy Chain
32	0.60" x 0.82"	Bottom	Tie-Bar	FP32F50R.60x.82B-A	-	Rotatable Model
32	0.60" x 0.82"	Top	Tie-Bar	FP32F50R.60x.82T	Daisy Chain	-

36	0.50" x 0.93"	Bottom	Tie-Bar	FP36F50R.50x.93B	Daisy Chain

40	0.80" x 1.22"	Top	Tie-Bar	FP40F50R.80x1.22B	Daisy Chain	Rotatable Model

42	0.64" x 1.06"	Top	Tie-Bar	FP42F50R.64x1.06T	Daisy Chain

48	0.64" x 1.21"	Top	Tie-Bar	FP48F50R.64x1.21T	Daisy Chain	Rotatable Model

48	0.64" x 1.31"	Top	Tie-Bar	FP48F50R.64x1.31T	Daisy Chain	Rotatable Model

52	0.64" x 1.31"	Top	Tie-Bar	FP52F50R.64x1.31T	Daisy Chain	Rotatable Model


Pitch = 25mil (0.635mm)
40	0.80" x 0.95"	Bottom	Tie-Bar	FP40F25R.80x.95B	Daisy Chain	Rotatable Model
48	0.40" x 0.72"	Bottom	Tie-Bar	FP48F25R.40x.72B	Daisy Chain	Rotatable Model
56	0.40" x 0.72"	Bottom	Tie-Bar	FP56F25R.40x.72B	Daisy Chain	Rotatable Model


Optional Features: Add suffix to end of part number Daisy Chain (Zero Ohm between pair of leads): -DE Open Cavity (Without Lid) for Die Bonding: -N Solder Coated Sn63/Pb37 200-micro-inch (5.08um) Minimum: -S or -SC Dummy Die -D

Download Solidworks® e-Drawings software to view rotatable: PC Version
