Column Planarization for Trimming CCGA Solder Columns
COLUMN PLANARIZING TOOL
Securely locks the CCGA while columns are safely planarized. Place the CCGA inside of the tool. The internal shim allows columns to slightly protrude outside the brass plate. Hold the brass plate face down on a rotating silicon carbide 240 grit (53um particle) abrasive lapping wheel at 150 RPM. Within seconds all columns are planarized. Final step use a 15um diamond polishing wheel to shine and polish the tips of the columns. Accessory C7-EJECT tool gently removes CCGA after planarizing

 YouTube video  •  How to Use PDF

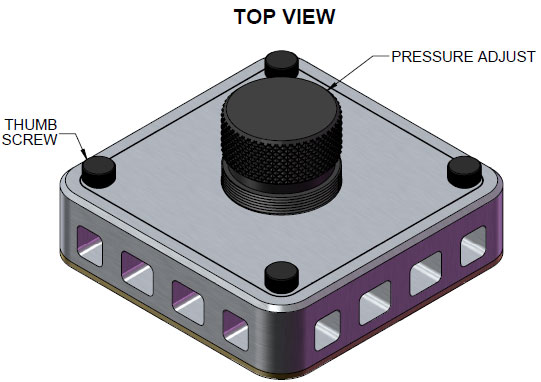

Top View
Safely holds CCGA during planarization

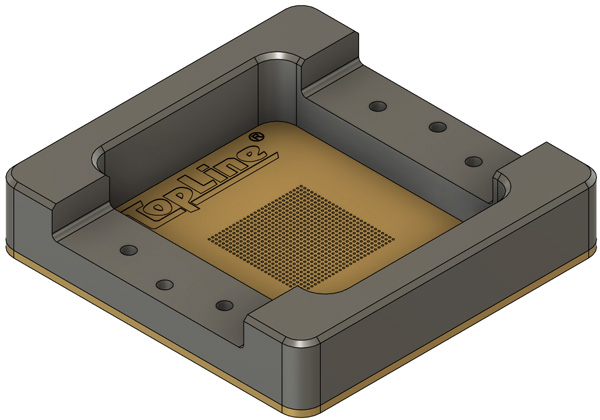

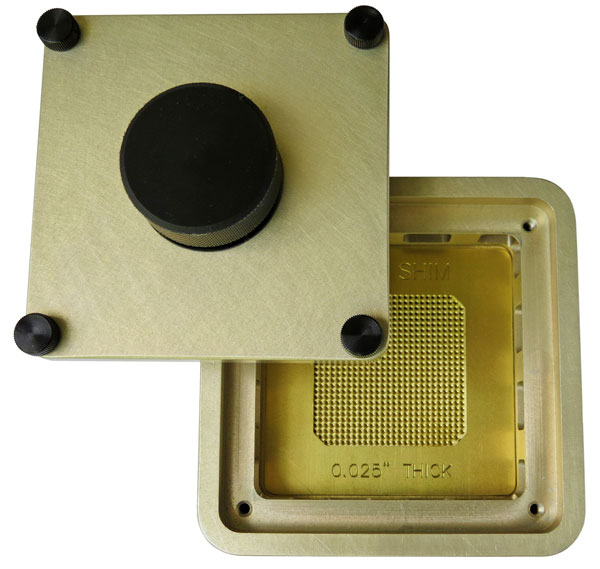

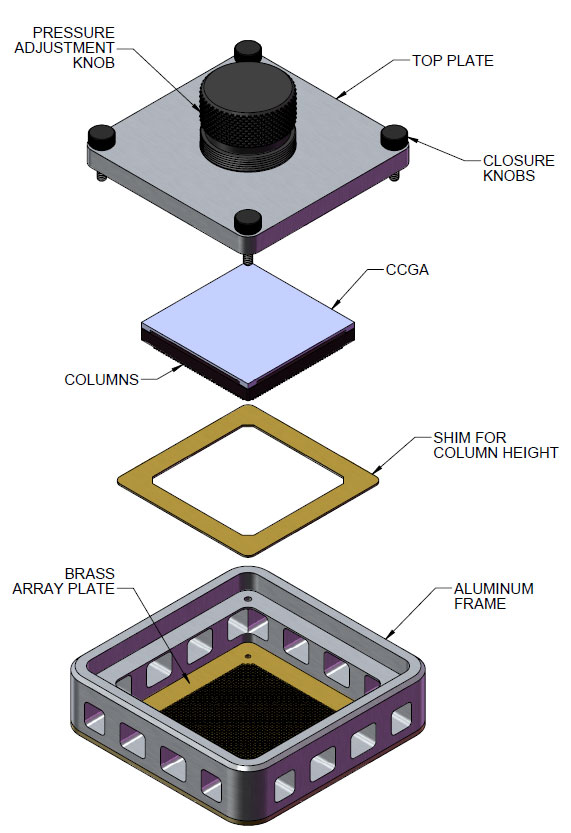

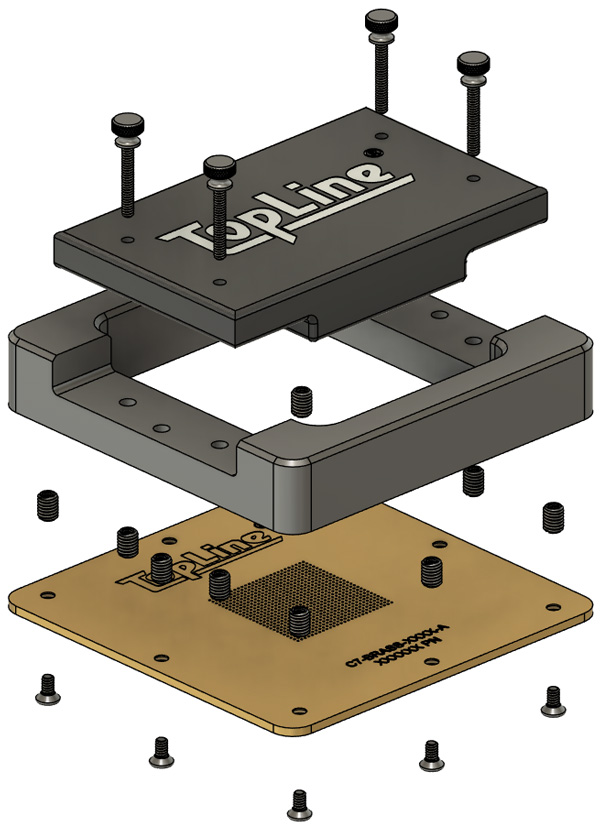

Click: Exploded View  •   Look Inside

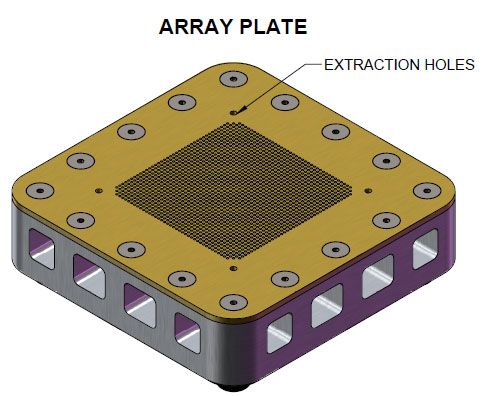

Bottom View
Column Planarizing Side

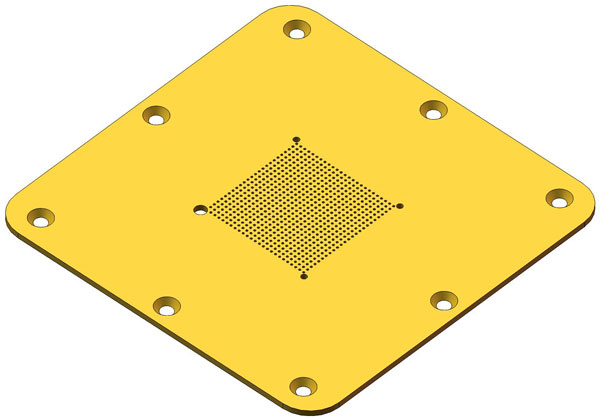

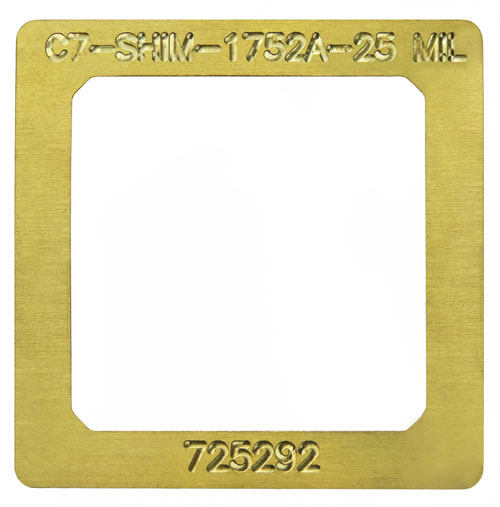

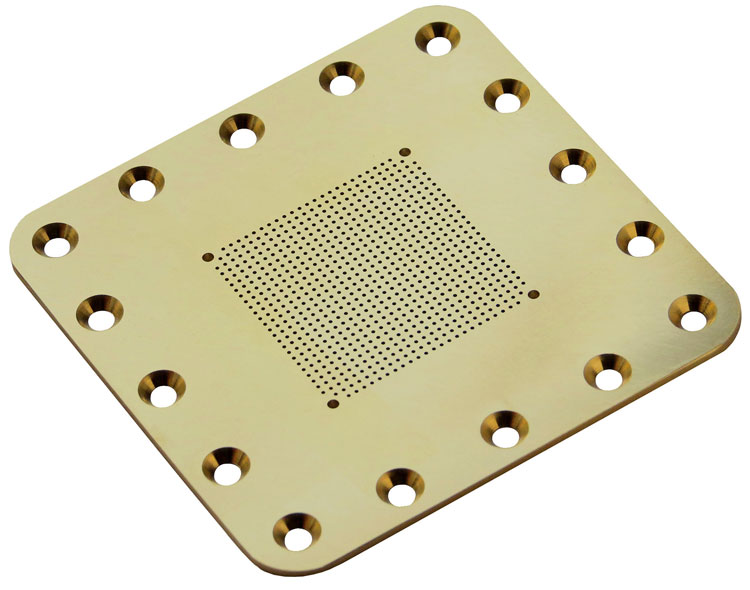

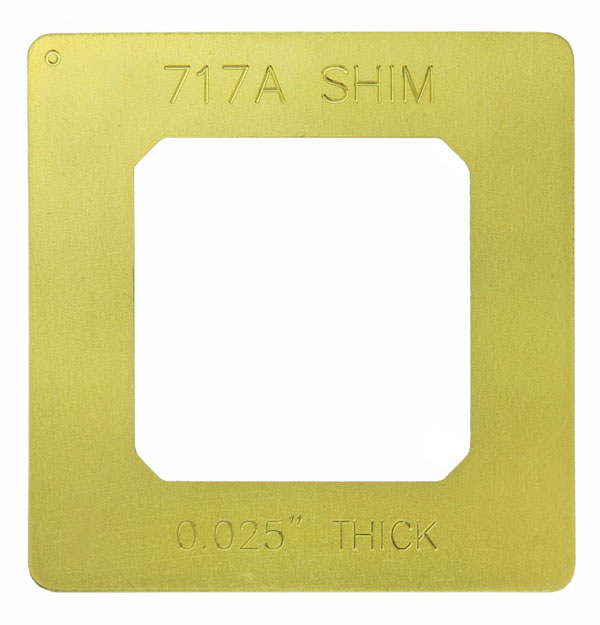

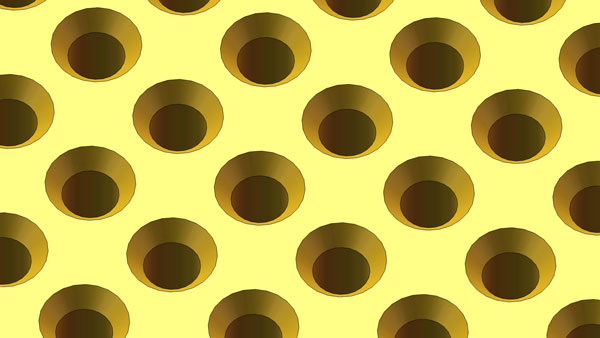

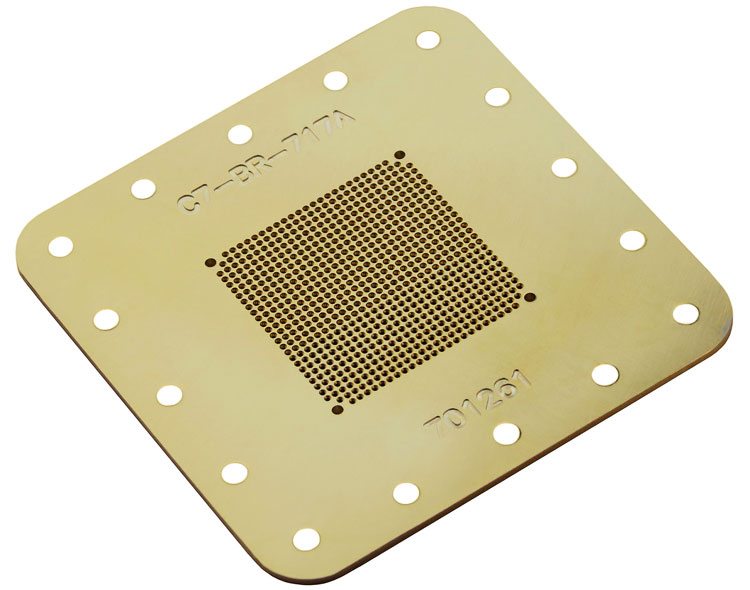

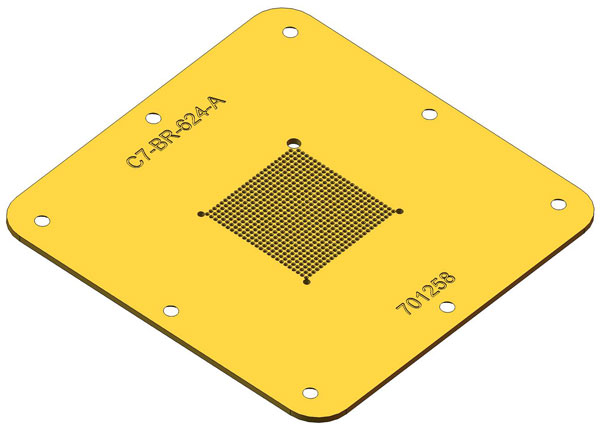

Shim  •  BR TOP  •  BR BOTTOM  •   Detail
COLUMN PLANARIZING TOOL
Hand Held Holder
For Planarizing CCGA Columns
DWG Number Model Number Substrate
X/Y Size		 Matrix
Row x Col		 Pitch Column
ØDia		 Spare
Shim 25mil		 Spare
Brass Plate		 Accessory
Ejector Plate
700246 C7-PLANAR-143-A 14.5mm 12x12 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-143-A-25
725246		 C7-BR-143-A
701246		 C7-EJECT-143-A
702246
700245 C7-PLANAR-165-A 21x25mm 11x15 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-165-A-25
725245		 C7-BR-165-A
701245		 C7-EJECT-165-A
702245
700250 C7-PLANAR-168-A 17mm 13x13 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-168-A-25
725250		 C7-BR-168-A
701250		 C7-EJECT-168-A
702250
700249 C7-PLANAR-255-A 21mm 16x16 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-255-A-25
725249		 C7-BR-255-A
701249		 C7-EJECT-255-A
702249
700244 C7-PLANAR-256-A 16.4mm 16x16 1.0mm Ø0.51mm
(20 mil)		 C7-SHIM-256-A-25
725244		 C7-BR-256-A
701244		 C7-EJECT-256-A
702244
700242 C7-PLANAR-323-B 20mm 18x18 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-323-B-25
725242		 C7-BR-323-B
701242		 C7-EJECT-323-B
702242
700254 C7-PLANAR-360-A 25mm 19x19 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-360-A-25
725254		 C7-BR-360-A
701254		 C7-EJECT-360-A
702254
700247 C7-PLANAR-376-A 28mm 20x20 1.27/1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-376-A-25
725247		 C7-BR-376-A
701247		 C7-EJECT-376-A
702247
700262 C7-PLANAR-399-A 21mm 20x20 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-399-A-25
725262		 C7-BR-399-A
701262		 C7-EJECT-399-A
702262
700259 C7-PLANAR-472-A 29mm 22x22 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-472-A-25
725259		 C7-BR-472-A
701259		 C7-EJECT-472-A
702259
700252 C7-PLANAR-483-A 23mm 22x22 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-483-A-25
725252		 C7-BR-483-A
701252		 C7-EJECT-483-A
702252
700248 C7-PLANAR-483-F 29mm 22x22 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-483-F-25
725248		 C7-BR-483-F
701248		 [C7-EJECT-483-F]
702248
700258 C7-PLANAR-624-A 32.5mm 25x25 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-624-A-25
725258		 C7-BR-624-A
701258		 C7-EJECT-624-A
702258
700271 C7-PLANAR-625-A 29mm 25x25 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-625-A-25
725271		 C7-BR-625-A
701271		 C7-EJECT-625-A
702271
700260 C7-PLANAR-672-RU 35mm 26x26 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-672-RU-25
725260		 C7-BR-672-RU
701260		 C7-EJECT-672-RU
702260
700261 C7-PLANAR-717-A 35mm 27x27 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-717-A-25
725261		 C7-BR-717-A
701261		 C7-EJECT-717-A
702261
700265 C7-PLANAR-896-A 31mm 30x30 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-896A-25
725265		 C7-BR-896A
701265		 C7-EJECT-896-A
702265
700268 C7-PLANAR-896-B 31mm 30x30 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-896-A-25
725268		 C7-BR-896-B
701268		 C7-EJECT-896-B
702268
700264 C7-PLANAR-898-RU 31mm 30x30 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-898RU-25
725264		 C7-BR-898-RU
701264		 C7-EJECT-898-RU
702264
700273 C7-PLANAR-1088-A 42.5mm 33x33 1.27mm Ø0.50mm
(20 mil)		 C7-SHIM-1088-A-25
725273		 C7-BR-1088-A
701273		 C7-EJECT-1088-A
702273
700269 C7-PLANAR-1140-A 35mm 34x34 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1140-A-25
725269		 C7-BR-1140-A
701269		 C7-EJECT-1140-A
702269
700270 C7-PLANAR-1144-A 35mm 34x34 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1144-A-25
725270		 C7-BR-1144-A
701270		 C7-EJECT-1144-A
702270
700272 C7-PLANAR-1148-B 35mm 34x34 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-1148-B-25
725272		 C7-BR-1148-B
701272		 C7-EJECT-1148-B
702272
700275 C7-PLANAR-1152-A 35mm 34x34 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1152-A-25
725275		 C7-BR-1152-A
701275		 C7-EJECT-1152-A
702275
700276 C7-PLANAR-1152-B 35mm 34x34 1.0mm Ø0.36mm
(15 mil)		 C7-SHIM-1152-A-25
725276		 C7-BR-1152-B
701276		 C7-EJECT-1152-B
702276
700277 C7-PLANAR-1156-A 35mm 34x34 1.0mm Ø0.36mm
(15 mil)		 C7-SHIM-1156-A-25
725277		 C7-BR-1156-A
701277		 C7-EJECT-1156-A
702277
700280 C7-PLANAR-1272-A 37.5mm 36x36 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1272-A-25
725280		 C7-BR-1272-A
701280		 C7-EJECT-1272-A
702280
700281 C7-PLANAR-1295-A 37.5mm 36x36 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1295-A-25
725281		 C7-BR-1295-A
701281		 C7-EJECT-1295-A
702281
700284 C7-PLANAR-1509-A 40mm 39x39 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1509-A-25
725284		 C7-BR-1509-A
701284		 C7-EJECT-1509-A
702284
700287 C7-PLANAR-1657-A 42.5mm 41x41 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM1657-A-25
725287		 C7-BR1657-A
701287		 C7-EJECT-1657-A
702287
700288 C7-PLANAR-1724-B 42.5mm 42x42 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-1724-B-25
725288		 C7-BR-1724-B
701288		 C7-EJECT-1724-B
702288
700289 C7-PLANAR-1738-B 42.5mm 42x42 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-1738-B-25
725289		 C7-BR-1738-B
701289		 C7-EJECT-1738-B
702289
700290 C7-PLANAR-1752-RU 57mm 44x44 1.27mm Ø0.50mm
(20 mil)		 Shim Not Required
725290		 C7-BR-1752-RU
701290		 C7-EJECT-1752-RU
702290
700292 C7-PLANAR-1752-A 45mm 42x42 1.0mm Ø0.50mm
(20 mil)		 C7-SHIM-1752-A-25
725292		 C7-BR-1752-A
701292		 C7-EJECT-1752-A
702292
700293 C7-PLANAR-1752-B 42.5mm 42x42 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-1752-B-25
725293		 C7-BR-1752-B
701293		 C7-EJECT-1752-B
702293
700297 C7-PLANAR-2104-B 52.5mm 46x46 1.0mm Ø0.38mm
(15 mil)		 C7-SHIM-2104-B-25
725297		 C7-BR-2104-B
701297		 C7-EJECT-2104-B
702297
Contact TopLine for Additional Tools

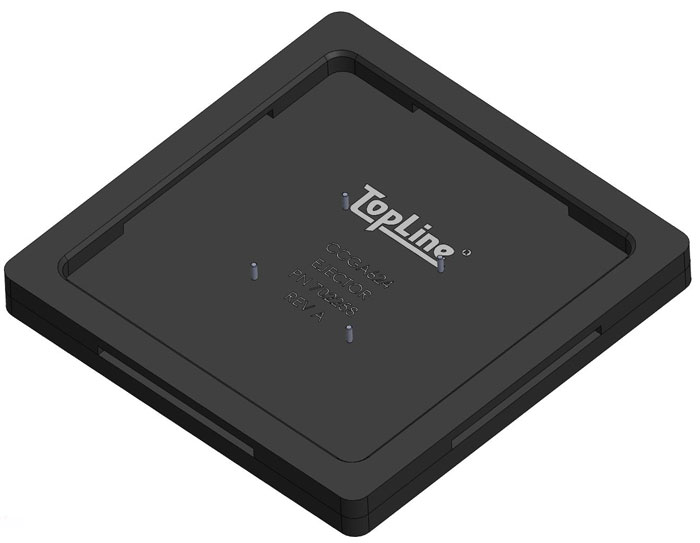

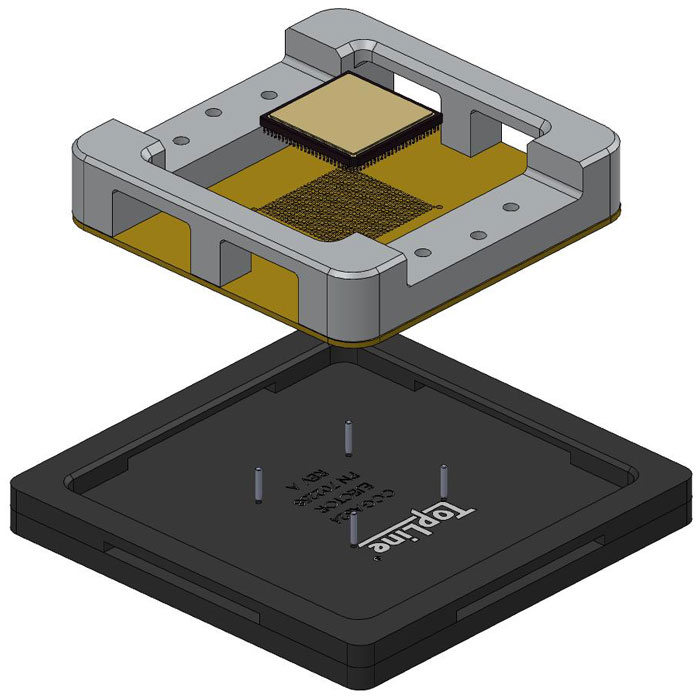

C7-EJECT
LIFTS CCGA
From Planarizing Tool
Place planarizing tool over positioning pins to gently lift and remove the CCGA package. Select the eject tool that matches the specific CCGA package. Use for CCGA with columns.

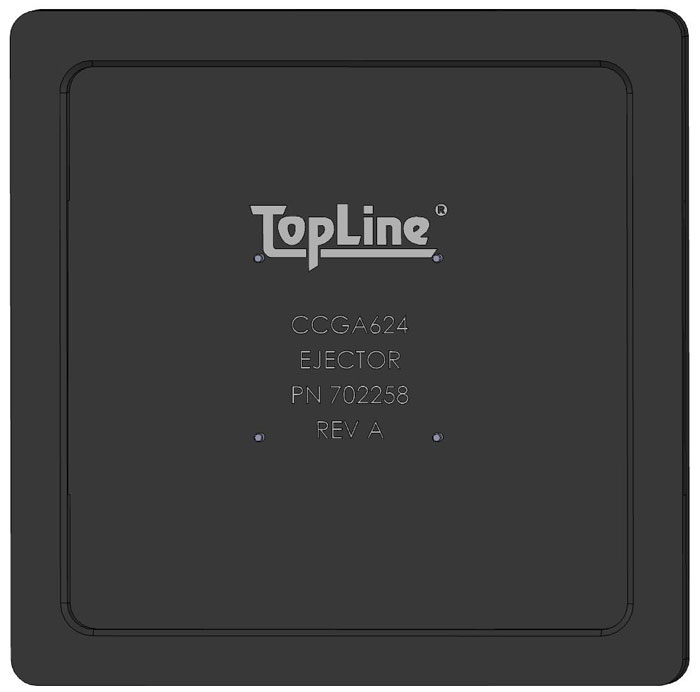

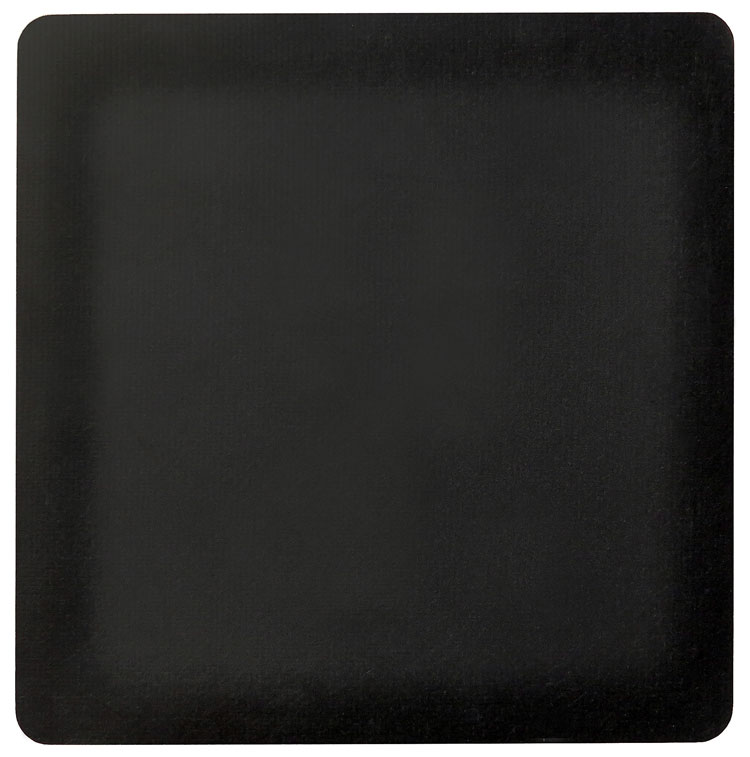

Eject Tool:  • Top • Bottom

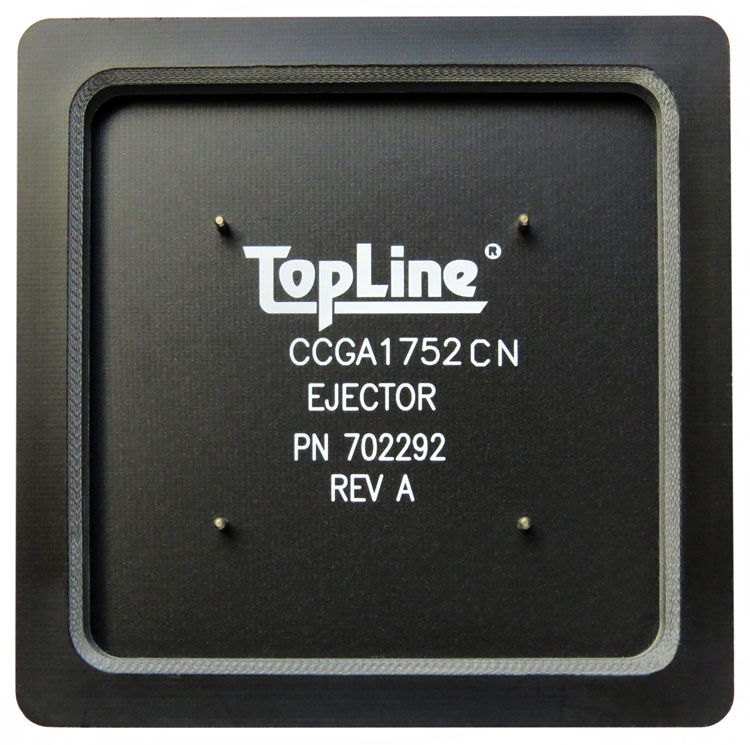

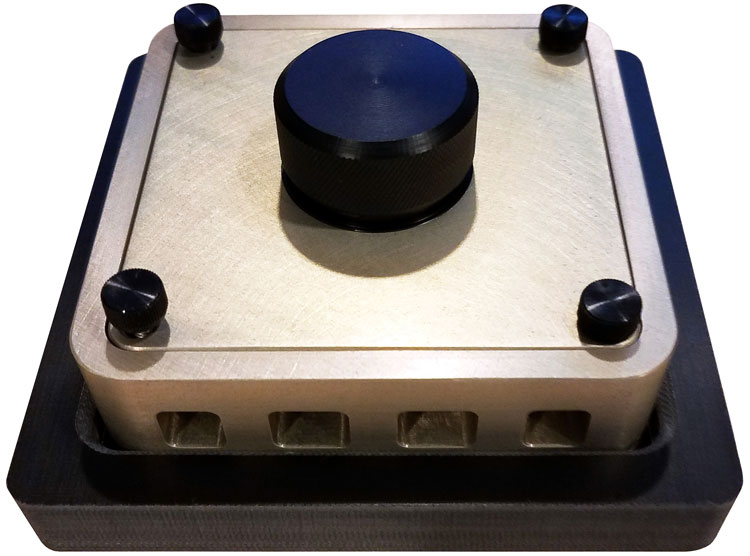

C7-EJECT gently lifts CCGA
from C7-PLANAR tool
EJECTION TOOL
Lifts CCGA Package from Planarizing Tool
DWG Number Model Number CCGA
Size		 Matrix
Row x Col		 Pitch Spacing
Eject Pins		 CCGA Part#
702246 C7-EJECT-143-A 14.5x14.5mm 12x12 1.0mm 13.5mm
0.531inch		 CCGA143
702245 C7-EJECT-165-A 12x25mm 11x15 1.27mm __mm
__inch		 CCGA165
702250 C7-EJECT-168-A 17mm 13x13 1.27mm __mm
__inch		 CCGA168
702249 C7-EJECT-255-A 21mm 16x16 1.27mm __mm
__inch		 CCGA255
702244 C7-EJECT-256-A 17mm 16x16 1.0mm 17.0mm
0.669-inch		 CCGA256
702242 C7-EJECT-323-B 20mm 18x18 1.0mm __mm
__inch		 CCGA323
702254 C7-EJECT-360-A 25mm 19x19 1.27mm __mm
__inch		 CCGA360
702247 C7-EJECT-376-A 28mm 20x20 1.27/1.0mm 26.67mm
1.050-inch		 CCGA376
702262 C7-EJECT-399-A 21mm 20x20 1.0mm 21.00mm
0.826-inch		 CCGA399
702259 C7-EJECT-472-A 29mm 22x22 1.27mm 27.00mm
1.063-inch		 CCGA472
702252 C7-EJECT-483-A 23mm 22x22 1.0mm 23.01mm
0.906-inch		 CCGA483-23mm
702248 [C7-EJECT-483-F] 29mm 22x22 1.27mm ___mm
___inch		 CCGA483-29mm
702258 C7-EJECT-624-A 32.5mm 25x25 1.27mm 32.51mm
1.280-inch		 CCGA624
702271 C7-EJECT-625-A 29mm 25x25 1.0mm ___mm
___-inch		 CCGA625
702260 C7-EJECT-672-A 35mm 26x26 1.27mm 33.02mm
1.300-inch		 CCGA672
702261 C7-EJECT-717-A 35mm 27x27 1.27mm 33.02mm
1.30-inch		 CCGA717
702265 C7-EJECT-896-A 31mm 30x30 1.0mm 30.48mm
1.200-inch		 CCGA896
702268 C7-EJECT-896-B 31mm 30x30 1.0mm 29.82mm
1.174-inch		 FF-CG896
702273 C7-EJECT-1088-A 42.5mm 33x33 1.27mm ___mm
___inch		 CCGA1088
702269 C7-EJECT-1140-A 35mm 34x34 1.0mm 34.54mm
1.360-inch		 CCGA1140
702270 C7-EJECT-1144-A 35mm 34x34 1.0mm 34.54mm
1.360-inch		 CCGA1144
702272 C7-EJECT-1148-B 35mm 34x34 1.0mm 34.54mm
1.360-inch		 FF-CG1148
702275 C7-EJECT-1152-A 35mm 34x34 1.0mm 34.54mm
1.360-inch		 CCGA1152
702276 C7-EJECT-1152-B 35mm 34x34 1.0mm 34.04mm
1.340-inch		 FF-CG1152
702277 C7-EJECT-1156-A 35mm 34x34 1.0mm ___mm
1___inch		 FF-CG1156
702280 C7-EJECT-1272-A 37.5mm 36x36 1.0mm 34.54mm
1.360-inch		 CCGA1272
702281 C7-EJECT-1295-A 37.5mm 36x36 1.0mm ____mm
_____-inch		 CCGA1295
702284 C7-EJECT-1509-A 40mm 39x39 1.0mm 38.35mm
1.510-inch		 CCGA1509
702287 C7-EJECT-1657-A 42.5mm 41x41 1.0mm 39.62mm
1.560-inch		 CCGA1657
702288 C7-EJECT-1724-B 42.5mm 42x42 1.0mm 39.62mm
1.560-inch		 FF-CGA724
702289 C7-EJECT-1738-B 42.5mm 42x42 1.0mm 42.5mm
1.673-inch		 FF-CG1738
702290 C7-EJECT-1752-RU 57mm 44x44 1.27mm 57.00mm
2.244-inch		 CCGA1752-RU
702292 C7-EJECT-1752-A 45mm 42x42 1.0mm 41.91mm
1.650-inch		 CCGA1752CN
702293 C7-EJECT-1752-B 42.5mm 42x42 1.0mm 41.91mm
1.650-inch		 FF-CGA1752
702297 C7-EJECT-2104-B 52.5mm 46x46 1.0mm --
--		 FHGB2104
Contact TopLine for Additional Tools

Model Numbering System
    C7     -     PLANAR     -     1152     -     Option
Series   Description   Columns   Variations
Attachment Tool
Series   •   Description
C7 = CCGA tool-set






  Tool Type

NAME • Description
PLANAR = Lapping Tool Holder

Spare Parts
BR = Brass Plate
SHIM = Column Length

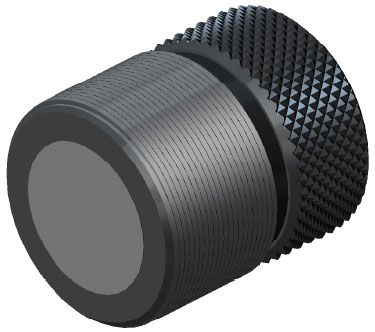

KNOB = Adjustment Knob
TOP = Top Plate

Accessories
EJECT = Extractor tool 		  Columns
Code • Nbr. Pads
143 = 143 pins
360 = 360 pins
484 = 484 pins
624 = 624 pins
717 = 717 pins
896 = 896 pins
1140 = 1140 pins
1144 = 1144 pins
1152 = 1152 pins
1272 = 1272 pins
1657 = 1657 pins
1752 = 1752 pins
2577 = 2577 pins
etc.




   SET
Code • Version
A • Version A
Ceramic CCGA Package

B • Version B
Alternate Pad Package

C • Version C
Custom Package, etc

Other Versions Available


Drawing Number System

    7         00         123
Series Tool Type Version
C7 Tool-set
Code • Description
7 = Planarization Tools
 Tool
Code • Pitch
00 = Lapping Holder
01 = Spare Brass Plate
02 = Eject Tool (Lapping)
03 = Extract Tool (Graphite)


Spare Shim
Shim Thickess   •   Final Column Length
None =       •   63 mil (1.60mm)
10 = 0.010"   •   72 mil (1.82mm)
15 = 0.015"   •   77 mil (1.95mm)
20 = 0.020"   •   83 mil (2.1mm)
25 = 0.025"   •   87 mil (2.21mm)
30 = 0.030"   •   92 mil (2.23mm)
40 = 0.040"   •   100 mil (2.54mm)

Custom shim thickness available.
Formula: Final Column Length = 62 + Shim Thickness
Example: 87 mil column = 62 + 25 Shim Thickness. 		Device
Code • Version
xxx = Specific Tool

Trimming and/or lapping is required for CCGA with Pb90/Sn10 and Pb80/Sn20 copper wrapped solder columns.
Trimming and lapping is not required for MCS Micro-coil Springs.

LAPPING AND POLISHING WHEEL
Also known as Faceting Machine
Size: 8-inch (Ø200mm) diameter.
Settings: Rotating Speed 150 RPM.
Coarse lapping with Silicon Carbide 240 Grit Paper (53um particle)
Finish polishing with 15um diamond lapping plastic film.
Above are suggested instructions. Actual results might vary.



ECCN: EAR99 Export Administration Regulations (EAR)
HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.
