C7-WEIGHT - Covers Top Graphite during reflow

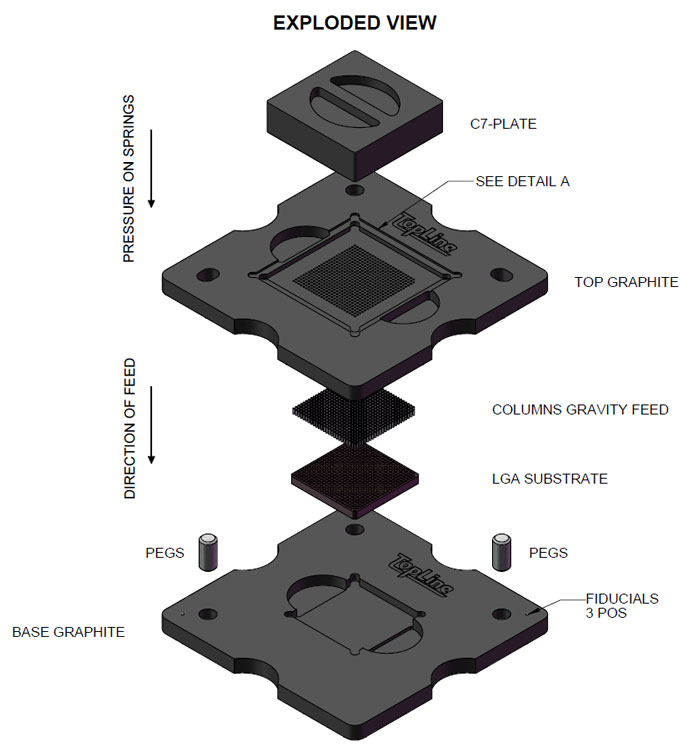

Optional weight for constraining Micro-Coil Springs and columns inside the top C7-GRAPHITE during reflow. Prevents light weight columns and springs from jettisoning due to flux outgassing. Simply place the C7-WEIGHT on top of the C7-GRAPHITE. After completing the reflow procedure, the C7-WEIGHT is removed and set aside. May be re-used repeatedly.

C7-WEIGHT-A

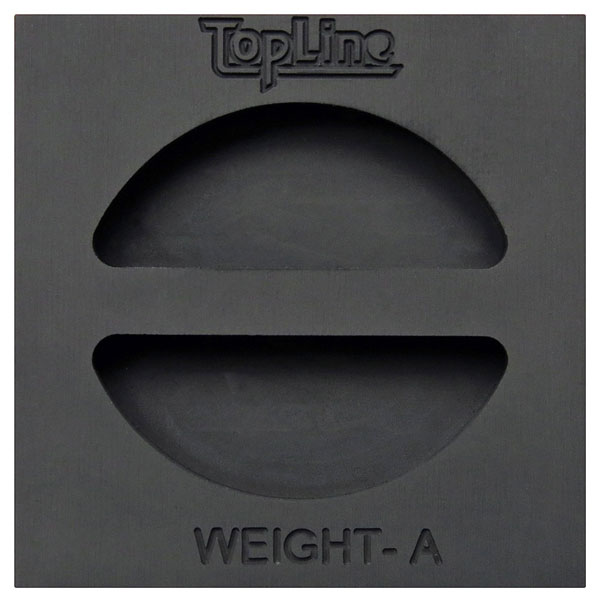

Photo 1   •   2

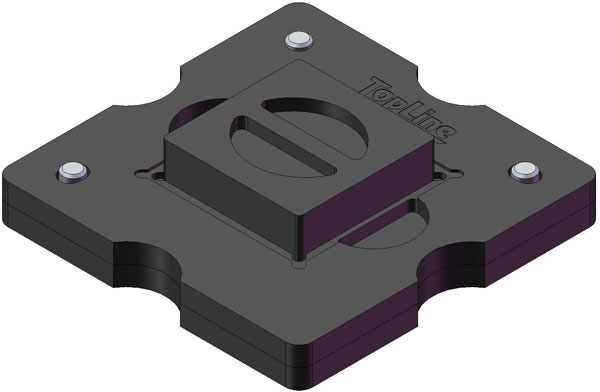

Weight Placed On Graphite
360° Model
WEIGHT TOOL
Covers Top Graphite During Reflow
DWG Number Model Number CCGA
Size		 Matrix
Row x Col		 Pitch WEIGHT SIZE 3D Model
700150 C7-WEIGHT-A Up to 45mm All All 44.5mm x 44.5mm x 12.7mm
1.75" x 1.75" x 0.50"		 360° Model
700175 C7-WEIGHT-B Up to 45mm All All 44.5mm x 44.5mm x 6.35mm
1.75" x 1.75" x 0.25"		 360° Model
700160 C7-WEIGHT-C Up to 57mm All All 59mm x 59mm x 12.7mm
2.33" x 2.33" x 0.50"		 360° Model
700170 C7-WEIGHT-D CG376 28mm 20x20
11x11		 1.27mm
1.0mm		 44.5mm x 44.5mm x 12.7mm
1.75" x 1.75" x 0.50"		 360° Model
Contact TopLine for Additional Tools



Model Numbering System
    C7     -     WEIGHT     -     A
Series   Description   Variations
Attachment Tool
Series   •   Description
C7 = CCGA tool-set






  Tool Type

NAME • Description
WEIGHT = Covers Graphite		   SET
Code • Version
A • Version A
44.5mm SQ x 12.7mm Thick

B • Version B
44.5mm SQ x 6.35mm Thick

C • Version C
59mm SQ x 12.7mm Thick

D • Version D
44.5mm SQ x 12.7mm Thick
For CG376

Other Versions Available


Drawing Number System

    7         00         150
Series Tool Type Version
C7 Tool-set
Code • Description
7 = Tools
 Tool
Code • Description
00 = Accessory Tool 		Device
Code • Version
150 = 44.5mm SQ x 12.7mm Thick
160 = 59.0mm SQ x 12.7mm Thick
170 = 44.5mm SQ x 12.7mm Thick
175 = 44.5mm SQ x 6.35mm Thick




ECCN: EAR99 Export Administration Regulations (EAR)
HS Code: 8542.90.0000 ELECTRONIC INTEGRATED CIRCUITS AND MICROASSEMBLY PARTS
ITAR: Micro-coil springs and dummy daisy chain CCGA are not restricted.
