Zero Ohm Jumper
Embedded Resistor
inside PCB

Go to-->  Chip Menu   eWLP Embedded Die Daisy Chain



Cu Terminations
Zero Ohm Jumper
Embedded Resistor

Rotatable 360°
Solidworks Model
Cu Terminations
Zero Ohm Jumper
Embedded Resistor

Applications:

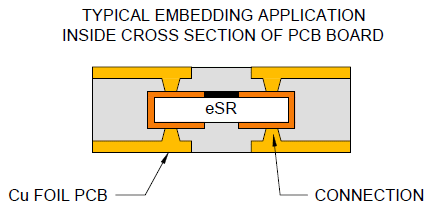

  • Embed inside PCB layers
  • Daisy Chain scout runs
  • Low cost practice parts
    •
  • Combine with eWLP Si die hybrid simulation
  • Cu to Cu continuity after PCB build up
  • Height 150um for uniform easy build up
  • Cu plating thickness 7µm~13µm
    •

    Embedded Resistor  • Pb-Free  • RoHS  • Cu Terminations • Halogen Free
    Size
    		 Size
    (metric)    		 Ohm Tape Order Number
    7" Reel    		 Order Number
    4" Reel
    01005 0402
    0.4 x 0.2mm    		 < 50mΩ 8mm - Paper
    Pitch 2mm    		 eSR01005P7A-ZERO-CU
    20,000pcs

    eSR01005P7B-ZERO-CU
    5,000pcs    		 eSR01005P4A-ZERO-CU
    1,000pcs
    0201 0603
    0.6 x 0.3mm    		 < 50mΩ 8mm - Paper
    Pitch 2mm    		 eSR0201P7A-ZERO-CU
    15,000pcs

    eSR0201P7B-ZERO-CU
    5,000pcs    		 eSR0201P4A-ZERO-CU
    1,000pcs
    0402 1005
    1.0 x 0.5mm    		 < 50mΩ 8mm - Paper
    Pitch 2mm    		 eSR0402P7A-ZERO-CU
    10,000pcs

    eSR0402P7B-ZERO-CU
    5,000pcs    		 eSR0402P4A-ZERO-CU
    1,000pcs

    Download Solidworks® e-Drawings software to view rotatable:    PC Version  •  Mac Version
