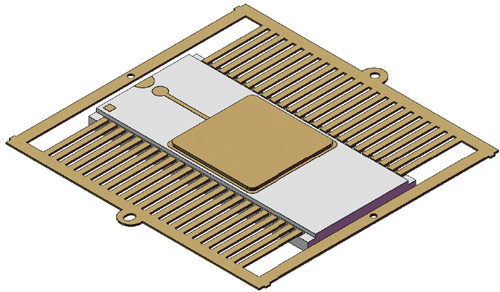

FP48F50R.64x1.31T
Flat Pack FP 48L
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

 Quick Specs:
Pin Count 48L
Pitch 50 mil - 0.050" (1.27mm)
Body Size 0.64" x 1.31" (16.2 x 33.2mm)
Bottom Braze flat lead with tie-bar
Standard Packaging bulk tray

Use and Applications:
IPC Solder Training Certification
Practice Lead Form and Trim
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Typical Part Numbers with Tie-Bar:
FP48F50R.64x1.31T = Gold Leads. With Lid
FP48F50R.64x1.31T-SC = Solder Dip. With Lid
FP48F50R.64x1.31T-N = Gold Leads. Without Lid
FP48F50R.64x1.31T-DE = Daisy Chain. Gold Leads
FP48F50R.64x1.31T-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
FP 48 F 50 R .64x1.31 T - DE
Series Nbr Pins Lead
Info		 Pitch
Mils		 Body
Shape		 Body Size
Inch		 Braze - Options
Flat Pack
Dual Sides		 48 = 48 Leads Flat Leads
With Tie-bar
Bulk Packed
in tray		 50 Mils
0.050-inch
1.27mm		 Rectangular 0.64"x1.31"
16.2x33.2mm		 Top   -N=Without lid
-DE=Daisy Chain
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Applications: solder training, lead forming and triming practice.


Daisy Chain Option -DE
