LCC
Leadless
CERAMIC Chip Carrier

Non-Magnetic • Oscillator • Combo Lid Design Rules

LCC - Leadless Chip Carrier

Number Leads	Body Size Inch	Body Size Metric	Lead Pitch Inch	Lead Pitch Metric	Open Cavity for Die Bonding With Bonding Wire	Standard Dummy Part Number	Daisy Chain Part Number	360°Solidworks Rotatable Model
3	0.12" x 0.10" CERSOT23	3.05mm x 2.54mm UB Type	0.075"	1.90mm	LCC3R.12X.10-N Without Corner Grounding Pad Model	LCC3R.12X.10 Without Corner Grounding Pad	LCC3R.12X.10-DC123 Without Corner Grounding Pad	Model
3	0.12" x 0.10" CERSOT23	3.05mm x 2.54mm UB Type	0.075"	1.90mm	LCC3R.12X.10R-N Seal Ring Grounded to Corner Pad Model	LCC3R.12X.10R Seal Ring Grounded to Corner Pad	LCC3R.12X.10R-DC123 Seal Ring Grounded to Corner Pad	Model
4	0.15" x 0.22" UA Type	3.8mm x 5.6mm UA Type	0.050"	1.27mm	LCC4B50R.15X.22-N90x140A Model LCC4B50R.15X.22-N90x140B Model	LCC4B50R.15X.22	LCC4B50R.15X.22-DE	Model
6	0.17" x 0.245" U Type	4.32mm x 6.22mm U Type	0.050"	1.27mm	LCC6B50R.17X.25-N100x175A Model	LCC6B50R.17X.25	LCC6B50R.17X.25-DE	Model
8	0.17" x 0.245"	4.32mm x 6.22mm	0.050"	1.27mm	LCC8B50R.17X.25-N100x175 Model	LCC8B50R.17X.25	LCC8B50R.17X.25-DE	Model
16	0.28" x 0.35"	7.1mm x 8.9mm	0.050"	1.27mm	LCC16B50R.28X.35-N175x240 Model	LCC16B50R.28X.35	LCC16B50R.28X.35-DE	Model
18	0.28" x 0.35"	7.1mm x 8.9mm	0.050"	1.27mm	LCC18B50R.28X.35-N170x240 Model	LCC18B50R.28X.35	LCC18B50R.28X.35-DE	Model
20	0.35" SQ.	8.9mm SQ.	0.050"	1.27mm	LCC20B50SQ.35-N160 Model	LCC20B50SQ.35	LCC20B50SQ.35-DE	Model

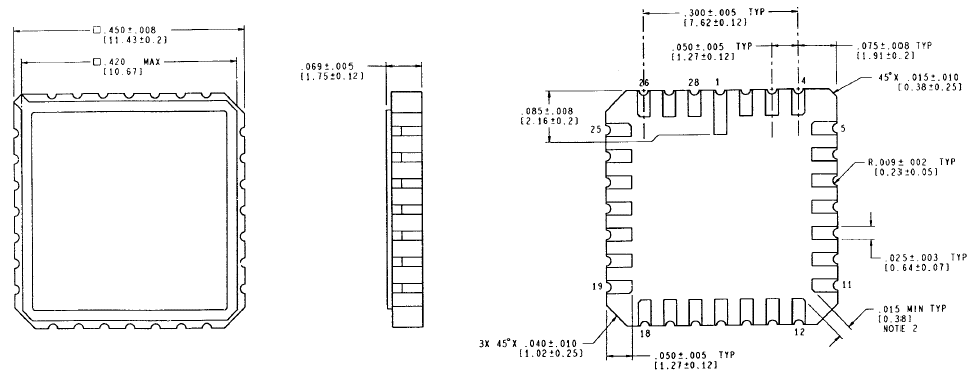

28	0.45" SQ.	11.4mm SQ.	0.050"	1.27mm	LCC28B50SQ.45-N290 Model	LCC28B50SQ.45	LCC28B50SQ.45-DE	Model

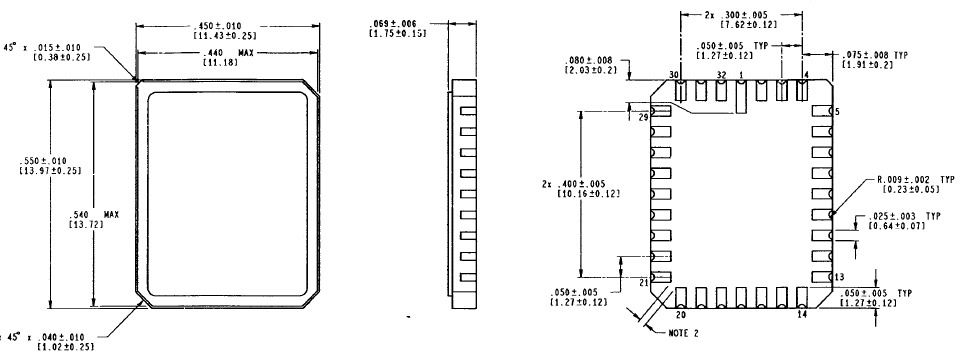

32	0.45" x 0.55"	12.4 x 14mm	0.050"	1.27mm	LCC32B50R.45x.55-N	LCC32B50R.45x.55	LCC32B50R.45x.55-DE	Model
40	0.48" SQ.	12.2mm SQ	0.040"	1.016mm	LCC40B40SQ.48-N300 Model	LCC40B40SQ.48	LCC40B40SQ.48-DE	Model

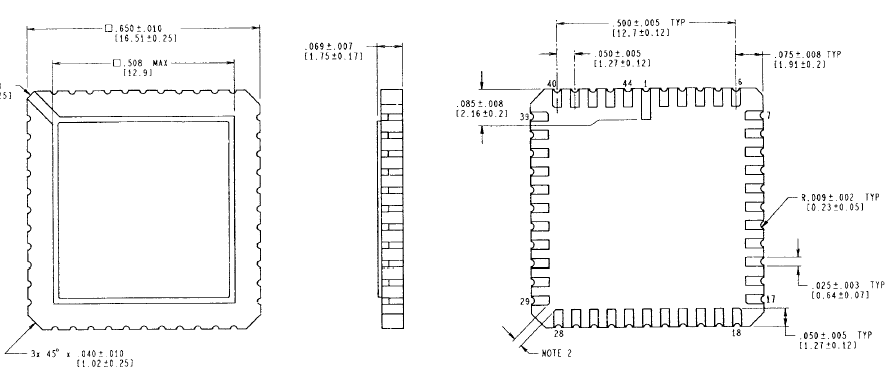

44	0.65" SQ.	16.5mm SQ	0.050"	1.27mm	LCC44B50SQ.65-N474 Model	LCC44B50SQ.65	LCC44B50SQ.65-DE	Model
48	0.56" SQ.	14.2mm SQ	0.040"	1.016mm	LCC48B40SQ.56-N350 Model LCC48B40SQ.56-N418-BARE Model	LCC48B40SQ.56	LCC48B40SQ.56-DE	Model
52	0.75" SQ.	19mm SQ	0.050"	1.27mm	LCC52B50SQ.75-N350 Model	LCC52B50SQ.75	LCC52B50SQ.75-DE	Model
64	0.72" SQ.	18.3mm SQ	0.040"	1.016mm	LCC64B40SQ.72-N450 Model	LCC64B50SQ.72	LCC64B40SQ.72-DE	Model

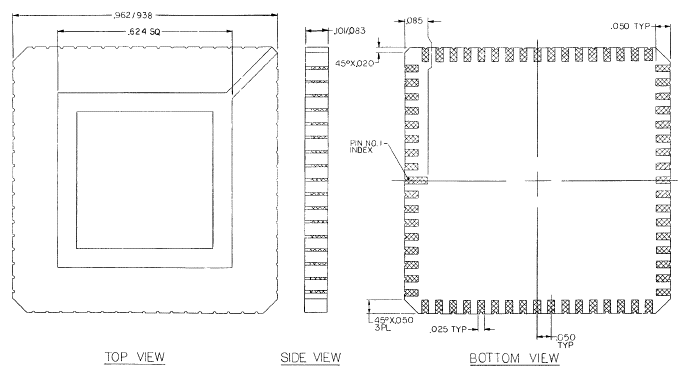

68	0.95" SQ.	24.1mm SQ	0.050"	1.27mm	LCC68B50SQ.95-N297 Model	LCC68B50SQ.95	LCC68B50SQ.95-DE	Model
84	1.15" SQ.	29.2mm SQ	0.050"	1.27mm	LCC84B50SQ1.15-N700 Model	LCC84B50SQ1.15	LCC84B50SQ1.15-DE	Model

Non-Magnetic (Without Nickel)
Number Leads	Body Size Inch	Body Size Metric	Lead Pitch Inch	Lead Pitch Metric	Open Cavity for Die Bonding With Bonding Wire	Die Cavity Size	Die Cavity Floor	360°Solidworks Rotatable Model
20	0.35" SQ.	8.9mm SQ.	0.050"	1.27mm	LCC20B50SQ.35-NM160 Model	0.160" x 0.160" 4.0 x 4.0mm	Gold Without Ni	Model
28	0.45" SQ.	11.4mm SQ.	0.050"	1.27mm	LCC28B50SQ.45-NM290 Model	0.290" x 0.290" 7.3 x 7.3mm	Gold Without Ni	Model
32	0.45" x 0.55"	11.4 x 14.0mm	0.050"	1.27mm	LCC32B50R.45x.55-NM300x350 Model	0.300" x 0.350" 7.6 x 8.9mm	Gold Without Ni	Model
44	0.65" x 0.65"	16.5 x 16.5mm	0.050"	1.27mm	LCC44B50SQ.65-NM474 Model	0.474" x 0.474" 12.0 x 12.0mm	Gold Without Ni	Model
84	1.15" x 1.15"	29.2 x 29.2mm	0.050"	1.27mm	LCC84B50SQ1.15-NM700 Model	0.700" x 0.700" 17.8 x 17.8mm	Gold Without Ni	Model
Note 1: Non-Magnetic packages consist of Non-Ferromagnetic material (Gold and/or Copper without nickel plating).
Note 2: Such materials are diamagnetic, paramagnetic and antiferromagnetic, which does not necessarily mean zero Tesla.

Crystals and Oscillators
Castellations Standard		J-LEAD		GULL WING		DIL-Dual Inline		6-LEADS
Number Leads	Body Size Inch	Body Size Metric	Lead Pitch Inch	Lead Pitch Metric	Open Cavity for Die Bonding Bonding Wire	Standard Dummy Part Number	Daisy Chain Part Number	360°Solidworks Rotatable Model
4	0.196" x 0.126"	5.0mm x 3.2mm	0.20"	5.08mm	LCC4-5x3.2-N	LCC4-5x3.2	LCC4-5x3.2-DC1234	360° Model

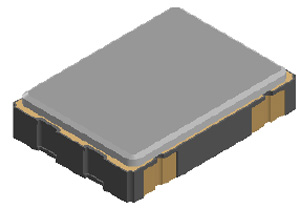

4	0.275" x 0.20"	7.0mm x 5.0mm	0.20"	5.08mm	LCC4-7x5-N	LCC4-7.0x5.0	LCC4-7x5-DC1234	360° Model

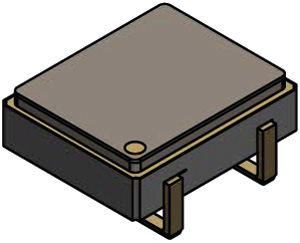

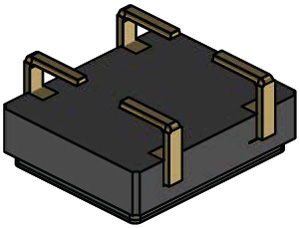

4 J-Lead	0.275" x 0.20"	7.0mm x 5.0mm	0.20"	5.08mm	LCC4-7x5-J-N	LCC4-7x5-J	LCC4-7x5-DC1234-J	360° Model
4 Gull-Wing	0.275" x 0.20"	7.0mm x 5.0mm	0.20"	5.08mm	LCC4-7x5-GULL-N	LCC4-7x5-GULL	LCC4-7x5-DC1234-GULL	360° Model
4 DIL Dual Inline	0.275" x 0.20"	7.0mm x 5.0mm	0.20"	5.08mm	LCC4-7x5-DIL-N	LCC4-7x5-DIL	LCC4-7x5-DC1234-DIL	360° Model
4 J-Formed	0.275" x 0.35"	7.0mm x 9.0mm	0.20"	5.08mm	LCC4-7x9-JF-N	LCC4-7x9-JF	LCC4-7x9-DC1234-JF	360° Model
6	0.20" x 0.126"	5.0mm x 3.2mm	0.050"	1.27mm	LCC6-5x3.2-N	LCC6-5x3.2	LCC6-5x3.2-DC1346	360° Model
Contact TopLine for other types of ceramic Crystal and Oscillator packages with daisy chain available.

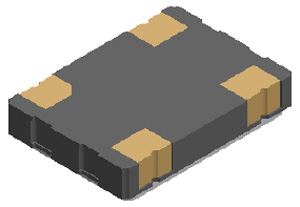

Bottom View of Castellations	Open Cavity (Option -N)

Optional Features. Add Suffix Below to end of Part Number
Option	Code
Standard Dummy For solder practice	Blank
Without Lid For die bonding	-N
Daisy Chain For continuity testing	-DE
Gold	Blank
Solder Dip	-SC
Gold (Au) castellations 60µ inches (min) over 50~350µ inches nickel (Ni). For Solder Coated Leads, add -SC to end of part number. Ceramic Body AL₃O₃

Material Properties • CTE - Coefficient of Thermal Expansion
Material	CTE
Ceramic Package Alumima Al₂O₃	6.7ppm/°C
Solder Pads: Ni 4.0um Thick Au 1.0um Thick	13ppm/°C 14ppm/°C
Bonding Wire: Au Ø1.0um	14ppm/°C
Lid/Cover: Kovar 0.10~.38mm Thick Ni 4.0um Thick	5.9ppm/°C 13ppm/°C
Optional Die: Si 400~600um Thick	2.6ppm/°C
