CERQUAD and CQFP
Flat & Gull-Wing Leads


BUS Circuit   •   Daisy Chain   •   Combo Lid Design Rules
CERQUAD
Flat Leads		 CERQUAD
Gull Wing		 Open Cavity
Add your die.		 J-Leads
Go To CLCC

Nbr
Leads		 Pitch
mil		 Pitch
mm		 Body
Size		 Lead
Style		 Body
Mat'l		 Order Number
See Options
Below		 360° Rotatable
Solidworks
Model
24 50 mil 1.27mm 9.6mm
0.38" SQ		 Flat Ceramic CERQUAD24C50-SC 360° Model •  Photo
24 50 mil 1.27mm 10.2mm
0.40" SQ		 Flat Ceramic CERQUAD24F50 -
28 50 mil 1.27mm 11.4mm
0.45" SQ		 Flat Ceramic CERQUAD28F50 360° Model
32 40 mil 1.0mm 10.6mm
0.42" SQ		 Flat Ceramic CERQUAD32F40B -

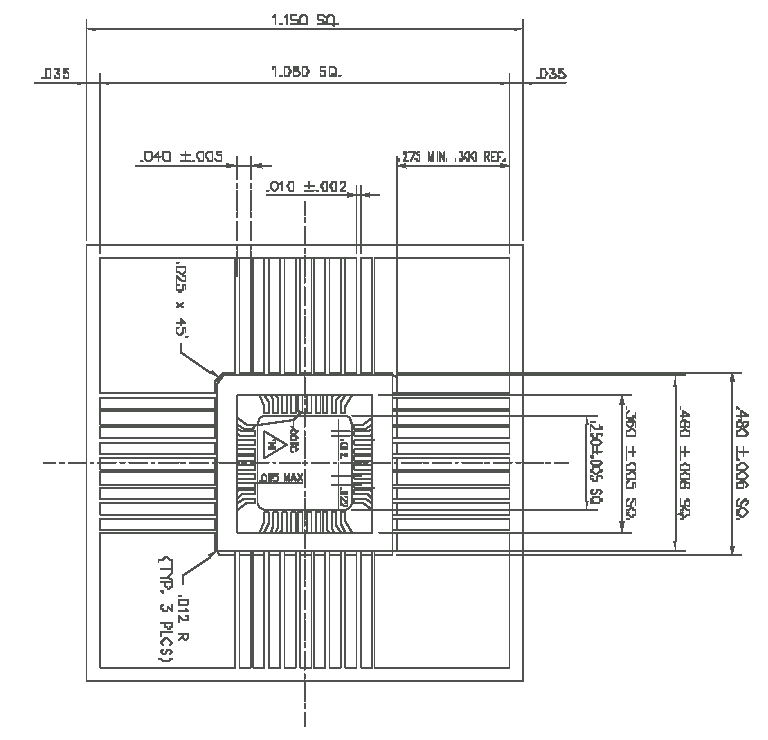

40 40 mil 1.0mm 12.2mm
0.48" SQ		 Flat Ceramic CERQUAD40F40 -
44 31.5 mil 0.8mm 10mm
0.394" SQ		 Gull Ceramic CERQUAD44G30-N220 360° Model

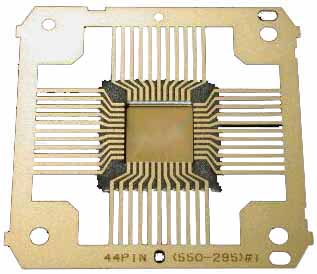

44 40 mil 1.0mm 14mm
0.551" SQ		 Flat Ceramic CERQUAD44F40 -
44 40 mil 1.0mm 14mm
0.551" SQ		 Gull Ceramic CERQUAD44G40 -
44 50 mils 1.27mm 16.5mm
0.65" SQ		 Flat Ceramic CERQUAD44F50T 360° Model
48 50 mil 1.27mm 19.05mm
0.75" SQ		 Flat Ceramic CERQUAD48F50T -
52 40 mil 1.0mm 15.7mm
0.62" SQ		 Flat Ceramic CERQUAD52F40 -
52 50 mils 1.27mm 19mm
0.75" SQ		 Flat Ceramic CERQUAD52F50 -
52 50 mils 1.27mm 24.1mm
0.95" SQ		 Flat Ceramic CERQUAD52F50T.95 360° Model
56 50 mils 1.27mm 20.3mm
0.80" SQ		 Flat Ceramic CERQUAD56F50 -

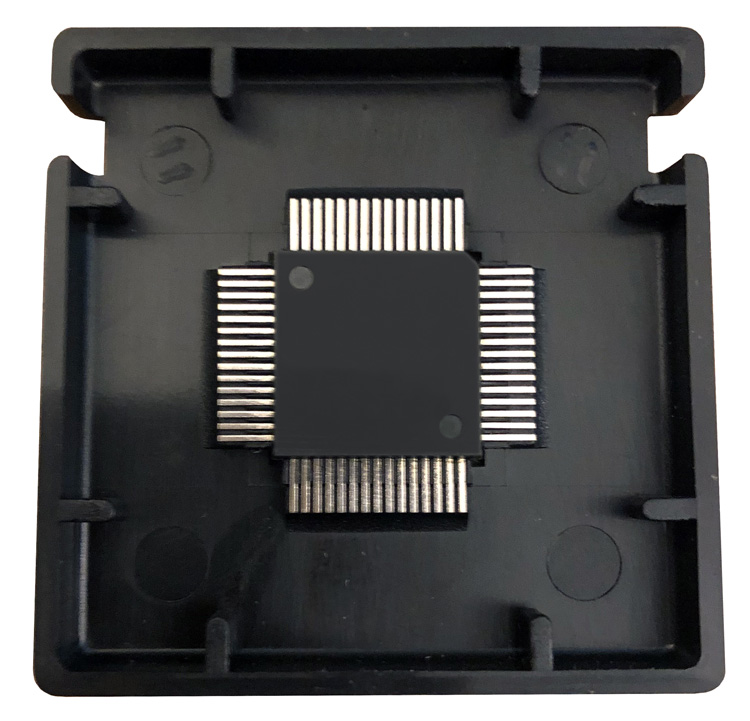

60 30 mil 0.8mm 14mm
0.551" SQ		 Flat Plastic CERQUAD60C30S-SC
Flat Leads - Side/Sandwich		 360° Model   •   Photo
64 19.7 mil 0.5mm 11mm
0.429" SQ		 Flat Ceramic CERQUAD64F19.7B-HS-N228
Flat Leads
On Tiebar
Open Cavity 5.6mm		 360° Model
64 19.7 mil 0.5mm 11mm
0.429" SQ		 Flat Ceramic CERQUAD64F19.7B-HS-DE
Flat Leads
On Tiebar
Daisy Chain Optional		 360° Model
64 19.7 mil 0.5mm 10mm
0.394" SQ		 Gull Ceramic CERQUAD64G19.7-2.4
Gull Wing Trimmed
Without Tiebar		 360° Model
64 31.5 mil 0.8mm 14mm
0.551" SQ		 Flat Ceramic CERQUAD64F30 -
64 31.5 mil 0.8mm 14mm
0.551" SQ		 Gull Ceramic CERQUAD64G30 -
64 40 mil 1.0mm 14mm x 20mm
0.551"x0.787"		 Gull Ceramic CERQUAD64G40 -
64 50 mil 1.27mm 22.86mm
0.90" SQ		 Flat Ceramic CERQUAD64F50 360° Model

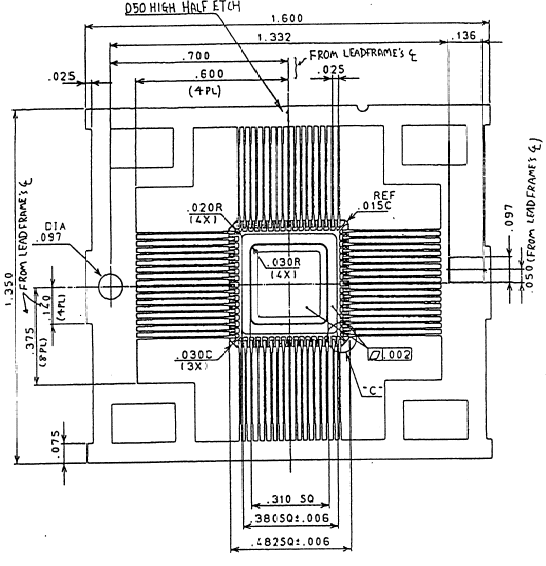

68 25 mil 0.635mm 12.2mm
0.482" SQ		 Flat Ceramic CERQUAD68F25 -
68 25 mil 0.635mm 14.0mm
0.55" SQ		 Flat Ceramic CERQUAD68F25-N300 360° Model
68 50 mil 1.27mm 22.1mm
0.872" SQ		 Flat Ceramic CERQUAD68F50U -

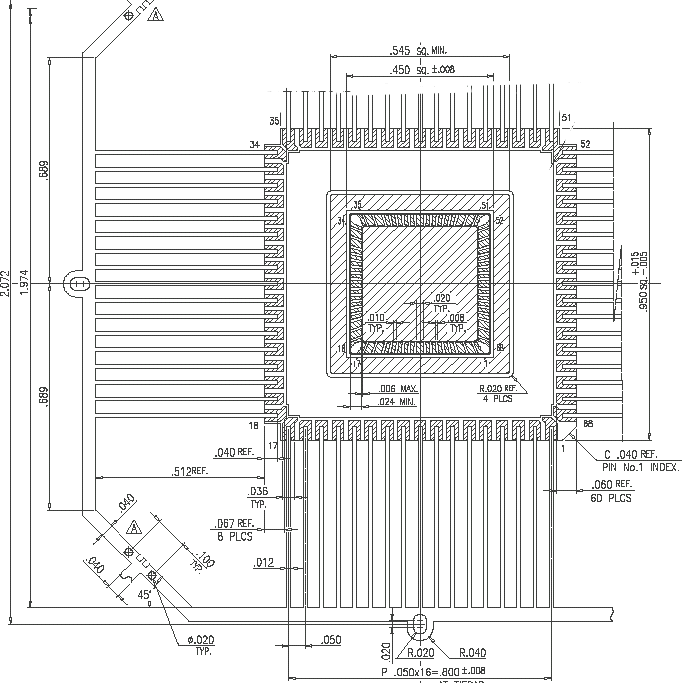

68 50 mil 1.27mm 24.1mm
0.95" SQ		 Flat Ceramic CERQUAD68F50 -

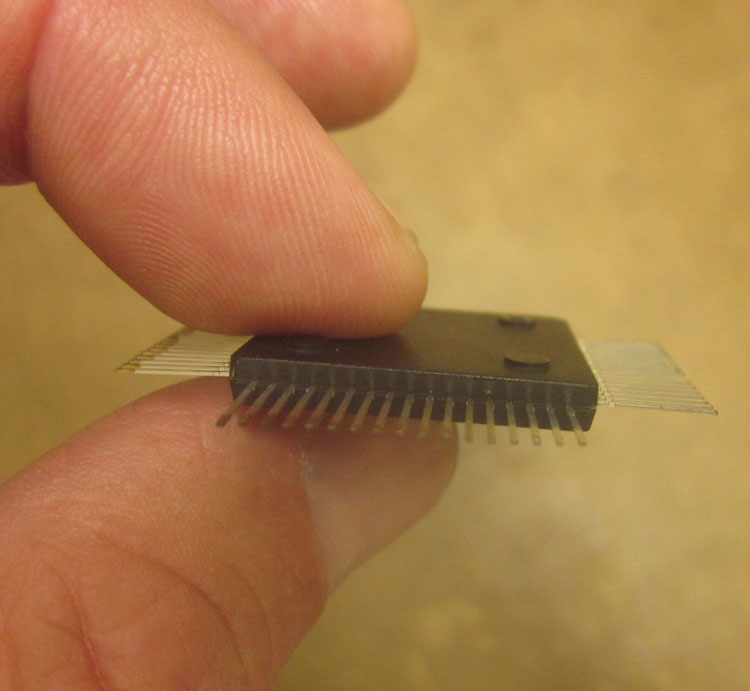

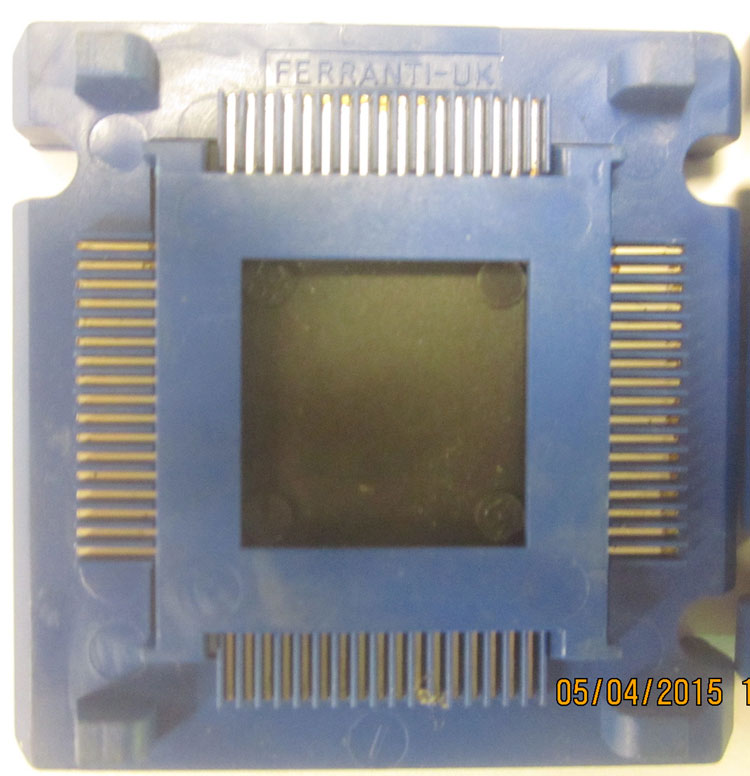

68 50 mil 1.27mm 24.1mm
0.95" SQ		 Flat Plastic PQUAD68C50S-SC Photo 1   •   Photo 2
76 50 mils 1.27mm 26.7mm
1.05" SQ		 Flat Ceramic CERQUAD76F50 -
80 25.6 mil 0.65mm 14mm
0.551" SQ		 Gull Ceramic CERQUAD80G25 -
80 31.5 mil 0.8mm 14mm X 20mm
0.551"x0.787"		 Gull Ceramic CERQUAD80G30R -

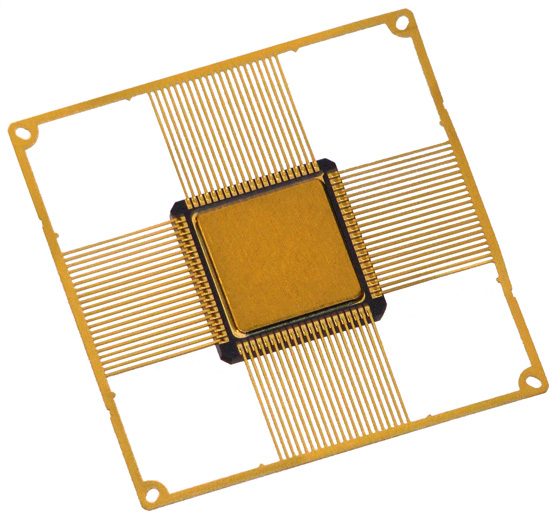

84 25mil 0.635mm 16.5mm
0.65" SQ		 Flat Ceramic CERQUAD84F25 360° Model   •   Photo

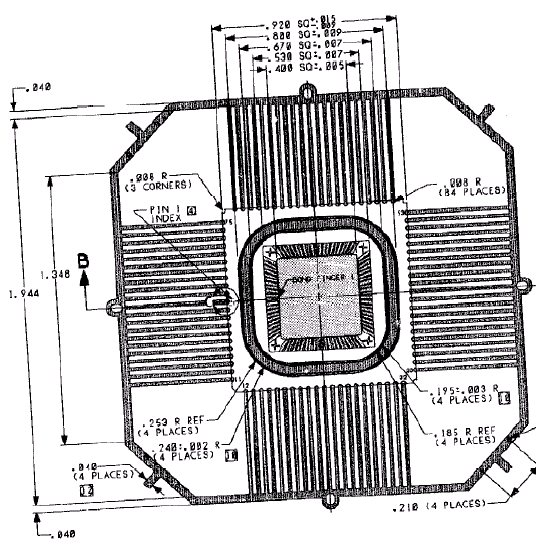

84 40 mil 1.0mm 23.4mm
0.92" SQ		 Flat Ceramic CERQUAD84F40 -

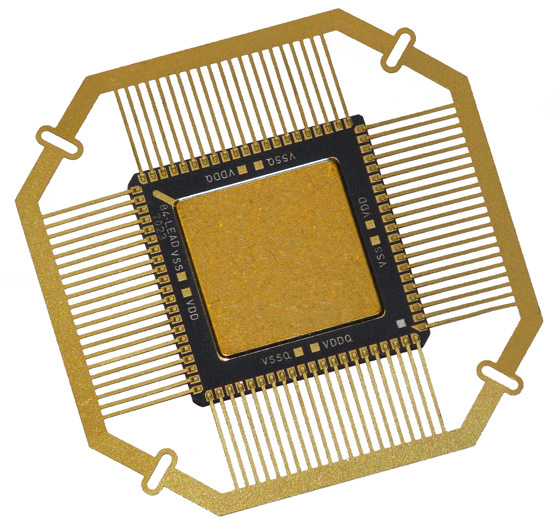

84 50 mil 1.27mm 29.5mm
1.15"SQ		 Flat Ceramic CERQUAD84F50 360° Model  •   Photo
100 19.7 mil 0.5mm 14mm
0.551"		 Gull Ceramic CERQUAD100G19.7SQ -
100 25.6 mil 0.65mm 17mm
0.67"		 Flat Ceramic CERQUAD100F25SQ.67 -

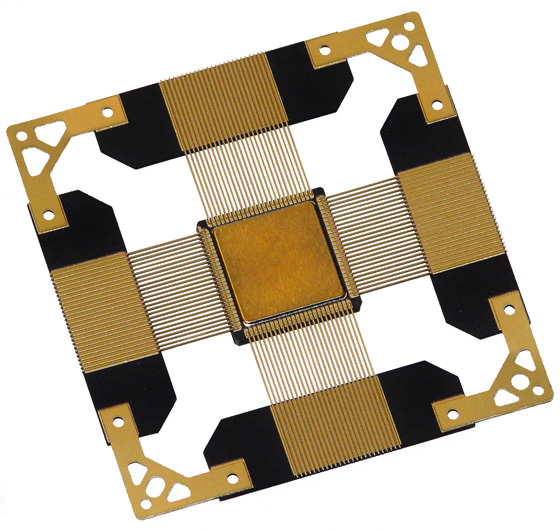

100 25.0 mil 0.635mm 19mm
0.75" SQ		 Flat Ceramic CERQUAD100F25SQ.75 Photo

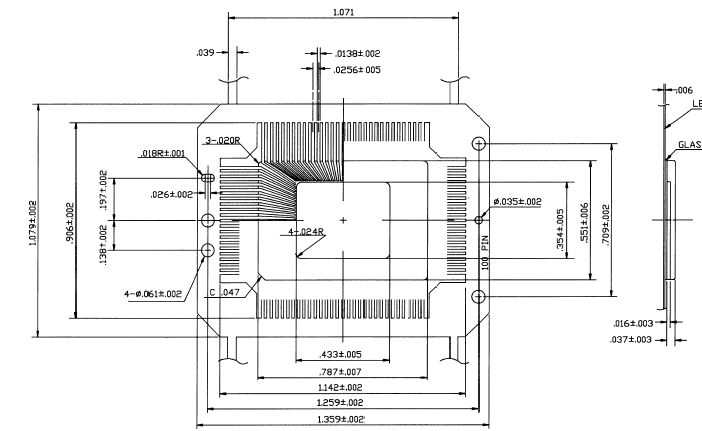

100 25.6 mil 0.65mm 14mm x 20mm
0.551"x0.787"		 Flat Ceramic CERQUAD100F25R -
100 25.6 mil 0.65mm 14mm x 20mm
0.551"x0.787"		 Gull Ceramic CERQUAD100G25R -

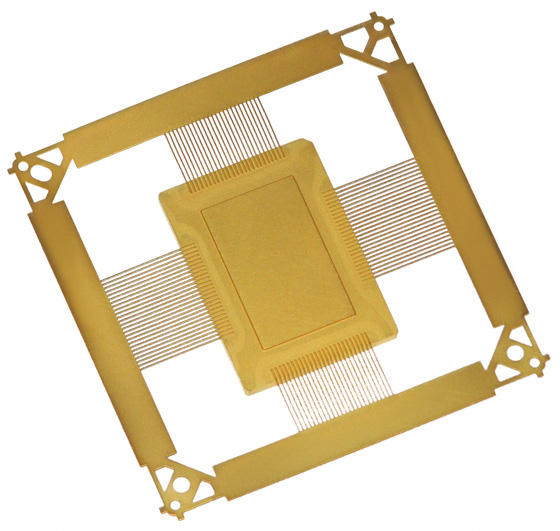

100 25 mil 0.635mm 25x34.3mm
0.985x1.350"		 Flat Alloy 42 CERQUAD100F25A-25x34 360° Model • Photo

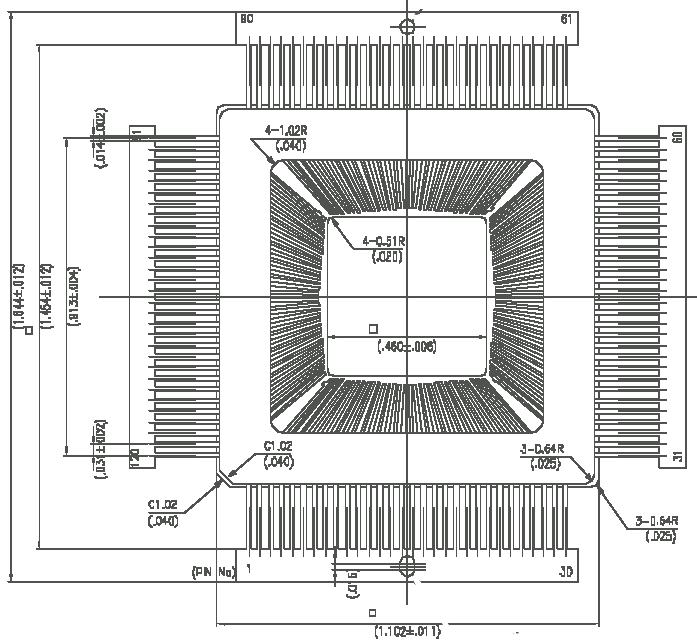

120 31.5 mil 0.8mm 28mm
1.102" SQ		 Gull Ceramic CERQUAD120G30 -

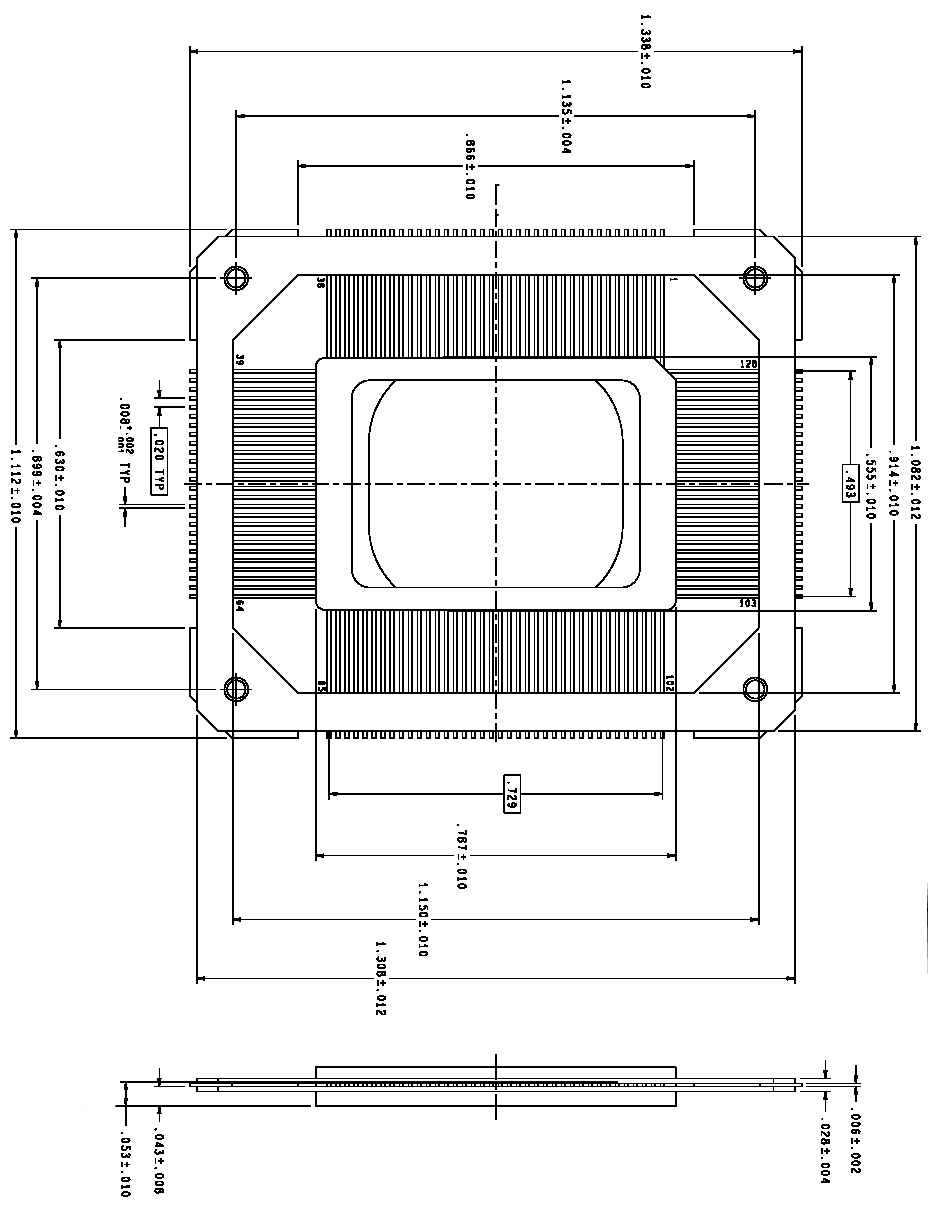

128 19.7 mil 0.5mm 14 X 20mm
0.551"x0.787"		 Gull Ceramic CERQUAD128G19.7 360° Model
128 19.7 mil 0.5mm 14 X 20mm
0.551"x0.787"		 Flat Ceramic CERQUAD128F19.7R -
128 31.5 mil 0.8mm 28mm
1.102" SQ		 Gull Ceramic CERQUAD128G30 -

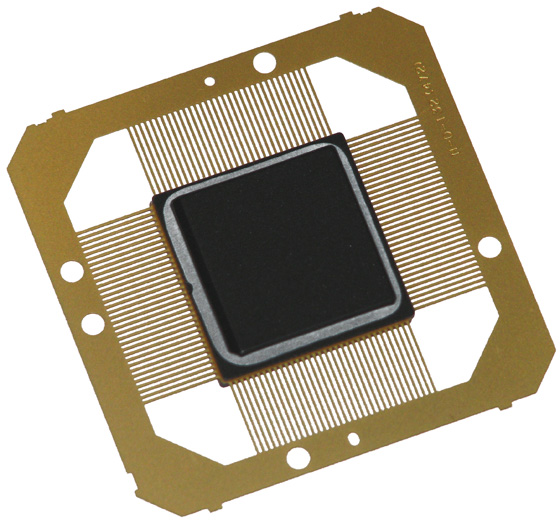

132 25 mil 0.635mm 22.1mm
0.872" SQ		 Flat Ceramic CERQUAD132F25-.87 Photo

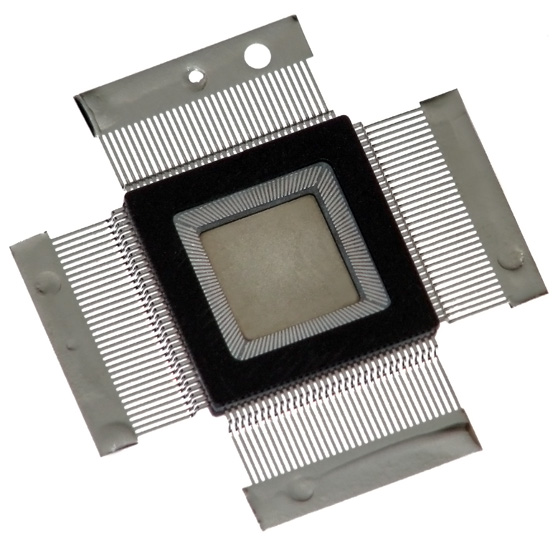

132 25 mil 0.635mm 22.1mm
0.872" SQ		 Gull Ceramic CERQUAD132G25-SC.87 Photo

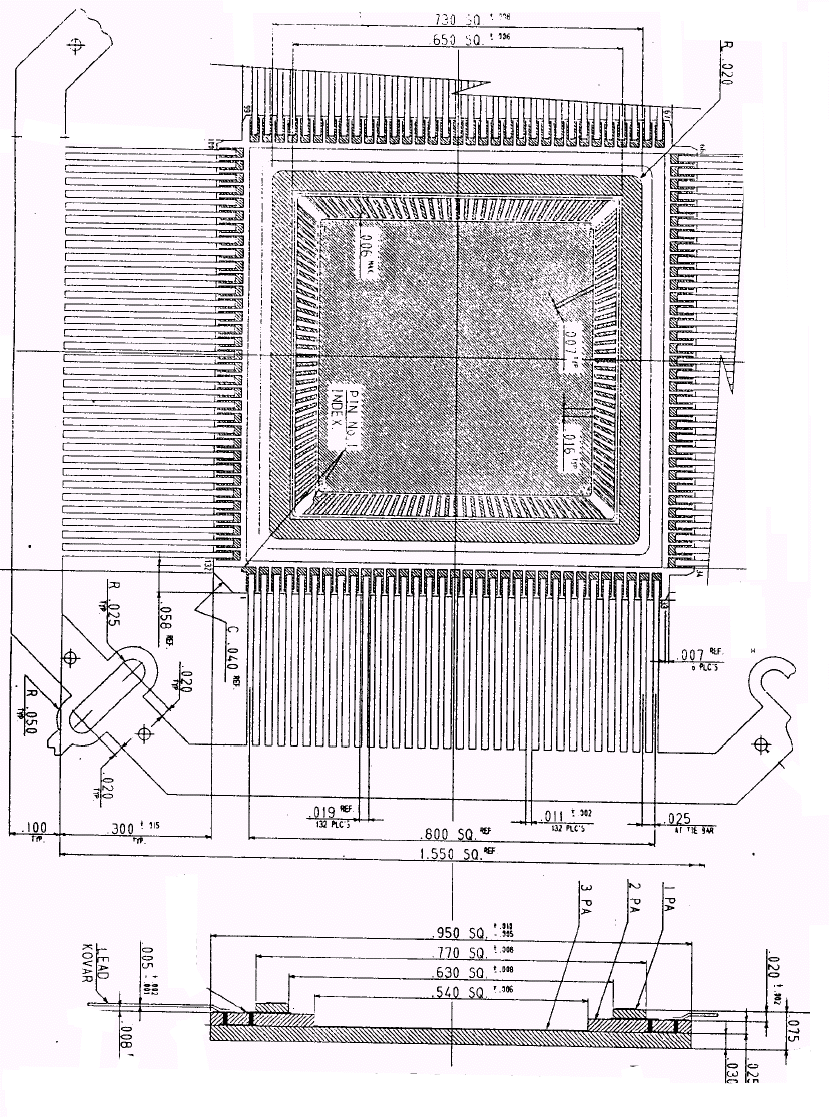

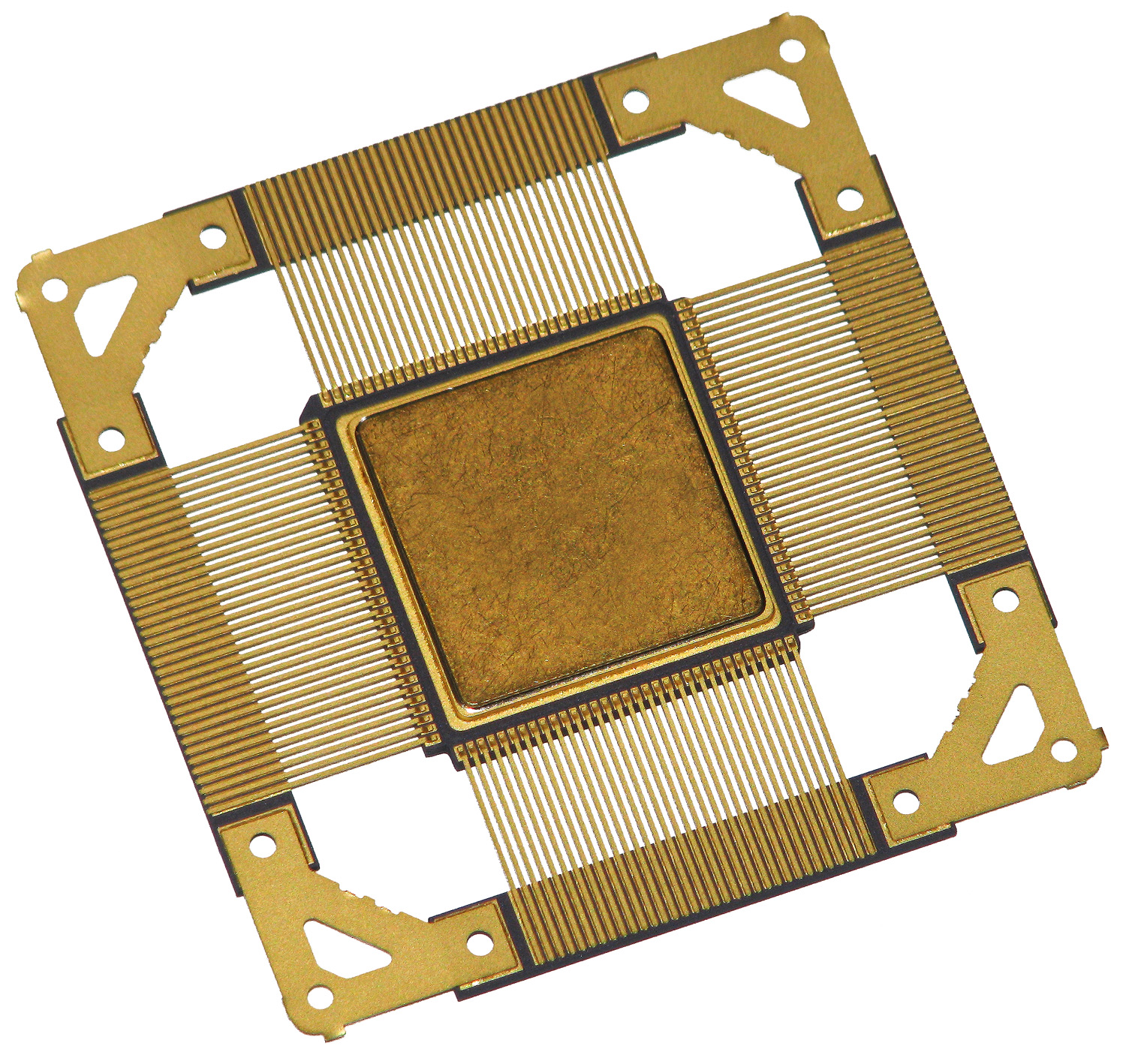

132 25 mil 0.635mm 24.1mm
0.95" SQ		 Flat Ceramic CERQUAD132F25 Photo: Large  •  Standard
132 25 mil 0.635mm 24.1mm
0.95" SQ		 Flat Alloy 42 CERQUAD132F25A 360° Model
132 25 mil 0.635mm 24.1mm
0.95" SQ		 Gull Ceramic CERQUAD132G25 -
132 40 mil 1.0mm 36.8
1.45" SQ		 Flat Ceramic CERQUAD132F40 -
144 19.7 mil 0.5mm 19.2mm
0.756" SQ		 Gull Ceramic CERQUAD144G19.7 -

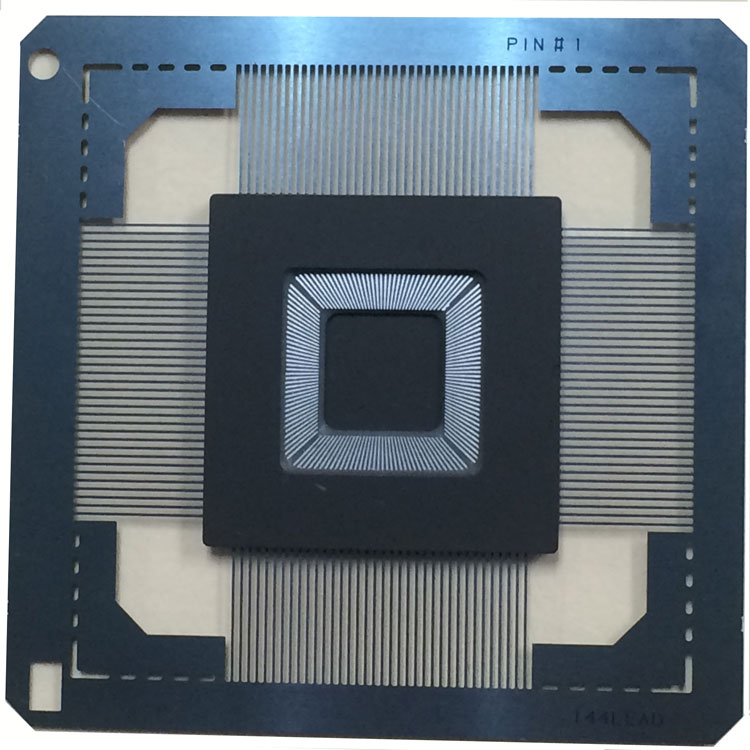

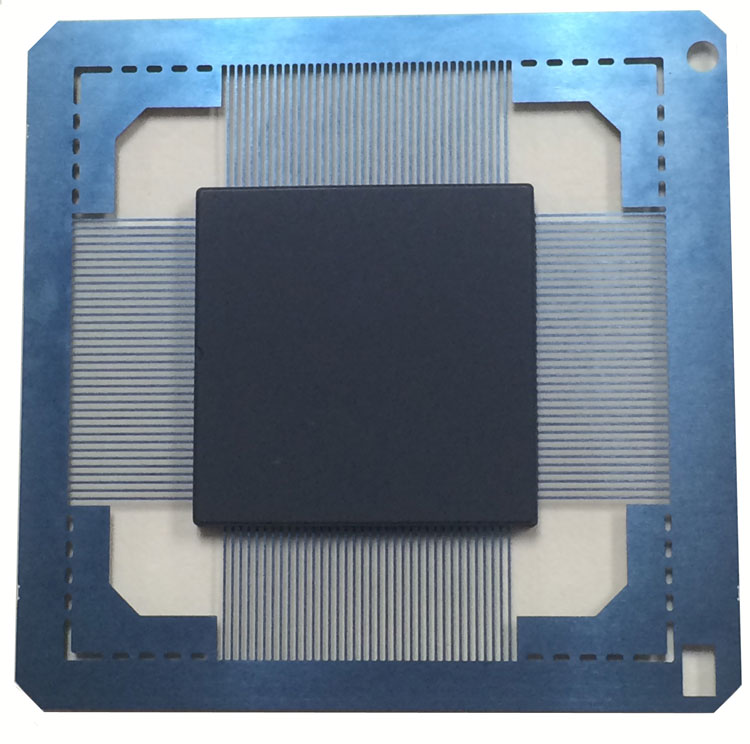

144 25.6 mil 0.65mm 27.2mm
1.07" SQ		 Flat
Unplated
Kovar		 Ceramic CERQUAD144F25-U 360° Model

Photo: Bottom   •   Top
144 25.6 mil 0.65mm 28mm
1.102" SQ		 Flat Ceramic CERQUAD144F25 -
144 25.6 mil 0.65mm 28mm
1.102" SQ		 Gull Ceramic CERQUAD144G25 360° Model

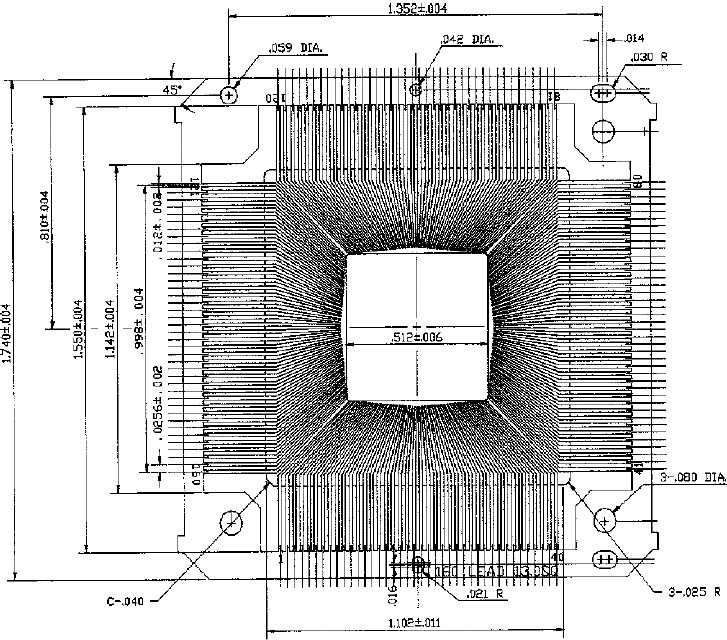

160 25.6 mil 0.65mm 28mm
1.102" SQ		 Flat Ceramic CERQUAD160F25 -

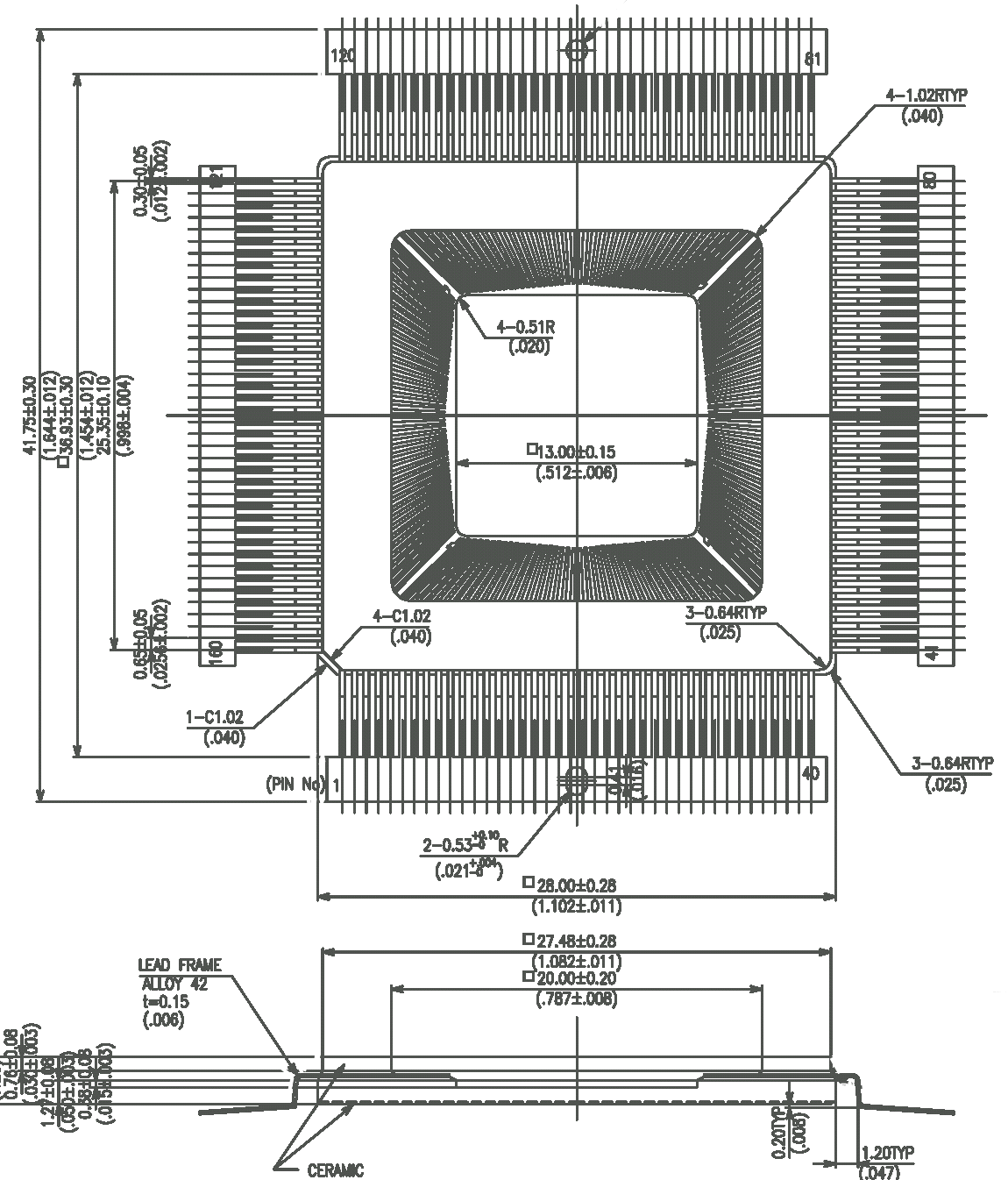

160 25.6 mil 0.65mm 28mm
1.102" SQ		 Gull Ceramic CERQUAD160G25 -
164 25 mil 0.635mm 28.7mm
1.13" SQ		 Flat Ceramic CERQUAD164F25 360° Model

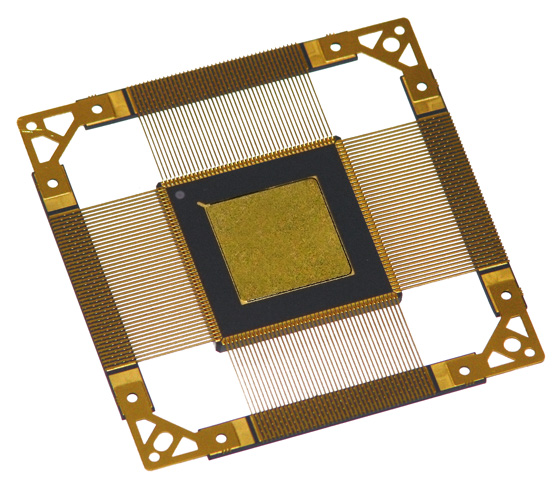

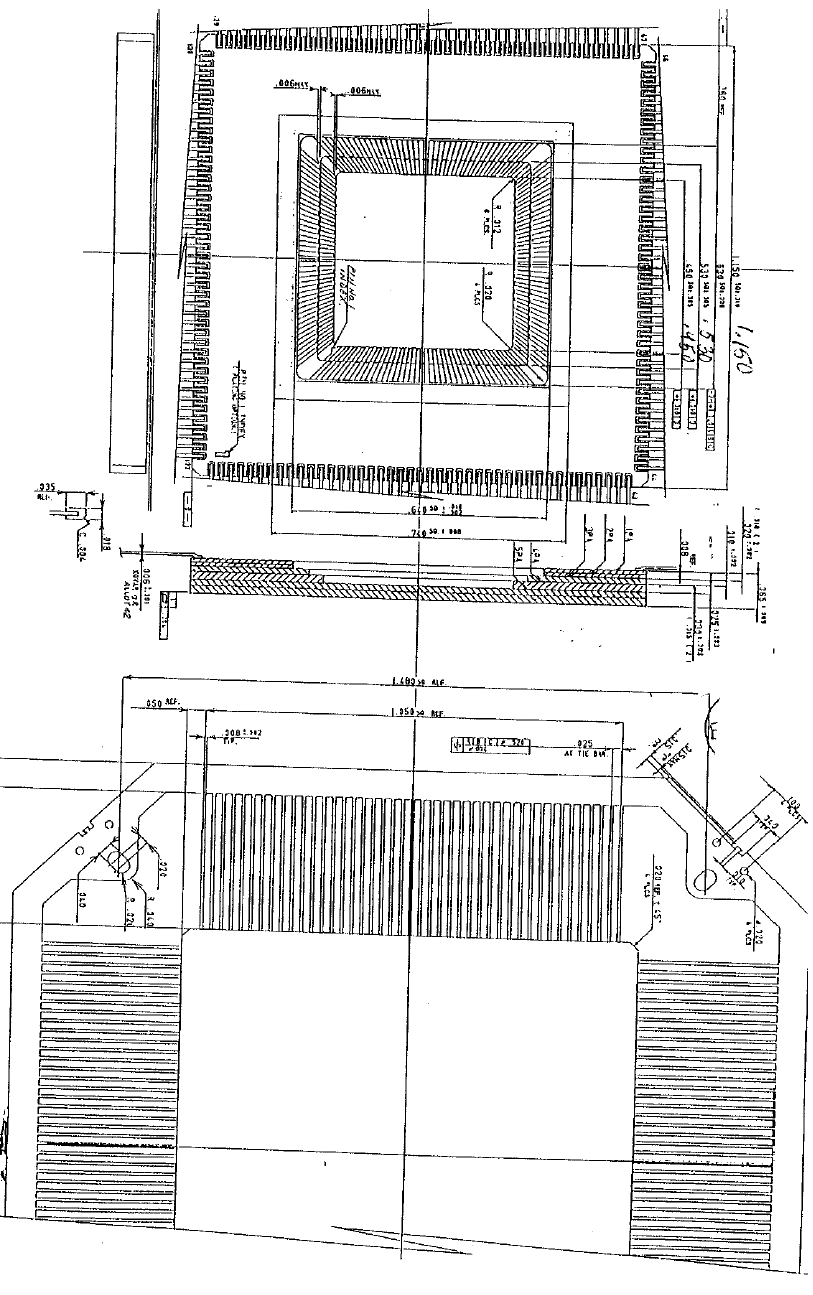

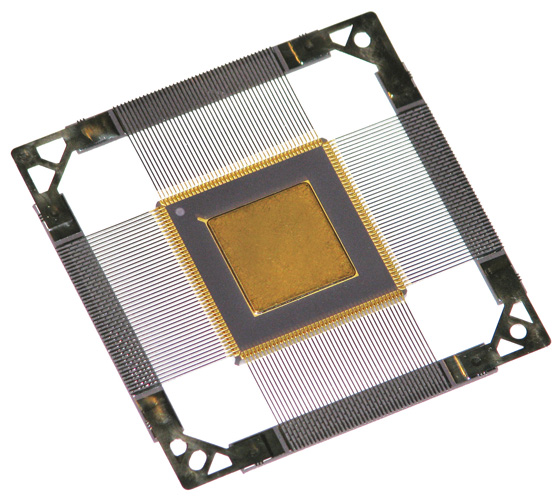

172 25 mil 0.635mm 29.2mm
1.15" SQ		 Flat Ceramic CERQUAD172F25 Photo: Solder  •   Gold

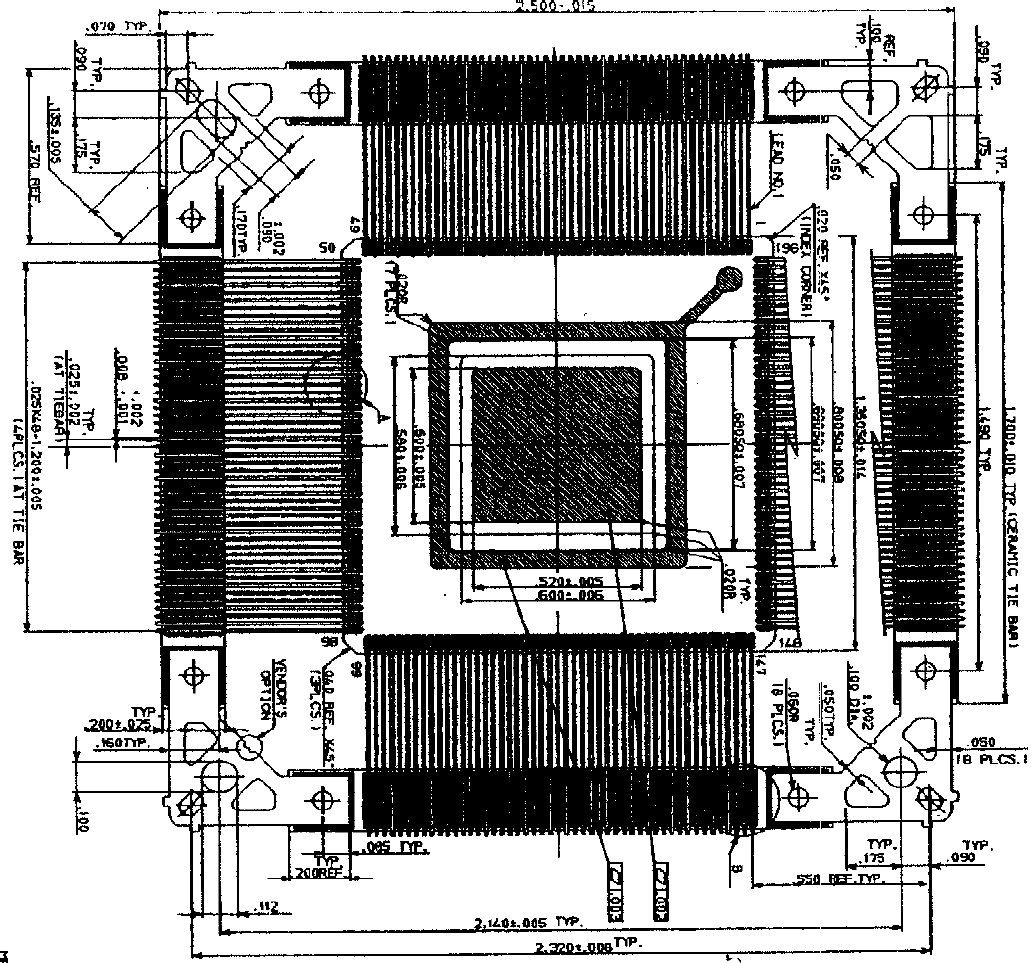

196 25 mil 0.635mm 1.35" SQ Flat Ceramic CERQUAD196F25 -
196 25 mil 0.635mm 34.3mm
1.35" SQ		 Flat Alloy 42 CERQUAD196F25A 360° Model

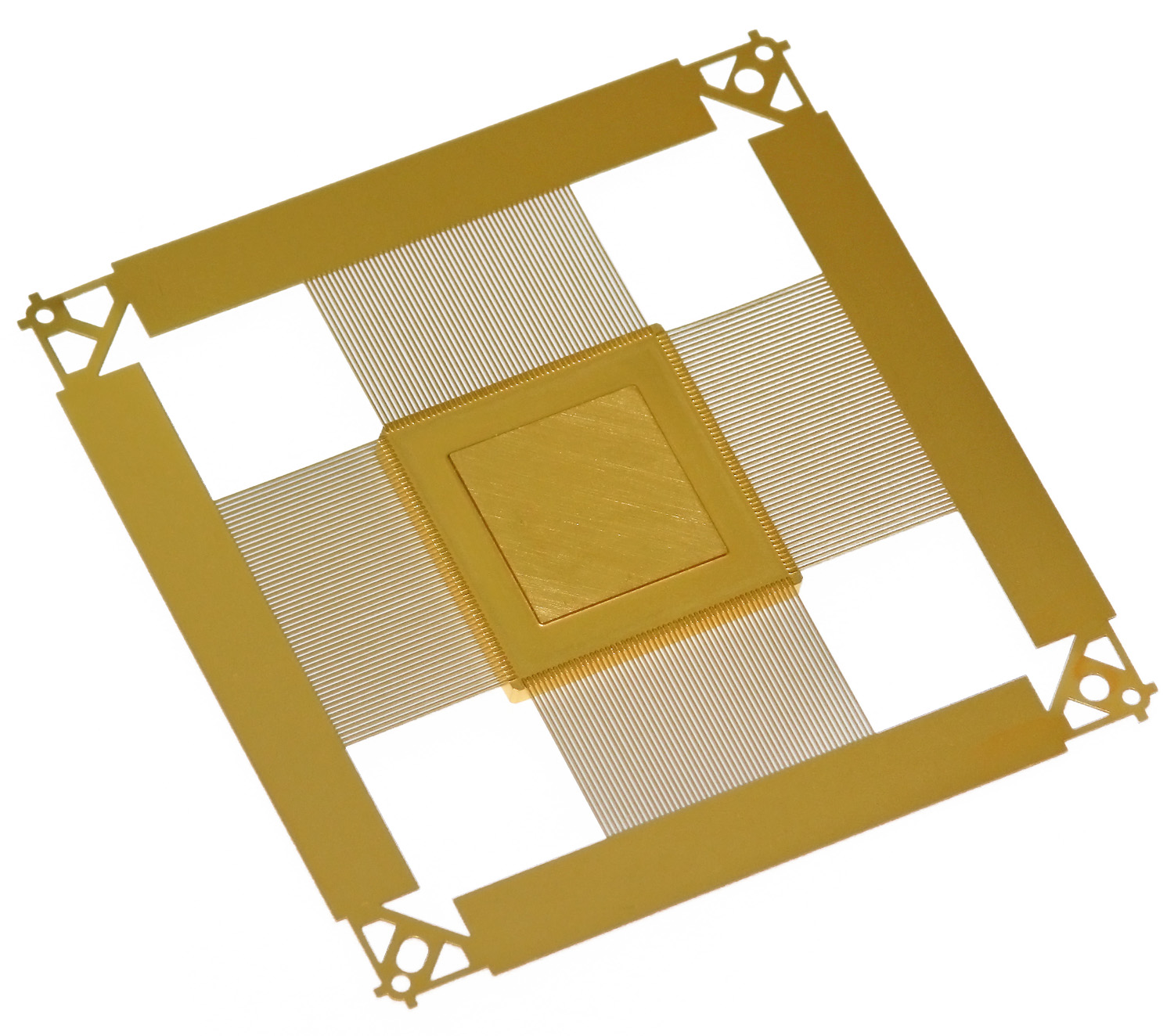

208 19.7 mil 0.5mm 28mm
1.10" SQ		 Flat Alloy 42 CERQUAD208F19.7A 360° Model

Photo: Large  •   Small

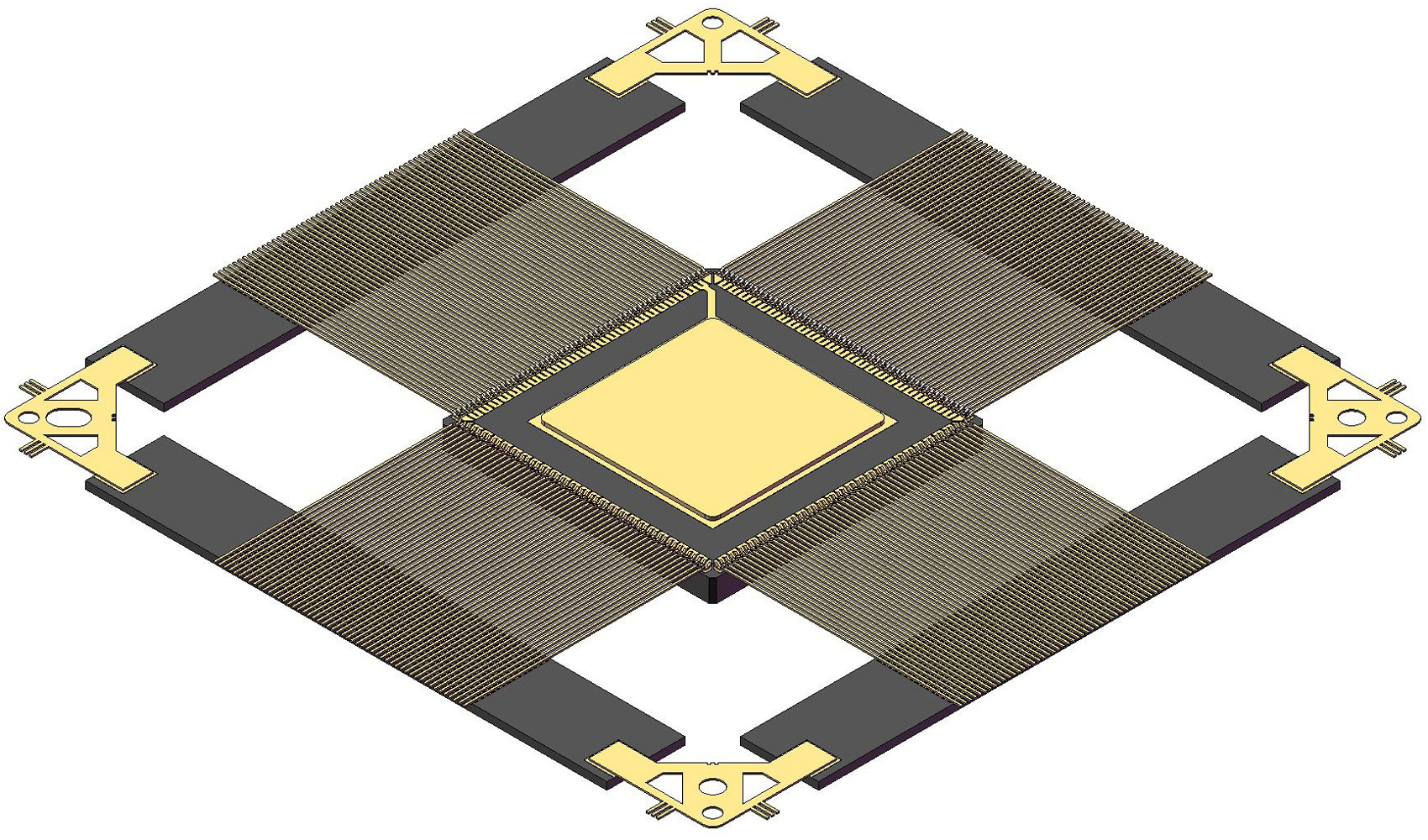

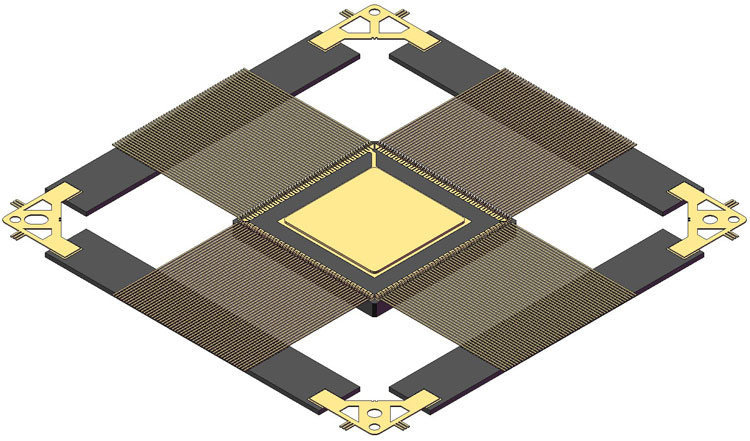

208 19.7 mil 0.5mm 28mm
1.10" SQ		 Flat Ceramic CERQUAD208F19.7-DE
Daisy Chain		 360° Model

Photo: Large  •   Small

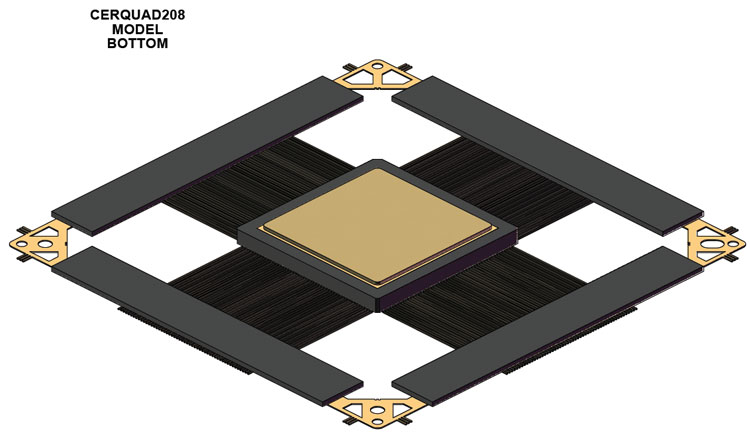

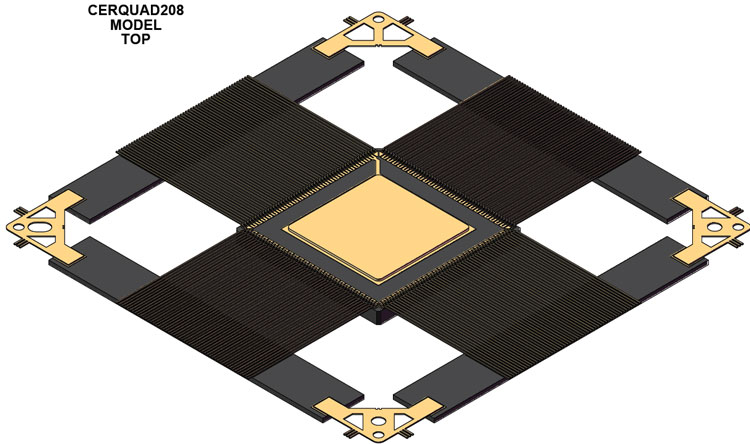

208 19.7 mil 0.5mm 28mm
1.10" SQ		 Flat Ceramic CERQUAD208F19.7-DE-HS
Daisy Chain
Bottom Heat Sink		 360° Model

Photo: TOP  •   Bottom
208 19.7 mil 0.5mm 28mm
1.102"		 Flat Plastic MCR208F19.7 360° Model

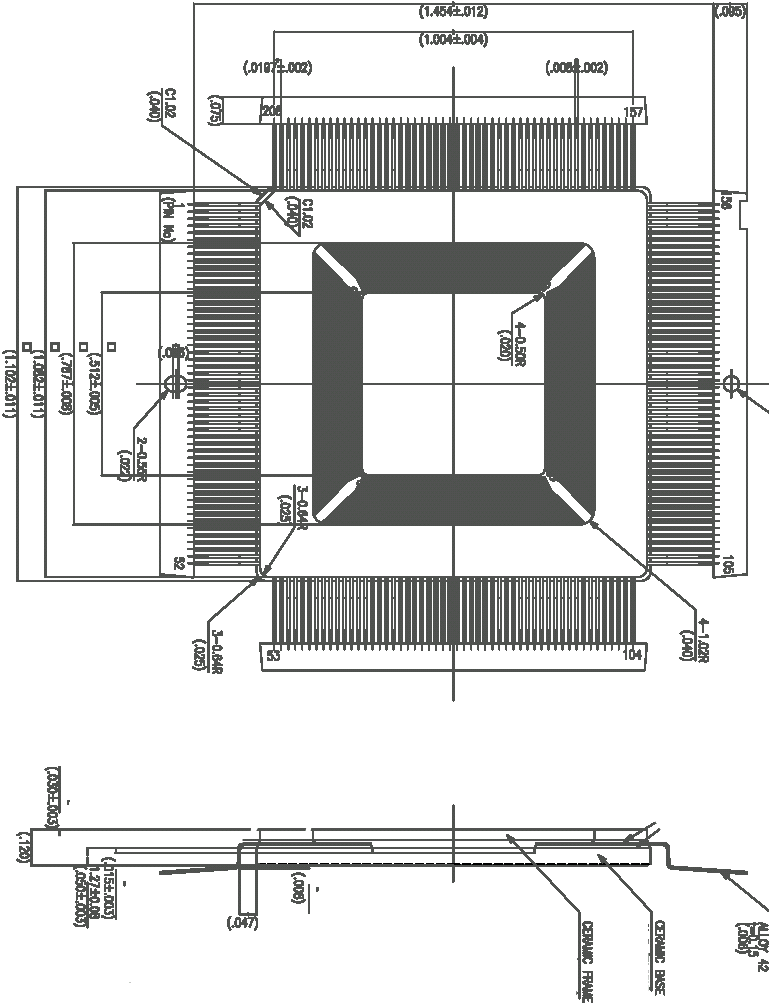

208 19.7 mil 0.5mm 28mm
1.102"		 Gull Ceramic CERQUAD208G19.7 -

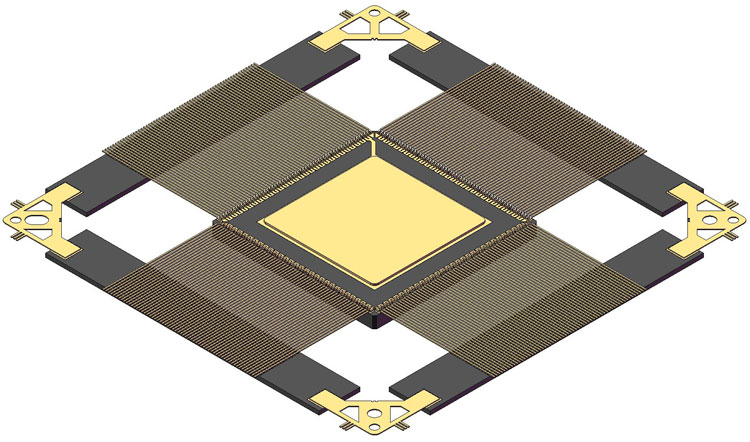

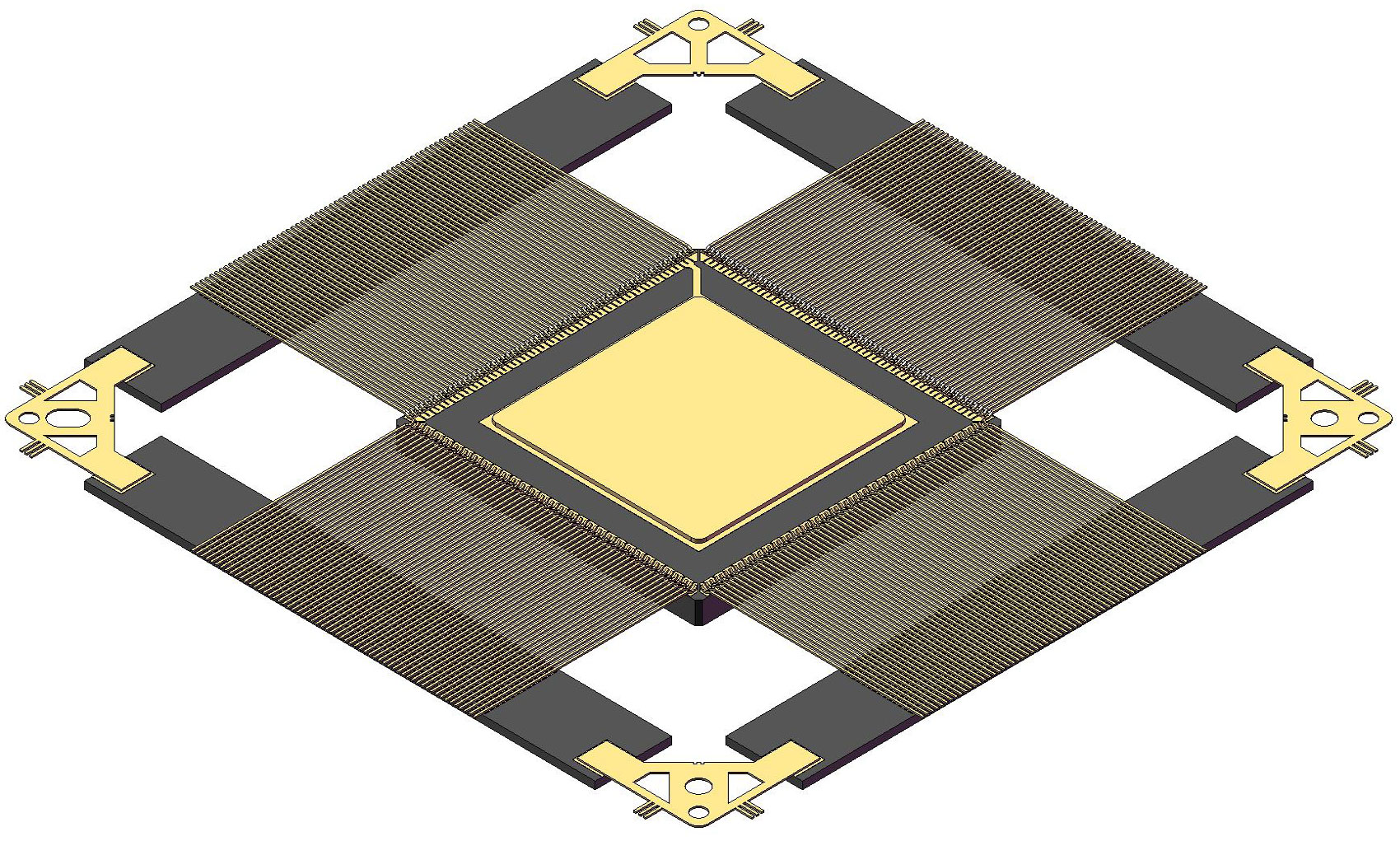

240 19.7 mil 0.5mm 32mm
1.26" SQ		 Flat Ceramic CERQUAD240F19.7-DE
Daisy Chain		 360° Model

Photo: Large  •   Small
240 19.7 mil 0.5mm 32mm
1.260"		 Flat Plastic TAPEPAK240F19.7 -

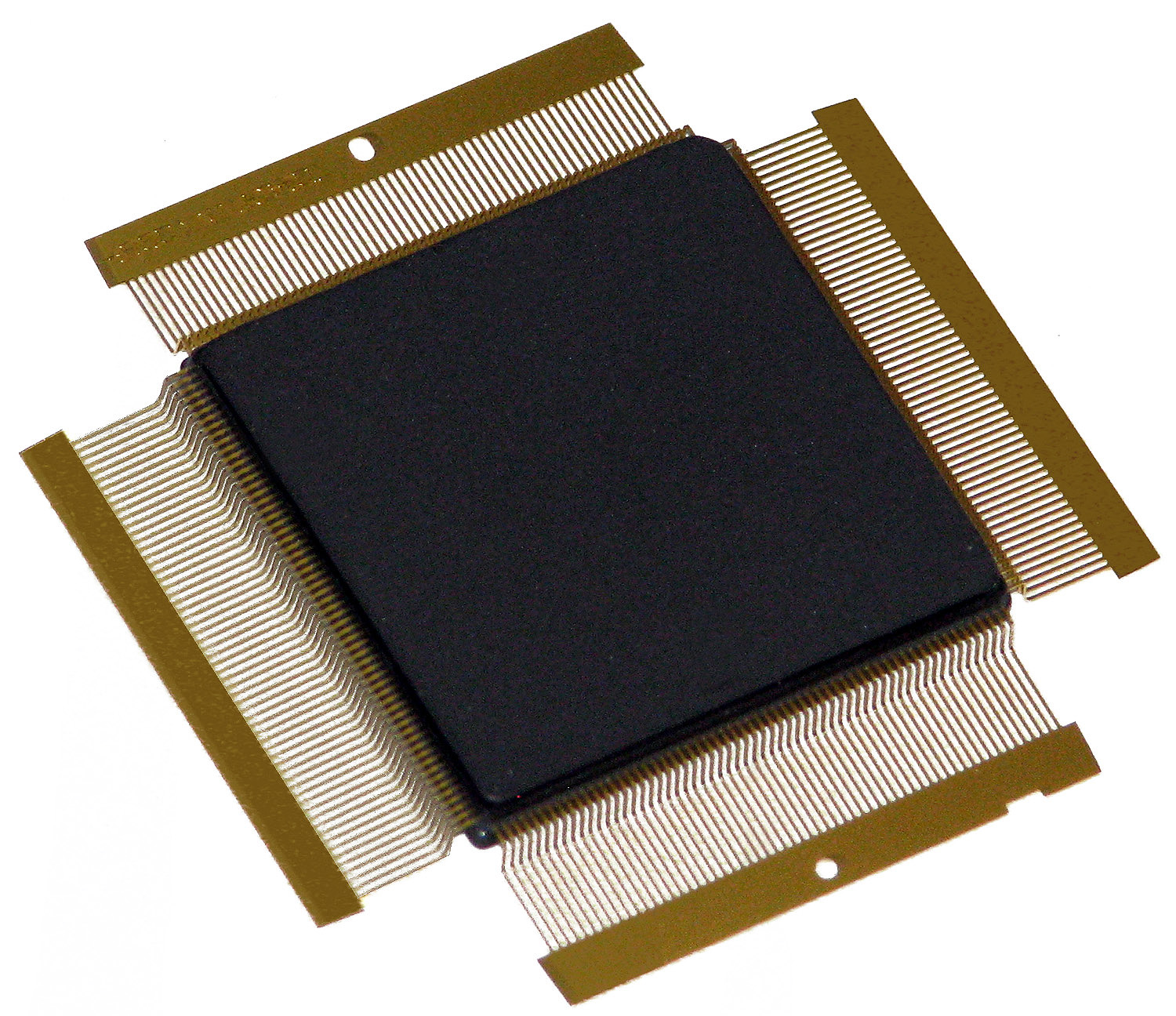

240 19.7 mil 0.5mm 32mm
1.228"		 Gull Ceramic CERQUAD240G19.7 Photo: Large  •   Small

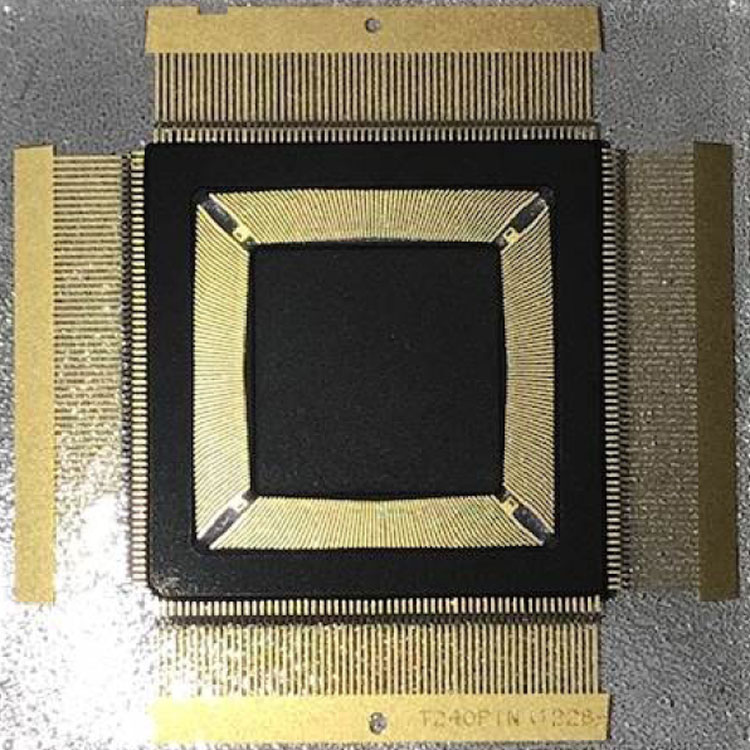

240 19.7 mil 0.5mm 31.2mm
1.228"		 Gull Ceramic CERQUAD240G19.7-N660X
Bare Cavity 16.76x16.76mm		 360° Model
Photo: Bare Cavity

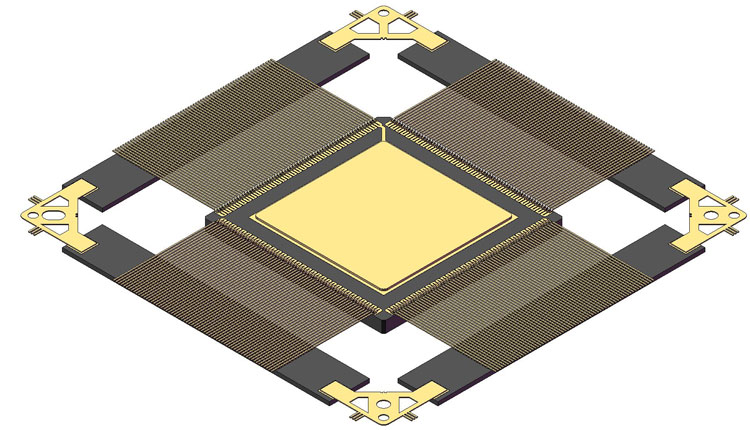

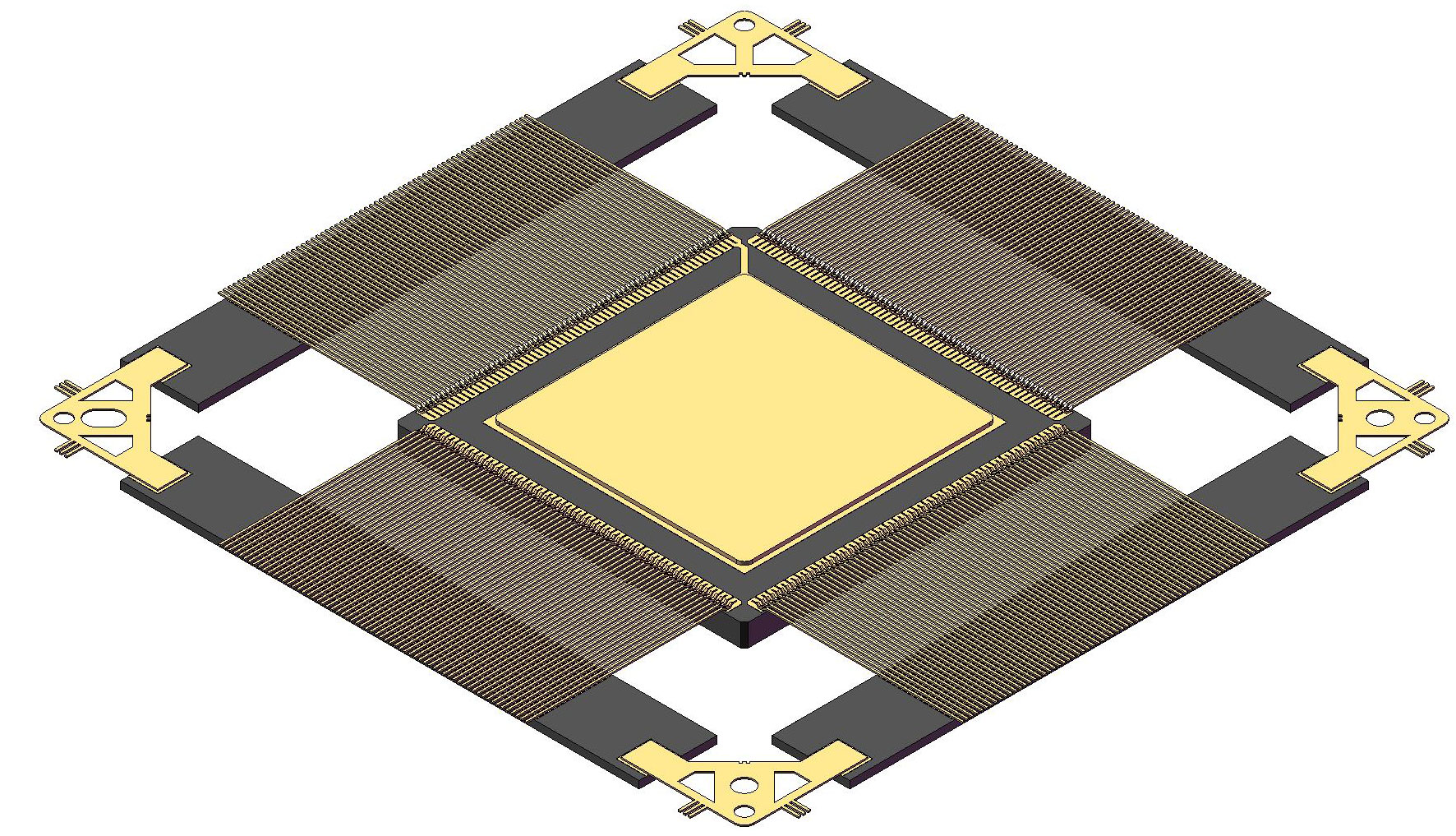

256 19.7 mil 0.5mm 36mm
1.42" SQ		 Flat Ceramic CERQUAD256F19.7-DE
Daisy Chain		 360° Model

Photo: Large  •   Small

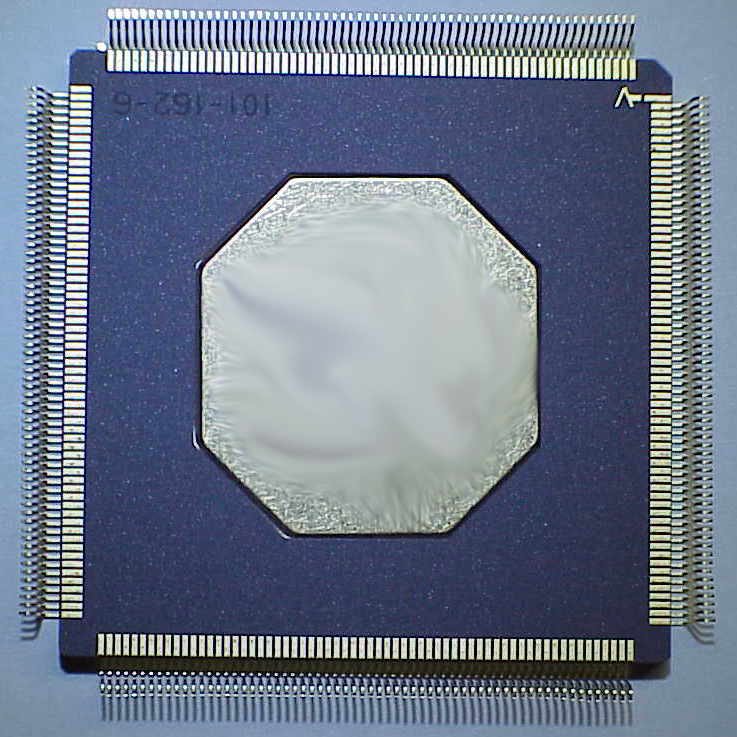

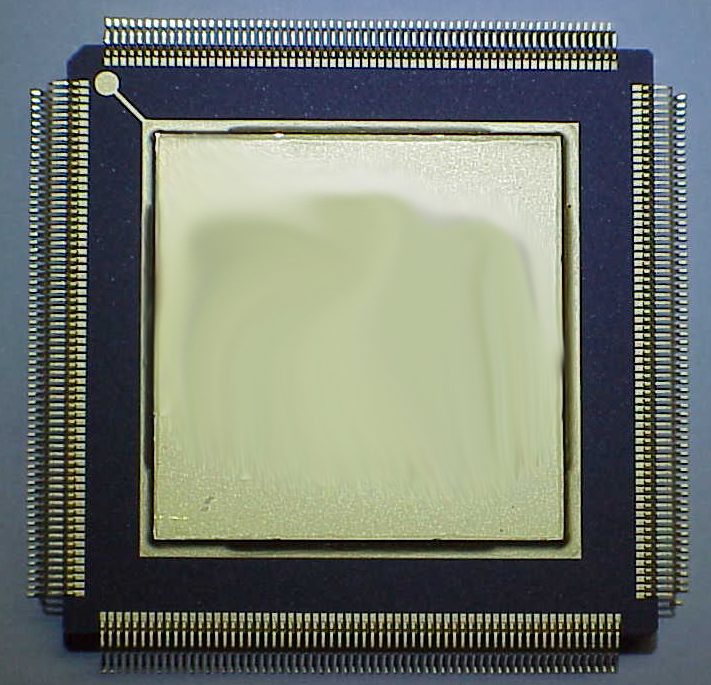

256 20.0 mil 0.508mm 37.2mm
1.46" SQ		 Gull
Trimmed		 Ceramic CERQUAD256G20-4.8 360° Model

Photo: Top  •   Bottom

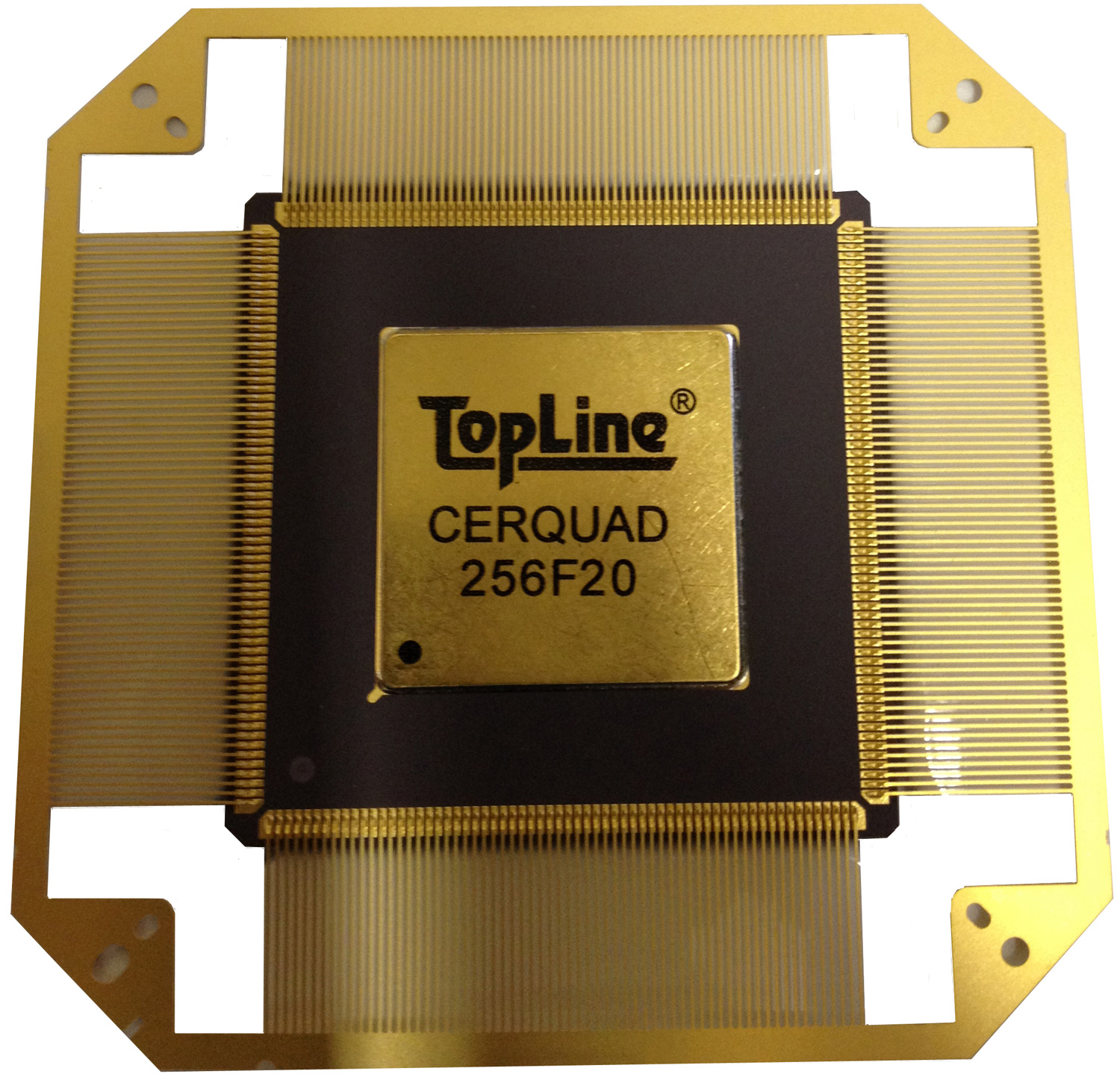

256 20.0 mil 0.508mm 36.83mm
1.45" SQ		 Flat Ceramic CERQUAD256F20 360° Model

Photo: Large  •   Small
256 15.7 mil 0.4mm 28mm
1.102"		 Flat Plastic MCR256F15.7 360° Model

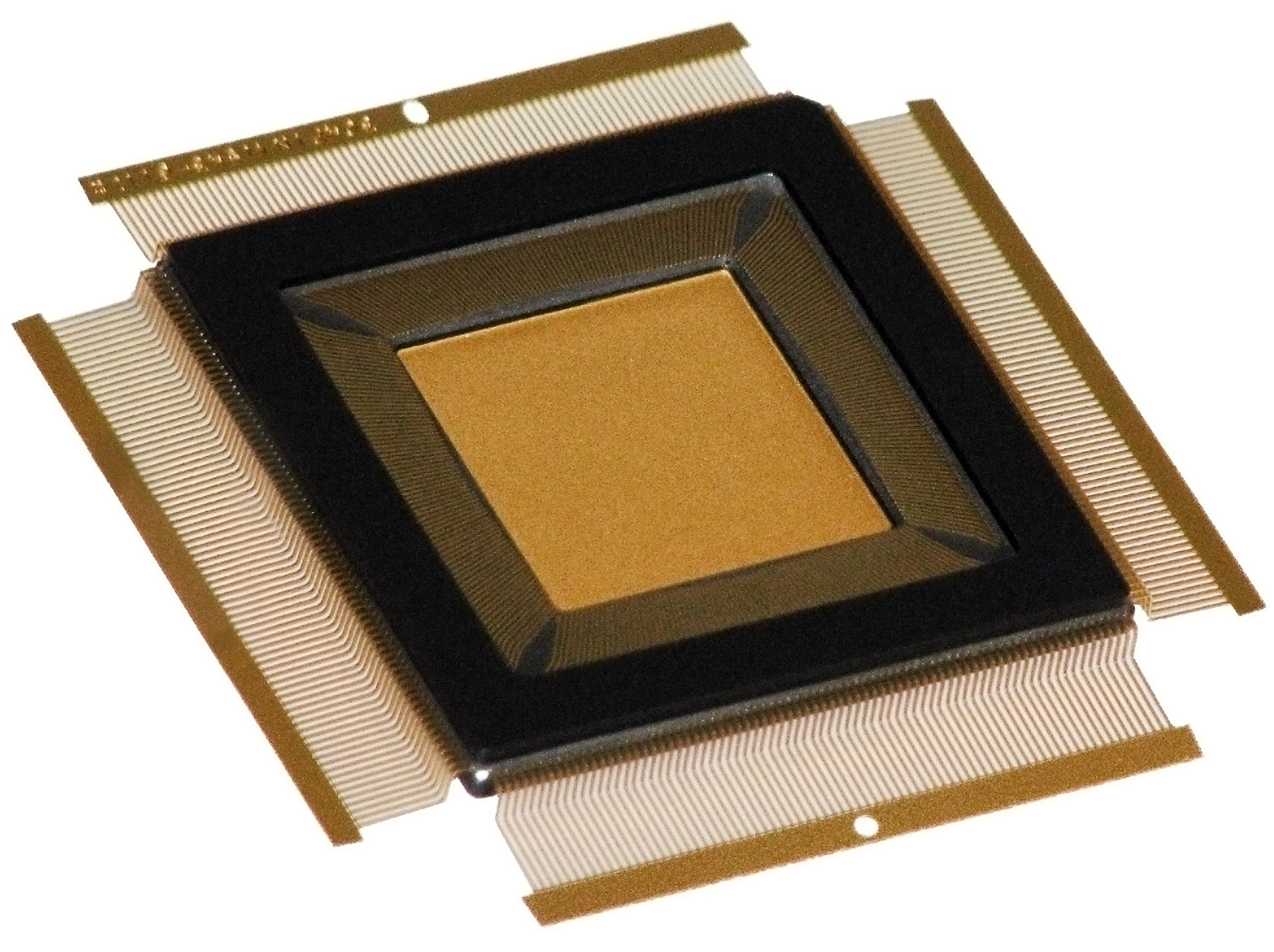

304 19.7 mil 0.5mm 39mm
1.543" SQ		 Gull Ceramic CERQUAD304G19.7 Photo: Large  •   Small
304 19.7 mil 0.5mm 40mm
1.575" SQ		 Flat Plastic TAPEPAK304F19.7 -

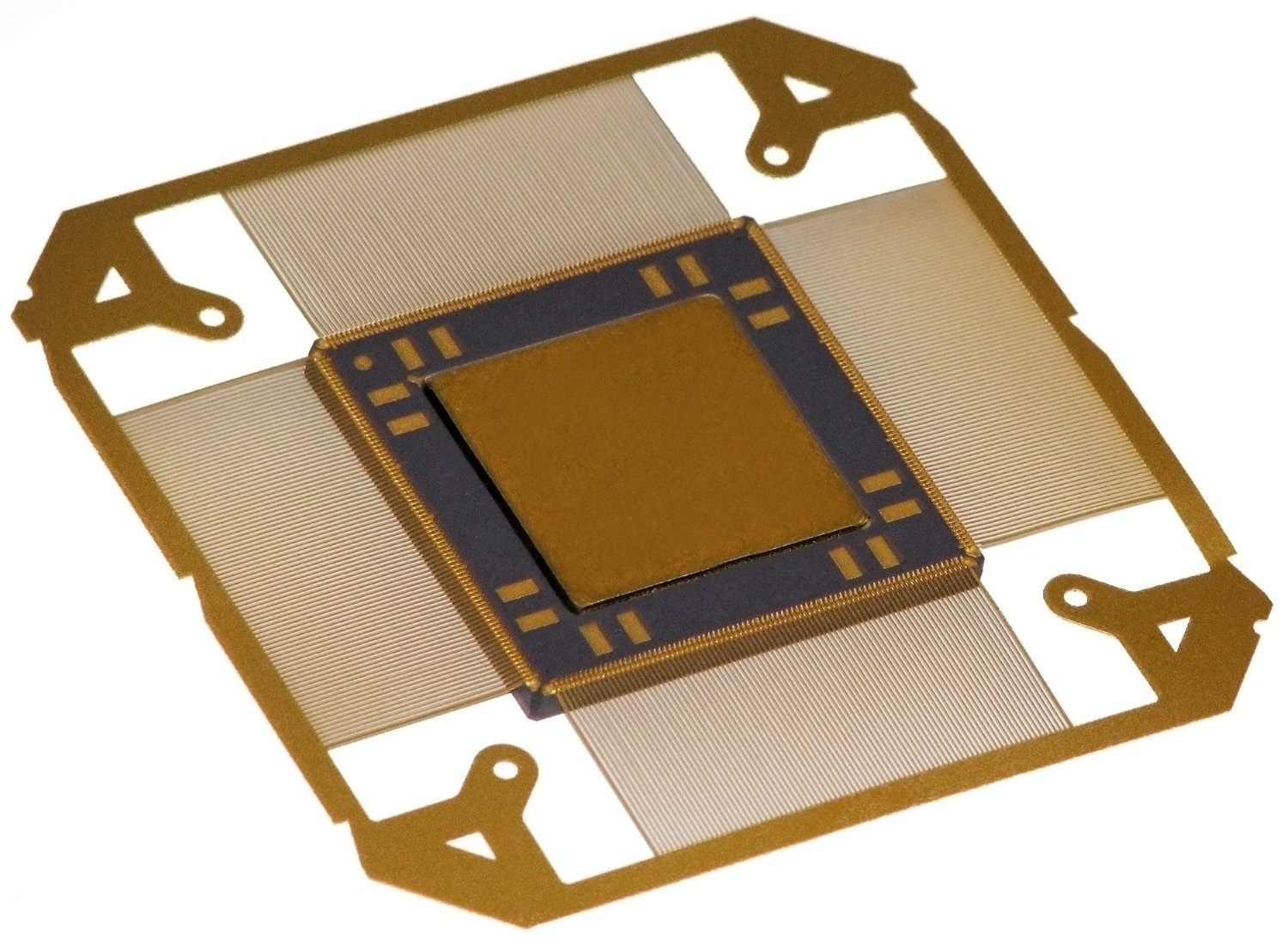

340 15.0 mil 0.381mm 35.3mm
1.39" SQ		 Flat Ceramic CERQUAD340F15 Photo: Large  •   Small

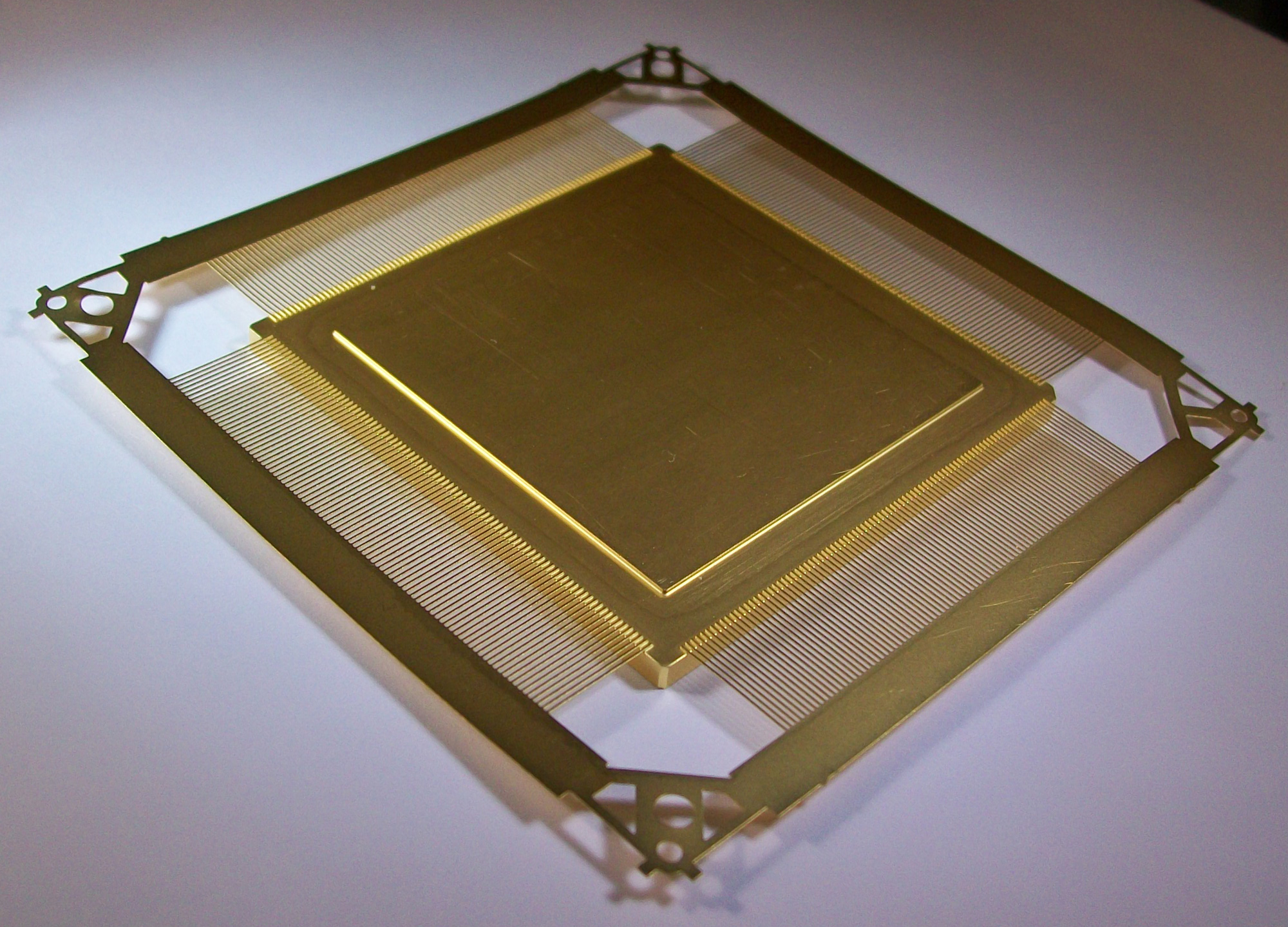

352 19.7 mil 0.5mm 48mm
1.89" SQ		 Flat Alloy 42 CERQUAD352F19.7A 360° Model

Photo: Large  •   Small

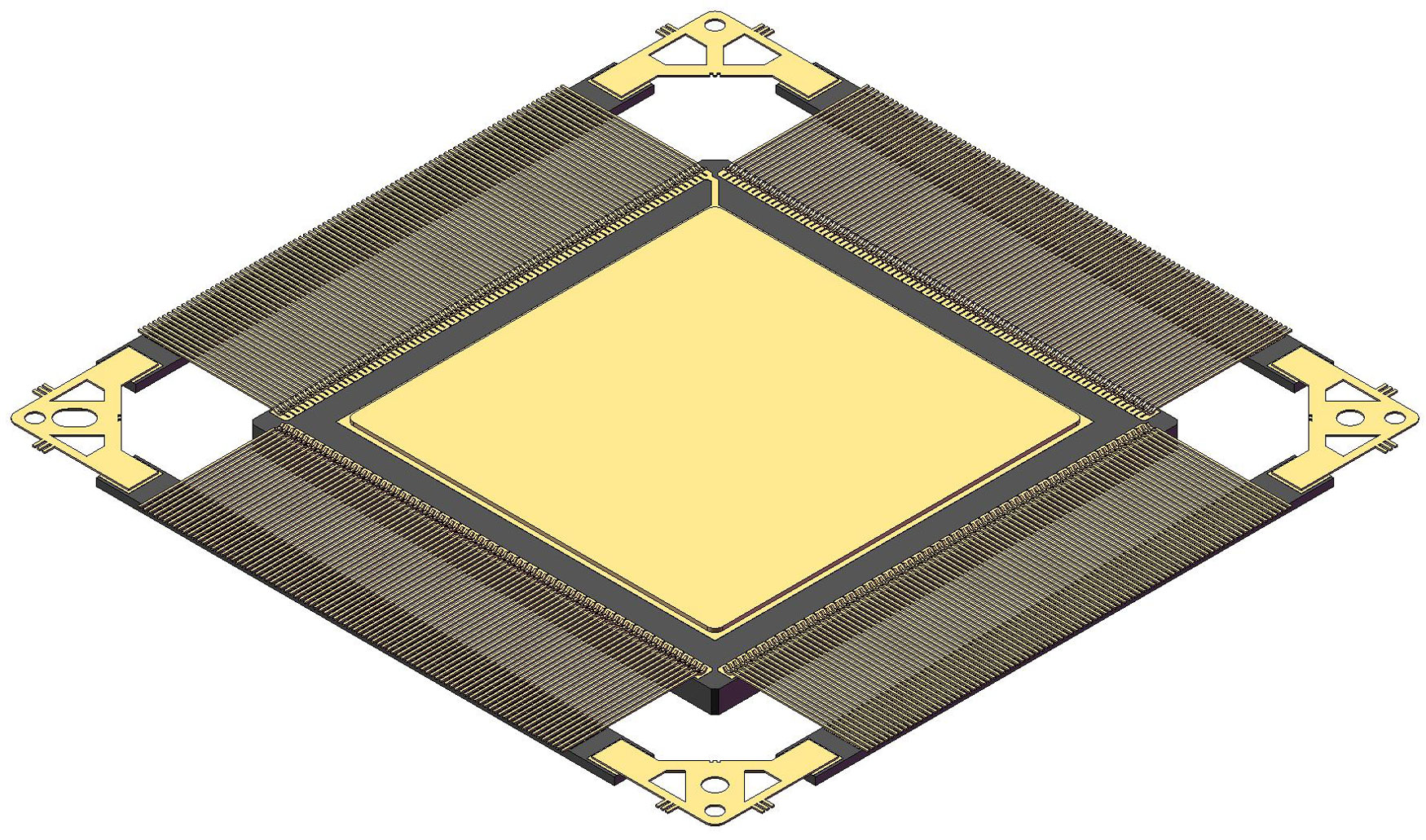

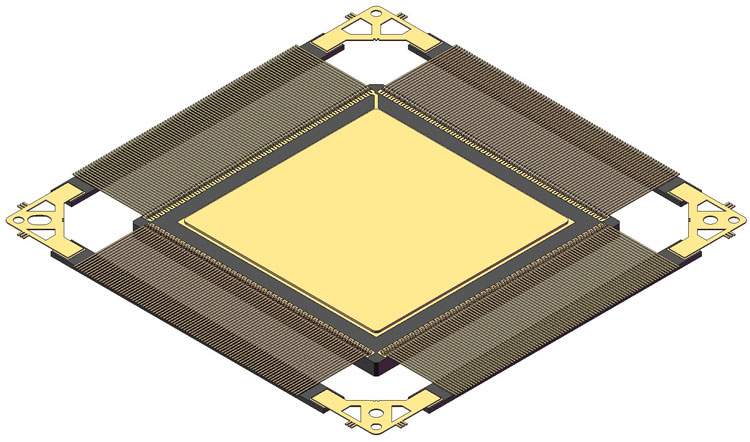

352 19.7 mil 0.5mm 48mm
1.89" SQ		 Flat Ceramic CERQUAD352F19.7-DE
Daisy Chain		 360° Model

Photo: Large  •   Small


Download Solidworks® e-Drawings software to view rotatable:    PC Version


CERQUAD Tray Box Set


Optional Features. Add Suffix Below to end of Part Number

Part Numbering System
CERQUAD 208 F 19.7 - Options
Series Nbr Pins Lead Style Pitch (Mil) Lid and Circuit Options
CERQUAD
or CQFP		 24 to 352 F= Flat Lead
G = Gull Wing
 15.7=0.4mm
19.7=0.5mm
20=0.508mm
25=0.65mm
30=0.8mm
40=1.0mm
50=1.27mm
 Blank = With Lid
& Gold Lead Frame
(Standard)

N = Open Cavity
Without Lid

A = A42 Body
 B = Bottom Braze


DE = Daisy Chain


SC = Solder Dipped


Standard Lead Frame and Bond Finger Material is Kovar or Alloy-42
Nickel Gold Plating (Standard).
For Solder Coated Leads, add -SC to end of part number.
Ceramic Body AL3O3
