TO220

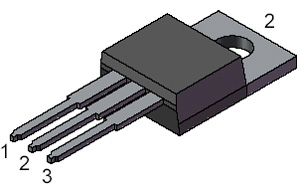

JEDEC TO-220 Package
TopLine Dummy Component
For training, practice and evaluation




Click for Outline Drawing

 Quick Specs:
Pin Count 3L - Plastic Body
Pitch 0.10" (2.54mm)

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
SnPb (Tin-Lead)
TO220 = Bulk
TO220M = Tube

Lead Free (RoHS) Pb-Free
TO220-TIN = Bulk
TO220M-TIN

Solidworks 3D Rotatable Model


Part Numbering System
TO220 M - 3 - Option
Jedec Series Packaging - Nbr Pins - Plating
TO220
Standard
Plastic Case
With Exposed Metal Tab

TO220F
Fully Encapsulated
With Insulated Tab		 Blank = Bulk
M = Tubes
 - Standard:
3= 3 Leads

Special:
2= 2 Leads
5= 5 Leads
7= 7 Leads		 - Blank = SnPb

T = Sn100
RoHS
Lead Free
Pb-Free

ISO = Isolated
No Electrical
Connections
Except Pin 2
Connected to
Metal Tab

Optional Daisy Chain Jumper: DC123 = Pins 1-2-3 connected

Optional -ISO Isolated Connectsions
Except Pin 2 is connected to Metal Tab
