TO254
JEDEC TO-254AA Package
TopLine Dummy Component
For training, practice and evaluation


Click for Outline Drawing

 Quick Specs:
Pin Count 3L
Pitch 0.150" (3.81mm)
Body 0.54"x0.54"x0.26"
Flange 0.80L"x.54W"
Metal Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers:
Gold Plated (Sealed Lid):
TO254-G = Dummy Sealed Lid
TO254-CuW-G = Base W85/Cu15
TO254-OFHC-G = Base Cu Copper

Gold Plated (Open Cavity. Without Lid):
TO254-CuW-G-N = Base W85/Cu15
TO254-OFHC-G-N = Base Cu Copper

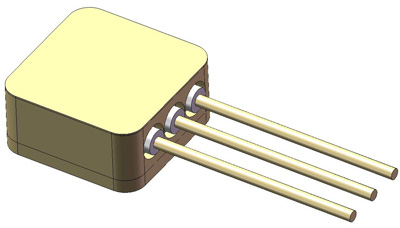

TO-254L Tabless Option:

TO-254L Rotatable Model
Tabless PDF Outline Drawing.


Part Numbering System
TO254 - Option Daisy Chain LID
JEDEC Series Base Option Plating Optional Lid Options
TO-254
With Tab - Standard

TO-254L
Tabless

TO254-6L

TO254-8L		 Blank= Not Defined
Standard Dummy

CuW=W85/Cu15
OFHC=Cu Copper		 G= Au (Gold)
Blank = Not Defined		 Blank= Without
Daisy Chain

DC123 Pins 1-2-3
Connected		 Blank= Sealed Lid


-N = Open Cavity
Unattached Lid
Options: open Headers and cans available for packaging live die.
State your die size requirement.
