TSSOP

Go to--> SOIC  SOJ  SSOP  MSOP  QSOP  HSOP  More Products  Daisy Chain

TSSOP Daisy Chain in PDF format.    •     JEDEC TRAYS


TSSOP - Gull Wing   Fine-Pitch

Lead Body Width Pitch Order Number
Reel
Order Number
Tube
Outline Drawing Daisy Chain 3D Solidworks
Model
8 173 mils (4.4mm) 0.65mm TSSOP8E13A25 TSSOP8M25 Drawing Daisy Chain Model
10 112 mils (3.0mm) 0.5mm TSSOP10E7A TSSOP10M Drawing Daisy Chain Model
14 173 mils (4.4mm) 0.65mm TSSOP14E13A25 TSSOP14M25 Drawing Daisy Chain Model
16 173 mils (4.4mm) 0.65mm TSSOP16E13A25 TSSOP16M25 Drawing Daisy Chain Model
20 173 mils (4.4mm) 0.65mm TSSOP20E13A25 TSSOP20M25 Drawing Daisy Chain Model
24 173 mils (4.4mm) 0.65mm TSSOP24E13A25 TSSOP24M25 Drawing Daisy Chain
28 173 mils (4.4mm) 0.65mm TSSOP28E13A25 TSSOP28M25 Drawing Daisy Chain
28 240 mils (6.1mm) 0.65mm TSSOPW28E13A25 TSSOPW28M25 Drawing Daisy Chain
30 173 mils (4.4mm) 0.5mm TSSOP30E13A19.7 TSSOP30M19.7 Drawing Daisy Chain Model
32 240 mils (6.1mm) 0.65mm TSSOP32E13A25 TSSOP32M25 Drawing Daisy Chain
38 173 mils (4.4mm) 0.5mm TSSOP38E13A19.7 TSSOP38M19.7 Drawing Daisy Chain Model
44 173 mils (4.4mm) 0.5mm TSSOP44E13A19.7 TSSOP44M19.7 Drawing Daisy Chain
48 173 mils (4.4mm) 0.4mm TSSOP48E13A15.7 TSSOP48M15.7 Drawing Daisy Chain
48 240 mils (6.1mm) 0.5mm TSSOP48E13A19.7 TSSOP48M19.7 Drawing Daisy Chain
56 173 mils (4.4mm) 0.4mm TSSOP56E13A15.7 TSSOP56M15.7 Drawing Daisy Chain
56 240 mils (6.1mm) 0.5mm TSSOP56E13A19.7 TSSOP56M19.7 Drawing Daisy Chain
64 240 mils (6.1mm) 0.5mm TSSOP64E13A19.7 TSSOP64M19.7 Drawing Daisy Chain
80 240 mils (6.1mm) 0.4mm TSSOP80E13A15.7 TSSOP80T15.7 Drawing Daisy Chain
For Lead Free, add -T to part number.
For Daisy Chain, add -DE to end of Part Number.
For Isolated circuit without internal connections, add -ISO to end of Part Number.

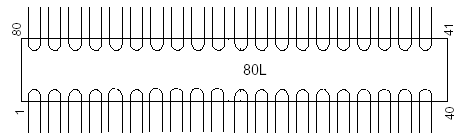

Quick View Daisy Chain
