SOIC - SOP
Small Outline Package

Go to --> SOJ  SSOP  TSSOP  MSOP  QSOP  HSOP  More Products  Daisy Chain

28 page SOIC Drawings Library in PDF format.    •     JEDEC TRAYS


SOIC - Gull Wing  50 mils (1.27mm) Pitch

Lead Body Width Order Number
Reel
Order Number
Tube
Drawing Daisy Chain 3D Solidworks
Model
8 150 mils (3.9mm) SO8E13A SO8M Drawing SO8M-T-DE Model
8 208 mils (5.3mm) SOP8E13A SOP8M Drawing SOP8M-T-DE Model
14 150 mils (3.9mm) SO14E13A SO14M Drawing SO14M-T-DE
14 208 mils (5.3mm) SOP14E13A SOP14M Drawing -
14 220 mils (5.6mm) SOM14E13A SOM14M Drawing -
16 150 mils (3.9mm) SO16E13A SO16M Drawing SO16M-T-DE Model
16 208 mils (5.3mm) SOP16E13A SOP16M Drawing SOP16M-T-DE
16 220 mils (5.6mm) SOM16E13A SOM16M Drawing SOM16M-T-DE
16 300 mils (7.5mm) SOL16E13A SOL16M Drawing SOL16M-T-DE
18 300 mils (7.5mm) SOL18E13A SOL18M Drawing -
20 300 mils (7.5mm) SOL20E13A SOL20M Drawing SOL20M-T-DE
24 300 mils (7.5mm) SOL24E13A SOL24M Drawing SOL24M-T-DE
24 330 mils (8.4mm) SOW24E13A SOW24M Drawing SOW24M-DE Model
28 300 mils (7.5mm) SOL28E13A SOL28M Drawing SOL28M-T-DE
28 330~350 mils
(8.4~8.9mm)
SOW28E13A SOW28M Drawing SOW28M-T-DE
32 300 mils (7.6mm) SOL32E13A SOL32M Drawing SOL32M-T-DE
32 330~350 mils
(8.4~8.9mm)
SOW32E13A SOW32M Drawing -
32 400 mils (10mm) SOX32E13A SOX32M Drawing -
32 450 mils (11.4mm) SOY32E13A SOY32M Drawing SOY32M-DE
40 300 mils (7.6mm) SOL40E13A SOL40M Drawing -
40 400 mils (10mm) SOX40E13A SOX40M Drawing -
40 450 mils (11.4mm) SOY40E13A SOY40M Drawing -
44 525 mils (13.3mm) SOZ44E13A SOZ44M Drawing -


For Lead Free, add -TIN or -T to part number.
For Daisy Chain, add -DE to end of Part Number.
For Dummy Die, add -D to end of part number
Example: SO16M-T-DE-D

For Isolated circuit without internal connections, add -ISO to end of Part Number.
Example: SO16M-ISO
Tin (Sn) Plating Thickness:
300~600 micro-inch
7.6~15um

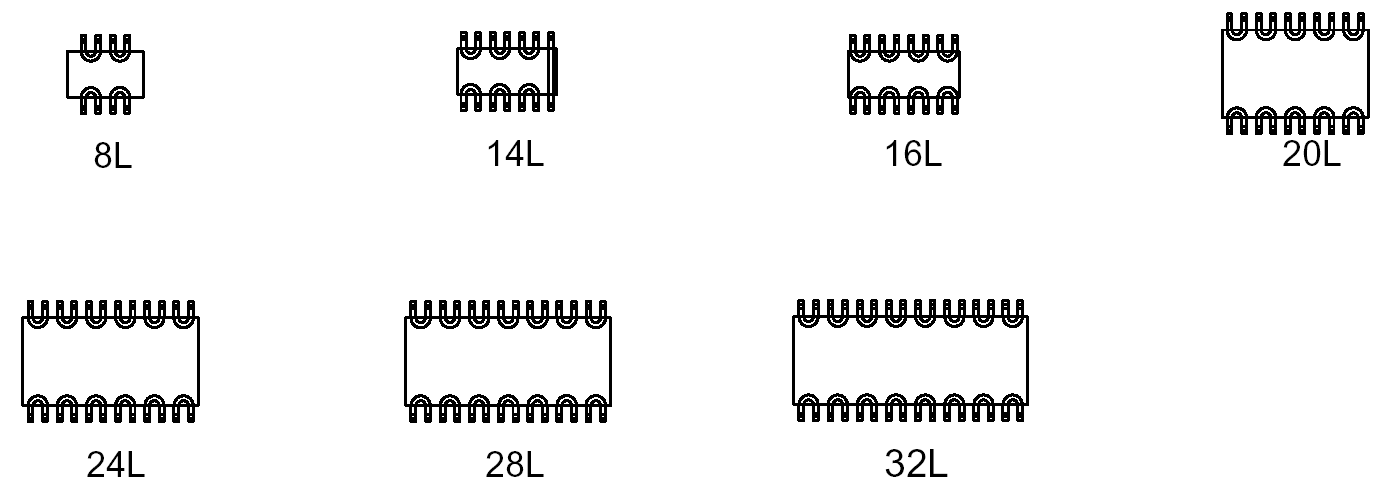

Daisy Chain Pattern

All Daisy Chain (pdf)


Go To-->Lead Free SOIC
