SSOP

Go to--> SOIC  SOJ  TSSOP  MSOP  QSOP  HSOP  More Products  Daisy Chain

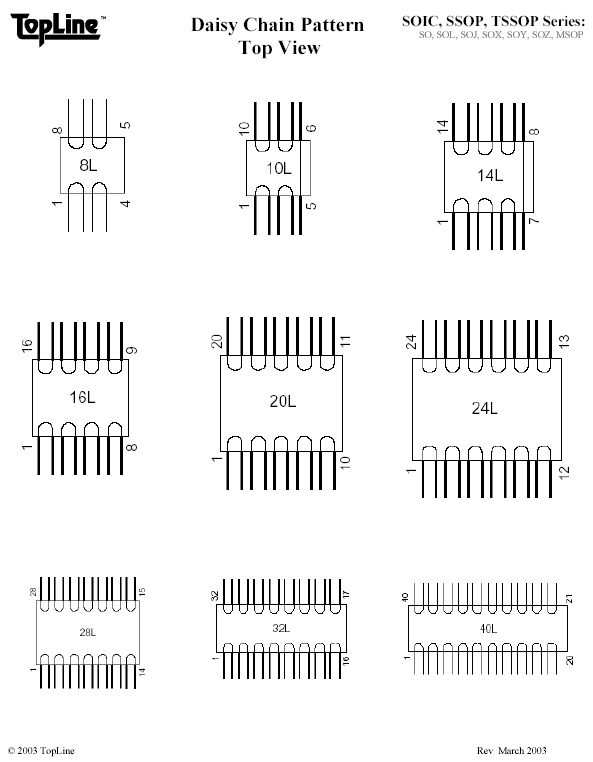

SSOP Daisy Chain PDF     •     JEDEC TRAYS


SSOP - Gull Wing   Fine-Pitch

Lead Body Width
Nom.		 Body Length
Nom.		 Pitch Order Number
Reel		 Order Number
Tube		 Outline Drawing Daisy Chain 3D Solidworks
Model
8 208 mils (5.3mm) 3.0mm 0.65mm SSOP8E13A25 SSOP8M25 Drawing Daisy Chain
14 208 mils (5.3mm) 6.2mm 0.65mm SSOP14E13A25 SSOP14M25 Drawing Daisy Chain Model
16 208 mils (5.3mm) 6.2mm 0.65mm SSOP16E13A25 SSOP16M25 Drawing Daisy Chain
20 208 mils (5.3mm) 7.2mm 0.65mm SSOP20E13A25 SSOP20M25 Drawing Daisy Chain Model
24 208 mils (5.3mm) 8.2mm 0.65mm SSOP24E13A25 SSOP24M25 Drawing Daisy Chain
28 208 mils (5.3mm) 10.2mm 0.65mm SSOP28E13A25 SSOP28M25 Drawing Daisy Chain
30 208 mils (5.3mm) 10.2mm 0.65mm SSOP30E13A25 SSOP30M25 Drawing
36 300 mils (7.5mm) 15.4mm 0.8mm SSOP36E13A30 SSOP36M30 Drawing Daisy Chain
48 300 mils (7.5mm) 15.9mm 0.635mm SSOP48E13A25 SSOP48M25 Drawing Daisy Chain Model
56 300 mils (7.5mm) 18.4mm 0.635mm SSOP56E13A25 SSOP56M25 Drawing Daisy Chain Model

8 2.3mm 2.0mm 0.65mm VSSOP8E19.7 VSSOP8M25 Drawing Daisy Chain Model
10 3.0mm 3.0mm 0.5mm VSSOP10E19.7 VSSOP10M25 Drawing Daisy Chain Model
For Lead Free, add -T to part number.
For Daisy Chain, add -DE to end of Part Number.
For Isolated circuit without internal connections, add -ISO to end of Part Number.
