Available From TopLine:
 Bonding Wire Catalog pdf

 All Wire
Made By:

Bonding Wire
Meters per Spool


Code A

2" x 1"
Non-Conductive
AL-2
Code C

2" x 1"
Conductive
AL-2(WNi)
Code B

2" x 2"
Non-Conductive
AL-4
Code N

2" x 2"
Conductive
AL-4(WNi)

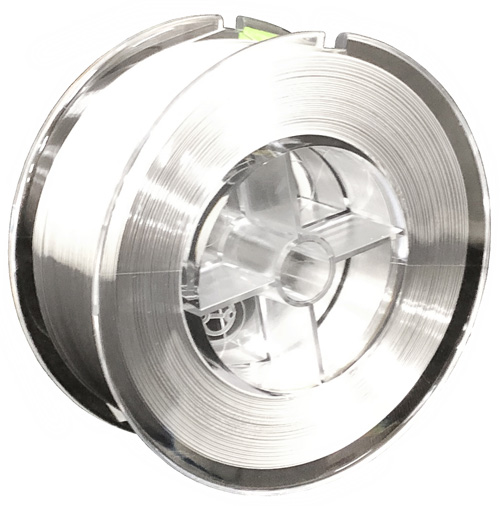

Code K

3.5"
Polycarbonate
No.88K
Code P

3.5"
Polycarbonate
No.88
Code P

3.5"
Polycarbonate
No.88B

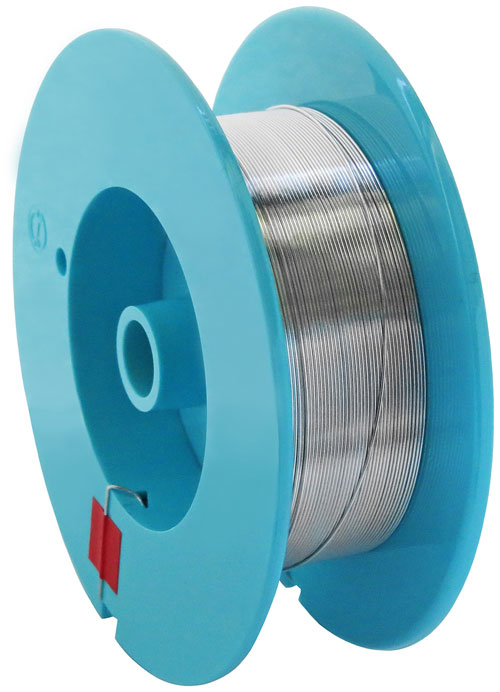

Code P

3.5"
Polycarbonate
No.88C
Code R

4.75"
Polycarbonate
No.120

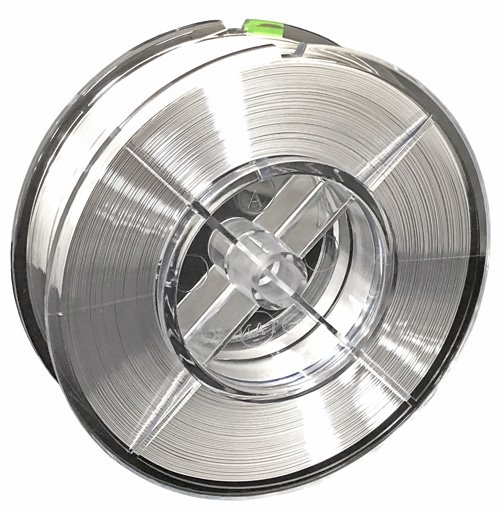

Code T

4.75"
Polycarbonate
No.120K

CP1 - Meters per Spool - Copper Power Wire
Ø Diameter Ø Ref Order# 100 m 200 m 300 m 400 m 500 m 600 m 700 m 800 m 1000 m
Ø100um Ø4 mil 70700x No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B
Ø125um Ø5 mil 70701x No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B
Ø150um Ø6 mil 70702x No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B
Ø200um Ø8 mil 70704x No.88B No.88B No.88B No.88B No.88B No.88B No.88B No.88B -
Ø250um Ø10 mil 70705x No.88 No.88 No.88 No.88 No.88 No.88 No.88 No.88 -
Ø300um Ø12 mil 70706x No.88 No.88 No.88 No.88 No.88 No.88 No.88 - -
Ø380um Ø15 mil 70708x No.88 No.88 No.88 No.88 No.88 - - - -
Ø400um Ø16 mil 70709x No.88 No.88 No.88 No.120 No.120 No.120 No.120 No.120 -
Ø500um Ø20 mil 70711x No.88 No.88 No.120 No.120 No.120 No.120 - - -
Note 1: Controlling length is measured in meters (m).
Note 2: Wire Ø Diameter controlling is um. Mils is listed for reference only.
Note 3: Spool Drawings: No.88   •   No.88B   •   No.120



TANW - Meters per Spool - Aluminum Power Wire
Ø Diameter Ø Ref Order# 100 m 200 m 300 m 400 m 500 m 600 m 700 m 800 m 1000 m
Ø100um Ø4 mil 40500x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø125um Ø5 mil 40501x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø150um Ø6 mil 40502x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø175um Ø7 mil 40503x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø200um Ø8 mil 40504x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø250um Ø10 mil 40505x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K
Ø300um Ø12 mil 40506x No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.88K No.120K
Ø350um Ø14 mil 40507x No.88K No.88K No.88K No.88K No.88K No.120K No.120K No.120K No.120K
Ø380um Ø15 mil 40508x No.88K No.88K No.88K No.88K No.88K No.120K No.120K No.120K No.120K
Ø400um Ø16 mil 40509x
40709x
No.88K No.88K No.88K No.88K No.88K No.120K No.120K No.120K No.120K
Ø450um Ø18 mil 40510x
40710x
No.88K No.88K No.88K No.88K No.120K No.120K No.120K No.120K -
Ø500um Ø20 mil 40511x
40611x
40711x
No.88K No.88K No.88K No.120K No.120K No.120K - - -
Ø600um Ø24 mil 40512x No.88K No.88K - - - - - - -
Note 1: Controlling length is measured in meters (m).
Note 2: Wire Ø Diameter controlling is um. Mils is listed for reference only.
Note 3: Spool Drawings: No.88K   •   No.120K



TABR - Meters per Spool - Aluminum Ribbon
Width Thickness Ref Order# 50 m 100 m 200 m 300 m 400 m 500 m
500um 100um 20x4 mil 41246x No.88 No.88 No.88 - - -
750um 100um 30x4 mil 41248x No.88 No.88 No.88 No.88 No.120 No.120
1000um 100um 40x4 mil 41249x No.88 No.88 No.88 No.120 No.120 No.120
1500um 100um 60x4 mil 41242x No.88 No.88 No.120 No.120 No.120 No.120
1000um 150um 40x6 mil 41264x No.88 No.88 No.120 No.120 No.120 No.120
1500um 150um 60x6 mil 41265x No.88 No.88 No.120 No.120 No.120 No.120
2000um 150um 80x6 mil 41266x No.88 No.88 No.120 No.120 No.120 -
1000um 200um 40x8 mil 41284x No.88 No.88 No.120 No.120 No.120 No.120
1250um 200um 50x8 mil 41283x No.88 No.88 No.120 No.120 No.120 -
1500um 200um 60x8 mil 41285x No.88 No.88 No.120 No.120 No.120 -
2000um 200um 80x8 mil 41286x No.88 No.88 No.120 No.120 - -
1500um 250um 60x10 mil 41295x No.88 No.88 No.120 No.120 - -
2000um 250um 60x10 mil 41295x No.88 No.120 No.120 - - -
1500um 300um 60x12 mil 41298x No.88 No.120 No.120 - - -
2000um 300um 80x12 mil 41290x No.88 No.120 No.120 - - -
Note 1: Controlling length is measured in meters (m).
Note 2: Wire size controlling is um. Mils is listed for reference only.
Note 3: Spool Drawings: No.88   •   No.120



CPR-1 - Meters per Spool - Copper Ribbon
Width Thickness Ref Order# 50 m 100 m 200 m 300 m 400 m 500 m
500um 100um 20x4 mil 77346x No.88 No.88 No.88 - - -
1000um 100um 40x4 mil 77349x No.88 No.88 No.88 - - -
1500um 100um 60x4 mil 77342x No.88 No.88 No.88 - - -
2000um 100um 80x4 mil 77342x No.88 No.88 No.88 - - -
1000um 150um 40x6 mil 77364x No.88 No.88 No.120 - - -
1500um 150um 60x6 mil 77365x No.88 No.88 No.120 - - -
2000um 150um 80x6 mil 77366x No.88 No.88 No.120 - - -
1000um 200um 40x8 mil 77384x No.88 No.88 No.120 - - -
1500um 200um 60x8 mil 77385x No.88 No.88 No.120 - - -
2000um 200um 80x8 mil 77386x No.88 No.88 No.120 - - -
Note 1: Controlling length is measured in meters (m).
Note 2: Wire size controlling is um. Mils is listed for reference only.
Note 3: Spool Drawings: No.88   •   No.120




Spool Reference Dimensions
  Spool Dimensions (mm)   Box Dimensions & Spool Quantity
Spool
Material
Type A
Flange
Dia.
B
Shaft
Dia.
C
Hub
Dia.
D
Hub
Thick
E
Winding
Width
F
Overall
Width
Spool
Style
Part
Nbr
Code
Winding
Pattern
White
Inner Box
QTY Spools

L=7.25"
W=12.5"
H=4.0"
Small
Outer Box
QTY Spools

L=8.25"
W=13.25"
H=10"
Medium
Outer Box
QTY Spools

L=13.25"
W=24"
H=10"
Large
Outer Box
QTY Spools

L=13.25"
W=24"
H=14"
Aluminum
Spools
AL-2(W)
2x1 Inch
58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(W)
AL-2
A Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
20x Spools 40x Spools 120x Spools 180x Spools
AL-2(WNi)
2x1 Inch
Conductive Hub
58.5mm 48.8 50.3 0.75 26.4 27.9 AL-2(WNi) C Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
20x Spools 40x Spools 120x Spools 180x Spools
AL4(W)
2x2 Inch
58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(W) B Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
12x Spools 24x Spools 72x Spools 108x Spools
AL-4(WNi)
2x2 Inch
Conductive Hub
58.5mm 48.8 50.3 0.75 45.5 47.0 AL-4(WNi) N Round
Wire
Cross
Winding
--
Ribbon
Parallel
Winding
10x Spools 20x Spools 60x Spools 90x Spools
AL-1/2
Half-Inch
17.4mm 12.7 13.5 0.40 18.3 19.1 AL-1/2 H Round
Wire
and
Ribbon
Parallel
Winding
5x spools - - -
Polycarbonate
Spools
No.88
3.5 Inch
88mm 10 50 3 25 31 No.88

Ø250~500um
TANW

CP-1 & CPR-1

TABR (ALL)
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88B
3.5 Inch
89mm 10 71 3 25 31 No.88B
Ø100~200um
TANW
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88C
3.5 Inch
88mm 11 50 3 25 31 No.88C
Ø100~200um
Type-Y
P Round
Wire
and
Ribbon
Parallel
Winding
10x Spools 50x Spools - -
No.88K
3.5-inch
88mm 11 50 3 31 37 No.88K
Ø100~600um
TANW
K Round
Wire
10x Spools 50x Spools - -
No.120
4.75 Inch
120mm 10 54 4 30 38 No.120

Ø100~600um
TANW

CP-1 (ALL)

TABR(ALL)
R Round
Wire
and
Ribbon
Parallel
Winding
5x Spools 20x Spools - -
No.120K
4.75 Inch
120mm 11 64 4 30 38 No.120K

Ø100~600um
TANW
T Round
Wire
5x Spools 20x Spools - -
Note 1: Copper Cu and PCC Pd coated Cu requires grounded (Conductive) Spool.
Note 2: Round Wire is wound forward/Cross Pattern Winding (Cross wound-cross hatch wind)
Note 3: Ribbon Wire is wound forward/Parallel Winding
Note 4: Start wire on spool with  Green tape.   •   End wire on spool with Red tape.
Note 5: 2x white inner boxes fit into small outer box. 6x white inner boxes fit into medium outer box. 9x white inner boxes fit into large outer box.



Wire Part Number System
    GSA       -       25         A         100
Type   Ø Diameter  µm Spool Type Length Meters Options
Gold 4N (Au99.99%)
GSA = (300xxx) Stable Stitch
GBE = (301xxx) Bumping Wire
GMH-2 = (302xxx) High Strength
M3 = (303xxx) Standard Wire
GFD = (306xxx) Fine Pitch
GLF = (307xxx) Low Loop
GLD-H = (309xxx) Wedge to Wedge
AuR = (316xxx/326xxx) Au Ribbon
AuR3 = (353xxx) Au Ribbon Be Doping
AuS = Au Ribbon


Gold 2N (Au99%) Alloy
GPG-2 = (304xxx) High Reliability
GPG = (335xxx) High Reliability
GBC = (305xxx) Bumping Wire
GPH = (308xxx) High Reliability


Gold (Other)
FA = (330xxx) Soft Touch
Y = (331xxx) Soft Touch
GMG = (332xxx) High Strength
GMH = (333xxx) High Strength
GFC = (334xxx) Fine Pitch
GPG = (335xxx) 2N Au Alloy
GSB = (336xxx) Stable Stitch
GMB-2 = (337xxx) Smart Card
GHA-2 = (338xxx) High Loop
GL-2 = (339xxx) High Strength
C = (340xxx) Legacy
GPG-3 = (341xxx) Hi Rel
GLD = (349xxx) Wedge to Wedge


Aluminum Al-Si1%
TABN = (403xxx)Nickel Doping
TABW = Without Nickel


Aluminum Power
TANW = (405xxx) Al Power Semiconductors
TANW-MID = (406xxx) Al Power Tools
TANW-HARD = (407xxx) Al Power Batteries
TAFF = Al Power (Under Development)
TABR = (412xxx) Al Ribbon


Silver Ag Alloy
SEA = (501xxx) Silver Ag88%
SEB = (502xxx) Silver Ag94%
SEC = (503xxx) Silver Ag97%


Palladium Pd Coated Copper
CLR-1AT = 4N Cu/Pd/Au - Original Chemistry


Bare Copper
CA-1 = (701xxx) 2N Copper Alloy
CFB-1 = (702xxx) 4N Standard Bare Cu
CP-1 = (707xxx) 4N Cu High Power
CPR-1 = (703xxx) 4N Cu Ribbon

Obsolete Copper
TPCW = 4N High Purity
TCA1 = 4N Cu Fine Pitch
TCB1 = 4N Cu Good Stitch


Pt-Ir (Platinum-Iridium)
Pt-Ir10 = 10% Iridium
Pt-Ir20 = 20% Iridium
Pt(4N) = Pt 99.99%
  Code   Mil
12.0  0.47mil
12.5   0.5mil
15     0.6mil
17   0.67mil
18     0.7mil
20     0.8mil
23     0.9mil
25     1.0mil
28     1.1mil
30     1.2mil
32   1.25mil
33     1.3mil
35     1.4mil
38     1.5mil
43     1.7mil
50     2.0mil
60     2.4mil
62.5   2.5mil
65     2.5mil
70     2.7mil
75     3.0mil
80     3.2mil


TANW
Large Dia Wire

µm     Mil
100µm   4mil
125µm   5mil
150µm   6mil
175µm   7mil
200µm   8mil
250µm   10mil
300µm   12mil
350µm   14mil
380µm   15mil
400µm   16mil
450µm   18mil
500µm   20mil
600µm   24mil



Al Ribbon Wire
500x100 = 20 x 4.0mil
750x100 = 30 x 4.0mil
1000x100 = 40 x 4.0mil
1500x200 = 60 x 8.0mil
2000x200 = 80 x 8.0mil

More AL Ribbon Sizes


Au Ribbon Wire
38x12.7 = 1.5 x 0.5mil
50x12.7 = 2.0 x 0.5mil
75x12.7 = 3.0 x 0.5mil
100x12.7 = 4.0 x 0.5mil
125x12.7 = 5.0 x 0.5mil
150x12.7 = 6.0 x 0.5mil
- - - - - -
50x25 = 2.0 x 1.0mil
75x25 = 3.0 x 1.0mil
100x25 = 4.0 x 1.0mil
125x25 = 5.0 x 1.0mil
150x25 = 6.0 x 1.0mil
200x25 = 8.0 x 1.0mil
250x25 = 10 x 1.0mil
- - - - - -
125x50 = 5.0 x 2.0mil

More Au Ribbon Sizes
Aluminum Spool
A = 2"x1"
AL-2W Spool

B = 2"x2"
AL-4 Spool

H = 1/2" x 3/4"
1/2-Inch Spool
AL-1/2 Spool



Aluminum Spool
Conductive
Nickel Core Grounded

C = 2"x1"
AL-2 WNI Spool

N = 2"x2"
AL-4 WNi Spool
Cu Wire


Polycarbonate Spool
P = 3.5"x1.25"
No.88
TABR=Al Ribbon
CP-1 Copper

K = 3.5"x1.25"
No.88K
TANW=Power Aluminum

R = 4.7"x1.50"
No.120
TABR=Al Ribbon
CP-1=Copper

T = 4.7"x1.50"
No.120K
TANW=Power Aluminum

Meters   Feet
25       75ft
50       164ft
100     328ft
200      660ft
300    1000ft
400    1300ft
500    1640ft
600    2000ft
700    2300ft
800    2600ft
1000    3300ft
2500    8000ft
5000    16000ft
Meters controlling dimension

Go to: 1/2" Spools
Blank = Standard
Green=Start
Red=End.

A = Rev A
B = Rev B
etc



 Bonding Wire Catalog pdf

 All Wire



TopLine Corporation
95 Highway 22 W
Milledgeville, GA 31061, USA
Toll Free USA/Canada (800) 776-9888
International: 1-478-451-5000
Email: sales@topline.tv

©2022 TopLine. All Rights Reserved.

Home
