Universal Tray Cover & Bottom
Anti-static - Reusable
Fits all JEDEC Matrix trays.


Click for Outline Drawing


  360 ° Model

 Quick Specs:
Anti static • Reusable
Bakeable 150°C
Standard Color: Black (MPPE)
Fits all JEDEC matrix IC trays
Resistivity 105 ~ 109Ω

Use and Applications:
Keeps components dust free.
Faraday shield protection.

Universal plate.
Covers top and bottom.
One part number - two positions.

Availability:
Delivery Stock to 4 weeks

Part Number:
COVERTRAY BLACK
Order code 110000


Part Numbering System
COVERTRAY BLACK
Series Color - Order Code
Universal Cover and Bottom
Same part Number - Two Postions		 Standard:
BLACK = 110000

120pcs box weight 15Kg (33-lbs)

Easy use. Single part number.
The same plate snaps onto the top and/or bottom of all JEDEC matrix trays

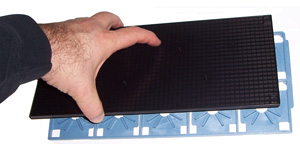

Example: Blue JEDEC matrix tray with COVERTRAY BLACK.

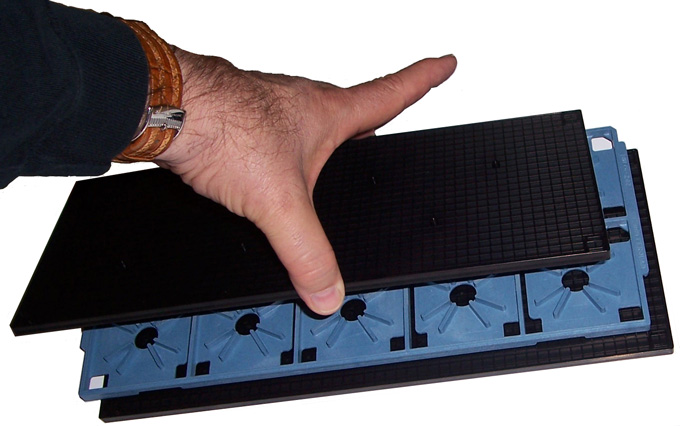

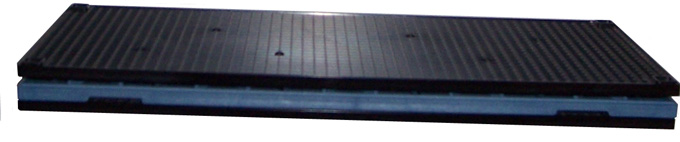

Example: Blue JEDEC matrix tray sandwiched between COVERTRAY BLACK on top and bottom.

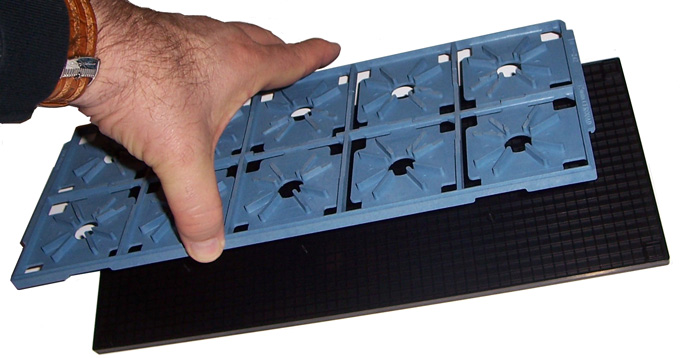

Attach universal COVERTRAY to top and/or bottom of JEDEC matrix tray.
Forms a faradyne shield around components.
Protects the components from dust.
Protects the components from static damage.
