2" Waffle Pack For Bare-Die |
||
 | ||||
|
||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Die Size | Quantity Pockets Per Tray |
Matrix Row-Column |
Order TopLine Part Number |
||||
| 2-Inch Waffle Pack | |||||||
| 0.56mm SQ | 484 | 22 x 22 | WP2-0.56x0.56x0.23-B | ||||
| 1mm SQ | 400 | 20 x 20 | WP2-1.0x1.0x0.6-B | ||||
| 2mm SQ | 100 | 10 x 10 | WP2-2.0x2.0x0.6-B | ||||
| 3mm SQ | 100 | 10 x 10 | WP2-3.0x3.0x0.6-B | ||||
| 4mm SQ | 64 | 8 x 8 | WP2-4.0x4.0x0.6-B | ||||
| 5mm SQ | 49 | 7 x 7 | WP2-5.0x5.0x0.6-B | ||||
| 6mm SQ | 36 | 6 x 6 | WP2-6.0x6.0x0.6-B | ||||
| 7mm SQ | 25 | 6 x 6 | WP2-7.0x7.0x1.0-B | ||||
| 8mm SQ | 16 | 4 x 4 | WP2-8.0x8.0x1.0-B | ||||
| 9mm SQ | 16 | 4 x 4 | WP2-9.0x9.0x1.0-B | ||||
| 10mm SQ | 9 | 3 x 3 | WP2-10x10x1.0-B | ||||
| 12mm SQ | 9 | 3 x 3 | WP2-12x12x1.0-B | ||||
| 13mm SQ | 9 | 3 x 3 | WP2-13x13x1.0-B | ||||
| 14mm SQ | 9 | 3 x 3 | WP2-14x14x1.0-B | ||||
| 15mm SQ | 4 | 2 x 2 | WP2-15x15x1.0-B | ||||
| 17mm SQ | 4 | 2 x 2 | WP2-17x17x1.0-B | ||||
| 19mm SQ | 4 | 2 x 2 | WP2-19x19x1.0-B | ||||
| 21mm SQ | 4 | 2 x 2 | WP2-21x21x1.0-B | ||||
| Notes: Many other sizes available for square and rectangular die. Specify thickness of component when ordering. Be sure to order tray lids and clips. | |||||||
| Accessory | Description | Drawing | Order TopLine Part Number |
 360° SolidworksRotatable Model |
|||

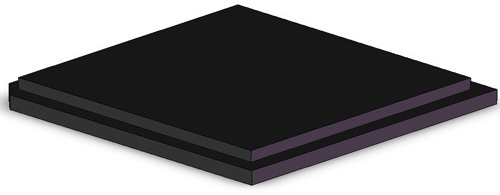

| Standard Cover BLACK |
2-inch Top Cover Seals on top of bottom waffle tray. |
  |
WP2-COVER DP#167859-Black (PC-Polycarbonate) DP#120000-Black (PP-Polypropylene) |
WP2-COVER-B Black Model |
|||

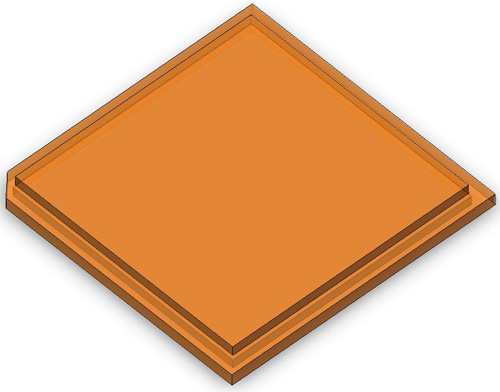

| Amber Cover Translucent |
2-inch Top Cover Seals on top of bottom waffle tray. |
 |
Amber Translucent WP2-COVER-A DP#156693-Translucent |
WP2-COVER-A Amber Model |
|||
|
Extension Cover Application |
For tall components. Adds 0.15mm (0.006") to depth of bottom pocket. |
 |
WP2-0.15MM-COVER DP#120060-Black |
WP2-0.15MM-COVER Model |
|||
|
Extension Cover Application |
For tall components. Adds 0.25mm (0.010") to depth of bottom pocket. |
 |
WP2-0.25MM-COVER DP#120100-Black |
WP2-0.25MM-COVER Model |
|||
|
Extension Cover Application |
For tall components. Adds 0.43mm (0.017") to depth of bottom pocket. |
 |
WP2-0.43MM-COVER DP#120170-Black |
WP2-0.43MM-COVER Model |
|||
|
Extension Cover Application |
For tall components. Adds 1.0mm (0.040") to depth of bottom pocket. |
 |
WP2-1.0MM-COVER DP#120400-Black |
WP2-1.0MM-COVER Model |
|||
|
Extension Cover Application |
For tall components. Adds 1.9mm (0.074") to depth of bottom pocket. |
 |
WP2-1.9MM-COVER DP#120740-Black |
WP2-1.9MM-COVER Model |
|||

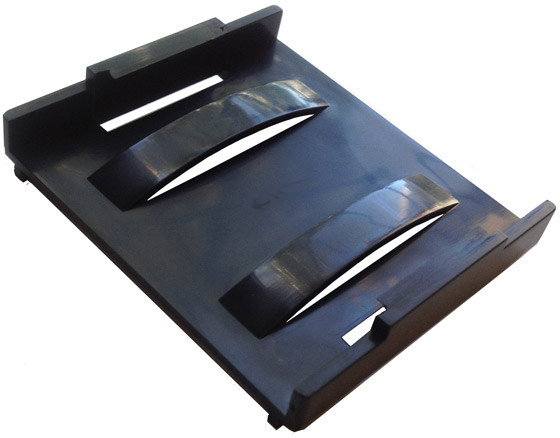

| Clip | Holds 1-tray and 1-cover Order 1x clip. |
 |
WP2-CLIP1 DP#120002-Black DP#156687-Natural |
WP2-CLIP1 Model |
|||

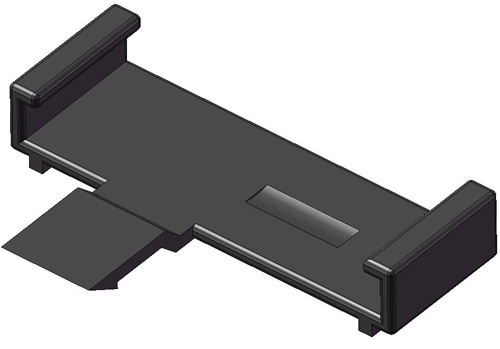

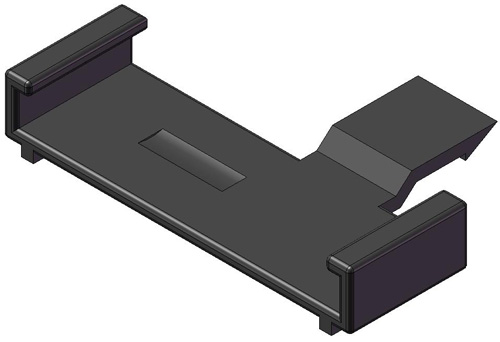

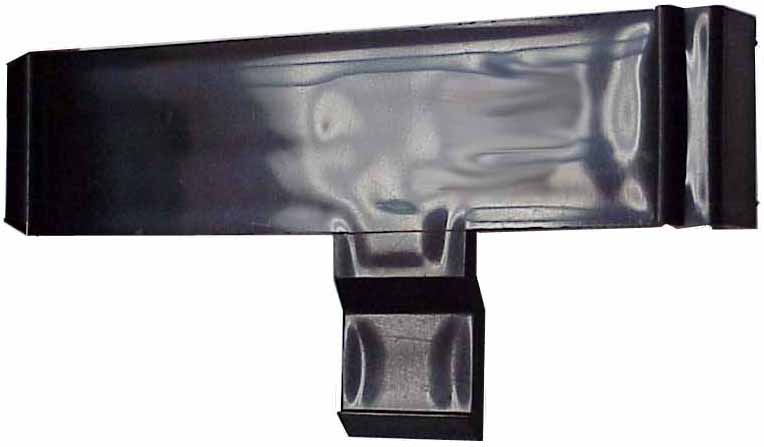

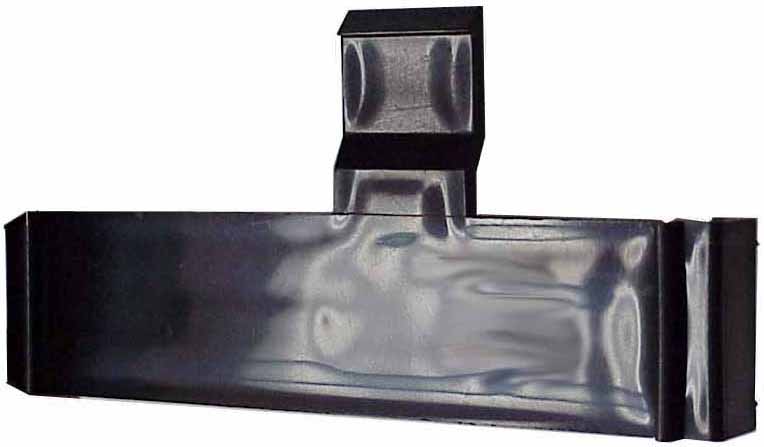

| Clip | Holds 1-tray and 1-cover Order 2x clips. |
  |
WP2-CLIP2 DP#624020-Black DP#167049-Natural |
WP2-CLIP2 Model |
|||

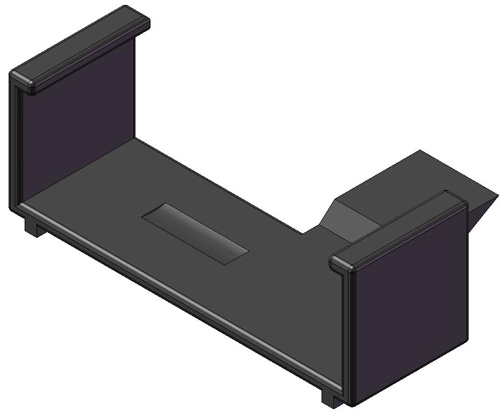

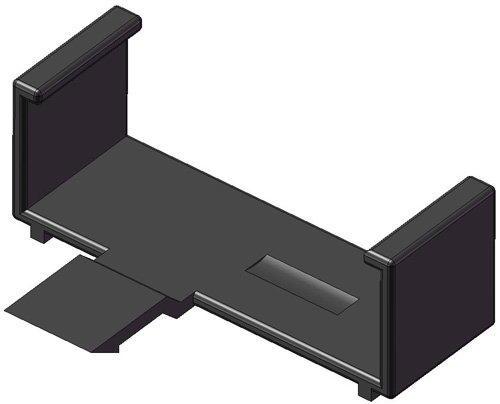

| Clip | Holds 5-trays and 1-cover Order 2 clips. |
  |
WP2-CLIP5 DP#020041-Black DP#041615-Natural |
WP2-CLIP5 Model |
|||

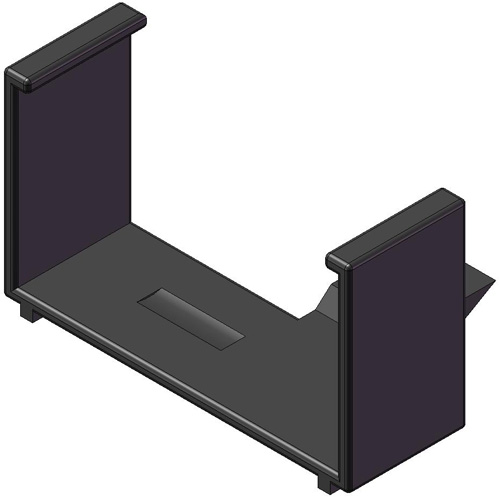

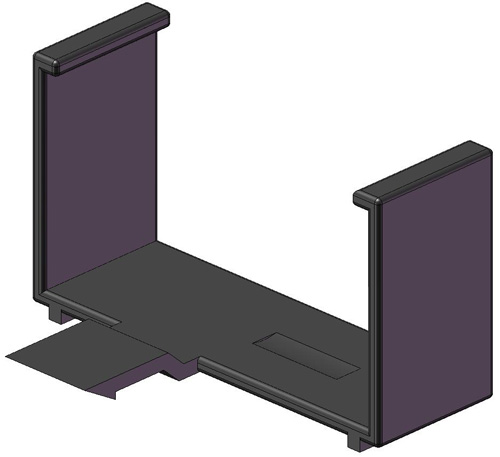

| Clip | Holds 10-trays and 1-cover Order 2 clips. |
  | WP2-CLIP10 DP#020043-Black DP#430615-Natural |
WP2-CLIP10 Model |
|||
| Tyvek® Paper Insert Place between die and cover |
Anti-static 1011 ~ 1012 Ohm per Square Box of 1000 Sheets |
 |
WP2-INSERT-TYVEK DP#120006-Box 1000 Sheets DP#156699-Single Sheets White |
WP2-INSERT-TYVEK Model |
|||

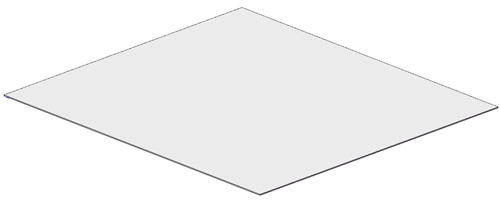

| Polyethylene Insert Place between die and cover |
Dissipative 106 ~ 1010 Ohm per Square Box of 1000 Sheets |
 |
WP2-INSERT-POLY DP#120715-Box 1000 Sheets DP#220715-Single Sheets White (Opaque) |
WP2-INSERT-POLY Model |
|||
| Label Blank Reuseable Self Adhesive |
1.5-inch Square 38mm Sq Roll of 1000 labels |
 |
WP2-LABEL-BLANK DP#158358 - Full Roll 1000 DP#167766 - Cut Roll Singles |
WP2-LABEL-BLANK Model |
|||
| Label Preprinted Self Adhesive |
1.5-inch Square 38mm Sq Roll of 500 labels |
 |
WP2-LABEL-PP DP#016020 - Full Roll 500 DP#167835 - Cut Roll Singles |
WP2-LABEL-PP Model |
|||
| Die Flip and Transfer Fixture |
Use to flip over dies and transfer to new waffle pack. |
 |
WP2-CHIP-TRANSFER DP#167286-Black |
- | |||

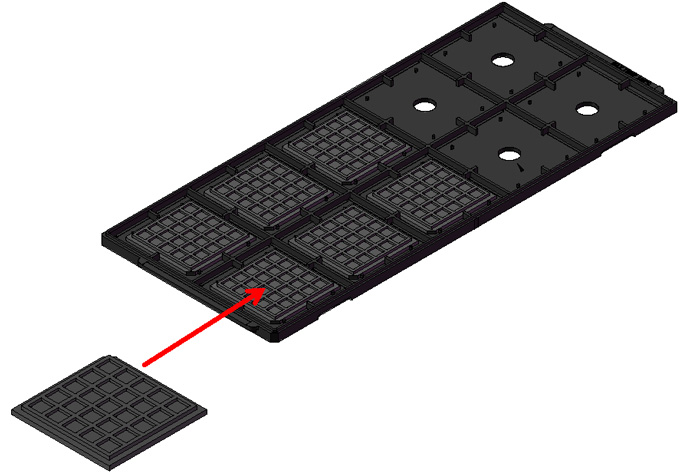

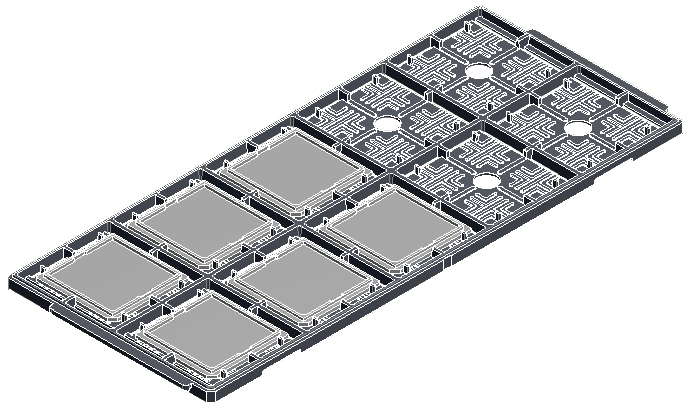

| JEDEC Outine Fixture Black |
Holds 10x 2-inch Waffle Packs ESD Safe |
 |
WP2-JIGTRAY DWG# 782346 |
WP2-JIGTRAY Model |
|||

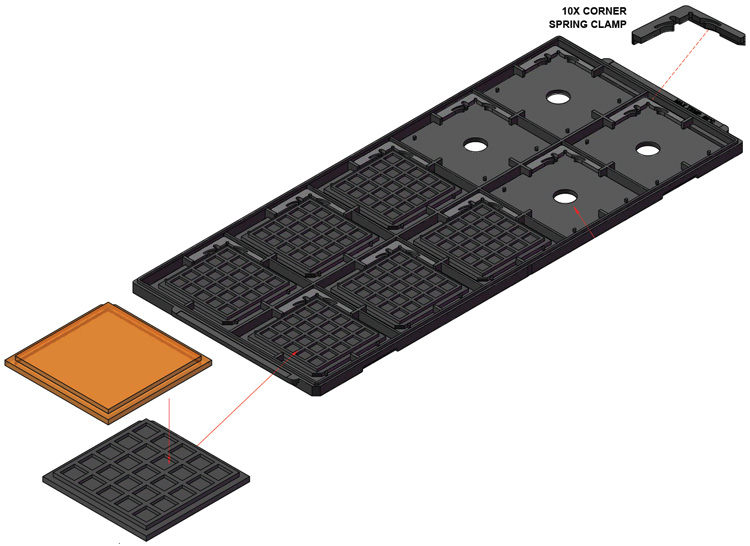

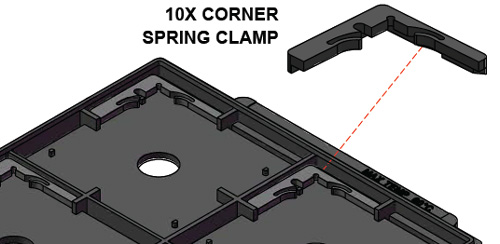

| JEDEC Outine Fixture Black |
Holds 10x 2-inch Waffle Packs ESD Safe Spring Clip Secure Positioning |
 Corner Spring Locks |
WP2-JIGTRAY-E DWG# 782220 New Enhanced Version |
WP2-JIGTRAY-E Model |
|||
| Tray Part Numbering System | |||||
| WP | 2 | - | 7.5 x 5.2 x 0.8 | B | |
| Series | Tray Size | - | Pocket Dimension | Material | |
| Waffle Pack | 2-inch SQ (50mm SQ) |
- | width x length x depth Millimeters |
B = Black (standard) N = Natural |
|
| |||||
| Accessory Part Numbering System | |||||
| WP | 2 | - | Suffix | Option | |
| Series | Tray Size | - | Description | Material | |
| Waffle Pack | 2-inch SQ (50mm SQ) |
- | COVER = Lid CLIP1=Single Clip Holds 1 tray + 1 cover CLIP2=Pair of clips holds 1 tray + 1 Cover CLIP5=Pair of clips holds 5 trays + 1 cover CLIP10=Pair of clips holds 10 trays + 1 cover INSERT-TYVEK=White Pack of 1000 JIGTRAY = JEDEC Outline Holds 10 WP2 2-inch waffle packs LABEL = 1.5" Square Removable Tag Roll=500 labels |
Blank = Black (Opaque) -A = Amber (see thru) -N = Natural |
|
| |||||
