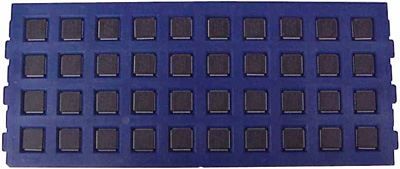

PLCC Tray
JEDEC Matrix IC Trays

PLCC IC matrix trays conform to JEDEC standards
Small Quantity Orders Welcome

Dimensions/Coordinates  •   Full Tray Catalog PDF  •   About JEDEC Trays   •   Custom Tray

QFP Tray  •   BGA Tray  •   SOIC Tray  •   QFN Tray  •   TSOP Tray  •   LGA Tray
Color Tray Clip  •   Universal Tray Covers  •   2" Waffle Pack  •   4" Waffle Pack  •   All Trays



PLCC
Lead Count
Quantity
Pockets
Per Tray
Matrix
Row-Column
Height or
JEDEC
Reference
Order TopLine
Tray Part Number
PLCC Tray
28-L
Square
55 5 x 11 - PLCC28TRAY-5x11
28-L
Square
84 7 x 12 4.1mm PLCC28TRAY-7x12
32-L
Rectangle
128 8 x 16 CO-016AD
CS-003AD
PLCC32TRAY-8x16
44-L
Square
40 4 x 10 4.3mm
CO-016AG
CS-003AG
PLCC44TRAY-4x10
44-L
Square
84 6 x 14 3.6mm Max PLCC44TRAY-6x14
48-L
Square
40 4 x 10 4.3mm Max PLCC48TRAY-4x10
48-L
Square
40 4 x 10 2.8mm Max CLCC48TRAY-4x10
52-L
Square
36 4 x 9 CO-016AH
CS-003AH
PLCC52TRAY-4x9
68-L
Square
21 3 x 7 4.3mm
CO-016AI
CS-003AJ
PLCC68TRAY-3x7
68-L
Square
10 2 x 5 6.0mm CLCC68TRAY-2x5
84-L
Square
21 3 x 7 4.3mm
CO-016AJ
CS-003AK
PLCC84TRAY-3x7


Optional Features:
Specify temperature: 50°C, 75°C, 150°C, 180°C when ordering.
Tray Color Black >150°C.     Blue=50~75°C
