CLCC48J40
J-Lead Ceramic Chip Carrier 48L
TopLine Dummy Component
For training, practice and evaluation


Daisy Chain Drawing

Model Daisy Chain



Open Cavity Drawing

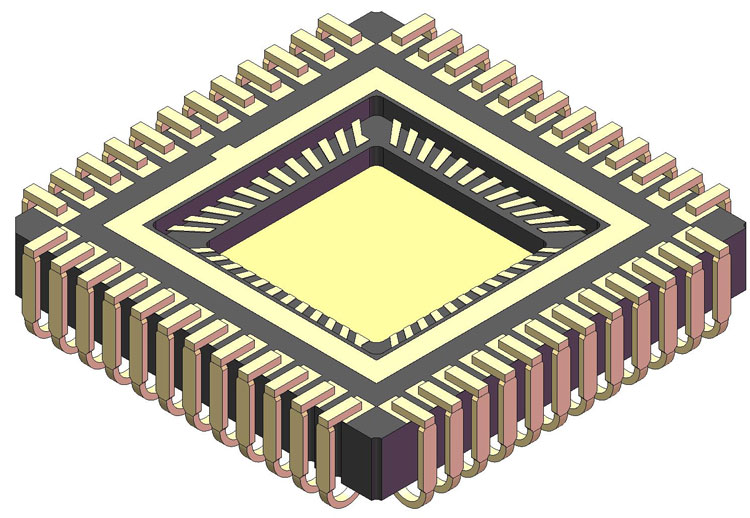

Model Open Cavity

 Quick Specs:
Pin Count 48L
Pitch 40 mil - 0.040" (1.0mm)
Body Size 0.56" SQ (14.25mm SQ)
J-Lead Ceramic Body

Use and Applications:
IPC Solder Training & Practice
Equipment Evaluation
S.I.R. Testing
Prototype PWB

Availability:
Delivery Stock to 4 weeks

Part Numbers with J-Leads:
CLCC48J40 = Gold Leads. With Lid
CLCC48J40-SC = Solder Dip. With Lid
CLCC48J40-N = Gold Leads. Without Lid
CLCC48J40-ISO = Isolated Pins. Gold Leads
CLCC48J40-ISO-SC = Isolated Pins. Solder Leads
CLCC48J40-DE = Daisy Chain. Gold Leads
CLCC48J40-DE-SC = Daisy Chain. Solder Leads


Part Numbering System
CLCC 48 J 40 - N
Series Nbr Pins Lead
Info		 Pitch
Mils		 - Options
Ceramic Chip
Carrier.
Quad Sides.		   J-Leads
Bulk Packed
in tray		 40 Mils
0.040-inch
1.0mm		   -N=Without lid
-DE=Daisy Chain. With lid
-ISO=Isolated Pins
-SC=Solder Dipped SnPb
Blank=Gold Leads. With lid.
Option -N open cavity available for packaging live die.
State your die size requirement.
Solderable combo-lids are available.


Daisy Chain Option -DE
