| Standard Tantalum Chip Capacitor (EIA Size) | |||||||
| Size Code |
EIA Size (metric) |
Size Z (Height) |
Terminal Width |
Qty on Reel |
Tape Width Pitch |
Order Number 7" Reel |
PDF Dwg |

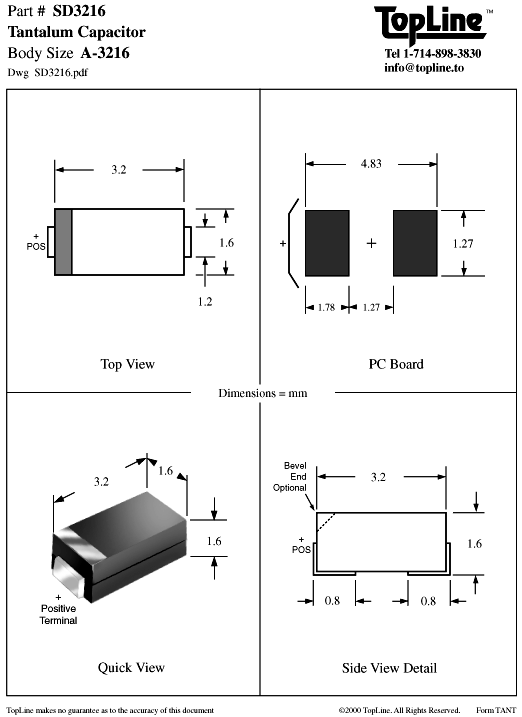

| A | 3216 3.2x1.6mm |
1.6mm | 1.2mm | 2000 | W=8mm P=4mm |
SD3216E7A | |

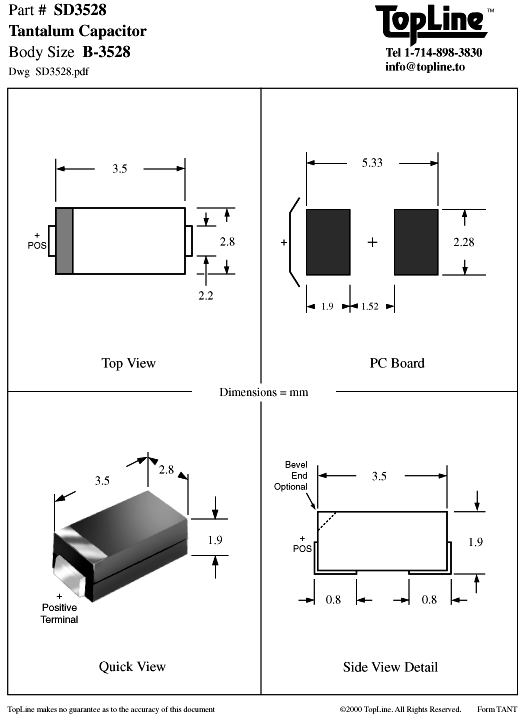

| B | 3528 3.5x2.8mm |
1.9mm | 2.2mm | 2000 | W=8mm P=4mm |
SD3528E7A | |

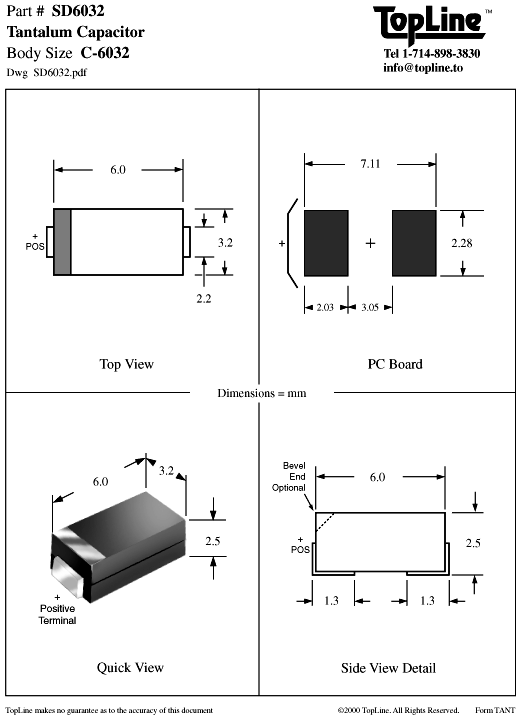

| C | 6032 6.0x3.2mm |
2.5mm | 2.2mm | 500 | W=12mm P=8mm |
SD6032E7A | |
| D | 7343 7.3x4.3mm |
2.8mm | 2.4mm | 500 | W=12mm P=8mm |
SD7343E7A | |
| P/R | 2012 2.0x1.3mm |
1.2mm | 1.0mm | 2500 | W=8mm P=4mm |
SD2012E7A | |
| J | 1608 1.6x0.8mm |
0.85mm | 0.85mm | 500/4000 | W=8mm P=4mm |
SD1608E7A | - |
|
|||||||
| CWR09, CWR19, CWR29 Tantalum Chip Capacitor (COTS Equivalent) | |||||||
| Size Code |
Size X/Y (metric) |
Size Z (Height) |
Terminal Width |
Qty on Reel |
Tape Width Pitch |
Order Number T&R |
Order Number Bulk |
| A | 2512 2.54x1.27mm |
1.27mm | 1.27mm | 500~2500 | W=8mm P=4mm |
SD2516E7A | SD2516B |
| B | 3812 3.81x1.27mm |
1.27mm | 1.27mm | 500~2500 | W=12mm P=4mm |
SD3812E7A | SD3812B |
| C | 5012 5.08x1.27mm |
1.27mm | 1.27mm | 500~2500 | W=12mm P=4mm |
SD5012E7A | SD5012B |
| D | 3825 3.81x2.54mm |
1.27mm | 2.41mm | 500~2500 | W=12mm P=4mm |
SD3825E7A | SD3825B |
| E | 5025 5.08x2.54mm |
1.27mm | 2.41mm | 500~2500 | W=12mm P=4mm |
SD5025E7A | SD5025B |
| F | 5634 5.59x3.43mm |
1.78mm | 3.30mm | 250~1000 | W=12mm P=8mm |
SD5634E7A | SD5634B |
| G | 6728 6.73x2.79mm |
2.79mm | 2.67mm | 100~500 | W=12mm P=8mm |
SD6728E7A | SD6728B |
| H | 7338 7.24x3.81mm |
2.79mm | 3.68mm | 100~500 | W=12mm P=8mm |
SD7338E7A | SD7338B |
| Other sizes available. CWR04, CWR11 and CWR06 style available. | |||||||
|
