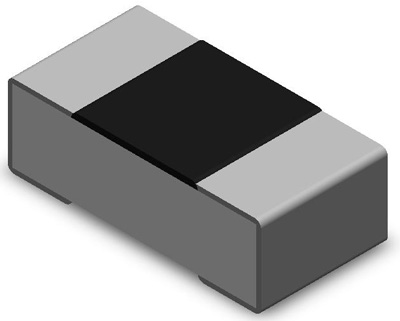

Chip Resistor | |||
 | ||||
|
|
||||
| Chip Menu Wide Terminal Resistor Embedded Resistor RM M55342 Resistor Chip Cap Tantalum Inductor Melf AL Cap Chip Array |
|
|||||||||
 Standard • Chip Codes |
|||||||||
| Size (inch) |
Size (metric) |
Qty 7" Reel |
Qty 4" Reel |
Tape | Order Nbr 7" Reels |
Order Nbr 4" Reels |
|||
| 008004 | 0201 mm 0.25 x 0.125mm Z=0.11mm |
50,000 10,000 5000 |
- | 4mm - W4P1 Pitch 1mm Plastic |
Go to SC008004E7A-W4P1 |
- | |||
| - | 03015 mm 0.30 x 0.15mm Z=0.11mm |
40,000 10,000 5000 |
- | 4mm - W4P1 Pitch 1mm Plastic |
SR03015E7A-W4P1 Classic Wrap Termination Standard |
- | |||
| - | 03015 mm 0.30 x 0.15mm Z=0.11mm |
40,000 10,000 5000 |
- | 4mm - W4P1 Pitch 1mm Plastic |
SR03015BT-E7A-W4P1 Bottom Terminated Under Development |

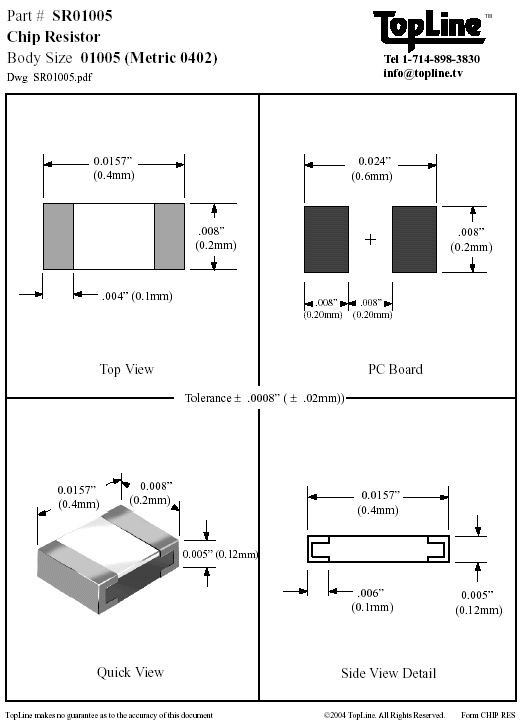

- | |||
| 01005 | 0402 0.4 x 0.2mm |
20,000 10,000 5000 |
1,000 | 8mm - W8P2 Pitch 2mm Paper |
SR01005P7A | SR01005P4A | |||
| 01005 | 0402 0.4 x 0.2mm |
40,000 20,000 10,000 5000 |
1,000 | 4mm - W4P1 Pitch 1mm Plastic |
SR01005E7A-W4P1 | SR01005E7A-W4P1 | |||
| 0201 | 0603 0.6 x 0.3mm |
15,000 10,000 |
1,000 | 8mm - Paper Pitch 2mm |
SR0201P7A | SR0201P4A | |||
| 0402 | 1005 1.0 x 0.5mm |
10,000 | 1,000 | 8mm - Paper Pitch 2mm |
SR0402P7A | SR0402P4A | |||
| 0603 | 1608 1.6 x 0.8mm |
5000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0603P7A | SR0603P4A | |||
| 0805 | 2012 2.0 x 1.2mm |
5000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0805P7A | SR0805P4A | |||
| 1206 | 3216 3.2 x 1.6mm |
5000 | 1,000 | 8mm - Paper Pitch 4mm |
SR1206P7A | SR1206P4A | |||
| 1210 | 3225 3.2 x 2.5mm |
4000 | 1,000 | 8mm - Plastic Pitch 4mm |
SR1210E7A | SR1210E4A | |||
| 1812 | 4532 4.5 x 3.2mm |
4000 | 500 | 12mm - Plastic Pitch 4mm |
SR1812E7A | SR1812E4A | |||
| 2010 | 5025 5.0 x 2.5mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2010E7A | SR2010E4A | |||
| 2512 | 6332 6.3 x 3.2mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2512E7A | SR2512E4A | |||
| For Zero ohm, add "ZERO" to end of part number. Example: SR0603P7A-ZERO | |||||||||
Lead Free • RoHS • Pb-Free • Sn100 Tin • Chip Codes |
|||||||||
| Size |
Size (metric) |
Qty 7" Reel |
Qty 4" Reel |
Tape | Order Number 7" Reel |
Order Number 4" Reel |
|||
| - | 03015 mm 0.3 x 0.15mm Z=0.11mm |
40,000 10,000 5000 |
1,000 | 4mm - W4P1 Pitch 1mm Plastic |
SR03015E7A-W4P1 | - | |||
| 01005 | 0402 0.4 x 0.2mm |
20,000 10,000 5000 |
1,000 | 8mm - W8P2 Pitch 2mm Paper |
SR01005P7A-TIN | SR01005P4A-TIN | |||
| 01005 | 0402 0.4 x 0.2mm |
40,000 10,000 5000 |
1,000 | 4mm - W4P1 Pitch 1mm Plastic |
SR01005E7A-W4P1 | SR01005E7A-W4P1 | |||
| 0201 | 0603 0.6 x 0.3mm |
15,000 10,000 |
1,000 | 8mm - Paper Pitch 2mm |
SR0201P7A-TIN | SR0201P4A-TIN | |||
| 0402 | 1005 1.0 x 0.5mm |
10,000 | 1,000 | 8mm - Paper Pitch 2mm |
SR0402P7A-TIN | SR0402P4A-TIN | |||
| 0603 | 1608 1.6 x 0.8mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0603P7A-TIN | SR0603P4A-TIN | |||
| 0805 | 2012 2.0 x 1.2mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0805P7A-TIN | SR0805P4A-TIN | |||
| 1206 | 3216 3.2 x 1.6mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR1206P7A-TIN | SR1206P4A-TIN | |||
| 1210 | 3225 3.2 x 2.5mm |
4,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR1210P7A-TIN | SR1210P4A-TIN | |||
| 1812 | 4532 4.5 x 3.2mm |
4000 | 500 | 12mm - Plastic Pitch 4mm |
SR1812E7A-TIN | SR1812E4A-TIN | |||
| 2010 | 5025 5.0 x 2.5mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2010E7A-TIN | SR2010E4A-TIN | |||
| 2512 | 6332 6.3 x 3.2mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2512E7A-TIN | SR2512E4A-TIN | |||
| For Zero ohm, add "ZERO" to end of part number. Example: SR0805P7A-ZERO-TIN | |||||||||
Zero Ohm Lead Free • RoHS • Pb-Free • Sn100 Tin • Chip Codes |
|||||||||
| Size |
Size (metric) |
Qty 7" Reel |
Qty 4" Reel |
Tape | Order Number 7" Reel |
Order Number 4" Reel |
|||
| 01005 Zero Ohm |
0402 0.4 x 0.2mm |
20,000 | 1,000 | 8mm - Paper Pitch 2mm |
SR01005P7A-ZERO-T | SR01005P4A-ZERO-T | |||
| 0201 Zero Ohm |
0603 0.6 x 0.3mm |
15,000 10,000 |
1,000 | 8mm - Paper Pitch 2mm |
SR0201P7A-ZERO-T | SR0201P4A-ZERO-T | |||
| 0402 Zero Ohm |
1005 1.0 x 0.5mm |
10,000 | 1,000 | 8mm - Paper Pitch 2mm |
SR0402P7A-ZERO-T | SR0402P4A-ZERO-T | |||
| 0603 Zero Ohm |
1608 1.6 x 0.8mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0603P7A-ZERO-T | SR0603P4A-ZERO-T | |||
| 0805 Zero Ohm |
2012 2.0 x 1.2mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0805P7A-ZERO-T | SR0805P4A-ZERO-T | |||
| 1206 Zero Ohm |
3216 3.2 x 1.6mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR1206P7A-ZERO-T | SR1206P4A-ZERO-T | |||
| 1210 Zero Ohm |
3225 3.2 x 2.5mm |
4,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR1210P7A-ZERO-T | SR1210P4A-ZERO-T | |||
| 1812 Zero Ohm |
4532 4.5 x 3.2mm |
4000 | 500 | 12mm - Plastic Pitch 4mm |
SR1812E7A-ZERO-T | SR1812E4A-ZERO-T | |||
| 2010 Zero Ohm |
5025 5.0 x 2.5mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2010E7A-ZERO-T | SR2010E4A-ZERO-T | |||
| 2512 Zero Ohm |
6332 6.3 x 3.2mm |
4000 | 250 | 12mm - Plastic Pitch 4mm |
SR2512E7A-ZERO-T | SR2512E4A-ZERO-T | |||

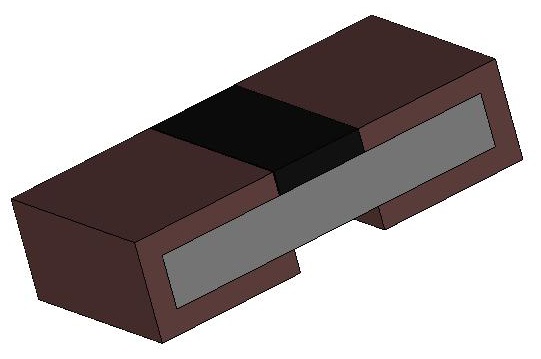

 Embeded Zero Ohm Copper Clad • RoHS • Pb-Free • Cu plated • Chip Codes • More Details |
|||||||||
| Size |
Size (metric) |
Qty 7" Reel |
Qty 4" Reel |
Tape | Order Number 7" Reel |
Order Number 4" Reel |
|||
| 01005 Zero Ohm |
0402 0.4 x 0.2mm |
20,000 5,000 |
1,000 | 8mm - Paper Pitch 2mm |
eSR01005P7A-ZERO-CU | eSR01005P4A-ZERO-CU | |||
| 0201 Zero Ohm |
0603 0.6 x 0.3mm |
15,000 5,000 |
1,000 | 8mm - Paper Pitch 2mm |
eSR0201P7A-ZERO-CU | eSR0201P4A-ZERO-CU | |||
| 0402 Zero Ohm |
1005 1.0 x 0.5mm |
10,000 5,000 |
1,000 | 8mm - Paper Pitch 2mm |
eSR0402P7A-ZERO-CU | eSR0402P4A-ZERO-CU | |||
 Wide Terminal ResistorPb-Free • Lead Free • Chip Codes |
  Rotatable 360°Solidworks Model |
||||||||
| Size |
Size (metric) |
Qty 7" Reel |
Qty 4" Reel |
Tape | Order Number 7" Reel |
Order Number 4" Reel |
|||
| 0306 | 0816 1.2 x 2.0mm |
1,000 | - | 8mm - Paper Pitch 4mm |
SR0306P7A-T 1000pcs |
|
|||
| 0508 | 1220 1.2 x 2.0mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0508P7A-T 5000pcs |
SR0508P4A-T 1000pcs |
|||
| 0612 | 1632 1.6 x 3.2mm |
5,000 | 1,000 | 8mm - Paper Pitch 4mm |
SR0612P7A-T 5000pcs |
SR0612P4A-T 1000pcs |
|||
| 0815 | 2037 2.0 x 3.75mm |
5,000 | 1,000 | 12mm - Plastic Pitch 4mm |
SR0815E7A-T 5000pcs |
SR0815E4A-T 1000pcs |
|||
| 0830 | 2075 2.0 x 7.5mm |
2,000 | 250 | 16mm - Plastic Pitch 4mm |
SR0830E7A-T 2000pcs |
SR0830E7B-T 250pcs |
|||
| 1020 | 2550 2.5 x 5.0mm |
5,000 | 1,000 | 12mm - Plastic Pitch 4mm |
SR1020E7A-T 5000pcs |
SR1020E4A-T 1000pcs |
|||
| 1218 | 3245 3.2 x 4.5mm |
4,000 | 1,000 | 12mm - Plastic Pitch 4mm |
SR1218E7A-T 4000pcs |
SR1218E4A-T 1000pcs |
|||
| 1225 | 3264 3.2 x 6.4mm |
4,000 | 1,000 | 12mm - Plastic Pitch 4mm |
SR1225E7A-T 4000pcs |
SR1225E4A-T 1000pcs |
|||
| 2030 | 5176 5.1 x 7.6mm |
1,000 | 250 | 16mm - Plastic Pitch 8mm |
SR2030E7A-T 1000pcs |
SR2030E7B-T 250pcs |
|||
| For Zero ohm, add "ZERO" to end of part number. Example: SR0612P7A-ZERO-TIN | |||||||||
|
