Chip Inductor | |||
 | ||||
|
|
||||
| Go to--> Chip Menu Resistor Capacitor Tantalum Melf AL Cap Crystal Array |
|
 |
|||||
| Size (inch) |
Size (metric) |
Body Style |
Qty on Reel |
Tape Width |
Order Number 7" Reel |
PDF Dwg |

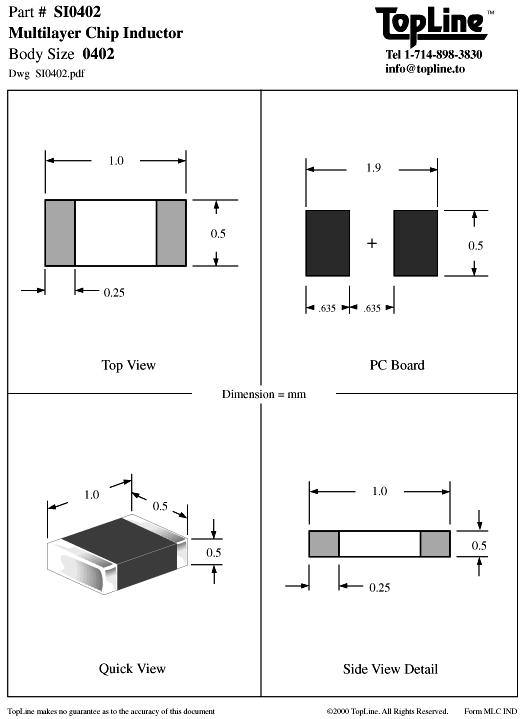

| 0402 | 1005 | multilayer | 4000 | 8mm | SI0402P7A | |
| 0603 | 1608 | multilayer | 4000 | 8mm | SI0603P7A | |
| 0805 | 2012 | multilayer | 3000~4000 | 8mm | SI0805E7A | |

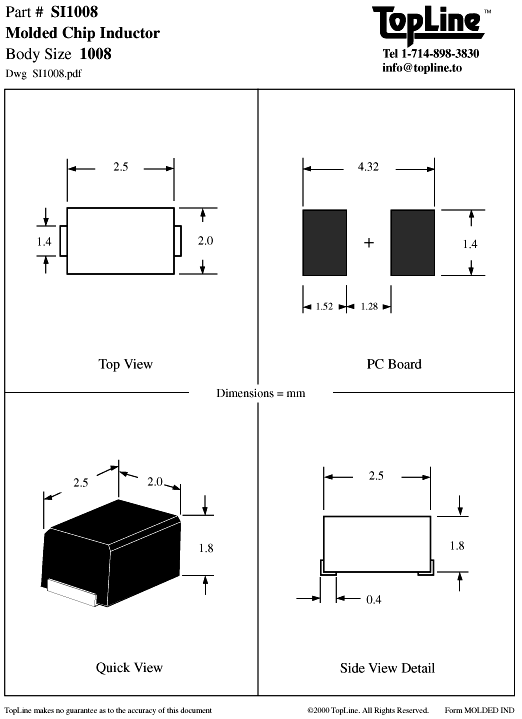

| 1008 | 2520 | molded | 2000 | 8mm | SI1008E7A | |

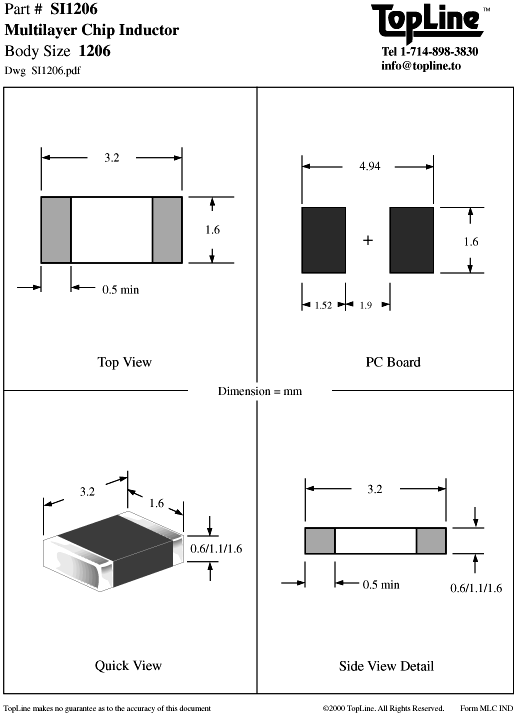

| 1206 | 3216 | multilayer | 2000 | 8mm | SI1206E7A | |

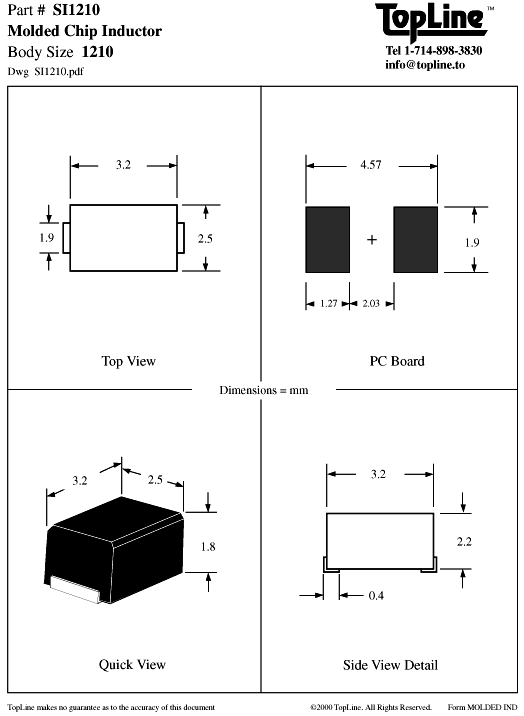

| 1210 | 3225 | molded | 2000 | 8mm | SI1210E7A | |

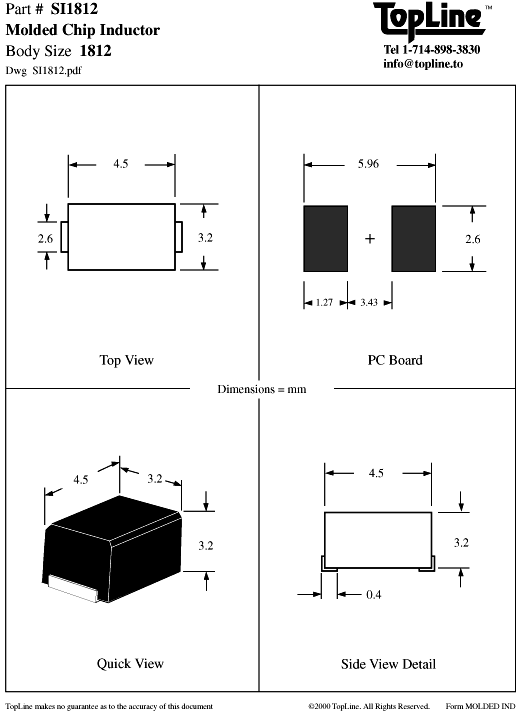

| 1812 | 4532 | molded | 500 | 12mm | SI1812E7A | |
|
