Chip Capacitor | |||
 | ||||
|
|
||||
| Chip Menu • Resistor • Tantalum • Inductor • Melf • AL Cap • Crystal • Array • Ferrite Bead • Bulk Cassette |
|
 Pb-Free • RoHS • Tin (Sn) • Lead Free •
Chip Codes |
|||||
| Size (inch) |
Size (metric) |
Qty 7" Reel |
Tape | 7" Reel Order Number |
4" Reel Order Number |
PDF Dwg |
| 008004 0.008" x 0.005" |
0201mm 0.25 x 0.125mm |
5000~ 50,000 |
4mm - W4P1 Pitch 1mm Plastic |
SC008004E7A-W4P1 5K, 10K, 50Kpcs |
- | - |
| -- 0.012" x 0.006" |
03015mm 0.30 x 0.15mm |
40,000 | 4mm - W4P1 Pitch 1mm Plastic |
Go To: SR03015E7A-W4P1 40Kpcs |
- | |

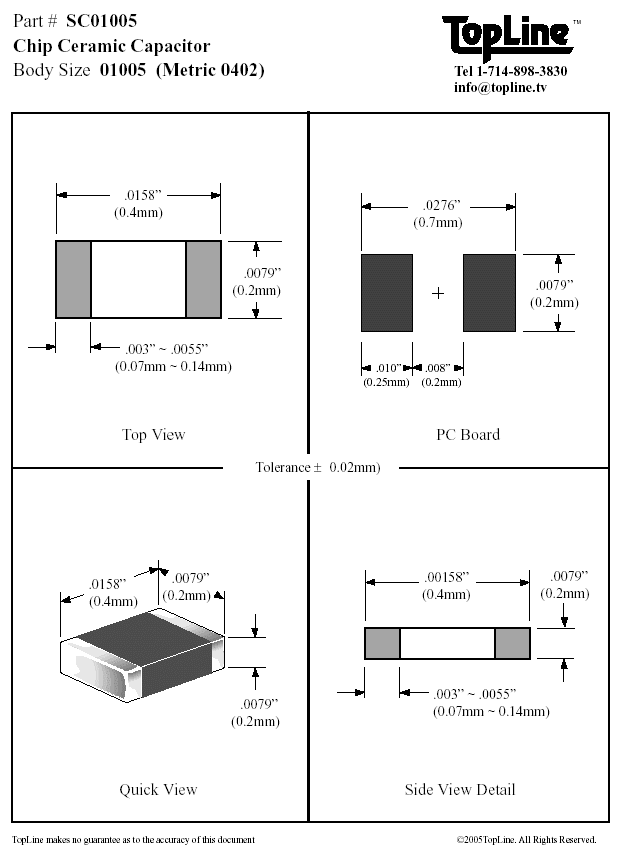

| 01005 0.016" x 0.008" |
0402mm 0.4 x 0.2mm |
5000~ 20,000 |
8mm - W8P2 Pitch 2mm Paper |
SC01005P7A-TIN 5K or 20Kpcs |
SC01005P4A-TIN 1000pcs |
|
| 01005 0.016" x 0.008" |
0402mm 0.4 x 0.2mm |
5000~ 40,000 |
4mm - W4P1 Pitch 1mm Plastic |
SC01005E7A-W4P1 5K, 10K or 40Kpcs |
- | |

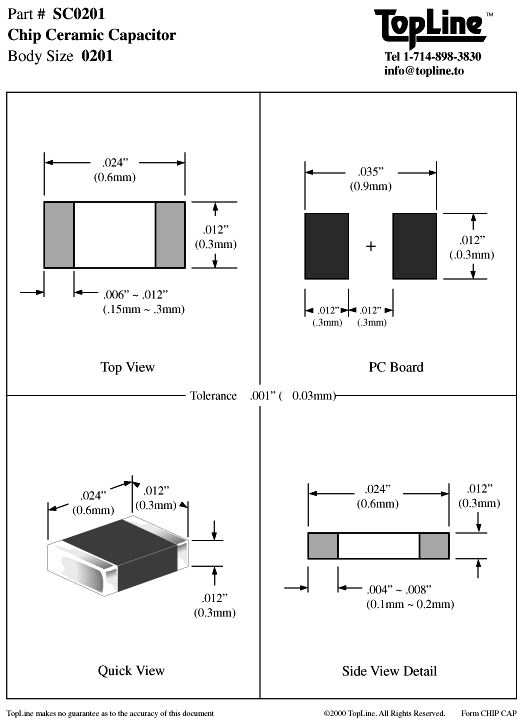

| 0201 0.024" x 0.012" |
0603mm 0.6 x 0.3mm |
15,000 | 8mm Pitch 2mm Paper |
SC0201P7A-TIN 15000pcs |
SC0201P4A-TIN 500pcs |
|

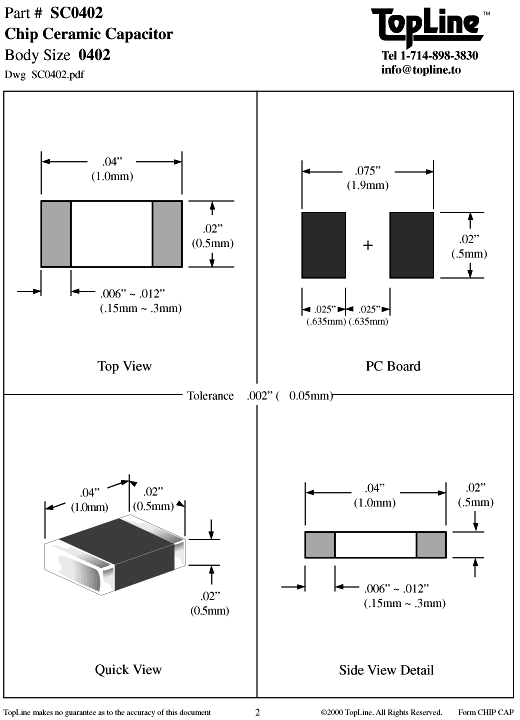

| 0402 0.040" x 0.020" |
1005 1.0 x 0.5mm |
10,000 | 8mm Pitch 2mm Paper |
SC0402P7A-TIN 10000pcs |
SC0402P4A-TIN 500pcs |
|

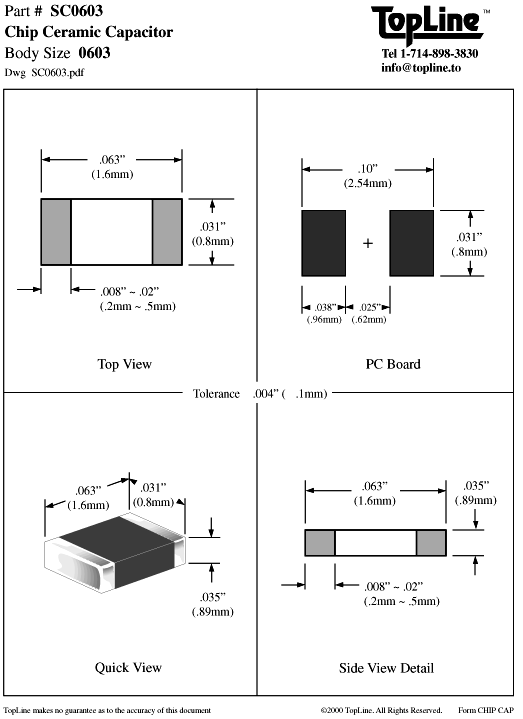

| 0603 0.063" x 0.032" |
1608 1.6 x 0.8mm |
4000 | 8mm Pitch 4mm Paper |
SC0603P7A-TIN 4000pcs |
SC0603P4A-TIN 500pcs |
|

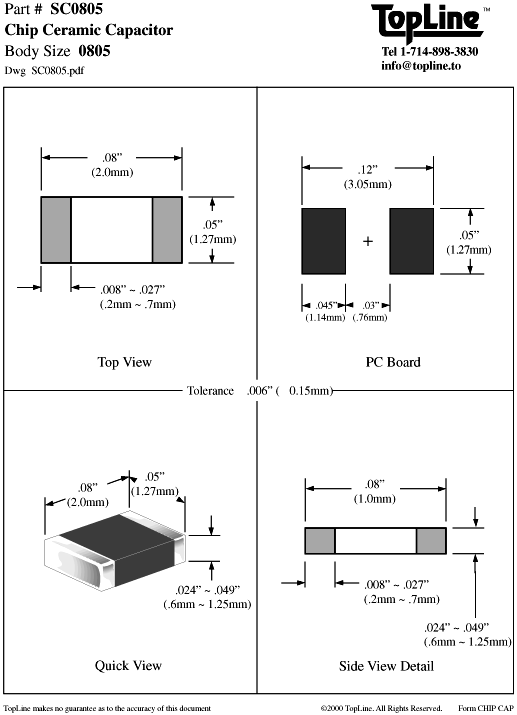

| 0805 0.08" x 0.05" |
2012 2.0 x 1.2mm |
4000 | 8mm Pitch 4mm Paper |
SC0805P7A-TIN 4000pcs |
SC0805P4A-TIN 500pcs |
|
| 0805 0.08" x 0.05" |
2012 2.0 x 1.2mm |
4000 | 8mm Pitch 4mm Plastic |
SC0805E7A-TIN 4000pcs |
SC0805E4A-TIN 500pcs |
|
| 1206 0.126" x 0.063" |
3216 3.2 x 1.6mm |
4000 | 8mm Pitch 4mm Paper |
SC1206P7A-TIN 4000pcs |
SC1206P4A-TIN 500pcs |
|
| 1206 0.126" x 0.063" |
3216 3.2 x 1.6mm |
3000~ 4000 |
8mm Pitch 4mm Plastic |
SC1206E7A-TIN 3K~4Kpcs |
SC1206E4A-TIN 500pcs |
|
| 1210 0.126" x 0.10" |
3225 3.2 x 2.5mm |
3000~ 4000 |
8mm Pitch 4mm Plastic |
SC1210E7A-TIN 3K~4Kpcs |
SC1210E4A-TIN 500pcs |
|
| 1812 0.18" x 0.12" |
4532 4.5 x 3.2mm |
1000~ 1500 |
12mm Pitch 8mm Plastic |
SC1812E7A-TIN 1K~1.5Kpcs |
SC1812E4A-TIN 100pcs |
|

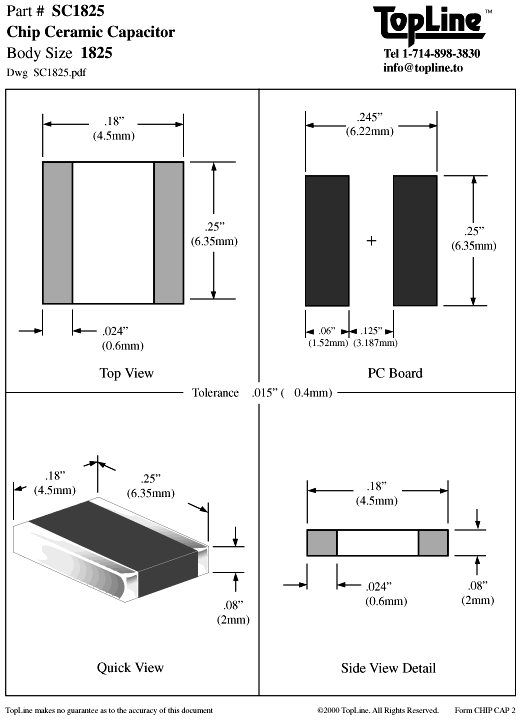

| 1825 0.18" x 0.25" |
4563 4.5 x 6.3mm |
1000 | 12mm Pitch 8mm Plastic |
SC1825E7A-TIN 1000pcs |
SC1825E4A-TIN 100pcs |
|

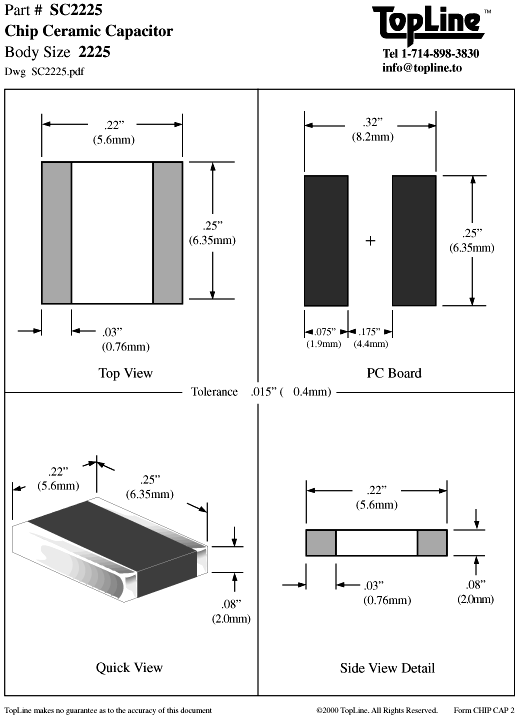

| 2225 0.22" x 0.25" |
5664 5.6 x 6.4mm |
1000 | 12mm Pitch 8mm Plastic |
SC2225E7A-TIN 1000pcs |
SC2225E4A-TIN 100pcs |
|
 Low Inductance Style • Pb-Free • RoHS • Tin (Sn) • Lead Free |
||||||
| Size (inch) |
Size (metric) |
Qty 7" Reel |
Tape | 7" Reel Order Number |
4" Reel Order Number |
PDF Dwg |
| 0204 0.020" x 0.040" |
0510 0.5 x 1.0mm |
5000~ 15000 |
8mm Pitch 2mm Paper |
SC0204P7A-TIN 5K,15Kpcs |
SC0204P4A-TIN 1000pcs |
|
| 0306 0.032" x 0.063" |
0816 0.8 x 1.6mm |
4000 | 8mm Pitch 4mm Paper |
SC0306P7A-TIN 4000pcs |
SC00306P4A-TIN 500pcs |
|
| 0508 0.05" x 0.08" |
1220 1.2 x 2.0mm |
4000 | 8mm Pitch 4mm Paper |
SC0508P7A-TIN 4000pcs |
SC0508P4A-TIN 500pcs |
|
| 0612 0.063" x 0.126" |
1632 1.6 x 3.2mm |
4000 | 8mm Pitch 4mm Paper |
SC0612P7A-TIN 4000pcs |
SC0612P4A-TIN 500pcs |
|
| Standard Non-RoHS |
||||||
| Size (inch) |
Size (metric) |
Qty 7" Reel |
Tape | 7" Reel Order Number |
4" Reel Order Number |
PDF Dwg |
| 01005 0.016" x 0.08" |
0402 0.4 x 0.2mm |
20,000 | 8mm Pitch 2mm Paper |
SC01005P7A 20000pcs |
SC01005P4A 1000pcs |
|
| 0201 0.024" x 0.012" |
0603 0.6 x 0.3mm |
15,000 | 8mm Pitch 2mm Paper |
SC0201P7A 15000pcs |
SC0201P4A 500pcs |
|
| 0402 0.040" x 0.020" |
1005 1.0 x 0.5mm |
10,000 | 8mm Pitch 2mm Paper |
SC0402P7A 10000pcs |
SC0402P4A 500pcs |
|
| 0504 0.05" x 0.04" |
1.27 x 1.0mm |
4000 | 8mm Pitch 4mm Plastic |
SC0504E7A 4000pcs |
SC0504E4A 500pcs |
|
| 0504 0.05" x 0.04" |
1.27 x 1.0mm |
4000 | 8mm Pitch 4mm Paper |
SC0504P7A 4000pcs |
SC0504P4A 500pcs |
|
| 0603 0.063" x 0.032" |
1608 1.6 x 0.8mm |
4000 | 8mm Pitch 4mm Paper |
SC0603P7A 4000pcs |
SC0603P4A 500pcs |
|
| 0805 0.08" x 0.05" |
2012 2.0 x 1.2mm |
4000 | 8mm Pitch 4mm Paper |
SC0805P7A 4000pcs |
SC0805P4A 500pcs |
|
| 0805 0.08" x 0.05" |
2012 2.0 x 1.2mm |
4000 | 8mm Pitch 4mm Plastic |
SC0805E7A 4000pcs |
SC0805E4A 500pcs |
|
| 1206 0.126" x 0.063" |
3216 3.2 x 1.6mm |
4000 | 8mm Pitch 4mm Paper |
SC1206P7A 4000pcs |
SC1206P4A 500pcs |
|
| 1206 0.126" x 0.063" |
3216 3.2 x 1.6mm |
3000~ 4000 |
8mm Pitch 4mm Plastic |
SC1206E7A 3K~4Kpcs |
SC1206E4A 500pcs |
|
| 1210 0.126" x 0.10" |
3225 3.2 x 2.5mm |
3000~ 4000 |
8mm Pitch 4mm Plastic |
SC1210E7A 3K~4Kpcs |
SC1210E4A 500pcs |
|
| 1805 0.18" x 0.05" |
4.5 x 1.2mm |
1000~ 3000 |
12mm Pitch 4mm Plastic |
SC1805E7A 1K~3Kpcs |
SC1805E4A 200pcs |
|
| 1806 0.18" x 0.063" |
4.5 x 1.6mm |
1000~ 3000 |
12mm Pitch 4mm Plastic |
SC1806E7A 1K~3Kpcs |
SC1806E4A 200pcs |
|
| 1808 0.18" x 0.08" |
4.5 x 2.0mm |
1000~ 3000 |
12mm Pitch 4mm Plastic |
SC1808E7A 1K~3Kpcs |
SC1808E4A 200pcs |
|
| 1812 0.18" x 0.12" |
4532 4.5 x 3.2mm |
1000~ 1500 |
12mm Pitch 8mm Plastic |
SC1812E7A 1K~1.5Kpcs |
SC1812E4A 100 & 200pcs |
|
| 1825 0.18" x 0.25" |
4563 4.5 x 6.3mm |
1000 | 12mm Pitch 8mm Plastic |
SC1825E7A 1000pcs |
SC1825E4A 100pcs |
|
| 2211 0.22" x 0.11" |
5628 5.6 x 2.8mm |
500 | 12mm Pitch 8mm Plastic |
SC2211E7A 500pcs |
SC2211E4A 100pcs |
- |
| 2220 0.22" x 0.20" |
5650 5.6 x 6.4mm |
1000 | 12mm Pitch 8mm Plastic |
SC2220E7A 1000pcs |
SC2220E4A 100pcs |
- |
| 2225 0.22" x 0.25" |
5664 5.6 x 6.4mm |
1000 | 12mm Pitch 8mm Plastic |
SC2225E7A 1000pcs |
SC2225E4A 100pcs |
|
| Other Non-RoHS Tin-Lead Available: CDR01, CDR02, CDR03, CDR04, CDR05, CDR06 | ||||||
| Large Size Chip RoHS |
||||||
| Size (inch) |
Size (metric) |
Qty Per Tray |
Tray Packaging |
Tray Order Number |
PDF Dwg |
|
| 3035 0.30" x 0.35" |
7689 7.62 x 8.89mm |
50 | Tray | SC3035B-T 50pcs |
- | |
| 3333 0.33" x 0.33" |
8484 8.38 x 8.38mm |
50 | Tray | SC3333B-T 50pcs |
- | |
| 3530 0.35" x 0.30" |
8976 8.89 x 7.62mm |
50 | Tray | SC3330B-T 50pcs |
- | |
| 3640 0.36" x 0.40" |
- 9.14 x 10.16mm |
50 | Tray | SC3640B-T 50pcs |
- | |
| 3940 0.39" x 0.40" |
- 9.91 x 10.16mm |
50 | Tray | SC3940B-T 50pcs |
- | |
| 4045 0.40" x 0.45" |
- 10.16 x 11.43mm |
50 | Tray | SC4045B-T 50pcs |
- | |
| 4252 0.42" x 0.52" |
- 10.67 x 13.2mm |
25 | Tray | SC4252B-T 25pcs |
- | |
| 4540 0.45" x 0.40" |
- 11.43 x 10.16mm |
50 | Tray | SC4540B-T 50pcs |
- | |
| 5550 0.55" x 0.50" |
- 14.00 x 12.70mm |
25 | Tray | SC5550B-T 25pcs |
- | |
| 5780 0.57" x 0.80" |
- 14.50 x 20.32mm |
25 | Tray | SC5780B-T 25pcs |
- | |
| 5868 0.58" x 0.68" |
- 14.73 x 17.27mm |
25 | Tray | SC5868B-T 25pcs |
- | |
| 6560 0.65" x 0.60" |
- 16.50 x 15.24mm |
25 | Tray | SC6560B-T 25pcs |
- | |
| 7680 0.76" x 0.80" |
- 19.30 x 20.32mm |
25 | Tray | SC7680B-T 25pcs |
- | |
| 7875 0.78" x 0.75" |
- 19.81 x 19.05mm |
25 | Tray | SC7875B-T 25pcs |
- | |
| 8840 0.88" x 0.40" |
- 22.35 x 10.16mm |
25 | Tray | SC8840B-T 25pcs |
- | |
|
